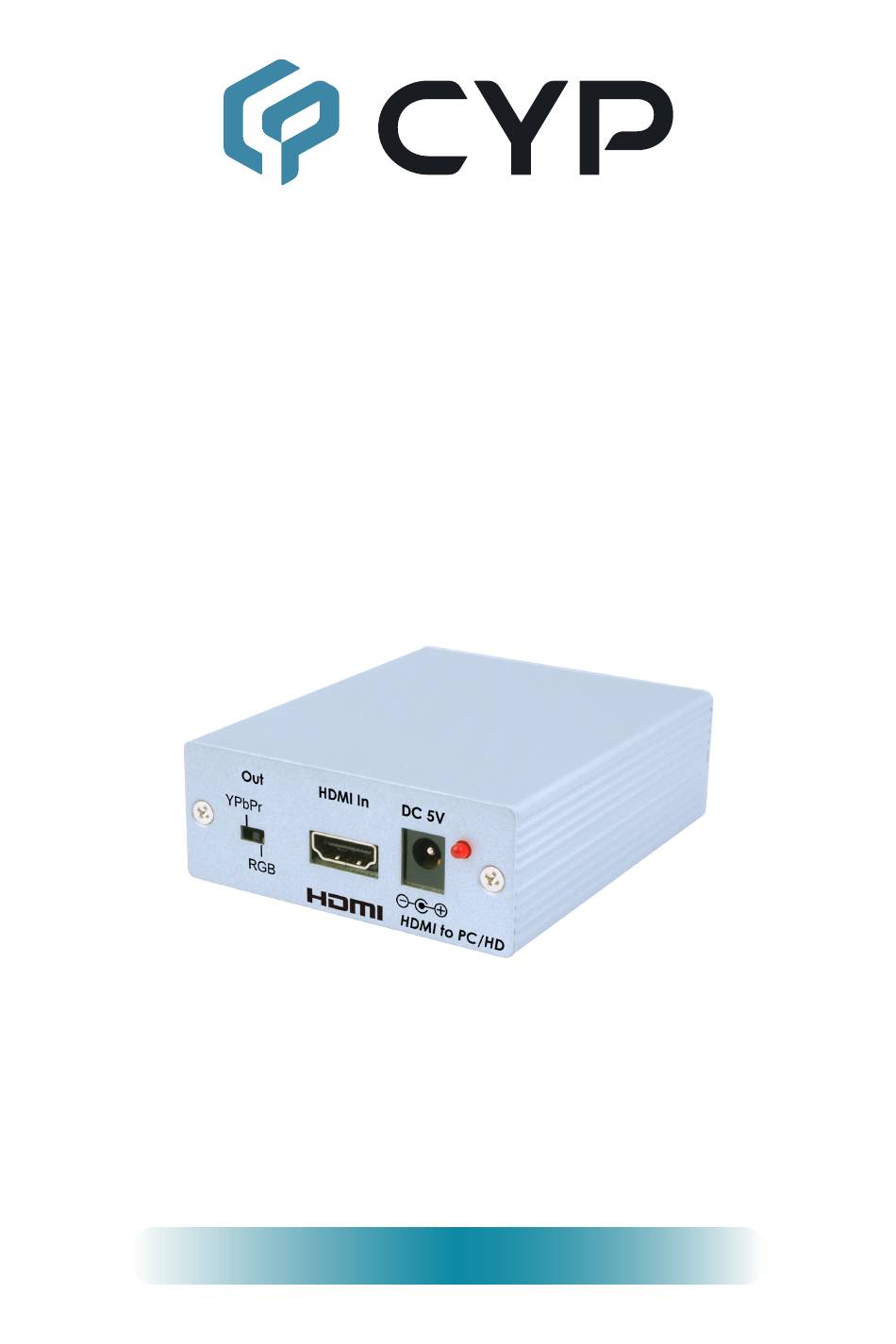

- Page 1 CP-1262HAT HDMI to VGA Video Converter Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ............1 2. Applications ............. 1 3. Package Contents ........... 1 4. System Requirements ........1 5. Features............1 6. Operation Controls and Functions ....2 6.1 Front Panel ..........2 6.2 Rear Panel........... 3 7. Connection Diagram ........4 8. -
Page 6: Introduction
1. INTRODUCTION Despite the widespread adoption and popularity of HDMI video sources and displays, many specialist fields continue to need, and use, legacy display technology such as VGA. This HDMI to VGA Video Converter can take any standard HDMI source, without HDCP, and output it as either an RGBHV or YPbPr signal. -
Page 7: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel PC/YPbPr PC/YPbPr Out Port: Connect to a VGA or component video monitor or display for analog video output. Note: Connection to a component video display may require a 15-pin to 3-RCA adapter. L/R Out Port: Connect to powered speakers or an amplifier for stereo L/R audio output. -
Page 8: Rear Panel

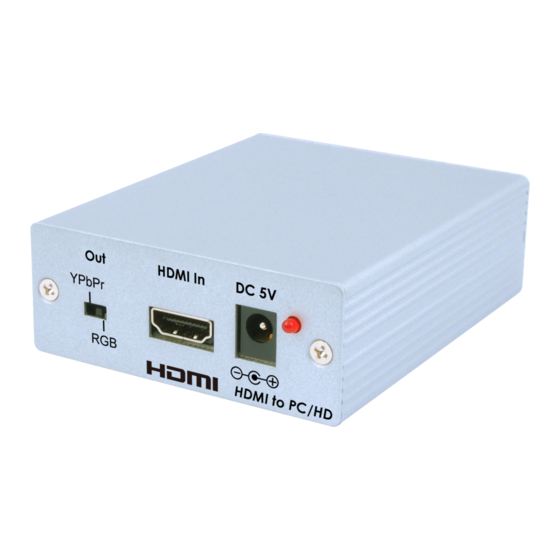

6.2 Rear Panel HDMI In DC 5V YPbPr HDMI to PC/HD OUTPUT YPbPr/RGB Switch: Set the switch to RGB to output a standard PC signal (RGBHV format). Set the switch to YPbPr to output a component video signal (YPbPr format). Switching between formats takes roughly 20 seconds to complete. -
Page 9: Connection Diagram
7. CONNECTION DIAGRAM Laptop HDMI Input HDMI In DC 5V YPbPr HDMI to PC/HD PC/YPbPr Power Supply VGA Output L/R Output Monitor Active Speaker... -
Page 10: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 4.95Gbps VGA Bandwidth 165MHz Input Port 1×HDMI (Type-A) Output Ports 1×VGA (HD-15) 1×Analog Stereo (3.5mm) Power Supply 5V/1.2A DC (US/EU standards, CE/FCC/UL certified) ESD Protection (HBM) ±8kV (Air Discharge) ±4kV (Contact Discharge) Dimensions (W×H×D) 76.5mm×94mm×30mm [Case Only] 76.5mm×99.5mm×30mm [All Inclusive] Weight... -
Page 11: Video Specifications
8.2 Video Specifications Input Output Supported Resolutions (Hz) HDMI YPbPr 720×400p@70/85 640×480p@60/72/75/85 720×480i@60 720×480p@60 720×576i@50 720×576p@50 800×600p@56/60/72/75/85 848×480p@60 ... - Page 12 Input Output Supported Resolutions (Hz) HDMI YPbPr 2560×1440p@60RB 2560×1600p@60RB 2048×1080p@24/25/30 2048×1080p@50/60 3840×2160p@24/25/30 3840×2160p@50/60 (4:2:0) 3840×2160p@24, HDR10 3840×2160p@50/60 (4:2:0), HDR10 ...
-
Page 13: Audio Specifications
8.3 Audio Specifications 8.3.1 Digital Audio HDMI Input LPCM Max Channels 2 Channels Sampling Rate (kHz) 32, 44.1, 48, 88.2, 96 Bitstream Supported Formats None 8.3.2 Analog Audio Analog Output Max Audio Level 1.2Vrms THD+N < −80dB@0dBFS 1kHz (A-wt) > 70dB@0dBFS Frequency Response <... -
Page 14: Cable Specifications
8.4 Cable Specifications 1080p 4K30 4K60 (4:4:4) (4:4:4) Cable Length 8-bit 12-bit 8-bit 8-bit High Speed HDMI Cable HDMI Input VGA Cable VGA Output Bandwidth Category Examples: • 1080p (FHD Video) - Up to 1080p@60Hz, 12-bit color - Data rates lower than 5.3Gbps or below 225MHz TMDS clock •... -
Page 15: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Audio/Video Digital-to-Analog Converter Decibel Digital Visual Interface EDID Extended Display Identification Data Gbps Gigabits per second High-Definition HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface High Dynamic Range HDTV High-Definition Television Light-Emitting Diode LPCM Linear Pulse-Code Modulation Megahertz Signal-to-Noise Ratio... - Page 16 CYPRESS TECHNOLOGY CO., LTD. www.cypress.com.tw...
