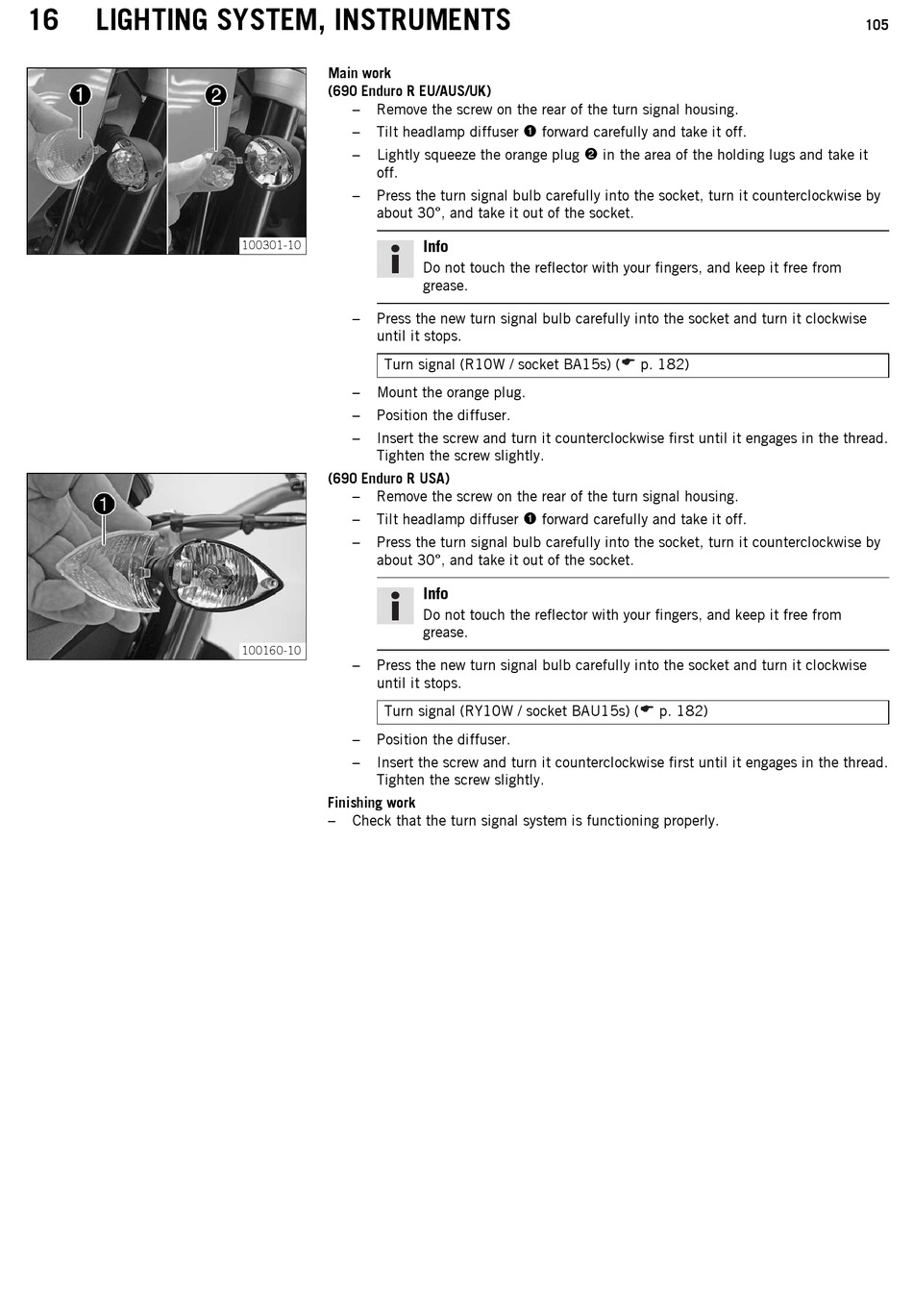

16 LIGHTING SYSTEM, INSTRUMENTS
Main work
(690 Enduro R EU/AUS/UK)
–
Remove the screw on the rear of the turn signal housing.
–
Tilt headlamp diffuser
–
Lightly squeeze the orange plug
off.
–
Press the turn signal bulb carefully into the socket, turn it counterclockwise by
about 30°, and take it out of the socket.
100301-10
–
Press the new turn signal bulb carefully into the socket and turn it clockwise
until it stops.
Turn signal (R10W / socket BA15s) (
–
Mount the orange plug.
–
Position the diffuser.
–
Insert the screw and turn it counterclockwise first until it engages in the thread.
Tighten the screw slightly.
(690 Enduro R USA)
–
Remove the screw on the rear of the turn signal housing.
–
Tilt headlamp diffuser
–
Press the turn signal bulb carefully into the socket, turn it counterclockwise by
about 30°, and take it out of the socket.
100160-10
–
Press the new turn signal bulb carefully into the socket and turn it clockwise
until it stops.
Turn signal (RY10W / socket BAU15s) (
–
Position the diffuser.
–
Insert the screw and turn it counterclockwise first until it engages in the thread.
Tighten the screw slightly.
Finishing work
–
Check that the turn signal system is functioning properly.
forward carefully and take it off.
1
2
Info
Do not touch the reflector with your fingers, and keep it free from
grease.
forward carefully and take it off.
1
Info
Do not touch the reflector with your fingers, and keep it free from
grease.
in the area of the holding lugs and take it
p. 182)
p. 182)
