7. Functions and operation

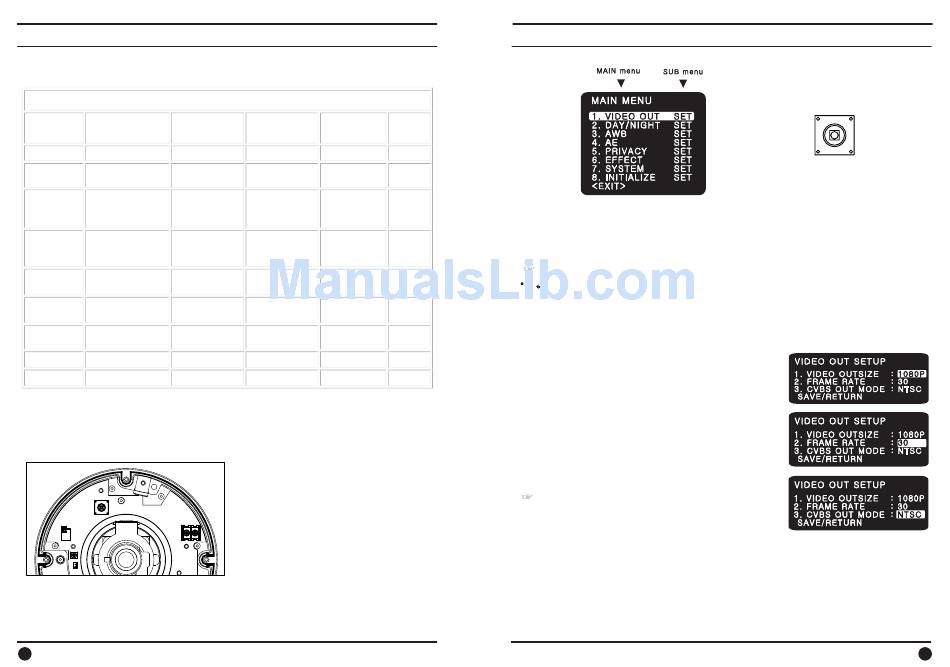

7-1. On Screen Display Menu

MAIN MENU

VIDEO OUT

VIDEO OUTSIZE FRAME RATE
AUTO MENU NORMAL 50HZ INDOOR
AUTO/COLOR/IR D TO N LEVEL
DAY/NIGHT
N TO D LEVEL
AWB (ATW)/PUSH/HOLD RED
TRACK/USER/8000K/
6000K/4200K/3200K
AE
IRIS DC IRIS
ATR-EX(WDR) BLC/FLC
DSS
PRIVACY AREA NUMBER MASK DEFINE
MASK POSITION PRIVACY RESET
EFFECT COLOR ADJUST SHARPNESS
2DNR 3DNR
SYSTEM CAMERA ID ID DISPLAY
FIRMWARE 485 TERM
INITIALIZE FACTORY INIT
EXIT SAVE/EXIT EXIT

7-2. Setting up the menu

Settings can be made using the OSD Switch located on the back of the camera.
3. Change the status of the selected feature using the LEFT/RIGHT selections.
When the LEFT or RIGHT selection is done, available values and modes are
displayed in order.
Please keep the selection until you get to the mode you wish to operate.
14
CVBS OUT MODE SAVE/
RETURN
60HZ INDOOR OUTDOOR RETURN
D TO N TIME D/N RESET RETURN
N TO D TIME
BLUE AWB RESET RETURN
BRIGHTNESS FLICKERLESS RETURN
LSC AGC
AE RESET
MASK PATTERN MASK SIZE RETURN
CONTRAST REVERSAL RETURN
EFFECT RESET
CAMERA NAME NAME DISPLAY RETURN
SYSTEM RESET
BAUD RATE
RETURN
RETURN
1. Press the button to access the
SETUP mode.
The SETUP menu is displayed on the
monitor.
2. Please select any function you wish to
activate by using the UP/DOWN selections.
The bar can be moved up or down by using
the UP/DOWN selections.
Position the bar to point to the function you
wish to operate.
7. Functions and operation
* MAIN-menu : Use UP/ DOWN selections. / SUB-menu : Use LEFT/ RIGHT selection
4. When completed, move the cursor indicator to 'EXIT' position and press the
Button to finish the setting.
NOTE
· If appears at the mode you wish to operate, it means that there is a sub-menu
which can be selected by OSD Switch
7-3. VIDEO OUT
(1) VIDEO OUTSIZE
- VIDEO OUTSIZE can be set to 1080P, 1080i, 720P
according to Local Regulation.
(2) FRAME RATE
- Six modes of 60/59.94/50/30/29.97/25 can be
selected.
(3) CVBS OUT MODE
- CVBS output can be set to NTSC or PAL according
to local TV standard.
NOTE
In case of 1080i mode, only 3 types of Frame rate
are available and they are 60/50/59.94 respectively.
When you use 1080P 60 mode, please check your
DVR or related HD devices first whether they support this mode or not.
(In this mode, cable connection distance is less than half of 1080P 30 mode.)
UP
LEFT RIGHT
DOWN
