5. Installation

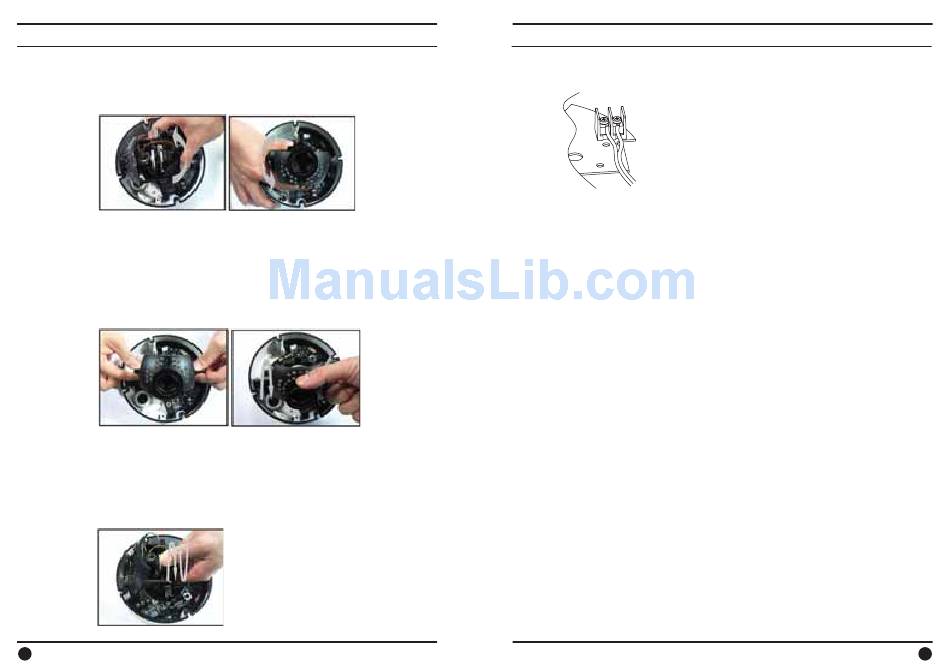

5-5. How to adjust the camera angle.

a. Panning 180°
· Angle adjustment either to the left direction or right direction within 180° is available.
1. Hold the pan locking ring with hand and loosen it by turning it counterclockwise as in the
above picture left.
2. Adjust the panning angle and lock the pan locking ring by turning it clockwise as in the
picture.
b. Tilt 90°
· Angle adjustment of up to maximum 90° downward is possible.
1. Hold the Tilt locking levers on both sides with hand and loosen it by turning it Counter
clockwise as in the picture left.
2. Adjust the Tilt angle with hand and lock the Tilt locking lever by turning it clockwise as
in the picture.
c. Rotation 360°
10
- Grab the both ends of the Rotation handle
as in the picture and adjust the angle to
the direction you want.
- Angle adjustment either to the left direction
or right direction within 360° is available.
5. Installation

5-6. How to connect the power

① 12VDC (DC Type)
※ Non-polarity
Connect the copper wire of the power cable to the screw terminal provided at the end of the
camera cable.
Required power supply for 12VDC : 400mA(IR OFF)/570mA(IR ON) regulated.
11
