INSTALLATION

Electrical installation

DANGER!
If the mains cable or plug is damaged, it must be replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid SERIOUS INJURY OR DEATH!

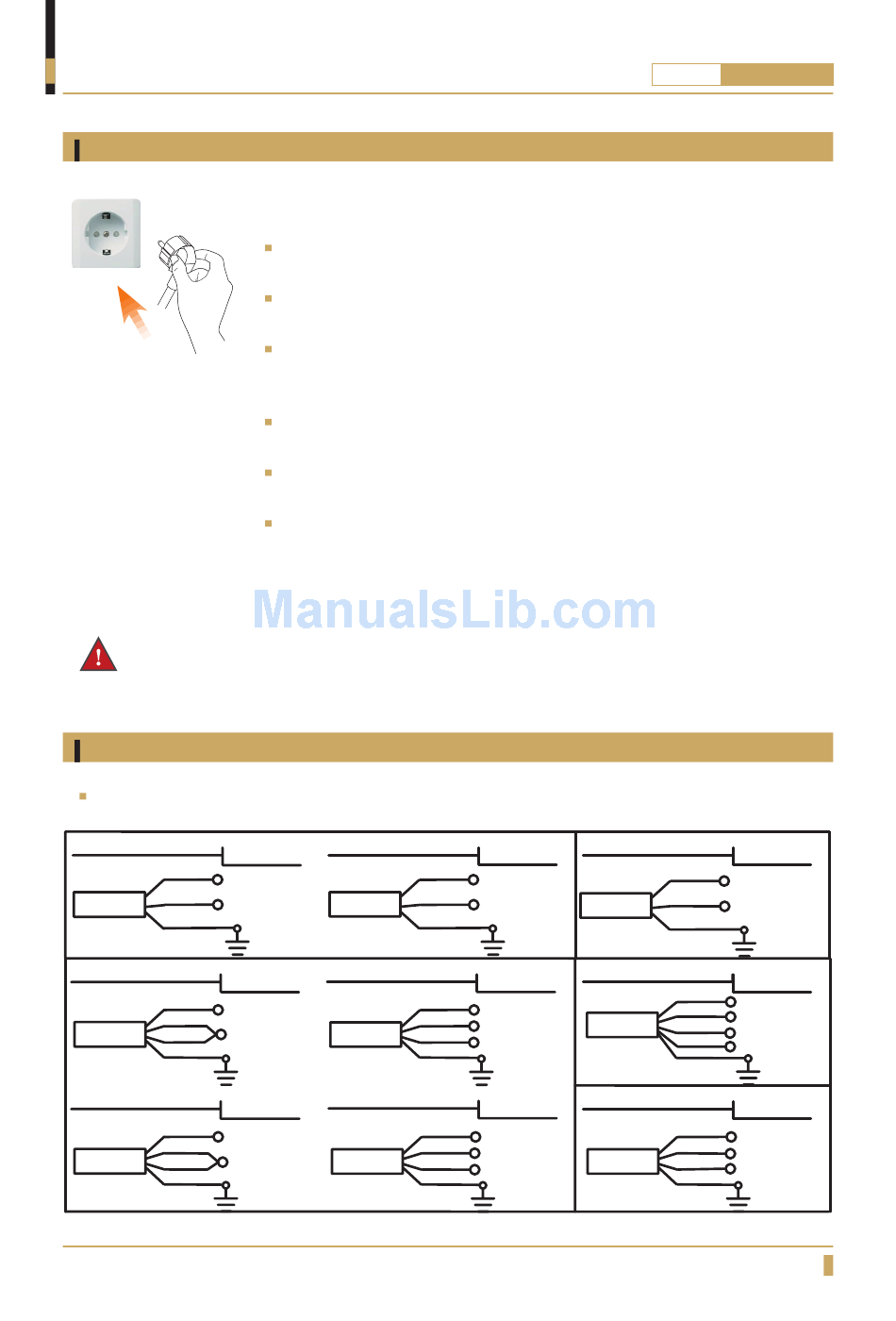

Connection types

Connect the machine as per the instructions on the ratings plate.
220-240Vac Ph+N
Machine:
220-240Vac Ph+N
Blue
NEUTRAL
Brown
Supply hose PHASE
Yellow/Green
2Ph+N
Machine:
220-240Vac Ph+N
Blue
NEUTRAL
Brown
Supply hose
PHASE
Black
Yellow/Green
Machine: 2Ph+N
2Ph 220-240Vac
Blue
NEUTRAL
Brown
Supply hose
PHASE
Black
Yellow/Green
The coffee machine should only be connected to the power supply by qualified
personnel. The following safety instructions should be followed at all times:
Check that the electrical specifications on the ratings plate match the
specifications of the power supply at the point of installation.
The coffee machine must be connected to an earthed socket that complies
with the regulations in force in the country of installation.
You should protect the electric line of the installation with a circuit breaker
switch appropriated for the power consumption of the machine, specified
on its ratings plate.
A residual current circuit breaker must be installed in accordance with the
characteristics of the area of the installation.
Check the characteristics, power rating of the system and that the diameter
of the cables are suitable for the power used by the machine.
Do not connect the coffee machine to the power supply via extension
boards, adapters or shared sockets.
The manufacturer will not be held liable for damage to persons, animals or
property resulting from incorrect installation of the coffee machine.
Supply Machine: 220-240Vac Ph+N
Supply hose
Supply
Machine: 2Ph+N
Supply hose
Yellow/Green
Supply Machine: 2Ph+N
Supply hose
Yellow/Green
Supply
Machine:
2Ph 220-240Vac
Blue
PHASE
Brown
PHASE Supply hose
Yellow/Green
Supply Machine:
2Ph 380Vac+N
Blue
NEUTRAL
Brown
PHASE
Black
PHASE
Supply Machine:
3Ph 220-240Vac
Blue
PHASE
Brown
PHASE
Black
PHASE
Rosetta Capsule Group
125Vac Ph+N
Supply
125Vac Ph+N
Blue
NEUTRAL
Brown
PHASE
Yellow/Green
380Vac 3Ph
Supply
3Ph 380Vac+N
Blue
NEUTRAL
Brown
PHASE
Supply hose
Grey
PHASE
Black
PHASE
Yellow/Green
220-240Vac 3Ph
Supply
3Ph 220-240Vac
Blue
PHASE
Brown
PHASE
Supply hose
Black
PHASE
Yellow/Green
