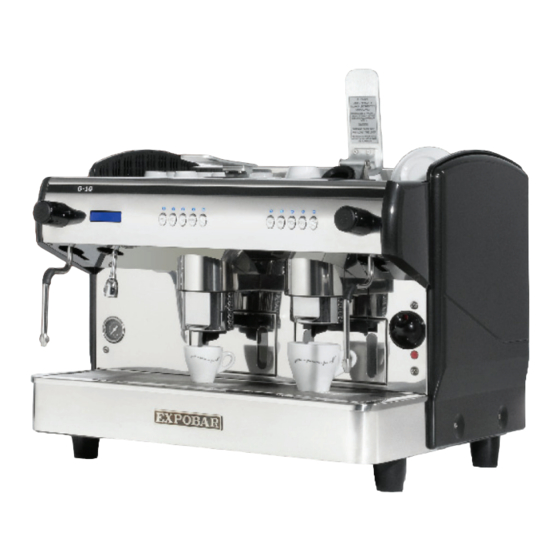

Expobar G-10 User Manual
  1. Manuals
  2. Brands
  3. Expobar Manuals
  4. Coffee Maker
  5. G-10
  6. User manual

Expobar G-10 User Manual

Capsule group
Hide thumbs Also See for G-10:
Table of Contents

Advertisement

Quick Links

See also: Service Manual , User Manual
G-10
CAPSULE GROUP
USER MANUAL
R
UM_EN
Date.: 141016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G-10 and is the answer not in the manual?

Questions and answers

Related Manuals for Expobar G-10

Summary of Contents for Expobar G-10

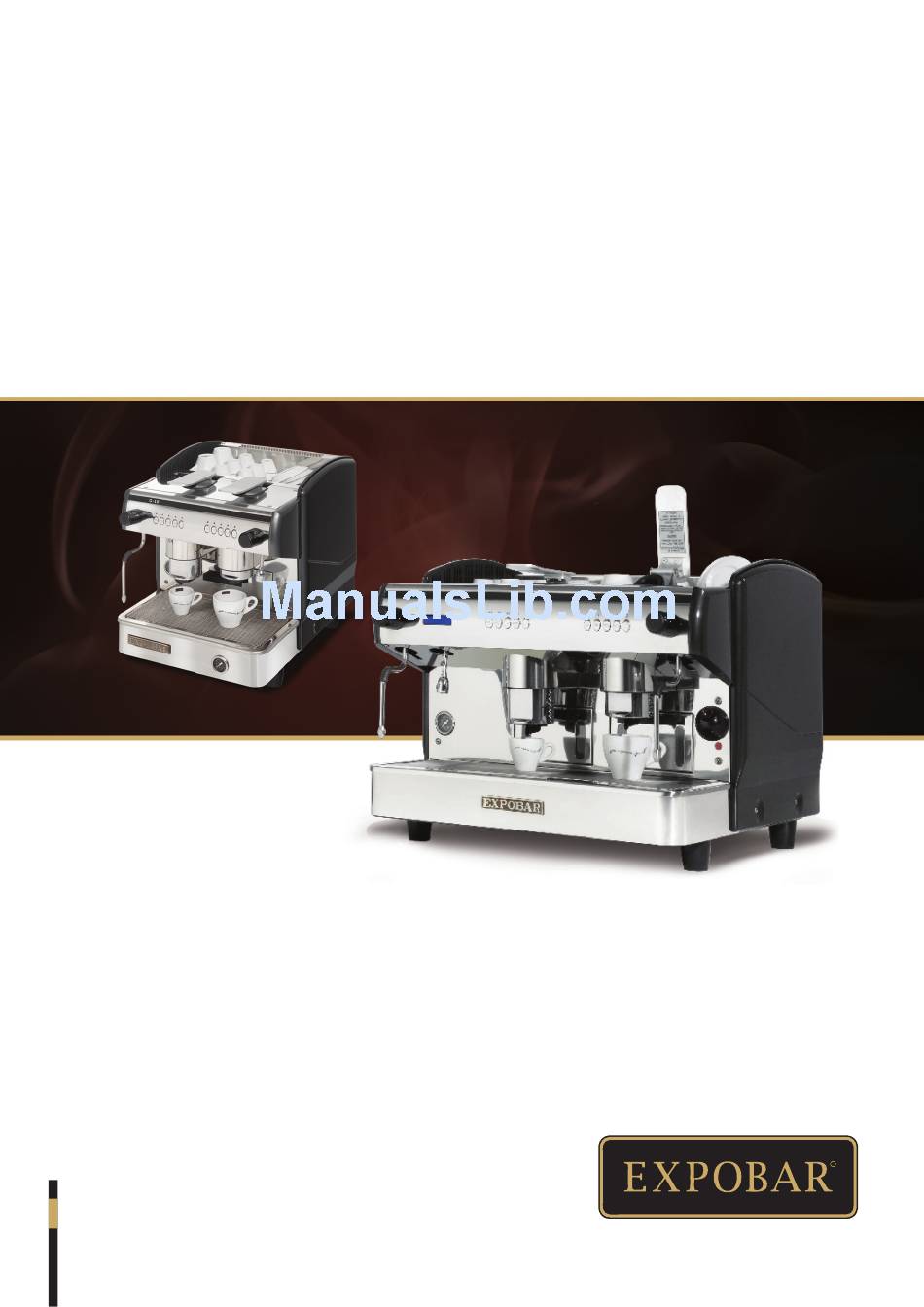

  • Page 1 G-10 CAPSULE GROUP USER MANUAL UM_EN Date.: 141016...

  • Page 2: Table Of Contents

    Intended use TECHNICAL SPECIFICATIONS ...........................7 Data sheet ..........................................7 ......................................Accessories OVERVIEW OF COMPONENTS ..........................8 .............................. G-10 MINI CONTROL 2GR CAPSULE ............................G-10 DISPLAY CONTROL 2GR CAPSULE DIMENSION SKETCH ..............................10 ............................G-10 MINI CONTROL 2GR CAPSULE ............................. G-10 DISPLAY CONTROL 2GR CAPSULE TRANSPORT ..................................12...
  • Page 3 CONTENTS G-10 CAPSULE GROUP ..................................Rinsing the capsule group ................................. Cleaning the capsule group ................................Disassemble the group gasket ..........................Cleaning the group gasket and capsule holder ................................Reassembly the group gasket ................................Removing the adjustable spout ................................Cleaning the adjustable spout ..............................

  • Page 4: Symbol Description

    SYMBOL DESCRIPTION G-10 CAPSULE GROUP Hazard intensity levels There are three different levels of hazard intensity, identified by signal words DANGER, WARNING and IMPORTANT. The level of hazard is determined by the following definitions. Observe the statements to ensure safety, performance, prevent injury and machine damage.

  • Page 5: General

    GENERAL G-10 CAPSULE GROUP Introduction Thank you for choosing the G-10 capsule machine. We hope you enjoy it ! Read the user manual before using the machine. Keep this manual close to hand for future This manual contains important instructions on reference.

  • Page 6: Precautions

    GENERAL G-10 CAPSULE GROUP Do not remove or disable any of the mechanical, 5ºC. Boxes may be stacked in piles of up to three electrical or thermal protection mechanisms. units of the same model. Do not place other heavier packages on top of the box.

  • Page 7: Technical Specifications

    TECHNICAL SPECIFICATIONS G-10 CAPSULE GROUP Data sheet G-10 2GR CAPSULE SPECIFICATIONS MINI CONTROL DISPLAY CONTROL Machine model, Standard EBAD-C32D-12AA (220-230V 1N~ 2600W) Machine model, Take Away Steam wand 1 unit 2 units Hot water outlet 1 unit 1 unit Turbo steamer...

  • Page 8: Overview Of Components

    OVERVIEW OF COMPONENTS G-10 CAPSULE GROUP Front view of the machine G-10 MINI CONTROL 2GR CAPSULE Steam wand Button panel Hot water tap Steam tap Capsule group lever Hot water outlet ON/OFF switch Capsule drawer Pump pressure gauge Boiler pressure...

  • Page 9: G-10 Display Control 2Gr Capsule

    OVERVIEW OF COMPONENTS G-10 CAPSULE GROUP Front view of the machine G-10 DISPLAY CONTROL 2GR CAPSULE Hot water tap Capsule group lever Steam tap Button Hot water outlet Steam wand Display panel Heater element lamp Pump pressure gauge Adjustable coffee...

  • Page 10: Dimension Sketch

    DIMENSION SKETCH G-10 CAPSULE GROUP G-10 MINI CONTROL 2GR CAPSULE Model Min.~ Max. 530 mm 460 mm 590 mm 58 mm ~ 115 mm 680 mm G-10 MINI 2Gr...

  • Page 11: G-10 Display Control 2Gr Capsule

    DIMENSION SKETCH G-10 CAPSULE GROUP G-10 DISPLAY CONTROL 2GR CAPSULE Model Min.~ Max. 530 mm 680 mm 590 mm 58 mm ~ 115 mm 680 mm G-10 2Gr...

  • Page 12: Transport

    TRANSPORT G-10 CAPSULE GROUP Packaging The machine is shipped in a unique carton box which uses expanded polystyrene paddings. The machine box is provided with conventional symbols that can be perfectly visible during the handling and storage tasks. The machine box must stay in a vertical position during the transport. Do not tip or try to place the box tilted sideways in any way.

  • Page 13: Electrical Connection

    INSTALLATION AND START UP G-10 CAPSULE GROUP Electrical connection The coffee machine should only be connected to the power supply by qualified personnel. The following safety instructions should be followed at all times: Check that the electrical specifications on the ratings plate match the specifications of the power supply at the point of installation.

  • Page 14: Water Connection

    INSTALLATION AND START UP G-10 CAPSULE GROUP Water connection The Installation of the machine to a water mains connection must be done by a qualified person. Rinse around 20 liters of water from the main water supply before connecting the machine to the water connection.

  • Page 15: Operation

    OPERATION G-10 CAPSULE GROUP Espresso brewing Lift up the lever for the group. (the last used Insert the capsule in the correct position as capsule will be ejected into the capsule drawer) shown in the picture and push down the lever into locked position.

  • Page 16: Steaming And Frothing Milk With The Manual Steam Wand

    OPERATION G-10 CAPSULE GROUP Steaming and frothing milk with the manual steam wand Steaming Frothing Place the steam wand over the drip tray and open Immerse the steam wand into the jug containing the the steam tap for a few seconds, this will allow milk, make sure the wand tip is submerged.

  • Page 17: Steaming And Frothing Milk With Turbo Steamer

    OPERATION G-10 CAPSULE GROUP Steaming and frothing milk with turbo steamer Place the steam wand over the drip tray and press Immerse the steam wand (with temperature the steam button, this will allow condensed water sensor) into the jug containing the milk, make to be ejected.

  • Page 18: Dispensing Hot Water

    OPERATION G-10 CAPSULE GROUP Dispensing hot water Machine equipped with manual water tap Place a jug (or similar) under the hot water outlet Open the hot water tap. Close the tap as soon as the machine has dispensed the desired amount of water.

  • Page 19: Cleaning And Care

    CLEANING AND CARE G-10 CAPSULE GROUP Coffee machine cleaning Important: To obtain the best efficiency, quality and performance of the machine, you should always follow the cleaning and care instructions provided in this manual. Turn off the power switch when cleaning the exterior of the machine.

  • Page 20: Rinsing The Capsule Group

    CLEANING AND CARE G-10 CAPSULE GROUP Rinsing the capsule group Open the lever so the last used capsule Push down the lever into locked position. falls into the capsule drawer and the group Start the continuous brewing and stop after becomes empty.

  • Page 21: Cleaning The Capsule Group

    CLEANING AND CARE G-10 CAPSULE GROUP Cleaning the capsule group Cleaning with powder Open the lever so the last used capsule falls Push down the lever into locked position. into the capsule drawer and the group becomes Start the continuous brewing and stop after 20 empty.

  • Page 22: Disassemble The Group Gasket

    CLEANING AND CARE G-10 CAPSULE GROUP Disassemble the group gasket Switch off the machine and open Use your fingers to push the metal Once the metal ring had been up the capsule group. tension ring backwards until it released, use your fingers/nails releases from the gasket.

  • Page 23: Removing The Adjustable Spout

    CLEANING AND CARE G-10 CAPSULE GROUP Removing the adjustable spout Pull down the spout to its lowest position. Once in its lowest position, squeeze the hooks on each side that hold the spout in place and pull downwards. Cleaning the adjustable spout...

  • Page 24: Additional Handling Of The Machine

    CLEANING AND CARE G-10 CAPSULE GROUP Additional handling of the machine Important: Avoid placing wet cups directly on the cup shelf, it may drip into the machine and cause machine damage. To prevent the machine from malfunctioning, it is necessary to use the original capsules for which the machine is designed.

  • Page 25: Programming

    PROGRAMMING G-10 CAPSULE GROUP Electronic control panel Button functions Here is some of the additional functions that the electronics offers: Volume control of four different espresso drinks per brewing group. Time-controlled hot water dispensing. (if available) Automatic filling and level control of the boiler.

  • Page 26: Programming The Coffee Dosage

    PROGRAMMING G-10 CAPSULE GROUP Programming the coffee dosage This section explains how to program the doses dispensed automatically by the drink buttons. Important: Always use an unused capsule when programming the volume. On machines not equipped with a display, hold down the Continuous Dispensing button for 4 seconds.

  • Page 27: Programming The Turbo Steamer

    PROGRAMMING G-10 CAPSULE GROUP Programming the turbo steamer To program the temperature at which the turbo steamer will stop automatically: Press the Continuous Dispensing button and hold it down for 8 seconds. The Continuous Dispensing button light will flash and all of the button panel lights will be turned on (see fig. 02).

  • Page 28: Programming Using The Display

    PROGRAMMING USING THE DISPLAY G-10 CAPSULE GROUP Machine status Machines equipped with a display include the following additional functions: Automatic daily on/off timer (stand-by function). Clock settings (current time and date). Promotional display. Number of coffees/infusions dispensed. Digital boiler-temperature display and control.

  • Page 29: Accessing The Second Menu Level

    PROGRAMMING USING THE DISPLAY G-10 CAPSULE GROUP Accessing the second menu level With the machine ON, press the Continuous Dispensing button on the Doses setting left-hand button panel and hold it down (for over 8 seconds) until the dose- Select within 30s programming menu is displayed.

  • Page 30: Auto On/Off

    PROGRAMMING USING THE DISPLAY G-10 CAPSULE GROUP Auto On/Off After accepting the changes made in the "Set clock" menu, pressing the 2 Short Auto On/Off Espressos button accesses the coffee machine's Auto On/Off programming hh:mm menu (see fig. 09). To change the Auto On/Off time, increase/decrease the values (hours) using the Fig.

  • Page 31: Messages And Alarms

    MESSAGES AND ALARMS G-10 CAPSULE GROUP Fault in flow meter X / Flow meter Flow fault detected in counter X Gr. X Time-out alarm Check that the machine is receiving water. Boiler filling up Temperature sensor fault Probe unconnect Service the machine.

  • Page 32: Troubleshooting

    TROUBLESHOOTING G-10 CAPSULE GROUP The following checks can be carried out by users once the machine has been turned off and disconnected from the power supply. For all other non-specified machine faults, disconnect the machine from the power supply and immediately contact authorised and qualified service personnel.

  • Page 33: Technical Support

    For the warranty to be valid, the conditions for maintenance must have been followed in accordance with our instructions, proper care must have been taken and any claim against the warranty must be sent without delay. The equipment in question may not be used while awaiting service if there is any risk that the damage or defect would worsen.
