Summary of Contents for CYP CLUX-4S2

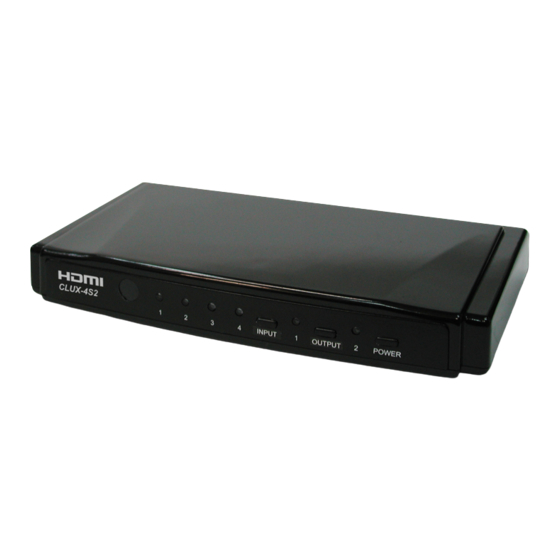

- Page 1 CLUX-4S2 4x2 HDMI switch Operation Manual CLUX-4S2...
- Page 3 TABLE OF CONTENTS 1. Introduction................. 1 2. Features..................1 3. Package Contents..............1 4. Hardware Description..............1 4.1 Front Panel................1 4.2 Rear Panel................2 5. Remote Control................2 6. Connection and Installation............3 7. Specifications................3...
-
Page 4: Package Contents
HDMI displays. Thanks to the included remote control you no longer have to manually connect your various gadgets, all you have to do is plug them into the CLUX-4S2 and using the remote decide which source goes to which display. Helping you switch between various HDMI devices with ease, the CLUX-4S2 HDMI switch is a sleek and stylish device that solves your HDMI switching needs. -
Page 5: Remote Control
3 . HDMI output selection: Press the Output button to select your desired output device. The output LED will turn on to indicate which output port has been selected (Does not support simultaneous output). 4 . POWER Switch/Indicator: Press the "POWER" button to turn on/off the power. -
Page 6: Connection And Installation
6. Connection and Installation DVD 1 DVD 2 DVD 3 LCD TV LCD TV 7. Specifications Input Ports 4 x HDMI Output Ports 2 x HDMI Power Supply 5V/1A DC (US/EU standards, CE/FCC/UL certified) Dimensions (mm) 206(W) x 111(D) x 32(H) Weight(g) Chassis Material Plastic... - Page 7 2008.4.3 MPM-CLUX4S2...
- Page 8 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw...
