CYP CLUX-41AT Operation Manual

4-in 1-out hdmi with digital audio switcher
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
4-in 1-out HDMI
With Digital
Audio Switcher
Operation Manual
CLUX-41AT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLUX-41AT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CYP CLUX-41AT

Summary of Contents for CYP CLUX-41AT

  • Page 1 4-in 1-out HDMI With Digital Audio Switcher Operation Manual CLUX-41AT...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Introduction................. 1 2. Features..................1 3. Package Contents..............1 4. Operation Controls and Functions..........2 4.1 Front Panel................2 4.2 Rear Panel................2 4.3 Remote Control..............3 4.4 RS-232 Protocol..............4 4.4.1 Pin Definition..............4 4.4.2 Commands..............4 5.

  • Page 3: Introduction

    1. Introduction Cypress CLUX-41AT is a high performance HDMI switcher with a separate digital audio input and output. It allows you to share one HDTV display among several HDMI Sources. Simply press one button to select your desired HDMI source to be displayed on the HDTV, While the selected digital audio passes through Toslink or Coaxial channel to be played on your audio amplifier.

  • Page 4: Operation Controls And Functions

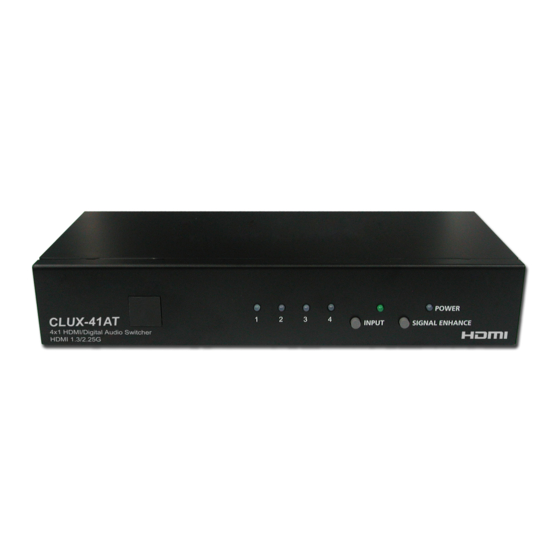

    4. Operation Controls and Functions 4.1 Front Panel POWER CLUX-41AT INPUT SIGNAL ENHANCE 4x1 HDMI/Digital Audio Switcher HDMI 1.3/2.25G 1. Remote control sensor. 2. Input select/Indicators: Press the "INPUT" button repeatedly to switch to your desired input source (HDMI/Toslink/Coaxial) and the LED will illuminate to indicate which input source is being selected.

  • Page 5: Remote Control

    3. Digital audio output: - Connects the Toslink output to the Toslink input of your display using optical cable. - Connects the digital SPDIF output to the digital coaxial input of the display using coaxial cable. 4. HDMI inputs: Connect your various HDMI sources to each of the HDMI input of the unit using HDMI cables.

  • Page 6: Rs-232 Protocol

    4.4 RS-232 Protocol 4.4.1 Pin Definition Remote Control Console CLUX-41AT Definition Definition  * RS-232 transmission format: Baud Rate: 9600 bps Data bit: 8 Bits Parity: None Stop Bit: 1 bit 4.4.2 Commands COMMAND ACTION "I" + "1" PORT 1 ON "I"...

  • Page 7: Specifications

    5. Specifications 5.1 General Specifications Frequency Bandwidth: 2.25 Gbps (single link) Inputs: 4 x HDMI female port (Type A connector) 4 x Toslink digital audio port 4 x Coaxial digital audio port Outputs: 1 x HDMI female port (Type A connector) 1 x Toslink digital audio port 1 x Coaxial digital audio port Power Supply:...
  • Page 8 2x1 HDMI Switcher CLUX-31S 3x1 HDMI Switcher CLUX-31SY 3x1 HDMI Switcher CLUX-41SY 4x1 HDMI Switcher CLUX-42S 4x2 HDMI Switcher CLUX-41AT 4x1 HDMI Switcher with Digital Audio CLUX-210T 2x10 HDMI Splitter with Digital Audio CYPRESS TECHNOLOGY CO., LTD. 2007.7.12 MPM-CLUX41AT Home page: http://www.cypress.com.tw...
