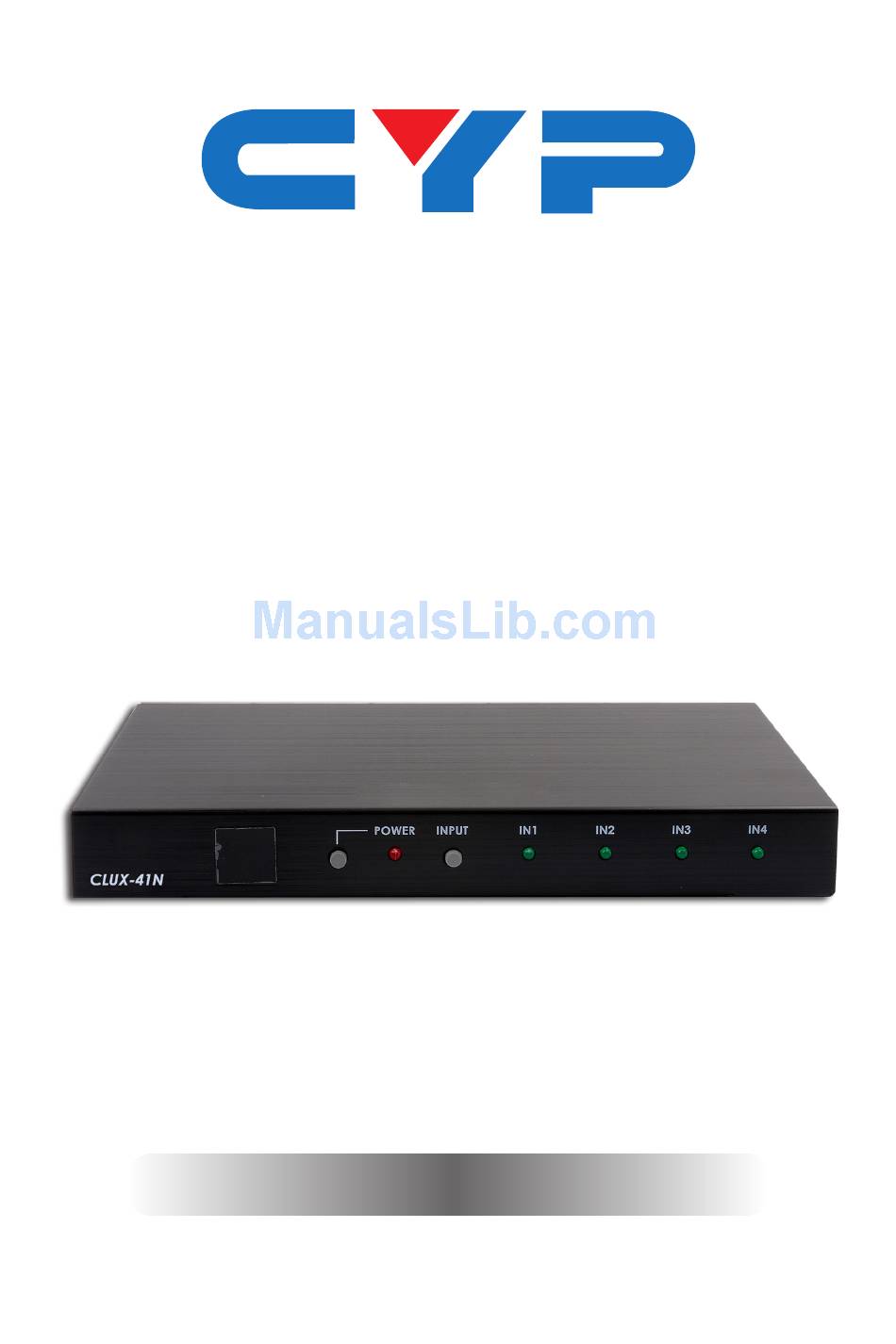

- Page 1 CLUX-41N HDMI 4 to 1 Switcher Operation Manual Operation Manual...
-
Page 3: Copyright Notice
DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel .........3 6.2 Rear Panel .........4 6.3 Remote Control .........4 7. -
Page 6: Introduction
1. INTRODUCTION The HDMI 4 to 1 Switcher allows 4 HDMI sources to be connected to the same HDMI TV/Monitor input. It has IR, automatic and manual input selection and a 'last memory' function that remembers the last input selection used. The EDID bypass function ensures the best resolution. -
Page 7: Features
5. FEATURES • HDMI, HDCP 1.1 and DVI 1.0 compliant • Supports 24/30/36-bit color depth display • Supports High Definition audio – Dolby Digital TrueHD and DTS-HD Master Audio • Auto Signal Enhancement that improves signal quality for long distance transmission •... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel POWER INPUT CLUX-41N IR Window IR Receiver window (accepts the remote control signal of this device only). POWER Button and LED Press this button to turn on the device, the LED will illuminate. Press it again to switch the device into standby mode and the LED will turn off. -
Page 9: Rear Panel
6.2 Rear Panel DC 5V OUTPUT OUTPUT Connect to an HDMI equipped TV/monitor or AV Receiver for display of the selected HDMI source signal. IN 1/2/3/4 Connect to the HDMI source equipment such as a Blu-ray player or a Set-top Box with HDMI cables or DVI to HDMI cables. DC 5V Connect the 5V DC power supply to the unit and plug the adaptor into an AC outlet. -
Page 10: Connection Diagram
7. CONNECTION DIAGRAM Set-top Box Blu-ray Player Laptop Games Console HDMI HDMI HDMI HDMI Input Input Input Input Power Supply DC 5V OUTPUT HDMI Output TV/Monitor... -
Page 11: Specifications
8. SPECIFICATIONS Video Bandwidth 225 MHz/6.75 Gbps Input Ports 4×HDMI Female Ports (Type A Connector) Output Port 1×HDMI Female Port (Type A Connector) Power Supply 5 V/2.6 A DC (US/EU standards, CE/FCC/ UL certified) ESD Protection Human body model: ±8 kV (air-gap discharge) ±4 kV (contact discharge) Dimension 200 mm (W)×104 mm (D)×25 mm (H) - Page 12 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CLUX41N...
