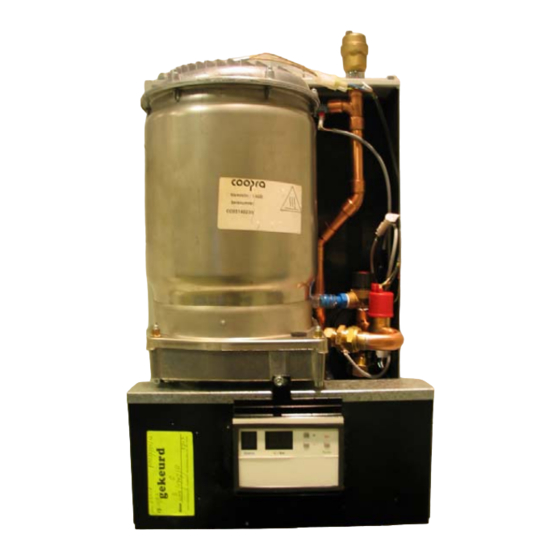

- Page 1 Installation- and User Manual Central Heating Boiler……………………………..…………..35C Central Heating Boiler……………………………..…………..40C Wall hung, fan flue, room sealed gas boilers E000129013 MV030204 manual Atmos EN 35_40 - E000129013 w pump connection...
-
Page 2: Table Of Contents
Operation ............................... 1.6. Boiler types............................1.6.1. Atmos 30K.............................. 1.6.2. Atmos 15B / 30B............................. 1.6.3. Atmos 15C / 30C ..........................1.6.4. Difference between type 15 and type 30....................Conditions of delivery..........................1.8. Configuration of flue tube and air supply....………………………..………………....1.9. Environmental conditions........................ - Page 3 Atmos Heating Systems Installation and user manual EN_FMT 4.8.2. Low load..............................4.9. Placing the jacket........................... 4.10. Changing over to LPG-gas........................4.10.1. Full load om Propane..........................4.11. Display..............................4.11.1. Normal operation (permanent status indication)..................4.11.2. blocking operation (permanent status indication).................. 4.11.3 Lock-out (flashing status indication).......................
- Page 4 Atmos Heating Systems Installation and user manual EN_FMT 8.10. Fitting instructions for the safety valve....................... 28 8.11. Malfunction code „F“ (flashing)........................28 8.11.1. Gas control will not open (no voltage)....................... 8.11.2. Gas control will not open (gas inlet pressure too high)................
-
Page 5: Technical Data 15B; 15C; 30K; 30B; 30C
Atmos Heating Systems Installation and user manual EN_FMT CHAPTER 1. 1.1. Technical data 35C / 40C Boiler type 35 / 40 Gas type natural gas G20 natural gas G25 LPG gas G30/G31 Electrical data Mains voltage / Frequency 230 V / 50 Hz Power consumption (max.) -
Page 6: Dimensional Sketch
Atmos Heating Systems Installation and user manual EN_FMT 1.2. Dimensional sketch Free space There must be sufficient space at the top and bottom to be able to suspend the unit and to be able to connect all feed and drain pipes. -
Page 7: Unit Components
Atmos Heating Systems Installation and user manual EN_FMT 1.3. Unit components Description Manufacturer Coopra article code Primary heat exchanger Coopra n.a. Manager Coopra n.a. Pump Wilo N00S110006 Glow plug Saint Gobain N00S070014 Ionisation probe Sapco N00S070020 Burner type 30 / 40... -
Page 8: Diagrams
Atmos Heating Systems Installation and user manual EN_FMT 1.4. Diagrams 1.4.1. Functional flow diagram FLOW X17.6 DISPLAY X17.3 RETURN X17.2 X17.5 X22.1 ALARM CONTACT X22.2 DHW INLET X19.2 X4.5 X19.1 MAXIMAL THERMOSTAT X4.6 (OPTIONAL) TANK THERMOSTAT X2.5 EXTERNAL TANK X18.3 X2.4... -
Page 9: Verkabelungsplan
Atmos Heating Systems Installation and user manual EN_FMT 1.4.2. Wiring diagram... -
Page 10: Operation
High efficiency boiler for central heating only. 1.7.4. Pump N00S110006 The Atmos boiler is a heating unit with compact dimensions and a very high efficiency, with versions for domestic and small commercial use for central heating. The type plate, which specifies the type of gas etc. to be used, for which the unit is set, is on the left side of the unit. -
Page 11: Configuration Of Flue Tube And Air Supply
Atmos Heating Systems Installation and user manual EN_FMT 1.8. Configuration of flue tube and air supply 1.9. Environmental conditions See figure below for an overview of possible configurations. The area in which the unit is installed must satisfy the The units are approved for application on the drain applicable regulations. -
Page 12: Pump And Hydraulic Resistance
Atmos Heating Systems Installation and user manual EN_FMT 1.12. Pump and hydraulic resistance 1.14. Standards / Guidelines The pump characteristic and the resistance graph of the With the installation of the unit, all local regulations must be unit are given below. -
Page 13: Chapter 2. Installation
Atmos Heating Systems Installation and user manual EN_FMT CHAPTER 2. INSTALLATION 2.2. Mounting the assembly bracket To mount the assembly bracket on a brick wall of sufficient thickness, use the screw plugs that are supplied. When you have determined the place of assembly, proceed as follows: 1. -
Page 14: Water Ans Gas Connections
2 kg dirt filter in the return pipe is recommended. Atmos cannot give a guarantee for damage to the unit that is caused by dirt in the system. -
Page 15: Chapter 3. Suspending The Unti
Atmos Heating Systems Installation and user manual EN_FMT that the clamping plate falls in the groove of the sliding CHAPTER 3. SUSPENDING THE UNIT piece. 3.1. The unit 3.3.2. Connecting the concentric flue tube and air Before unpacking the unit, check... -
Page 16: Connection For The External Temperature Sensor (If Appicable) Connect To Terminal (3) Ans (4)
Atmos Heating Systems Installation and user manual EN_FMT When using a modulating thermostat, the plug on the printed circuit board must be connected with the correct polarity. To reach the printed circuit board, the black casing must be opened. Connect the plug for the relevant modulating space unit to terminal a, b or c, according to the following photograph. -
Page 17: Chapter 4. Commisioning
Atmos Heating Systems Installation and user manual EN_FMT CHAPTER 4. COMMISSIONING 4.6. Chimney sweeper function The chimney sweeper function has priority over the central 4.1. Electrical connection 230 VAC heating and HWS regulation. • If the boiler is provided with a supply cord and a plug... -
Page 18: Gas / Air Adjustment
Atmos Heating Systems Installation and user manual EN_FMT Pre-adjustment to be done in voltage-free condition: 4.8.2. Low load Activate the chimney sweeper function on low load – Turn venturi-screw clockwise completely down on its seat. Read the CO value on the Then turn the venturi screw anti-clockwise analyser. -
Page 19: Display
Atmos Heating Systems Installation and user manual EN_FMT 4.11. Display During operation, the display shows the status of the unit in the form of a code. To be able to read the codes, A = display open the cover in front of the display. The display B = + button consists of three 7-segment LED’s + three decimal... -
Page 20: Menu Structure
Atmos Heating Systems Installation and user manual EN_FMT 4.12. Menu structure By pressing the set/reset button in for longer than 5 seconds, you go to the ‘mode’ menu. To change the subsequent "Letter" parameter, the user must press the Set/Reset button. -
Page 21: Chapter 5. Temperature Regulations
Atmos Heating Systems Installation and user manual EN_FMT CHAPTER 5. TEMPERATURE REGULATIONS Heating curve 5.1. CENTRAL HEATING The permissible central heating flow temperature can be set between 40°C and 90°C. The burner is blocked when the set flow temperature is reached. During the first 60 seconds of a Parameter C=82°C [default]... -
Page 22: Hws Temperature Regulations
Atmos Heating Systems Installation and user manual EN_FMT 5.1.3. Central heating temperature regulation with 5.2.3. HWS cylinder with thermostat without modulating modulating thermostat (EBV or Opentherm) with or space unit without outside temperature sensor There is HWS cylinder heat demand when the HWS cylinder thermostat is closed. -
Page 23: Chapter 6 Burner States And Monitoring
Atmos Heating Systems Installation and user manual EN_FMT CHAPTER 6. BURNER STATES / MONITORING 6.1.6. Functional locking Fan on/off - Gas valve off - Igniter off - Ionisation off - Alarm 6.1. Burner states contact on 6.1.1. Rest state During functional locking, the pump is on the central heating Fan off - Gas valve off - Igniter off - Ionisation off circuit. -
Page 24: Static Pressure Monitoring
Atmos Heating Systems Installation and user manual EN_FMT check will be made for a maximum of 10 minutes to see 6.2.4. Static pressure monitoring whether the temperature difference goes to within ± 5°C. If the water pressure is less than 0.2 bar, the regulation locks with a ‘P’... -
Page 25: Chapter 7. Maintenance
Atmos Heating Systems Installation and user manual EN_FMT CHAPTER 7. MAINTENANCE 7.1.4. Ionisation probe The ionisation probe is a part that wears. An insulating layer High voltage! ! ! can be formed in the flame at The wiring of the pump, the three-way valve, fan and high temperature. -
Page 26: Chapter 8. Malfunctions
Atmos Heating Systems Installation and user manual EN_FMT 8.7. Check function of gas control CHAPTER 8. MALFUNCTIONS High voltage! The wiring of the pump, the three-way valve, fan and wiring of the gas control can be under a voltage of 230 VAC. -
Page 27: Fitting Instructions For The Safety Valve
Atmos Heating Systems Installation and user manual EN_FMT 8.10. Fitting instructions for the safety valve 8.11.4. Gas/air mixture is not correctly adjusted The safety valve must be tightened with a torque of 10 see Chapter 4. : Adjustment full load and low load. -
Page 28: Inspection / Cleaning / Replacement Of The Ionisation Probe
Atmos Heating Systems Installation and user manual EN_FMT 8.11.7. Inspection / cleaning / replacement of the ionisation probe • unplug the plug of the ionisation probe (low voltage). • remove the two screws from the ionisation clamp. • remove the ionisation probe from the lid of the unit. -
Page 29: User Manual
Atmos Heating Systems Installation and user manual EN_FMT USER MANUAL Is there an (unusual) interruption in the gas supply? Check by seeing whether a gas cooker in the kitchen is working. If it is General now working, call the gas company. The gas flow can also be The unit combines a maximum of comfort with an extremely blocked because the gas filter of the boiler is contaminated;... -
Page 30: Reset Button
Atmos Heating Systems Installation and user manual EN_FMT Display Open the cover in front of the display to be able to read the codes. The display consists of three 7-segment LED's + three decimal points and three pushbuttons. The left 7-segment LED shows the status or the menu step. - Page 31 Atmos Heating Systems Installation and user manual EN_FMT...
- Page 32 Atmos Heating Systems Installation and user manual EN_FMT 2004 Atmos Heating Systems Ltd. All rights reserved. Nothing from this document may be duplicated and/or made public by means of printing, photocopy, microfilm or in any other way without prior written permission from the manufacturer. This also applies to the appropriate drawings and/or diagrams.
