Summary of Contents for Atmos D15P
- Page 1 Instruction manual - GB Instruction manual www.atmos.cz...
- Page 2 Instruction manual - GB www.atmos.cz...
-
Page 3: Table Of Contents
11. Connecting boilers to the electric network 12. Electric wiring diagram for the boiler D15P without an extraction fan - model 2012 with a 6-pin connector 13. Electric wiring diagram for the boilers D20P, D30P, D40P and D50P with an extraction fan - model 2012 with a 6-pin connector 14. - Page 4 The boiler drum may corrode in as little time as 2 years. CAUTION - INSTALLER SHOULD ALWAYS COMPLY WITH LOCAL PLANNING AND BUILDING REQUIREMENTS. www.atmos.cz 4-GB...
-
Page 5: Intended Use

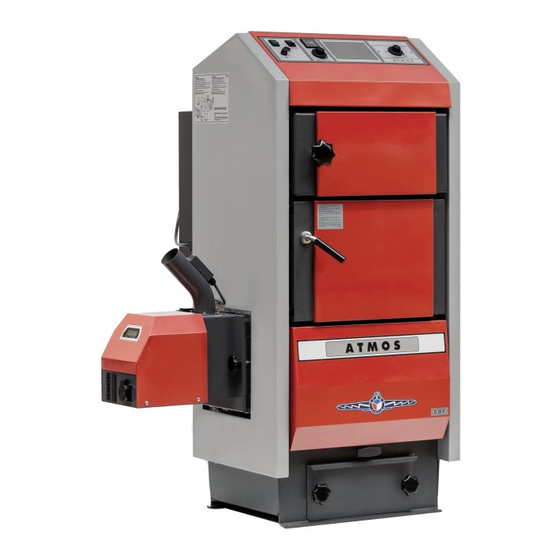

Instruction manual - GB 1. Intended use The hot water boilers ATMOS D15P, D20P, D30P, D40P and D50P are designed for convenient heating in residential houses, weekend house and other similar buildings by wood pellets or fire wood (as an alternative fuel in case of urgent need). Pellets of 6 – 8 mm diameter and any dry firewood of 300 to 700 mm length (depending on the boiler type) may be used for heating. -
Page 6: Control Panel Appearance
By switching off and then on you activate the ash removing module so that it stops its sound signal and starts the automatic function of the ash removal. 10. Burner switch – it serves to switch on or off the burner www.atmos.cz 6-GB... -
Page 7: Technical Data
Instruction manual - GB 3. Technical data ATMOS boiler type D15P D20P D30P D40P D50P Boiler output 4,5 - 15 6,5 - 22 8,9 - 29,8 8,9 - 40 13,5 - 45 Heating surface Fuel shaft volume Feeding hole dimensions... -
Page 8: Boiler Drawings Key
D30P, D40P and D50P -1x brush + P – sleeve for a sensor of the valve which reg 1x iron) lates the cooling loop (TS 131, STS 20) Technical data Dimensions D15P D20P D30P D40P D50P 1405 1405... -
Page 9: Drawings Of Boilers
Instruction manual - GB Drawings of boilers Cut away views - type D15P Cut away vies – types D20P, D30P, D40P, D50P www.atmos.cz GB-9... -
Page 10: Extraction Ventilator Schematics - Boiler Types D20P, D30P, D40P And D50P
Instruction manual - GB Cut away view - type D15P Cut away view – type D50P Boiler without an extraction ventilator Boiler with an extraction ventilator Extraction ventilator schematics – boiler types D20P, D30P, D40P, D50P CAUTION – The extraction ventilator is supplied disassembled. Place it over the rear flue- gas duct, tighten everything well, connect into a socket and test for its smooth operation. -
Page 11: Supplied Boiler Accessories
When installing the device, we follow the installation manual delivered with the device. In case of wood burning put back the mov- ing grate so that the wood do not fall into the ash-pan. www.atmos.cz GB-11... -
Page 12: Fuel
Wood with 60% moisture contents has thermal power of 1.5 kWh /1 kg of wood. • e.g. – spruce wood which has been stored for 1 year under shelter – see graph Boilers are not suitable for burning wood with moisture content lower than 12%. www.atmos.cz 12-GB... -
Page 13: Fuel Heating Capacity
Raw wood does not burn easily, produces a lot of smoke and substantially decreases the service life of your boiler and chimney. Boiler output drops as low as 50% and fuel consumption doubles. 6. Boiler bases Boiler type (mm) D15P, D20P D30P, D40P D50P 1000 We recommend providing a concrete (metal) base under the boiler. -
Page 14: Chimney
1 - Waste gas thermometer 2 - Cleaning aperture 3 - Throttle valve (draught limiter) INFO - In case of excessive chimney draught, in- stall a throttle valve /3/ or draught limiter. www.atmos.cz 14-GB... -
Page 15: Fire Prevention During Installation And Use Of Heating Appliances
No items from flammable materials may be placed on the boilers or near them into a distance lower than the specified safe distance (more ČSN EN 13501-1). In short, do not put any items that could easily catch fire in the vicinity of the boiler. www.atmos.cz GB-15... -
Page 16: Connecting Boilers To The Electric Network
2 - connector for pump in boiler circuit - white (L - brown, N - blue, PE - green/yellow) 3 - connector for external regulator of the boiler (with jumper) 4 - connector for burner ATMOS connection model AC07X - (L1, L2, R, R2,N, PE) 5 - connector for extraction fan (except D15P) At the bottom part of the side hood is red connector blinded with black cap. -
Page 17: Electric Wiring Diagram For The Boiler D15P Without An Extraction Fan - Model 2012 With A 6-Pin Connector
Instruction manual - GB 12. Electric wiring diagram for the boiler D15P without an ex- traction fan - model 2012 with a 6-pin connector BLBLACKSCHWARZČERNÁ BRBROWNBRÄUNEHNĚDÁ BUBLUEBLAUMODRÁ REREDROTČERVENÁ OPTION OF ACCES POINT FOR BOILER ACCESSORIES GYGREEN/YELLOWGRÜN/GELBZELENO/ŽLUTÁ WWHITEWEISBÍLÁ ANLAGERUNGALTERNATIVE FÜR KESSELZUBEHÖR GRGREYGRAUŠEDÁ... -
Page 18: Electric Wiring Diagram For The Boiler D15P Without An Extraction Fan With A 6-Pin Connector And Module Ad02 To Control Pump In Boiler Circuit From Burner Control Unit Ac07X (R)
Instruction manual - GB 14. Electric wiring diagram for the boiler D15P without an ex- traction fan with a 6-pin connector and module AD02 to con- trol pump in boiler circuit from burner control unit AC07X (R) BLBLACKSCHWARZČERNÁ BRBROWNBRÄUNEHNĚDÁ BUBLUEBLAUMODRÁ... -
Page 19: Circuit From Burner Control Unit Ac07X (R And R2)
NEPLATÍ S ACD01 MODUL AD02 K OVLÁDÁNÍ VENTILÁTORU KOTLE HOŘÁKEM A25/45 NO WITH ACD01 MODUL AD02 FOR BOILERPUMP CONTROL FROM BURNER A25/45 NEIN MIT ACD01 MODUL AD02 FÜR KESSELPUMPEBEDIENUNG BEI DEM BRENNER A25/45 NEPLATÍ S ACD01 MODUL AD02 K OVLÁDÁNÍ ČERPADLA KOTLE HOŘÁKEM A25/45 www.atmos.cz GB-19... -
Page 20: From Burner Control Unit Ac07X (R And R2)
NO WITH ACD01 MODUL AD03 FOR CONTROL BOILERPUMP AND BOILERFAN FROM BURNER A25/45 NEIN MIT ACD01 MODUL AD03 FÜR KESSELPUMPE UND KESSELVENTILATORBEDIENUNG BEI DEM BRENNER A25/45 NEPLATÍ S ACD01 MODUL AD03 K OVLÁDÁNÍ ČERPADLA A VENTILÁTORU KOTLE HOŘÁKEM A25/45 www.atmos.cz 20-GB... -
Page 21: Obligatory Čsn En Standards Related To Boiler Designing And Installation
ČSN EN standards.The electric connection of ACD01 unit you have to do after the wiring dia- gram in this manual instruction. Never switch off the ACD unit when off the season (by the main switch on the boiler)! www.atmos.cz 21-GB GB-21... -
Page 22: Boiler Corrosion Protection
ACD01. CAUTION - We recommend installing boilers D15P, D20P, D30P, D40P, D50P with equ- alizing tank of size at least 500 Lt. to 1000 Lt. It helps to decrease fuel and electricity con- sumption and increase service life all electric elements. -
Page 23: Prescribed Boiler Connection With An Equalizing Tank For Burner Control On The Basis Of Ts And Tv Sensors
Instruction manual - GB 21. Prescribed boiler connection with an equalizing tank for burner control on the basis of TS and TV sensors 22. Prescribed boiler connection with an equalizing tank and with the ACD01 electronic control unit www.atmos.cz GB-23... -
Page 24: Possible Boiler Connection With Equalizing Tank With Dhw Boiler And With Solar System
Instruction manual - GB 23. Possible boiler connection with equalizing tank with DHW boiler and with solar system 24. Possible boiler connection with Laddomat 21/22 www.atmos.cz 24-GB... -
Page 25: Laddomat
If need be, a thermoregulatory valve set to a higher temperature (E.g. 72 °C) may be used. Recommended size of the thermoregulatory valve For boilers: D15P, D20P ................... DN 25 D30P, D40P .................. DN 32 D50P ....................DN 40 www.atmos.cz GB-25... -
Page 26: Watts Sts20
They must not cumulate inside the tube! The screw convey- or should be at a maximum of 45° angle otherwise the boilers might not reach their nominal output. www.atmos.cz 26-GB... - Page 27 If all checks are satisfactory, load the pellets into the conveyor. With the ATMOS burner, plug the conveyor‘s lead into a regular 230V - 50Hz socket. After the pellets start falling out of the conveyor (conveyor is full), plug the conveyor‘s electric flex back into the socket on the burner.
-
Page 28: Relation Of Waste Gas Temperatur To Boiler (Burner) Output When Burning Pellets
Instruction manual - GB Relation of waste gas temperatur to boiler (burner) output when burning pellets D30P, D40P D15P D50P D20P Power Výkon (kW) Power (kW) Výkon (kW) It is a linear dependence at stabilised state and with a clean boiler 29. -
Page 29: Connecting The Burner A25 Into Boilers D15P And D20P
Instruction manual - GB Connecting the burner A25 into boilers D15P and D20P 1 - pellet burner ATMOS A25 3 - Two M8 screws 2 - Sealing cord 18x32 mm - small (code: S0165) 4 - Two M8 decorative nuts... -
Page 30: Boiler System With An External Silo And Conveyor Of Pellets
250, 500 and 1000 l. The larger the contain- er volume, the better. For the boiler D15P and D20P we recomand 500 l silo. For the boiler D30P, D40P, D50P we recomand 1000 l silo. This size of the silos will be sufficient for 3 to 10 days. -
Page 31: Boiler Room With A Large Built-In Pellet Storage
This way you will ensure even filling of the storage and prevent crushing into small pellets and dust. Ask the pellet suppliers about further possibilities and conditions of pellet drawing. www.atmos.cz GB-31... -
Page 32: Preparing Boiler Operation For Emergency Burning Wood
Is good to know when burning moist wood, the fuel con- sumption increases, the boiler does not reach the required output and the service life of both - the boiler and the chimney - decreases. www.atmos.cz 32-GB... -
Page 33: Mechanical Output Regulation - When Burning Alternative Fuel (Wood)
5 seconds and then add fuel. In order to prevent excessive smoke formation, load new batch of fuel only after the previous fuel has combusted to at least one fourth of the loading volume. Then put everything into the original state. www.atmos.cz GB-33... -
Page 34: Boiler Cleaning And Ash Removal
Cleaning ofcombustion chamber with fire Removable combustion chamber with air hook supply openings - must be cleaned regularly Sweep the ashes down through the grill into the Pull out the ash-pan and remove the ash lower area (ash-pan) www.atmos.cz 34-GB... -
Page 35: Heating System Maintenance - Including Boilers
Boilers may only be operated by a person that is more than 18 years old, that has been acquainted with the instructions and operation of the equipment and that complies with the requirements of § 14 of the Directive no. 24/1984 Coll. The boiler operation needed increased attention to safety in terms www.atmos.cz GB-35... -
Page 36: Possible Failures And Troubleshooting
- clogged inlet of combustion - clean burning little chamber and air to the burning chamber burning chamber - faulty glass cord - replace - adjust the door hinges Leaky doors - low chimney draft - fault in the chimney www.atmos.cz 36-GB... -
Page 37: Spares
Door sealing cord 18 x 18 /12/ (code: S0241) Ash-pan /3/ D15P, D20P (code: P0045), D30P, D40P (code: P0066), D50P (code: P0068) Sealing cord placed between burner and boiler (18x32 mm) D15P, D20P (code: S0165), D30P, D40P, D50P (code: S0174) -
Page 38: Door Sealing Cord Replacement
20 minutes past the hour position. Then tighten the nut. 36. Environmental protection The ATMOS gasifying boilers comply with the most demanding environmental requirements and were awarded the “Environmentally friendly product” mark, in compliance with directive No. -
Page 39: Guarantee Conditions
Hungary no guarantee conditions or insurance policies from outside these countries apply. Guarantee and post-guarantee period repairs are carried out by: - company representing ATMOS in the particular country for the particular region - installation company that carried out the installation - Jaroslav Cankař... -
Page 40: Boiler Installation Report
Waste gas temperature: ......°C Size: ............Emissions in stabilised state : CO ....Moisture content: .........* ........Person responsible for the inspection: ..........Date: ......Stamp : ..........Customer’s signature: ........(Responsible person’s signature) * measured values www.atmos.cz 40-GB... -
Page 41: Annual Inspections Records
Date Date Date Date stamp and signature stamp and signature stamp and signature stamp and signature Date Date Date Date stamp and signature stamp and signature stamp and signature stamp and signature www.atmos.cz GB-41... - Page 42 Repair: ..............................Repair: ..............................Repair: ..............................Repair: ..............................Repair: ..............................Repair: ........................................repair carried out by, date Repair: ..............................Repair: ..............................Repair: ..............................Repair: ..............................Repair: ..............................Repair: ..............................Repair: ........................................repair carried out by, date www.atmos.cz 42-GB...
