User Manual
DELTA DORE
Bonnemain - 35270 COMBOURG - France
E-mail : deltadore@deltadore.com
Unit compliant with the requirements of directives
2004/108/CE (Electromagnetic Compatibility)
and 2006/95/CE (Low-Voltage Safety).
Because of changes in standards and equipment, the characteristics given in the text and the illustrations of
this document are not binding unless confirmed by Delta Dore.
Installation guide

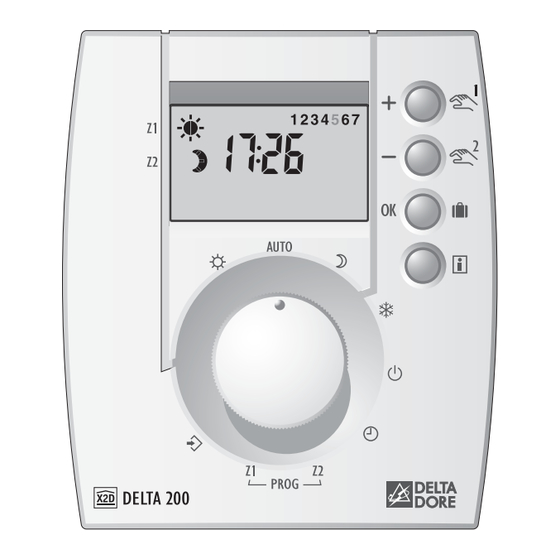

DELTA 200
Outdoor-temperature-driven controller
for hot water heating
Advertisement
Table of Contents
Related Manuals for DELTA DORE DELTA 200
Summary of Contents for DELTA DORE DELTA 200
-
Page 1: Installation Guide
Unit compliant with the requirements of directives 2004/108/CE (Electromagnetic Compatibility) and 2006/95/CE (Low-Voltage Safety). Because of changes in standards and equipment, the characteristics given in the text and the illustrations of this document are not binding unless confirmed by Delta Dore. -
Page 2: Table Of Contents
Contents Installing the room unit Installing the room unit ......3 Choosing a location Since the temperature measurement sensor is inside the unit, you must Mounting . -
Page 3: Installing The Sensors
Mounting Installing the sensors Mounting the room unit Feed (zone 1) and return (zone 2) sensor The water temperature sensors are wall-moun- Switch off the mains power supply (general ted. circuit breaker) before proceeding. They are used to measure the surface tempera- ture of pipes.. -
Page 4: Connection
Connection Determining the type of installation Application 1: 1 underfloor hot water zone, Application 3: 1 radiator zone (without thermostatically controlled valves) 1 radiator zone 1 radiator zone (with thermostatically controlled valves) (with thermostatically controlled valves) Outdoor Outdoor sensor sensor Room unit Room unit Zone 2... -
Page 5: Connection
- The connection must comply with UTE standard NF C15-100 and good practice. It must be connected if you wish to authori- - Nearby units or those that are connected must not generate excessive interference se reductions when the DELTA 200 is not (directive 2004/108/EEC). being used for heating. -
Page 6: Activation
Activation Menu C03: Setting the minimum water temperature Turn the knob to for network 1 General principle: In each menu, press the button to modify, This is the minimum temperature provided for a heating request from the and press to go to the next menu. network. - Page 7 0.9. Menu C06: Setting the maximum water temperature IMPORTANT: In a few days (if the programming authorises enough com- fort periods), DELTA 200 will automatically adapt the slope to the installa- for network 2 tion settings: this is self-adaptation.
- Page 8 -10 -12 -14 -16 -18 -20 Text Manual setting: Set the temperature to 20°C on the DELTA 200 and set the thermostatically controlled valves to maximum. For outdoor temperatu- res of around 10°C, you must obtain 20°C in the room measured.
- Page 9 Activation Menu C9: Valve operating time Tip: Initially, use the default setting (30 min/°C). - If the desired temperature is reached too quickly, set a higher value Corresponds to the maximum time for the valve to open or close. (e.g. 45 min./°C). - If the desired temperature is not reached quickly enough, set a lower Changes not allowed value (e.g.
-
Page 10: Maintenance
No access code (upon activation) Menu C16: Combining heating with the alarm Access code authorisation This menu is displayed if a TYXAL alarm control unit is used with the DELTA 200. Code authorised (the code can be modified) Not allowed Default setting: C13=0.
