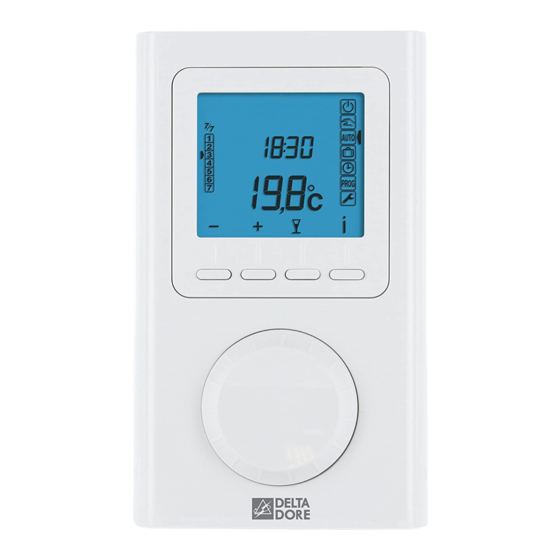

- Page 1 Delta 8000 TAP Bus Programmable thermostat for Delta 8000 system Installation instructions...
-
Page 2: Table Of Contents
Contents 1/ Installation ..............4 2/ Association of the thermostat with the technical unit..........6 3/ Thermostat configuration ........8 4/ Setting the clock ............12 5/ Locking down settings .......... 14 6/ Return to initial settings ........15 6.1 Deleting the association of the thermostat with the technical unit ............ 15 6.2 ... -
Page 3: 1/ Installation
1/ Installation Since the temperature measurement sensor is inside the box, you must install the thermostat flush-mounting box: - on an accessible wall at a height of 1.50 m 230V~ - away from heat sources (fireplaces, sunlight) and draughts 50 Hz (windows, doors) IMPORTANT: Do not install the thermostat on a wall in contact with the outdoors or with an unheated room (e.g. -
Page 4: 2/ Association Of The Thermostat With The Technical Unit
2/ Association of the thermostat with the technical unit. ❷ Output ❶ Turn the selector knob to Controlled outputs ❶ number Thermostat 1 (living room) Y1, Y2, Y3 ❷ Press and hold the 2nd button Thermostat 2 (lounge) Y4, Y5 from the left for 3 seconds. -
Page 5: 3/ Thermostat Configuration
3/ Thermostat configuration ❶ Turn the selector knob to Correction of the +/- 5°C in increments of 0.1°C measured temperature (0°C by default) ❷ Press OK. Setting display Temperature displayed (default selection) ❸ The screen displays CF01. (after activating the Display of the measured thermostat) •... - Page 6 3/ Thermostat configuration Activation of the door/window magnetic contact Not activated function (the room thermostat switches to Frost Protection mode if the door/window magnetic contact Active (default selection) - Display of the symbol is activated). Not flashing This menu is only available if CF06 = 1. symbol will flash in the event of detection.
-
Page 7: 4/ Setting The Clock
4/ Setting the clock ❶ Turn the selector knob to ❷ Set the year with + and - and confirm with OK. ❸ Set the day and month with + and - and confirm with OK. ❹ Set the hour value with + and - and confirm with OK. ❺... -
Page 8: 5/ Locking Down Settings
5/ Locking down settings 6/ Return to initial settings 6.1 Deleting the association of the thermostat From the modes. with the technical unit Press and hold the ' ' button for 5 seconds. The symbol appears. ❶ Turn the selector knob to In Lock mode, only the Information button ( i ) is active. -
Page 9: Deleting All The Associations With The Technical Unit
6/ Return to initial settings 6.2 Deleting all the associations 6.3 Initialising the thermostat parameters with the technical unit This menu restores the system to factory settings. ❶ Turn the selector knob to . Press and hold the 2nd button from the left for 3 seconds for 5 seconds. Release. ❶... -
Page 10: 7/ Troubleshooting
7/ Troubleshooting 8/ Technical characteristics • Supply by the bus, 24V When a defect is detected on the system, the symbol flashes on • Clock backup during power failure: the thermostat display. 10h (per condenser) Press ' ' to display the type of defect. •... - Page 11 www.deltadore.com...
