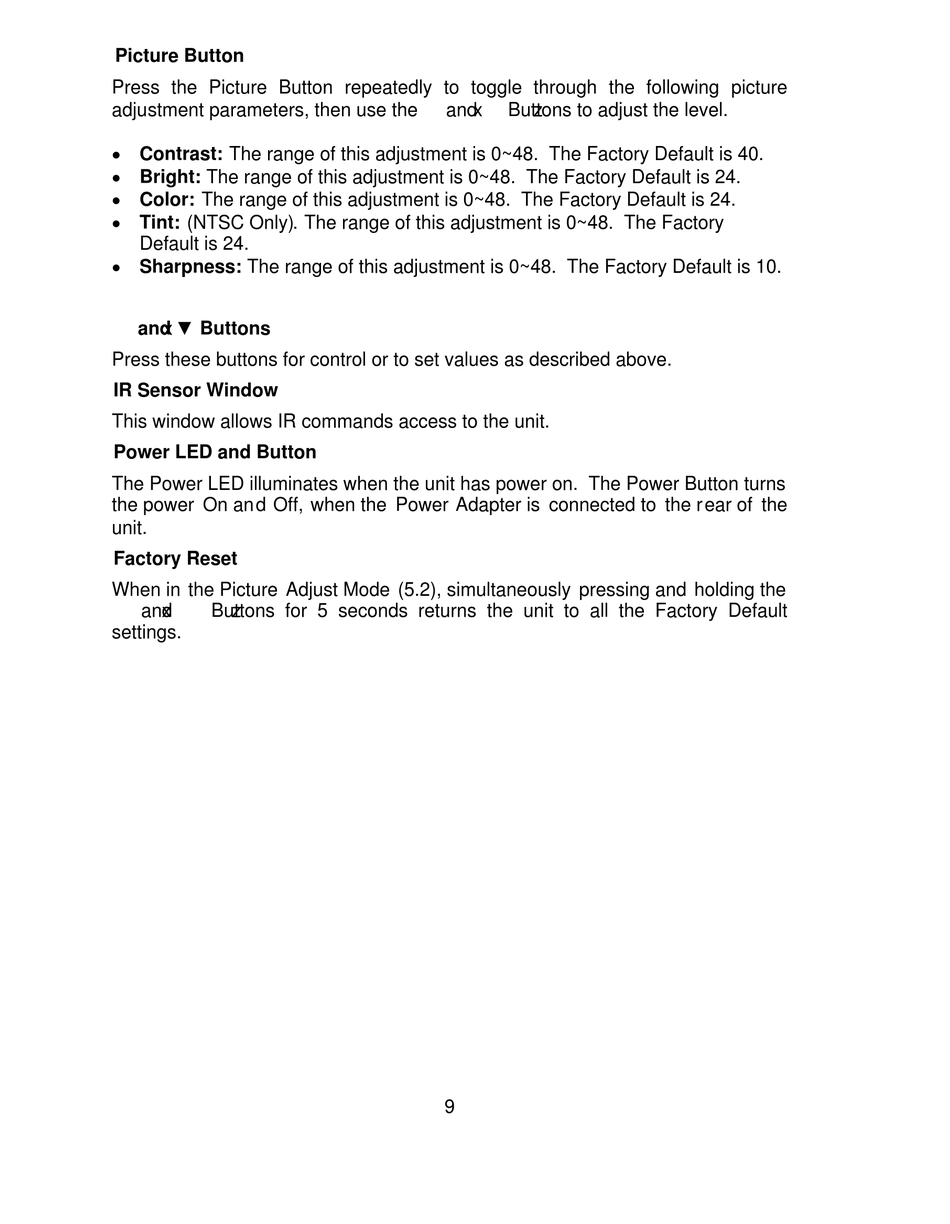

Picture Button
Press the Picture Button repeatedly to toggle through the following picture
adjustment parameters, then use the
 Contrast: The range of this adjustment is 0~48. The Factory Default is 40.
 Bright: The range of this adjustment is 0~48. The Factory Default is 24.
 Color: The range of this adjustment is 0~48. The Factory Default is 24.
 Tint: (NTSC Only). The range of this adjustment is 0~48. The Factory
Default is 24.
 Sharpness: The range of this adjustment is 0~48. The Factory Default is 10.
and ▼ Buttons
x
Press these buttons for control or to set values as described above.
IR Sensor Window
This window allows IR commands access to the unit.
Power LED and Button
The Power LED illuminates when the unit has power on. The Power Button turns
the power On and Off, when the Power Adapter is connected to the r ear of the
unit.
Factory Reset
When in the Picture Adjust Mode (5.2), simultaneously pressing and holding the
and x Buttons for 5 seconds returns the unit to all the Factory Default z
settings.
and x Buttons to adjust the level. z
