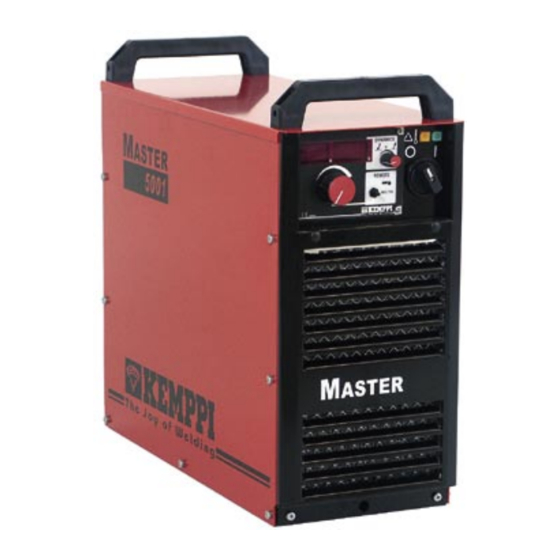

- Page 1 1913270E Operation instructions • english 0541 Gebrauchsanweisung • deutsch Gebruiksaanwijzing • nederlands Manuel d’utilisation • français MASTER 5001...
-
Page 2: Table Of Contents
4.3. REGULAR MAINTENANCE ..................12 5. OPERATION DISTURBANCES ................... 12 6. DISPOSAL OF THE MACHINE ................... 13 7. ORDER NUMBERS ..................... 13 8. TECHNICAL DATA ...................... 14 9. TERMS OF GUARANTEE ................... 15 2 – MASTER 5001/0541 © KEMPPI OY... -
Page 3: Preface
MMA welding and carbon arc gouging. It is also suitable as power source for arc powered wire feeders. Master 5001 can also be used as power source for scratch-start/contact TIG. Due to its high effect and excellent welding properties as well as due to its small size and light weight it is very suitable for site welding as well as for repair and production welding. -
Page 4: Installation
2.1. INSTALLATION P21 Current meter P22 Voltage meter P23 Display for adjustment value of MMA welding dynamics -9..0...9 R21 Ajustment of welding current R22 Adjustment of MMA welding dynamics S21 Selection for local/remote control/TIG/MIG 4 – MASTER 5001/0541 © KEMPPI OY... - Page 5 H11 Signal lamp I/O H12 Warning lamp for thermal shield S11 Main switch I/O X11 Welding and earth connection X 13 Welding and earth connection X14 Remote control connection 01 Inlet of mains cable MASTER 5001/0541 – 5 © KEMPPI OY...
-
Page 6: Siting The Machine
2.3. CONNECTION TO MAIN SUPPLY Master 5001 power source is delivered equipped with 5 m mains cable without plug. If local electricity regulations of operating country are stating otherwise, the mains cable should be replaced in conformity with them. -
Page 7: Welding And Earth Cables
Clean the fastening surface from paint and rust. 2.5. MOUNTING OF POWER UNIT TO TRANSPORT CARRIAGE Read mounting instructions for Master 5001 power source delivered with carriage T12. Fasten power source carefully of that the equipment should withstand lifting with lifting device. -
Page 8: Operation Control Switches And Potentiometers And Their Use
“welding and earthing cables”. In current measurement the same error won´t appear. 3.4. OPERATION OF COOLING FAN In Master 5001 there are two simultaneously operating fans. – Fan is started for a moment, when main switch is placed into position I. -
Page 9: Control For Mma Welding Dynamics
P21 Current meter P22 Voltage meter P23 Display for adjustment value of MMA welding dynamics -9…0…9. R21 Adjustment of welding current R22 Adjustment of MMA welding dynamics S21 Selection for local/remote control/TIG/MIG MASTER 5001/0541 – 9 © KEMPPI OY... - Page 10 Use of arc powered wire feeder Master 5001 can be connected as power source to an arc powered wire feeder. In that case set switch S21 of control panel to centre position. Power source operates then on constant voltage characteristic curves (cv), which provides the best welding properties for arc powered units. Set voltage is set with potentiometer or with remote control unit, if installed.
-
Page 11: Maintenance
Also clean the ventilation net behind the front grate. Do not use compressed air, there is a risk that dirt is packed even more tightly into gaps of cooling profiles. Do not use pressure washing device. Only authorised electrician shall carry out repairs to the machines. MASTER 5001/0541 – 11 © KEMPPI OY... -
Page 12: Regular Maintenance
5. OPERATION DISTURBANCES In case of problems contact the Kemppi works in Finland or your Kemppi dealer. Check the maintenance objects before the machine is sent to the service repair shop. Operation of the overload protection Yellow pilot lamp H12 of thermal protection is lighted when thermostat has operated due to overheating of machine. -
Page 13: Disposal Of The Machine
Master 5001 6130512 20/5 m 50mm² 6184511 20/5 m 70mm² 6184711 21/5 m 50mm² 6184501 21/5 m 70 mm² 6184701 C100C 6185410 C100D 6185413 16c/10 m 6185451 /25 m 6185452 /50 m 6185453 6185228 MASTER 5001/0541 – 13 © KEMPPI OY... -
Page 14: Technical Data
530 mm (without handles) width 230 mm height 520 mm Weight 48 kg Voltage supply for auxiliary devices 50 V DC fuse 1 A / delayed The product meets conformity requirements for CE marking. 14 – MASTER 5001/0541 © KEMPPI OY... -
Page 15: Terms Of Guarantee
Guarantee repairs must be carried out only by an Authorised Kemppi Service Agent. Packing, freight and insurance costs to be paid by orderer. The guarantee is effected on the date of purchase. Verbal promises which do not comply with the terms of guarantee are not binding on guarantor. - Page 16 Tel (06033) 88 020 KEMPPI NORGE A/S Telefax (06033) 72 528 Postboks 2151, Postterminalen e-mail:sales.de@kemppi.com N – 3103 TØNSBERG KEMPPI SP. z o.o. NORGE Ul. Piłsudskiego 2 Tel 33 34 60 00 05-091 ZA¸BKI Telefax 33 34 60 10 Poland e-mail: sales.no@kemppi.com...
