Page 1 User’s Manual Ver. 1.01 IMPORTANT • Read this manual thoroughly, and do not perform installation, operation, maintenance, or inspection unless you fully understand all of the contents. • Keep this manual in a safe place where you can refer to it easily while installing, operating, and carrying out maintenance or inspections.
Page 2 © ISHIDA Co., Ltd. 2008 All rights are reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means mechanical, electronic, photocopying, recording, or otherwise without prior written permission of ISHIDA.
Page 3: Important Notice
ISHIDA is not liable for any damage, loss or injury that results from incorrect operation, insufficient caution, unauthorized modifications to the machine, or failure to follow the instructions contained in this manual.
Page 4 PRECAUTIONS FOR SAFE USE PRECAUTIONS FOR SAFE USE It is strongly advised that the following safety measures must be observed to ensure the safe operation of the machine. • Prepare a dedicated power source and always use a power supply with rated voltage. Never connect the machine power input with an AC power supply exceeding the rated voltage.
Page 5 PRECAUTIONS FOR SAFE USE • Do not hold the operation panel or weigh platter when carrying the machine. Doing so may cause the operation panel or the platter to break down. • Do not hold the customer display for the pole type when carrying the machine.
Page 6 PRECAUTIONS FOR MACHINE INSTALLATION PRECAUTIONS FOR MACHINE INSTALLATION Do not install the machine in the following types of places: • Places subject to high • Places subject to excessive • Places subject to a lot of temperatures or high humidity vibration or unstable dust or dirt foundations...
Page 7 PRECAUTION SYMBOLS PRECAUTION SYMBOLS This machine is manufactured for use according to proper procedures by a qualified person and only for the purposes described in this manual. The following conventions are used to indicate and classify precautions depending on the level of danger, or seriousness of potential injury. Always heed the information provided in this manual.
Page 8: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS CHAPTER 1 BEFORE USE ....................1-1 SPECIFICATIONS ....................1-1 MODEL VARIATIONS ....................1-2 PART NAMES AND FUNCTIONS................1-3 1.3.1 FRONT VIEW (BENCH TYPE)..............1-3 1.3.2 REAR VIEW (BENCH TYPE) ..............1-3 OPERATION PANEL....................1-4 ADJUSTMENTS ......................
Page 9 TABLE OF CONTENTS CHAPTER 4 TEMPORARY CHANGE OPERATIONS ............4-1 UNIT PRICE CHANGE .................... 4-1 FIXED PRICE CHANGE ..................4-3 AMOUNT DISCOUNT FOR UNIT PRICE ..............4-5 PERCENT DISCOUNT FOR UNIT PRICE .............. 4-7 AMOUNT DISCOUNT FOR TOTAL PRICE ............. 4-9 PERCENT DISCOUNT FOR TOTAL PRICE............
Page 10 TABLE OF CONTENTS 9.5.6 CONFIRMING PRESET KEY DATA ............9-36 9.5.7 DELETING PRESET KEYS............... 9-37 9.5.8 MEMBRANE KEYS ................... 9-39 ADVERTISEMENT MESSAGE REGISTRATION ..........9-42 STORE NAME REGISTRATION................9-46 9.7.1 CHANGING EXISTING STORE DATA ............9-46 9.7.2 CREATING NEW STORE DATA ............... 9-49 DEPARTMENT NAME REGISTRATION..............
Page 11 TABLE OF CONTENTS CHPATER 10 SETUP MODE....................10-1 10.1 SETUP MODE ENTRY ..................10-1 10.2 MACHINE NUMBER SETTING ................10-3 10.3 SALES MODE SETTING ..................10-4 10.4 PASSWORD SETTING..................10-5 10.5 KEY LOCK SETTING ..................10-10 10.6 DATA STORAGE SETTING ................. 10-14 10.7 PRESET REPORT SETTING ................
Page 12: Chapter 1 Before Use
Chapter 1 BEFORE USE BEFORE USE SPECIFICATIONS Items Descriptions Use conditions Temperature: 5 to 35°C Humidity: 30 to 85%, Non condensing. Power supply: AC100 – 240V, 50 / 60Hz Power consumption 1.0A/0.5A Weight Bench type: Approx.11.5 kg Pole type: Approx.12.5 kg Weighing capacity 15 kg: 0 to 6/0.002 kg, 6 to 15/0.005 kg Weighting accuracy...
Page 13: Model Variations
Chapter 1 BEFORE USE MODEL VARIATIONS Bakery Type Bench Type Pole Type Elevated Type Self-service Type Hanging Type UNI-7 User’s Manual...
Page 14: Part Names And Functions
Chapter 1 BEFORE USE PART NAMES AND FUNCTIONS 1.3.1 FRONT VIEW (BENCH TYPE) 1.3.2 REAR VIEW (BENCH TYPE) UNI-7 User’s Manual...
Page 15: Operation Panel
Chapter 1 BEFORE USE OPERATION PANEL Keys for Usual Use Used to delete an entered Used to display Menu Select numerical value. screen. Used to call a registered product Used to turn the previous page. data. Used to feed labels. Used to turn the next page.
Page 16: Adjustments
Chapter 1 BEFORE USE ADJUSTMENTS 1.5.1 LEVEL ADJUSTMENT (BENCH TYPE) Install the machine horizontally to use. Be sure to turn off the power switch before placing the machine on a stable platform, and adjust the machine inclination by turning the four level adjustment feet so that the bubble is located at the center of the level gauge.
Page 17: Label / Receipt Roll Loading
Chapter 1 BEFORE USE LABEL / RECEIPT ROLL LOADING Pull out the cassette from the main body. Before pulling out the cassette unit, ensure that nothing is placed on the weigh platter. Set a new roll around the roll holder and raise the roll stopper to fix the roll position. Thread the paper as shown in the figures below..
Page 18 Chapter 1 BEFORE USE For labels, fix the paper end with the backing paper stopper, and gently turn the winding bobbin counterclockwise until the label becomes tight. Slide the label/receipt guide to help smooth paper feeding according to the paper width. UNI-7 User’s Manual...
Page 19 Chapter 1 BEFORE USE Push the cassette straight into the main body to return to its original position. Before inserting the cassette unit into the main body, ensure that nothing sticks to the magnet on the bottom of the cassette unit. Push the cassette slowly into the main body so as not to get your fingers caught.
Page 20: Removing & Replacing Of Weigh Platter
Chapter 1 BEFORE USE REMOVING & REPLACING OF WEIGH PLATTER 1.7.1 REMOVING THE WEIGH PLATTER When removing the weigh platter from the main body, lift the front side to pull out the two pins from the two rubber platter holders and remove the platter by pulling it to disengage the two hooks at the rear side of the platter.
Page 21: Cleaning Of The Machine
Chapter 1 BEFORE USE CLEANING OF THE MACHINE 1.8.1 CLEANING OF THE THEREMAL HEAD Pull out the cassette from the main body. Before pulling out the cassette unit, ensure that nothing is placed on the weigh platter. Use a cotton-tipped swab to clean off the thermal head. 1-10 UNI-7 User’s Manual...
Page 22: Cleaning Of The Label Sensor
Chapter 1 BEFORE USE 1.8.2 CLEANING OF THE LABEL SENSOR Pull out the cassette from the main body. Before pulling out the cassette unit, ensure that nothing is placed on the weigh platter. Use a dry cloth to clean off the emitter and receiver of the label sensor. UNI-7 User’s Manual 1-11...
Page 23: Cleaning Of The Print Roller And Prism
Chapter 1 BEFORE USE 1.8.3 CLEANING OF THE PRINT ROLLER AND PRISM Pull out the cassette from the main body. Before pulling out the cassette unit, ensure that nothing is placed on the weigh platter. Use a dry cloth to clean off the print roller and prism. 1-12 UNI-7 User’s Manual...
Page 24: Precautions When Using Cleaning Fluids
Chapter 1 BEFORE USE 1.8.4 PRECAUTIONS WHEN USING CLEANING FLUIDS Use a soft cloth and a neutral detergent to clean the machine. Do not use thinner, benzene, etc. Doing so may damage the original safety functions. For some parts, use cleaning fluid (isopropyl alcohol). Do not use cleaning fluid near fire as the fluid is flammable.
Page 25: Starting Procedures
Chapter 1 BEFORE USE STARTING PROCEDURES 1.9.1 TURNING ON THE POWER Push down the "I” side of the Power Switch to turn on the power. The Time Check screen appears. Then, check that displayed date and time agree with current date and time, and press the [ENTER] button on the screen to proceed to the next step.
Page 26: Performing Zero Adjustment
Chapter 1 BEFORE USE 1.9.2 PERFORMING ZERO ADJUSTMENT If the weight value is not zero on the initial screen, Press the [ZERO] key on the key sheet to perform zero weight adjustment. The “ZERO” indicator lights up and the weight value becomes zero. UNI-7 User’s Manual 1-15...
Page 27: Getting Back To The Initial Screen
Chapter 1 BEFORE USE 1.9.3 GETTING BACK TO THE INITIAL SCREEN To get back to the initial screen from a Menu Select screen, press either the “SALES” field or the icon at the bottom right on the screen. The initial screen appears. 1-16 UNI-7 User’s Manual...
Page 28: Chapter 2 Label/Receipt Issue
Chapter 2 LABEL/RECEIPT ISSUE LABEL/RECEIPT ISSUE LABEL ISSUE WITHOUT OPERATOR 2.1.1 WEIGHING UNIT PRICE PRODUCTS Ensure that the initial screen is displayed. Enter a desired PLU number using the numeric keys and press the [PLU] key on the key sheet, or simply press a preset key on the screen where the product is allocated. EXAMPLE PLU No.6 “Roast Beef”...
Page 29 Chapter 2 LABEL/RECEIPT ISSUE With Preset Tare Weight Manual Tare Entry To newly enter a tare weight or overwrite an existing tare weight, enter the tare weight using the numeric keys and press the “TARE” field on the screen. EXAMPLE Tare weight “50g”...
Page 30 Chapter 2 LABEL/RECEIPT ISSUE When “MANUAL” is set in the Print Mode, Press the [PRINT] key on the key sheet. The label is issued. Non-traceable products Traceable products When “AUTO” is set in the Print Mode, The label is automatically issued as soon as the weighing is stabilized. Non-traceable products Traceable products Uni-7 User’s Manual...
Page 31: Weighing Fixed Price Products
Chapter 2 LABEL/RECEIPT ISSUE 2.1.2 WEIGHING FIXED PRICE PRODUCTS Ensure that the initial screen is displayed. Enter a desired PLU number using the numeric keys and press the [PLU] key on the key sheet, or simply press a preset key on the screen where the product is allocated. EXAMPLE PLU No.6 “Roast Beef”...
Page 32 Chapter 2 LABEL/RECEIPT ISSUE With Preset Tare Weight Manual Tare Entry To newly enter a tare weight or overwrite an existing tare weight, enter the tare weight using the numeric keys and press the “TARE” field on the screen. EXAMPLE Tare weight “50g”...
Page 33 Chapter 2 LABEL/RECEIPT ISSUE When “MANUAL” is set in the Print Mode, Press the [PRINT] key on the key sheet. Non-traceable products Traceable products When “AUTO” is set in the Print Mode, The label is automatically issued as soon as the weighing is stabilized. Non-traceable products Traceable products Uni-7 User’s Manual...
Page 34: Processing Fixed Price Products
Chapter 2 LABEL/RECEIPT ISSUE 2.1.3 PROCESSING FIXED PRICE PRODUCTS Ensure that the initial screen is displayed. Enter a desired PLU number using the numeric keys and press the [PLU] key on the key sheet, or simply press a preset key on the screen where the product is allocated. EXAMPLE PLU No.6 “Roast Beef”...
Page 35 Chapter 2 LABEL/RECEIPT ISSUE Press the [PRINT] key on the key sheet to issue the labels. The label is issued. Non-traceable products Traceable products Remove the label. The next label is issued. Non-traceable products Traceable products Note: To stop printing, press the [PRINT] key again. Uni-7 User’s Manual...
Page 36: Processing Fixed Weight/Fixed Unit Price Products
Chapter 2 LABEL/RECEIPT ISSUE 2.1.4 PROCESSING FIXED WEIGHT/FIXED UNIT PRICE PRODUCTS Ensure that the initial screen is displayed. Enter a desired PLU number using the numeric keys and press the [PLU] key on the key sheet, or simply press a preset key on the screen where the product is allocated. EXAMPLE PLU No.6 “Roast Beef”...
Page 37 Chapter 2 LABEL/RECEIPT ISSUE Enter the fixed weight using the numeric keys on the key sheet and press the “FIXED WEIGHT” field. EXAMPLE Fixed weight “858g” Press the [PRINT] key on the key sheet to issue the labels. The label is issued. Non-traceable products Traceable products Remove the label.
Page 38: Label Issue With Operators
Chapter 2 LABEL/RECEIPT ISSUE LABEL ISSUE WITH OPERATORS 2.2.1 WEIGHING UNIT PRICE PRODUCTS Ensure that the initial screen is displayed. Enter a desired PLU number using the numeric keys and press the [PLU] key on the key sheet, or simply press a preset key on the screen where the product is allocated. EXAMPLE PLU No.6 “Roast Beef”...
Page 39 Chapter 2 LABEL/RECEIPT ISSUE Manual Tare Entry To newly enter a tare weight or overwrite an existing tare weight, enter the tare weight using the numeric keys and press the “TARE” field on the screen. EXAMPLE Tare weight “50g” See section 2.4 for Temporary Change Operations. Put a product on the weigh platter.
Page 40 Chapter 2 LABEL/RECEIPT ISSUE Press a operator button on the screen to issue the label. EXAMPLE Operator “BETTY” The label is issued. Uni-7 User’s Manual 2- 13...
Page 41: Weighing Fixed Price Products
Chapter 2 LABEL/RECEIPT ISSUE 2.2.2 WEIGHING FIXED PRICE PRODUCTS Ensure that the initial screen is displayed. Enter a desired PLU number using the numeric keys and press the [PLU] key on the key sheet, or simply press a preset key on the screen where the product is allocated. EXAMPLE PLU No.6 “Roast Beef”...
Page 42 Chapter 2 LABEL/RECEIPT ISSUE With Preset Tare Weight Manual Tare Entry To newly enter a tare weight or overwrite an existing tare weight, enter the tare weight using the numeric keys and press the “TARE” field on the screen. EXAMPLE Tare weight “50g”...
Page 43 Chapter 2 LABEL/RECEIPT ISSUE Press a operator button on the screen to issue the label. EXAMPLE Operator “BETTY” The label is issued. 2-16 Uni-7 User’s Manual...
Page 44: Processing Fixed Price Products
Chapter 2 LABEL/RECEIPT ISSUE 2.2.3 PROCESSING FIXED PRICE PRODUCTS Ensure that the initial screen is displayed. Enter a desired PLU number using the numeric keys and press the [PLU] key on the key sheet, or simply press a preset key on the screen where the product is allocated. EXAMPLE PLU No.6 “Roast Beef”...
Page 45 Chapter 2 LABEL/RECEIPT ISSUE Press a operator button on the screen to issue the label. EXAMPLE Operator “BETTY” The label is issued. 2-18 Uni-7 User’s Manual...
Page 46: Processing Fixed Weight/Fixed Unit Price Products
Chapter 2 LABEL/RECEIPT ISSUE 2.2.4 PROCESSING FIXED WEIGHT/FIXED UNIT PRICE PRODUCTS Ensure that the initial screen is displayed. Enter a desired PLU number using the numeric keys and press the [PLU] key on the key sheet, or simply press a preset key on the screen where the product is allocated. EXAMPLE PLU No.6 “Roast Beef”...
Page 47 Chapter 2 LABEL/RECEIPT ISSUE Enter the fixed weight using the numeric keys on the key sheet and press the “FIXED WEIGHT” field. EXAMPLE Fixed weight “858g” Press a operator button on the screen to issue the label. EXAMPLE Operator “BETTY” The label is issued.
Page 48: Receipt Issue
Chapter 2 LABEL/RECEIPT ISSUE RECEIPT ISSUE Ensure that the initial screen is displayed. Enter a desired PLU number using the numeric keys and press the [PLU] key on the key sheet, or simply press a preset key on the screen where the product is allocated. EXAMPLE PLU No.6 “Roast Beef”...
Page 49 Chapter 2 LABEL/RECEIPT ISSUE Put a product on the weigh platter. The weight is measured and the total price is calculated. Then, press a operator button on the screen. EXAMPLE Operator “BETTY” The subtotal screen for the selected operator appears for a certain time period. Repeat steps 2 through 5 for more registrations.
Page 50 Chapter 2 LABEL/RECEIPT ISSUE The detailed subtotal screen appears. Press the [PRINT] key on the key sheet. The receipt is issued. Uni-7 User’s Manual 2- 23...
Page 51: Chapter 3 Traceability Products
Chapter 3 TRACEABILITY PRODUCTS TRACEABILITY PRODUCTS REFERING TO PREVIOUS TRACEABILITY DATA Ensure that the initial screen is displayed. Enter a desired PLU number using the numeric keys and press the [PLU] key on the key sheet, or simply press a preset key on the screen where the product is allocated. EXAMPLE PLU number “6”.
Page 52 Chapter 3 TRACEABILITY PRODUCTS To refer to the previously processed traceability data, press the [LIST] button. The Traceability History screen appears. Then, press to select a desired data field. The selected data appears. Then, press the [SET] button. The selected PLU screen appears. Weighing Unit Price Products Uni-7 User’s Manual...
Page 53 Chapter 3 TRACEABILITY PRODUCTS Fixed Price Products Fixed Unit Price Products Weighing Fixed Price Products Uni-7 User’s Manual 3- 3...
Page 54: Changing Traceability Data
Chapter 3 TRACEABILITY PRODUCTS CHANGING TRACEABILITY DATA Ensure that the initial screen is displayed. Enter a desired PLU number using the numeric keys and press the [PLU] key on the key sheet, or simply press a preset key on the screen where the product is allocated. EXAMPLE PLU number “6”.
Page 55 Chapter 3 TRACEABILITY PRODUCTS If the data is not correct, press to select a desired data field. EXAMPLE Select “France”. EXAMPLE Change to “Argentina”. The data has been changed. To change the “FACTORY” data, press the corresponding field. Press to select a desired data field. Uni-7 User’s Manual 3- 5...
Page 56 Chapter 3 TRACEABILITY PRODUCTS The data has been changed. Then, press the [SET] button. When changing the lot data, press the “LOT” filed. The Traceability Lot Number Set screen appears. Change the lot number using the [ABC] [ERASE] and [BACK SPACE] buttons, and press the [BACK] button to finish.
Page 57: Fixed Price Products
Chapter 3 TRACEABILITY PRODUCTS The confirmation screen appears. Then, press the [SAVE] button to save the data. The Traceability screen appears. Then, press the [SET] button. The selected PLU screen appears. Weighing Unit Price Products Fixed Price Products Uni-7 User’s Manual 3- 7...
Page 58 Chapter 3 TRACEABILITY PRODUCTS Fixed Unit Price Products Weighing Fixed Price Products Uni-7 User’s Manual...
Page 59: Chapter 4 Temporary Change Operations
Chapter 4 TEMPORARY CHANGE OPERATIONS TEMPORARY CHANGE OPERATIONS UNIT PRICE CHANGE Ensure that the selected PLU screen is displayed. Weighing Products Fixed Unit Price Products Enter a desired unit price using the numeric keys and press the “UNIT PRICE” or “FIXED UNIT PRICE”...
Page 60 Chapter 4 TEMPORARY CHANGE OPERATIONS Fixed Unit Price Products Uni-7 User’s Manual...
Page 61: Fixed Price Change
Chapter 4 TEMPORARY CHANGE OPERATIONS FIXED PRICE CHANGE Ensure that the selected PLU screen is displayed. Fixed Price Products Weighing Fixed Price Products Enter a desired price using the numeric keys, and press the “FIXED PRICE” field. EXAMPLE “$3.80” Fixed Price Products Uni-7 User’s Manual 4- 3...
Page 62 Chapter 4 TEMPORARY CHANGE OPERATIONS Weighing Fixed Price Products Uni-7 User’s Manual...
Page 63: Amount Discount For Unit Price
Chapter 4 TEMPORARY CHANGE OPERATIONS AMOUNT DISCOUNT FOR UNIT PRICE Ensure that the selected PLU screen is displayed. Weighing Unit Price Products Fixed Unit Price Products Enter a desired discount amount using the numeric keys, and press the “-$ (U/P)” field. EXAMPLE Discount amount “$1.00”.
Page 64 Chapter 4 TEMPORARY CHANGE OPERATIONS Fixed Unit Price Products Uni-7 User’s Manual...
Page 65: Percent Discount For Unit Price
Chapter 4 TEMPORARY CHANGE OPERATIONS PERCENT DISCOUNT FOR UNIT PRICE Ensure that the selected PLU screen is displayed. Weighing Unit Price Products Fixed Unit Price Products Enter a desired discount percentage using the numeric keys on the key sheet, and press the “-% (U/P)”...
Page 66 Chapter 4 TEMPORARY CHANGE OPERATIONS Fixed Unit Price Products Uni-7 User’s Manual...
Page 67: Amount Discount For Total Price
Chapter 4 TEMPORARY CHANGE OPERATIONS AMOUNT DISCOUNT FOR TOTAL PRICE Ensure that the selected PLU screen is displayed. Fixed Price Products Weighing Fixed Price Products Enter a desired discount amount using the numeric keys, and press the “-$” field. EXAMPLE Discount amount “$1.00”.
Page 68 Chapter 4 TEMPORARY CHANGE OPERATIONS Weighing Fixed Price Products 4-10 Uni-7 User’s Manual...
Page 69: Percent Discount For Total Price
Chapter 4 TEMPORARY CHANGE OPERATIONS PERCENT DISCOUNT FOR TOTAL PRICE Ensure that the selected PLU screen is displayed. Fixed Price Products Weighing Fixed Price Products Enter a desired discount percentage using the numeric keys on the key sheet, and press the “-%”...
Page 70 Chapter 4 TEMPORARY CHANGE OPERATIONS Weighing Fixed Price Products 4-12 Uni-7 User’s Manual...
Page 71: Product Quantity Change
Chapter 4 TEMPORARY CHANGE OPERATIONS PRODUCT QUANTITY CHANGE Ensure that the selected PLU screen is displayed. Fixed Price Products Enter a desired quantity using the numeric keys, and press the “PCS” field. EXAMPLE Quantity “2 pieces” To select a desired fix price mark, press the “PCS” field again. Uni-7 User’s Manual 4- 13...
Page 72 Chapter 4 TEMPORARY CHANGE OPERATIONS The Fix Price mark List screen appears. Then, select a desired mark by pressing the corresponding field. EXAMPLE Price mark “PC. PCS.” 4-14 Uni-7 User’s Manual...
Page 73: Print Quantity Setting
Chapter 4 TEMPORARY CHANGE OPERATIONS PRINT QUANTITY SETTING Ensure that the selected PLU screen is displayed and “AUTO” is selected in the Printing Mode. Fixed Price Products Enter a desired number of labels and press the “PRN QTY (Print Quantity)” field on the screen.
Page 74: Chapter 5 Self-Service Operations
Chapter 5 SELF-SERVICE OPERATIONS SELF-SERVICE OPERATIONS WEIGHING PRODUCTS Ensure that the initial screen is displayed. Select a desired product by pressing the corresponding button on the screen. EXAMPLE Select “Roast Beef” The selected product screen appears. Uni-7 User’s Manual 5- 1...
Page 75 Chapter 5 SELF-SERVICE OPERATIONS Put a product on the weigh platter. The weight is measured and the total price is calculated. Press the [LABEL PRINT] button on the screen to issue the label. The label is issued. Uni-7 User’s Manual...
Page 76: Fixed Price Products
Chapter 5 SELF-SERVICE OPERATIONS FIXED PRICE PRODUCTS Ensure that the initial screen is displayed. Select a desired product by pressing the corresponding button on the screen. EXAMPLE Select “Roast Beef” The selected product screen appears. Then, press the [LABEL PRINT] button on the screen to issue the label. The label is issued.
Page 77: Chapter 6 Accumulator Mode
Chapter 6 ACCUMULATOR MODE ACCUMULATOR MODE MANUAL INPUT ACCUMULATION To get the Operation Menu Select screen, press the [MODE] key on the key sheet. Then, press the “ACC (Accumulator)” filed. The Accumulator (Input Number Accumulation) screen appears. Enter a desired PLU number and press the [PLU] key on the key sheet. EXAMPLE PLU number “6”.
Page 78 Chapter 6 ACCUMULATOR MODE Enter a quantity, weight, and price that are to be accumulated and press the corresponding fields for registration. Then, press the [ACC] button on the screen. EXAMPLE Quantity “1 pc.”, Weight “169g”, Price “$0.84” The confirmation screen appears. Then, press the [EXEC] button on the screen. The registration has been completed.
Page 79: Weighing Accumulation
Chapter 6 ACCUMULATOR MODE WEIGHING ACCUMULATION To get the Operation Menu Select screen, press the [MODE] key on the key sheet. Then, press the “ACC (Accumulator)” filed. To get the Weighing Accumulation screen, press the [WGT. ACC] tab. Uni-7 User’s Manual 6- 3...
Page 80 Chapter 6 ACCUMULATOR MODE Enter a desired PLU number and press the [PLU] key on the key sheet. EXAMPLE PLU number “6”. The Weighing Accumulation screen for the selected product appears. Put a product on the weigh platter and press the [ACC] button on the screen.. The confirmation screen appears.
Page 81 Chapter 6 ACCUMULATOR MODE Remove the product from the weigh platter. Uni-7 User’s Manual 6- 5...
Page 82: Manual Input Void
Chapter 6 ACCUMULATOR MODE MANUAL INPUT VOID To get the Operation Menu Select screen, press the [MODE] key on the key sheet. Then, press the “ACC (Accumulator)” filed. To get the Input Number Void screen, press the [NUM. VOID] tab. Uni-7 User’s Manual...
Page 83 Chapter 6 ACCUMULATOR MODE Enter a desired PLU number and press the [PLU] key on the key sheet. EXAMPLE PLU number “6”. The Input Number Void screen for the selected product appears. Enter a quantity, weight, and price that are to be voided and press the corresponding fields for registration.
Page 84 Chapter 6 ACCUMULATOR MODE The registration has been completed. Uni-7 User’s Manual...
Page 85: Weighing Void
Chapter 6 ACCUMULATOR MODE WEIGHING VOID To get the Operation Menu Select screen, press the [MODE] key on the key sheet. Then, press the “ACC (Accumulator)” filed. To get the Weighing Void screen, press the [WGT. VOID] tab. Uni-7 User’s Manual 6- 9...
Page 86 Chapter 6 ACCUMULATOR MODE Enter a desired PLU number and press the [PLU] key on the key sheet. EXAMPLE PLU number “6”. The Weighing Void screen for the selected product appears. Put a product on the weigh platter and press the [VOID] button on the screen.. The confirmation screen appears.
Page 87 Chapter 6 ACCUMULATOR MODE Remove the product from the weigh platter. Uni-7 User’s Manual 6- 11...
Page 88: Chapter 7 Total Adjust Mode
Chapter 7 TOTAL ADJUST MODE TOTAL ADJUST MODE MANUAL INPUT SUBTRACTION To get the To get the Operation Menu Select screen, press the [MODE] key on the key sheet. Then, press the “TOTAL ADJUST” filed. Enter a desired PLU number and press the [PLU] key on the key sheet. EXAMPLE PLU number “6”.
Page 89 Chapter 7 TOTAL ADJUST MODE Enter a quantity, weight, and price that are to be subtracted and press the corresponding fields for registration. Then, press the [SUB] button on the screen. EXAMPLE Quantity “1 pc.”, Weight “169g”, Price “$0.84” The confirmation screen appears. Then, press the [EXEC] button on the screen. The registration has been completed.
Page 90: Weighing Subtraction
Chapter 7 TOTAL ADJUST MODE WEIGHING SUBTRACTION To get the Operation Menu Select screen, press the [MODE] key on the key sheet. Then, press the “TOTAL ADJUST” filed. To get the Total Adjust (Weighing Subtraction) screen, press the [WGT. SUB] tab. Uni-7 User’s Manual 7- 3...
Page 91 Chapter 7 TOTAL ADJUST MODE Enter a desired PLU number and press the [PLU] key on the key sheet. EXAMPLE PLU number “6”. The Total Adjust (Weighing Subtraction) screen for the selected product appears. Put a product on the weigh platter and press the [SUB] button on the screen.. The confirmation screen appears.
Page 92 Chapter 7 TOTAL ADJUST MODE Remove the product from the weigh platter. Uni-7 User’s Manual 7- 5...
Page 93: Manual Input Addition
Chapter 7 TOTAL ADJUST MODE MANUAL INPUT ADDITION To get the Operation Menu Select screen, press the [MODE] key on the key sheet. Then, press the “TOTAL ADJUST” filed. To get the Total Adjust (Input Number Addition) screen, press the [NUM. ADD] tab. Uni-7 User’s Manual...
Page 94 Chapter 7 TOTAL ADJUST MODE Enter a desired PLU number and press the [PLU] key on the key sheet. EXAMPLE PLU number “6”. The Total Adjust (Input Number Addition) screen for the selected product appears. Enter a quantity, weight, and price that are to beaded and press the corresponding fields for registration.
Page 95 Chapter 7 TOTAL ADJUST MODE The registration has been completed. Uni-7 User’s Manual...
Page 96: Weighing Addition
Chapter 7 TOTAL ADJUST MODE WEIGHING ADDITION To get the Operation Menu Select screen, press the [MODE] key on the key sheet. Then, press the “TOTAL ADJUST” filed. To get the Total Adjust (Weighing Add) screen, press the [WGT. ADD] tab. Uni-7 User’s Manual 7- 9...
Page 97 Chapter 7 TOTAL ADJUST MODE Enter a desired PLU number and press the [PLU] key on the key sheet. EXAMPLE PLU number “6”. The Total Adjust (Weighing Add) screen for the selected product appears. Put a product on the weigh platter and press the [ADD] button on the screen.. The confirmation screen appears.
Page 98 Chapter 7 TOTAL ADJUST MODE Remove the product from the weigh platter. Uni-7 User’s Manual 7- 11...
Page 99: Chapter 8 Total Mode
Chapter 8 TOTAL MODE TOTAL MODE DAILY TOTAL Press the “PRODUCTION DAILY TOTAL” filed. The Daily Total screen appears. To obtain the Hourly Total screen, press the [HOUR.] tab. To change the pages, press the [ ] or [ ] button on the screen. Uni-7 User’s Manual 8- 1...
Page 100 Chapter 8 TOTAL MODE To obtain the Department Total screen, press the [DEPT.] tab. To change the pages, press the [ ] or [ ] button on the screen. To obtain the Group Total screen, press the [GROUP] tab. To change the pages, press the [ ] or [ ] button on the screen. To obtain the Designated Item Total screen, press the [ITEM] tab.
Page 101 Chapter 8 TOTAL MODE EXAMPLE PLU number “6”. To obtain the Operator Total screen, press the [ORER.] tab. To obtain the Class Total screen, press the [CLASS] tab. The object of analysis is not specified. DEPT. The object of analysis is specified to be departments. GROUP The object of analysis is specified to be groups.
Page 102: Weekly Total
Chapter 8 TOTAL MODE WEEKLY TOTAL Press the “PRODUCTION WEEKLY TOTAL” filed. The Weekly Total screen appears. To change the pages, press the [ ] or [ ] button on the screen. To obtain total for the day-of-the week, press a desired day-of-the week tab. To change the pages, press the [ ] or [ ] button on the screen.
Page 103 Chapter 8 TOTAL MODE Uni-7 User’s Manual 8- 5...
Page 104: Cumulative Total
Chapter 8 TOTAL MODE CUMULATIVE TOTAL Press the “PRODUCTION CUMULATIVE TOTAL” filed. The Cumulative Total screen appears. To obtain total for each department, press the [DEPT.] tab on the screen. To change the pages, press the [ ] or [ ] button on the screen. To obtain total for each group, press the [GROUP] tab on the screen.
Page 105 Chapter 8 TOTAL MODE To obtain total for each operator, press the [OPER.] tab on the screen. To change the pages, press the [ ] or [ ] button on the screen. To obtain analysis totals, press the [CLASS] tab on the screen. To change the pages, press the [ ] or [ ] button on the screen.
Page 106: Traceability Total
Chapter 8 TOTAL MODE TRACEABILITY TOTAL Press the “TRACEABILITY TOTAL” filed. The Traceability Item screen appears. To change the pages, press the [ ] or [ ] button on the screen. To obtain Traceability Total screen, press the [DETAIL] button on the screen. The Traceability Total screen appears.
Page 107: Preset Report Printing
Chapter 8 TOTAL MODE PRESET REPORT PRINTING Press the “PRESET REPORT” filed. The Preset Report screen appears. Select desired reports by pressing the corresponding fields. Press the [STRAT] button to issue selected join reports. Uni-7 User’s Manual 8- 9...
Page 108: Total Clear
Chapter 8 TOTAL MODE TOTAL CLEAR Press the [ ] button on the screen. The second page of the Menu Select screen appears. To obtain the Total Clear screen, press the “TOTAL CLEAR” field on the screen. The Total Clear screen appears. Select desired reports to be cleared by pressing the corresponding fields.
Page 109 Chapter 8 TOTAL MODE Press the [EXEC] button. The confirmation screen appears. Then, press the [EXEC] button on the screen for execution. Uni-7 User’s Manual 8- 11...
Page 110: Chapter 9 Program Mode
Chapter 9 PROGRAM MODE PROGRAM MODE PROGRAM MODE ENTRY Ensure that the initial screen is displayed. Press the [MODE] key on the key sheet. The Operation Menu Select screen appears. Then, press the [PROGRAM] button on the screen. The Program Menu Select screen appears. To change the pages, press the [ ] or [ ] button on the screen.
Page 111 Chapter 9 PROGRAM MODE Uni-7 User’s Manual...
Page 112 Chapter 9 PROGRAM MODE Note: To exit the Program Mode, press the [ESC] (Escape) key on the key sheet. Uni-7 User’s Manual...
Page 113: Plu File Registration
Chapter 9 PROGRAM MODE PLU FILE REGISTRATION Press the “PLU FILE” field on the Program Menu Select screen. The Item List screen appears. To change the pages, press the [ ] or [ ] button on the screen Press to select a desired field. Then, press the [DETAIL] button on the screen. EXAMPLE Select “Roast Beef”.
Page 114 Chapter 9 PROGRAM MODE The text edit screen appears. Edit a text according to the procedure explained in Appendix “Text Editing”. Ensure that the first sales related screen is displayed. Sales Mode: Weighing Product Sales Mode: Fixed Price Product Sales Mode: Weighing Fixed Price Product Uni-7 User’s Manual...
Page 115 Chapter 9 PROGRAM MODE Sales Mode: Fixed Unit Price Product ITEM DESCRIPTION Press the [<] or [>] button to select a desired sales mode. 0: Weighing product 1: Fixed price product SALES MODE 2: Weighing fixed price product 3: Fixed unit price product Press the [<] or [>] button to select a desired markdown mode.
Page 116 Chapter 9 PROGRAM MODE Press the [SALE2] tab to select the second sales related screen. ITEM DESCRIPTION Press the [<] or [>] button to select whether or not to use the Point Flag. POINT 0: OFF FLAG 1: ON Press the [<] or [>] button to select a desired Point Type. POINT 0: Weight TYPE...
Page 117 Chapter 9 PROGRAM MODE The Extra Message List screen appears. Then, press to select a desired field. EXAMPLE “Extra Message BB”. Press the [IMAGE] tab to select the image related screen. Press to select a desired field. EXAMPLE Select a desired image for “Image 1”. Uni-7 User’s Manual...
Page 118 Chapter 9 PROGRAM MODE The Image List screen appears. Then, press to select a desired field and press the [SET] button. EXAMPLE Select “Image No.8”. Select whether or not to print Safe handling Image by pressing a desired field. 11-1 Press the [PRINT] tab to select the print related screen.
Page 119 Chapter 9 PROGRAM MODE 11-3 The Format List screen appears. Then, select a desired format by pressing the corresponding field. EXAMPLE Select “Format No.5”. ITEM DESCRIPTION Press the [<] or [>] button to select whether or not to print the FIRST LABEL first labels.
Page 120 Chapter 9 PROGRAM MODE Pressing the [DATE] tab to select the date related screen. ITEM DESCRIPTION PACK DATE Select whether or not to print the Pack Date. PRINT Press the [<] or [>] button to select a desired printing method. 0: No print PACK TIME PRINT 1: Designated time...
Page 121 Chapter 9 PROGRAM MODE Select the code related screen by pressing the [CODE] tab. ITEM DESCRIPTION ITEM CODE Enter an item code and press this field. REGISTER CODE Enter the register code and press this field. This field is available only when “PLU File” is selected in “POS POS FLAG REFERENCE”.
Page 122 Chapter 9 PROGRAM MODE Select whether or not to enable a traceability function. TRACE ENABLE Press this field to get the Department List screen. Set the desired department simply by pressing the field on the DEPARTMENT No. list, or pressing the “Department No.” field after a numeric entry.
Page 123: Campaign List Registration
Chapter 9 PROGRAM MODE CAMPAIGN LIST REGISTRATION Press the “CAMPAIGN” field on the Program Menu Select screen. The Campaign List appears. To change the pages, press the [ ] or [ ] button on the screen. Create a new campaign file by entering a campaign number and pressing the [PLU] key on the key sheet.
Page 124 Chapter 9 PROGRAM MODE The designated Campaign Data List screen appears. Enter the campaign start date and press the “Start Date” display field. . EXAMPLE Start date "June 25, 2007” Enter the start time and press the “Start Time” display field. . EXAMPLE Start time "08:00”...
Page 125 Chapter 9 PROGRAM MODE Enter the campaign end date and press the “End Date” display field. . EXAMPLE End date "June 27, 2007” Enter the end time and press the “End Time” display field. EXAMPLE End time "21:00” Press the [CALL] button to call up Item List screens 9-16 Uni-7 User’s Manual...
Page 126 Chapter 9 PROGRAM MODE The Item List screen appears. Then, press to select a desired item field. EXAMPLE PLU number “4” The Campaign Data List screen appears. Then, press the [CALL] button again when selecting the next item. The pop-up list appears. Then, press to select a desired field. EXAMPLE Percent discount “-%”...
Page 127 Chapter 9 PROGRAM MODE Enter a numeric value and press the “Markdown Price” field for registration. EXAMPLE Repeat steps 9 through 12 for further registration. Then, press the Return button to finalize this procedure. The Campaign List screen appears. 9-18 Uni-7 User’s Manual...
Page 128: Operator Registration
Chapter 9 PROGRAM MODE OPERATOR REGISTRATION Press the "OPERATORS” field on the Program Menu Select screen. The Operator List screen appears. To create a new operator, enter the operator number and press the [PLU] key on the key sheet. EXAMPLE Operator number “7”.
Page 129 Chapter 9 PROGRAM MODE The Operator Edit screen appears for the selected operator number. Edit a text according to the procedures described in Appendix “Text Editing”. Press the [ESC] key on the key sheet to escape from text editing mode. The confirmation screen appears.
Page 130 Chapter 9 PROGRAM MODE The edited text has been registered. Press the Return button to finalize this procedure. Uni-7 User’s Manual 9-21...
Page 131: Preset Key Registration
Chapter 9 PROGRAM MODE PRESET KEY REGISTRATION 9.5.1 SETTING PRESET FUNCTIONS Press the “PRESET KEY” field on the screen. The Preset Key (Panel) screen appears. Ensure that the [SET] button is selected. Press a desired button to which a preset function will be assigned. 9-22 Uni-7 User’s Manual...
Page 132 Chapter 9 PROGRAM MODE Available functions are listed on the screens. To change the pages, press the [ ] or [ ] button on the screen. Uni-7 User’s Manual 9-23...
Page 133 Chapter 9 PROGRAM MODE Press to select the desired function on the list, and press the [SET] button. EXAMPLE Select PLU function. The Item List screen appears. Then, press to select a desired field. EXAMPLE Select PLU No.2. The selected PLU has been assigned. Repeat steps 4 through 8 for more registrations.
Page 134: Assigning Images On The Preset Keys
Chapter 9 PROGRAM MODE 9.5.2 ASSIGNING IMAGES ON THE PRESET KEYS Press the “PRESET KEY” field on the screen. The Preset Key (Panel) screen appears. Press the [IMAGE] button. Press a desired preset key where the function is already assigned. EXAMPLE Select “Roast Beef”...
Page 135 Chapter 9 PROGRAM MODE The Image List screen appears. Press to select a desired image. EXAMPLE Image No.3 The image has been assigned. Repeat steps 4 through 7 for more registrations. 9-26 Uni-7 User’s Manual...
Page 136: Coloring Preset Keys
Chapter 9 PROGRAM MODE 9.5.3 COLORING PRESET KEYS Press the “PRESET KEY” field on the screen. The Preset Key (Panel) screen appears. Press the [COLOR] button. Then, ensure that “Back Color” is selected. Press to select a desired preset key. EXAMPLE Select “Roast Beef”...
Page 137 Chapter 9 PROGRAM MODE The Preset Key (Color) screen appears. Then, press to select a desired color. Selected color has been given to the background of the key. Press the [BACK COLOR] button to change to the [FORE COLOR] button. Press to select a desired preset key.
Page 138 Chapter 9 PROGRAM MODE The Preset Key (Color) screen appears. Then, press to select a desired color. Selected color has been given to the foreground of the key. Repeat steps 4 through 10 for more registrations. Uni-7 User’s Manual 9-29...
Page 139: Changing Preset Key Sizes
Chapter 9 PROGRAM MODE 9.5.4 CHANGING PRESET KEY SIZES Press the “PRESET KEY” field on the screen. The Preset Key (Panel) screen appears. Press the [SIZE] button, and ensure that “SMALL” is selected. Press the [SMALL] button to change to the [MIDDLE] button. 9-30 Uni-7 User’s Manual...
Page 140 Chapter 9 PROGRAM MODE Press the [MIDDLE] button to change to the [LARGE] button. Change the size of a desired key. EXAMPLE Change to the middle size of the “Roast Beef” key. Ensure that the [MIDDLE] button is selected. Press the “Roast Beef” key. Uni-7 User’s Manual 9-31...
Page 141 Chapter 9 PROGRAM MODE Change the size of a desired key. EXAMPLE Change to the large size of the “Roast Beef” key. Ensure that the [LARGE] button is selected. Press the “Roast Beef” key. Repeat steps 3 through 4-2 for more registrations. 9-32 Uni-7 User’s Manual...
Page 142: Editing Preset Key Names
Chapter 9 PROGRAM MODE 9.5.5 EDITING PRESET KEY NAMES Press the “PRESET KEY” field on the screen. The Preset Key (Panel) screen appears. Press to select the [EDIT] button. Press to select a desired preset key. EXAMPLE Select the [Roast Beef] key. Uni-7 User’s Manual 9-33...
Page 143 Chapter 9 PROGRAM MODE The text edit screen appears. Edit a desired text according to the procedures described in Appendix “Text Editing”. EXAMPLE “Beef Fillet”. To finalize the editing, press the [ESC] key on the key sheet. The confirmation screen appears. Then, press the [SAVE] button to save the data. 9-34 Uni-7 User’s Manual...
Page 144 Chapter 9 PROGRAM MODE The edited text has been registered. Repeat steps 4 through 8 for more registrations. Uni-7 User’s Manual 9-35...
Page 145: Confirming Preset Key Data
Chapter 9 PROGRAM MODE 9.5.6 CONFIRMING PRESET KEY DATA Press the “PRESET KEY” field on the screen. The Preset Key (Panel) screen appears. Press to select the [DATA] button. Press a desired preset key. The related data is displayed on the button. EXAMPLE “Beef Fillet”...
Page 146: Deleting Preset Keys
Chapter 9 PROGRAM MODE 9.5.7 DELETING PRESET KEYS Press the “PRESET KEY” field on the screen. The Preset Key (Panel) screen appears. Ensure that the [SET] button is selected. Press a desired preset key to be deleted. EXAMPLE Delete the [Roast Beef] key”. The Function List screen appears, and the assigned function field is highlighted.
Page 147 Chapter 9 PROGRAM MODE Press to select the “NO” field, and press the [SET] button. The selected key has been deleted. Repeat steps 3 through 6 for more deletions. 9-38 Uni-7 User’s Manual...
Page 148: Membrane Keys
Chapter 9 PROGRAM MODE 9.5.8 MEMBRANE KEYS Press the “PRESET KEY” field on the screen. The Preset Key (Panel) screen appears. Then, press the [MEMBRANE] tab. The Preset Key (Membrane) screen appears. Press to select a desired membrane key to which the preset data is assigned. Uni-7 User’s Manual 9-39...
Page 149 Chapter 9 PROGRAM MODE The selected key number and name are shown on the screen. To assign a desired function to the selected key, press the Name field. The Function List screen appears. Select a desired function to be assigned by pressing the corresponding field, and press the [SET] button.
Page 150 Chapter 9 PROGRAM MODE The selected PLU has been assigned to the selected membrane key. Uni-7 User’s Manual 9-41...
Page 151: Advertisement Message Registration
Chapter 9 PROGRAM MODE ADVERTISEMENT MESSAGE REGISTRATION Press the “AD MSG (Advertisement Message)” field on the Program Menu Select screen. The Advertisement Message List screen appears. When creating the first message, press the [NEW] button. When creating a message other than the first one, enter a desired message number using the numeric keys and press the [PLU] key on the key sheet.
Page 152 Chapter 9 PROGRAM MODE The Advertisement Message (Text) screen appears. Then, press the [EDIT] button. The Advertisement Message Edit screen appears. Edit a desired message according to the procedures described in Appendix “Text Editing”. Press the [ESC] key on the key sheet to escape from text editing mode. The confirmation screen appears.
Page 153 Chapter 9 PROGRAM MODE The Advertisement Message (Text) screen for the designated message number appears. ITEM DESCRIPTION Press the [<] or [>] button to select a desired display type. TEXT DISPLAY 0: None TYPE 1: Slide 2: Flash Press the [<] or [>] button to select a desired display type. IMAGE DISPLAY 0: None TYPE...
Page 154 Chapter 9 PROGRAM MODE The Image List appears. Press to select a desired field and press the [SET] button. The selected image has been assigned in the designated field. Repeat steps 7 through 9 for more registrations. Then, press the Return button to finalize this procedure. The edited message has been registered.
Page 155: Store Name Registration
Chapter 9 PROGRAM MODE STORE NAME REGISTRATION 9.7.1 CHANGING EXISTING STORE DATA Press the “STORE NAME” field on the Program Menu Select screen. The default store data screen appears. When changing the store data, press the [EDIT] button. The Store Name Edit screen appears. Edit a text according to the procedures described in Appendix “Text Editing”.
Page 156 Chapter 9 PROGRAM MODE Press the [ESC] key on the key sheet to escape from text editing mode. The confirmation screen appears. Then, press the [SAVE] button. The store name has been changed. Press to select the address field line and press the [EDIT] button. The Store Address Edit screen appears.
Page 157 Chapter 9 PROGRAM MODE Press the [ESC] key on the key sheet to escape from text editing mode. The confirmation screen appears. Then, press the [SAVE] button. The store address has been changed. 9-48 Uni-7 User’s Manual...
Page 158: Creating New Store Data
Chapter 9 PROGRAM MODE 9.7.2 CREATING NEW STORE DATA Press the “STORE NAME” field on the Program Menu Select screen. The default store data screen appears. When creating a new store data, enter the desired store number and press the [PLU] key. EXAMPLE Store number “1”...
Page 159 Chapter 9 PROGRAM MODE The Store Name Edit screen appears for the selected store number. Edit a text according to the procedures described in Appendix “Text Editing”. Press the [ESC] key on the key sheet to escape from text editing mode. The confirmation screen appears.
Page 160 Chapter 9 PROGRAM MODE Press to select the “Address” field and press the [EDIT] button. The Store Address Edit screen appears. Edit a text according to the procedures described in Appendix “Text Editing”. Press the [ESC] key on the key sheet to escape from text editing mode. The confirmation screen appears.
Page 161 Chapter 9 PROGRAM MODE The store address has been registered. Enter a desired store number as a default store data and press the “Printer 1” or “Printer 2” display field. EXAMPLE Set the store number “1” for printer #1. 9-52 Uni-7 User’s Manual...
Page 162: Department Name Registration
Chapter 9 PROGRAM MODE DEPARTMENT NAME REGISTRATION 9.8.1 CREATING NEW DEPARTMENT NAMES Press the "Department” field on the Program Menu Select screen. The Department List screen appears. Then, press the [NEW] button. The confirmation screen appears. Then, press the [ENTER] button. The Department Name Edit screen appears.
Page 163 Chapter 9 PROGRAM MODE Edit a text according to the procedures described in Appendix “Text Editing”. Press the [ESC] key on the key sheet to escape from text editing mode. The confirmation screen appears. Then, press the [SAVE] button. The edited text has been registered. When creating more department names, enter a desired department number using the numeric keys and press the [PLU] key on the key sheet.
Page 164 Chapter 9 PROGRAM MODE The confirmation screen appears. Then, press the [ENTER] button. The Department Name Edit screen appears. Edit a text according to the procedures described in Appendix “Text Editing”. Press the [ESC] key on the key sheet to escape from text editing mode. The confirmation screen appears.
Page 165 Chapter 9 PROGRAM MODE The edited text has been registered. Repeat steps 8 through 12 for more registrations. 9-56 Uni-7 User’s Manual...
Page 166: Changing Exisiting Department Names
Chapter 9 PROGRAM MODE 9.8.2 CHANGING EXISITING DEPARTMENT NAMES Press the "Department” field on the Program Menu Select screen. The Department List screen appears. When changing an existing data, press to select a desired field. The Department Name Edit screen appears for the selected department. Uni-7 User’s Manual 9-57...
Page 167 Chapter 9 PROGRAM MODE Edit a text according to the procedures described in Appendix “Text Editing”. Press the [ESC] key on the key sheet to escape from text editing mode. The confirmation screen appears. Then, press the [SAVE] button. The edited text has been registered. Repeat steps 3 through 7 for more registrations.
Page 168: Group Name Registration
Chapter 9 PROGRAM MODE GROUP NAME REGISTRATION 9.9.1 CREATING NEW GROUP NAMES Press the "Group” field on the Program Menu Select screen. The Group List screen appears. Then, press the [NEW] button. The confirmation screen appears. Then, press the [ENTER] button. The Group Name Edit screen appears.
Page 169 Chapter 9 PROGRAM MODE Edit a text according to the procedures described in Appendix “Text Editing”. Press the [ESC] key on the key sheet to escape from text editing mode. The confirmation screen appears. Then, press the [SAVE] button. The edited text has been registered. When creating more group names, enter a desired group number using the numeric keys and press the [PLU] key on the key sheet.
Page 170 Chapter 9 PROGRAM MODE The confirmation screen appears. Then, press the [ENTER] button. The Group Name Edit screen appears. Repeat steps 5 through 9 for more registrations. Uni-7 User’s Manual 9-61...
Page 171: Changing Exisiting Group Names
Chapter 9 PROGRAM MODE 9.9.2 CHANGING EXISITING GROUP NAMES Press the "Group” field on the Program Menu Select screen. The Group List screen appears. When changing an existing data, press to select a desired field. The Group Edit screen appears for the selected group 9-62 Uni-7 User’s Manual...
Page 172 Chapter 9 PROGRAM MODE Edit a text according to the procedures described in Appendix “Text Editing”. Press the [ESC] key on the key sheet to escape from text editing mode. The confirmation screen appears. Then, press the [SAVE] button. The edited text has been registered. Repeat steps 3 through 7 for more registrations.
Page 173: Cooking Instruction Registration
Chapter 9 PROGRAM MODE 9.10 COOKING INSTRUCTION REGISTRATION 9.10.1 CREATING NEW INSTRUCTIONS Press the "Cooking Instruction” field on the Program Menu Select screen. The Cooking Time List screen appears. Then, press the [NEW] button. The confirmation screen appears. Then, press the [ENTER] button. The Cooking Time Edit screen appears.
Page 174 Chapter 9 PROGRAM MODE Edit a text according to the procedures described in Appendix “Text Editing”. Press the [ESC] key on the key sheet to escape from text editing mode. The confirmation screen appears. Then, press the [SAVE] button. The edited text has been registered. Enter a numeric value for each filed using the numeric keys and press the corresponding field for registration.
Page 175 Chapter 9 PROGRAM MODE When creating more instructions, enter a desired cooking instruction number using the numeric keys and press the [PLU] key on the key sheet. EXAMPLE Cooking instruction number “2”. The confirmation screen appears. Then, press the [ENTER] button. The Cooking Time Edit screen appears.
Page 176: Changing Exisiting Instructions
Chapter 9 PROGRAM MODE 9.10.2 CHANGING EXISITING INSTRUCTIONS Press the "Cooking Instruction” field on the Program Menu Select screen. The Cooking Time List screen appears. When changing an existing data, press to select a desired field and press the [DETAIL] button.
Page 177 Chapter 9 PROGRAM MODE Edit a text according to the procedures described in Appendix “Text Editing”. Press the [ESC] key on the key sheet to escape from text editing mode. The confirmation screen appears. Then, press the [SAVE] button. The edited text has been registered. Repeat steps 3 through 7 for more registrations.
Page 178: Nutrition File Reigistration
Chapter 9 PROGRAM MODE 9.11 NUTRITION FILE REIGISTRATION 9.11.1 CREATING NEW NUTRITION DATA Press the "Nutrition (USA)” field on the Program Menu Select screen. The Nutrition List screen appears. Then, press the [NEW] button. The confirmation screen appears. Then, press the [ENTER] button. The Nutrition Data Programming screen for the selected nutrition number appears.
Page 179 Chapter 9 PROGRAM MODE The Nutrition Edit screen appears. Edit a text according to the procedures described in Appendix “Text Editing”. Press the [ESC] key on the key sheet to escape from text editing mode. The confirmation screen appears. Then, press the [SAVE] button. The edited text has been registered.
Page 180 Chapter 9 PROGRAM MODE When creating more nutrition data, enter a desired nutrition number using the numeric keys and press the [PLU] key on the key sheet. EXAMPLE Nutrition number “2”. The confirmation screen appears. Then, press the [ENTER] button. Repeat steps 4 through 9 for more registrations.
Page 181: Changing Existing Nutrition Data
Chapter 9 PROGRAM MODE 9.11.2 CHANGING EXISTING NUTRITION DATA Press the "Nutrition (USA)” field on the Program Menu Select screen. The Nutrition List screen appears. Select a desired nutrition number. EXAMPLE Nutrition number “2”. or press the [PLU] key on the key sheet after a numeric entry. 9-72 Uni-7 User’s Manual...
Page 182 Chapter 9 PROGRAM MODE Press the [DETAIL] button, The Nutrition Data Programming screen for the selected nutrition number appears. When changing a text for “Serving Size”, press the [EDIT] button. The Nutrition Edit screen appears. Edit a text according to the procedures described in Appendix “Text Editing”. Uni-7 User’s Manual 9-73...
Page 183 Chapter 9 PROGRAM MODE Press the [ESC] key on the key sheet to escape from text editing mode. The confirmation screen appears. Then, press the [SAVE] button. The edited text has been registered. When necessary, enter a nutrition data for each field using the numeric keys and press the corresponding field for registration.
Page 184: Extra Message Registration
Chapter 9 PROGRAM MODE 9.12 EXTRA MESSAGE REGISTRATION 9.12.1 CREATING NEW MESSAGES Press the "Extra Message” field on the Program Menu Select screen. The Extra Message List screen appears. Then, press the [NEW] button. The confirmation screen appears. Then, press the [ENTER] button. The Extra Message Edit screen appears.
Page 185 Chapter 9 PROGRAM MODE Edit a text according to the procedures described in Appendix “Text Editing”. Press the [ESC] key on the key sheet to escape from text editing mode. The confirmation screen appears. Then, press the [SAVE] button. The edited text has been registered. When creating more messages, enter a desired message number using the numeric keys and press the [PLU] key on the key sheet.
Page 186 Chapter 9 PROGRAM MODE The confirmation screen appears. Then, press the [ENTER] button. Repeat steps 4 through 8 for more registrations. Uni-7 User’s Manual 9-77...
Page 187: Changing Exisiting Messages
Chapter 9 PROGRAM MODE 9.12.2 CHANGING EXISITING MESSAGES Press the "Extra Message” field on the Program Menu Select screen. The Extra Message List screen appears. Select a desired message number. EXAMPLE Message number “2”. Press a desired field, or press the [PLU] key on the key sheet after a numeric entry. 9-78 Uni-7 User’s Manual...
Page 188 Chapter 9 PROGRAM MODE Press the [DETAIL] button. The Extra Message Edit screen appears. Edit a text according to the procedures described in Appendix “Text Editing”. Press the [ESC] key on the key sheet to escape from text editing mode. The confirmation screen appears.
Page 189: Coupon Message Registration
Chapter 9 PROGRAM MODE 9.13 COUPON MESSAGE REGISTRATION 9.13.1 CREATING NEW MESSAGES Press the "Coupon Message” field on the Program Menu Select screen. The Coupon Message List screen appears. Then, press the [NEW] button. The confirmation screen appears. Then, press the [ENTER] button. The Coupon Message Edit screen appears.
Page 190 Chapter 9 PROGRAM MODE Edit a text according to the procedures described in Appendix “Text Editing”. Press the [ESC] key on the key sheet to escape from text editing mode. The confirmation screen appears. Then, press the [SAVE] button. The edited text has been registered. When creating more messages, enter a desired message number using the numeric keys and press the [PLU] key on the key sheet.
Page 191 Chapter 9 PROGRAM MODE The confirmation screen appears. Then, press the [ENTER] button. Repeat steps 4 through 8 for more registrations. 9-82 Uni-7 User’s Manual...
Page 192: Changing Exisiting Messages
Chapter 9 PROGRAM MODE 9.13.2 CHANGING EXISITING MESSAGES Press the "Extra Message” field on the Program Menu Select screen. The Coupon Message List screen appears. Select a desired message number. EXAMPLE Message number “2”. Press a desired field, or press the [PLU] key on the key sheet after a numeric entry. Uni-7 User’s Manual 9-83...
Page 193 Chapter 9 PROGRAM MODE Press the [DETAIL] button. The Coupon Message Edit screen appears. Edit a text according to the procedures described in Appendix “Text Editing”. Press the [ESC] key on the key sheet to escape from text editing mode. The confirmation screen appears.
Page 194: Pop Message Registration
Chapter 9 PROGRAM MODE 9.14 POP MESSAGE REGISTRATION Press the "POP Message” field on the Program Menu Select screen. The message list screen appears. Enter a desired message number and press the [PLU] key on the key sheet. EXAMPLE Message number “7”. The confirmation screen appears.
Page 195 Chapter 9 PROGRAM MODE The POP Message Edit screen appears. Edit a text according to the procedures described in Appendix “Text Editing”. P Press the [ESC] key on the key sheet to escape from text editing mode. The confirmation screen appears. Then, press the [SAVE] button. The edited text has been registered.
Page 196: Tax Registration
Chapter 9 PROGRAM MODE 9.15 TAX REGISTRATION Press the "Tax” field on the Program Menu Select screen. The Tax List screen appears. When changing a tax system, press to select a desired field. ITEM DESCRIPTION TAX TYPE Press to select one of tax types. Exclusive tax Inclusive tax Tax exemption...
Page 197: Scheme Table Registration
Chapter 9 PROGRAM MODE 9.16 SCHEME TABLE REGISTRATION 9.16.1 CREATING NEW TABLES Press the "Scheme Table” field on the Program Menu Select screen. The Scheme Table screen appears. Then, press the [NEW] button. The confirmation screen appears. Then, press the [ENTER] button. The Scheme Table Detail (Basic) screen appears.
Page 198 Chapter 9 PROGRAM MODE The Scheme Table Edit screen appears. Edit a text according to the procedures described in Appendix “Text Editing”. Press the [ESC] key on the key sheet to escape from text editing mode. The confirmation screen appears. Then, press the [SAVE] button. The edited text has been registered.
Page 199 Chapter 9 PROGRAM MODE ITEM DESCRIPTION RETAIN LOT No. Press to select whether or not to use this lot number. 0: No 1: Yes PASSPORT FORMAT No. Enter a numeric value and press this field. ICON No. Enter a numeric value and press this field. LIFE OFFSET Enter a numeric value and press this field.
Page 200 Chapter 9 PROGRAM MODE When creating more tables, enter a desired table number using the numeric keys and press the [PLU] key on the key sheet. EXAMPLE Table number “2”. The confirmation screen appears. Then, press the [ENTER] button. Repeat steps 4 through 9 for more registrations. Uni-7 User’s Manual 9-91...
Page 201: Changing Exisiting Messages
Chapter 9 PROGRAM MODE 9.16.2 CHANGING EXISITING MESSAGES Press the "Scheme Table” field on the Program Menu Select screen. The Scheme Table screen appears. Select a desired table number by pressing the corresponding field. EXAMPLE Table number “2”. or press the [PLU] key on the key sheet after a numeric entry. 9-92 Uni-7 User’s Manual...
Page 202 Chapter 9 PROGRAM MODE Press the [DETAIL] button. The Scheme Table Detail (Basic) screen appears. ITEM DESCRIPTION RETAIN LOT No. Press to select whether or not to use this lot number. 0: No 1: Yes PASSPORT FORMAT No. Enter a numeric value and press this field. ICON No.
Page 203 Chapter 9 PROGRAM MODE ITEM DESCRIPTION LOT/CARCASS Enter a numeric value and press the corresponding field. GTIN Enter a numeric value and press the corresponding field. WEIGHT Enter a numeric value and press the corresponding field. PASSPORT LOT START Enter a numeric value and press this field. PASSPORT GTIN START Enter a numeric value and press this field.
Page 204 Chapter 9 PROGRAM MODE Edit a text according to the procedures described in Appendix “Text Editing”. Press the [ESC] key on the key sheet to escape from text editing mode. The confirmation screen appears. Then, press the [SAVE] button. The edited text has been registered. Then, press the Return button. The Scheme Table screen appears.
Page 205: Gen Table Registration
Chapter 9 PROGRAM MODE 9.17 GEN TABLE REGISTRATION Press the "GEN Table” field on the Program Menu Select screen. The GEN Table screen appears. Select a desired GEN table by pressing the corresponding field. Enter a numeric value and press the corresponding field. 9-96 Uni-7 User’s Manual...
Page 206 Chapter 9 PROGRAM MODE When changing the title text, press the [EDIT] button. The GEN Table Edit screen appears. Edit a text according to the procedures described in Appendix “Text Editing”. Press the [ESC] key on the key sheet to escape from text editing mode. The confirmation screen appears.
Page 207 Chapter 9 PROGRAM MODE The edited text has been registered. Repeat steps 3 through 9 for more registrations. 9-98 Uni-7 User’s Manual...
Page 208: Lookup Table Registration
Chapter 9 PROGRAM MODE 9.18 LOOKUP TABLE REGISTRATION 9.18.1 CREATING NEW TABLES Press the "Lookup Table” field on the Program Menu Select screen. The Lookup Table screen appears. Then, press the [NEW] button. The confirmation screen appears. Then, press the [ENTER] button. The Lookup Table Data List screen appears.
Page 209 Chapter 9 PROGRAM MODE The Lookup Header Table Edit screen appears. Edit a text according to the procedures described in Appendix “Text Editing”. Press the [ESC] key on the key sheet to escape from text editing mode. The confirmation screen appears. Then, press the [SAVE] button. The edited text has been registered.
Page 210 Chapter 9 PROGRAM MODE The confirmation screen appears. Then, press the [ENTER] button. The Lookup Data Table Edit screen appears. Edit a text according to the procedures described in Appendix “Text Editing”. Press the [ESC] key on the key sheet to escape from text editing mode. The confirmation screen appears.
Page 211 Chapter 9 PROGRAM MODE The edited text has been registered. When registering the next data text, enter the data number and press the [PLU] key on the key sheet. EXAMPLE Data number “2”. The confirmation screen appears. Then, press the [ENTER] button. The Lookup Data Table Edit screen appears.
Page 212 Chapter 9 PROGRAM MODE Press the [ESC] key on the key sheet to escape from text editing mode. The confirmation screen appears. Then, press the [SAVE] button. The edited text has been registered. Repeat steps 14 through 18 for more data registrations. Press the Return button to return to the Lookup Table screen.
Page 213 Chapter 9 PROGRAM MODE When registering the next header text, enter the header number and press the [PLU] key on the key sheet. EXAMPLE Header number “2”. The confirmation screen appears. Then, press the [ENTER] button. The Lookup Table Data List screen appears. Then, press the [EDIT] button. The Lookup Header Table Edit screen appears.
Page 214 Chapter 9 PROGRAM MODE Press the [ESC] key on the key sheet to escape from text editing mode. The confirmation screen appears. Then, press the [SAVE] button. The edited text has been registered. Then, press the Return button. The Lookup Table screen appears Repeat steps 22 through 28 for more header registrations.
Page 215: Changing Exisiting Tables
Chapter 9 PROGRAM MODE 9.18.2 CHANGING EXISITING TABLES Press the "Lookup Table” field on the Program Menu Select screen. The Lookup Table screen appears. Select a desired header table by pressing the corresponding field. EXAMPLE Table number “2”. or press the [PLU] key on the key sheet after a numeric entry. 9-106 Uni-7 User’s Manual...
Page 216 Chapter 9 PROGRAM MODE Press the [DETAIL] button. The Lookup Table Data List screen appears. When changing the header name, press the [EDIT] button The Lookup Header Table Edit screen appears. Edit a text according to the procedures described in Appendix “Text Editing”. Uni-7 User’s Manual 9-107...
Page 217 Chapter 9 PROGRAM MODE Press the [ESC] key on the key sheet to escape from text editing mode. The confirmation screen appears. Then, press the [SAVE] button. The edited text has been registered. When changing the data text, select a desired data text by pressing the corresponding field.
Page 218 Chapter 9 PROGRAM MODE Edit a text according to the procedures described in Appendix “Text Editing”. Press the [ESC] key on the key sheet to escape from text editing mode. The confirmation screen appears. Then, press the [SAVE] button. The edited text has been registered. Repeat steps 10 through 14 for more data text registrations.
Page 219: Mince Traceability Registration
Chapter 9 PROGRAM MODE 9.19 MINCE TRACEABILITY REGISTRATION Press the "Mince Traceability” field on the Program Menu Select screen. The Mince Traceability screen appears. Enter a numeric value and press the corresponding field for registration. Then, press the Return button to finalize this procedure. 9-110 Uni-7 User’s Manual...
Page 220: Fixed Price Mark Registration
Chapter 9 PROGRAM MODE 9.20 FIXED PRICE MARK REGISTRATION 9.20.1 CREATING NEW PRICE MARKS Press the "Fixed Mark” field on the Program Menu Select screen. The Fix Price Mark List screen appears. Enter a desired mark number using the numeric keys and press the [PLU] key on the key sheet.
Page 221 Chapter 9 PROGRAM MODE The Fix Price Mark Edit screen appears. Edit a text according to the procedures described in Appendix “Text Editing”. Press the [ESC] key on the key sheet to escape from text editing mode. The confirmation screen appears. Then, press the [SAVE] button. The edited text has been registered.
Page 222: Changing Exisiting Price Marks
Chapter 9 PROGRAM MODE 9.20.2 CHANGING EXISITING PRICE MARKS Press the "Fixed Mark” field on the Program Menu Select screen. Select a desired mark number by pressing the corresponding field. EXAMPLE Mark number “2”. or press the [PLU] key on the key sheet after a numeric entry. The Fix Price Mark Edit screen appears.
Page 223 Chapter 9 PROGRAM MODE Edit a text according to the procedures described in Appendix “Text Editing”. Press the [ESC] key on the key sheet to escape from text editing mode. The confirmation screen appears. Then, press the [SAVE] button. The edited text has been registered. Repeat steps 2 through 6 for more registrations.
Page 224: Free Message Registration
Chapter 9 PROGRAM MODE 9.21 FREE MESSAGE REGISTRATION 9.21.1 CREATING NEW MESSAGES Press the "Free” field on the Program Menu Select screen. The Free Message List screen appears. Then, press the [NEW] button. The confirmation screen appears. Then, press the [ENTER] button. The Free Message Edit screen appears.
Page 225 Chapter 9 PROGRAM MODE Edit a text according to the procedures described in Appendix “Text Editing”. Press the [ESC] key on the key sheet to escape from text editing mode. The confirmation screen appears. Then, press the [SAVE] button. The edited text has been registered. Enter a desired message number using the numeric keys and press the [PLU] key on the key sheet.
Page 226 Chapter 9 PROGRAM MODE Enter a desired message number using the numeric keys and press the [PLU] key on the key sheet. EXAMPLE Message number “2”. The confirmation screen appears. Then, press the [ENTER] button. Repeat steps 4 through 8 for more registrations. Uni-7 User’s Manual 9-117...
Page 227: Changing Exisiting Messages
Chapter 9 PROGRAM MODE 9.21.2 CHANGING EXISITING MESSAGES Press the "Fixed Mark” field on the Program Menu Select screen. The Free Message List screen appears. Select a desired message number by pressing the corresponding field. EXAMPLE Message number “2”. or press the [PLU] key on the key sheet after a numeric entry. 9-118 Uni-7 User’s Manual...
Page 228 Chapter 9 PROGRAM MODE The Free Message Edit screen appears. Edit a text according to the procedures described in Appendix “Text Editing”. Press the [ESC] key on the key sheet to escape from text editing mode. The confirmation screen appears. Then, press the [SAVE] button. The edited text has been registered.
Page 229: Check Label Registration
Chapter 9 PROGRAM MODE 9.22 CHECK LABEL REGISTRATION Press the "Check Label” field on the Program Menu Select screen. The Check Label screen appears. Enter Start Number and End Number using the numeric keys and press the corresponding fields for registration. 9-120 Uni-7 User’s Manual...
Page 230 Chapter 9 PROGRAM MODE Press the [STRAT] button to print the labels. Uni-7 User’s Manual 9-121...
Page 231: Setup Mode Entry
Chapter 10 SETUP MODE SETUP MODE 10.1 SETUP MODE ENTRY Make sure that the initial screen is displayed. Press the [MODE] key on the key sheet. The Operation Mode screen appears. Then, press the [SETUP] button on the screen The Setup Menu Select screen appears. To change the pages, press the [ ] or [ ] button on the screen.
Page 232 Chapter 10 SETUP MODE 10-2 Uni-7 User’s Manual...
Page 233: Machine Number Setting
Chapter 10 SETUP MODE 10.2 MACHINE NUMBER SETTING Press the “MACHINE No.” field on the Setup Menu Select screen. The Machine Number (Basis) screen appears. Enter a desired numeric value and press the “Dept No.” field. EXAMPLE Dept number “9” The confirmation screen appears.
Page 234: Sales Mode Setting
Chapter 10 SETUP MODE 10.3 SALES MODE SETTING Press the “Sales Mode” field on the Setup Menu Select screen. The Sales Mode screen appears. Select a desired mode by pressing the correponding button. EXAMPLE “Self-service Mode” 10-4 Uni-7 User’s Manual...
Page 235: Password Setting
Chapter 10 SETUP MODE 10.4 PASSWORD SETTING Press the “Password” field on the Setup Menu Select screen. The Password (Operate) screen appears. To change the pages, press the [ ] or [ ] button on the screen. Press the [TOTAL] tab to display the Password (Total) screen. To change the pages, press the [ ] or [ ] button on the screen.
Page 236 Chapter 10 SETUP MODE Press the [PROGRAM] tab to display the Password (Program) screen. To change the pages, press the [ ] or [ ] button on the screen. 10-6 Uni-7 User’s Manual...
Page 237 Chapter 10 SETUP MODE Uni-7 User’s Manual 10-7...
Page 238 Chapter 10 SETUP MODE Press the [SETUP] tab to display the Password (Setup) screen. To change the pages, press the [ ] or [ ] button on the screen. Press the [ADJUST] tab to display the Password (Adjust) screen. Enter a 6-digit password using the numeric keys and press the [PASSWORD] display field on the screen.
Page 239 Chapter 10 SETUP MODE Press desired buttons to set whether or not to use the password. EXAMPLE Set to apply the password to “Virtual Receipt” in Total Mode. Uni-7 User’s Manual 10-9...
Page 240: Key Lock Setting
Chapter 10 SETUP MODE 10.5 KEY LOCK SETTING Press the “Key Lock” field on the Setup Menu Select screen. The Key Lock (Display Key) screen appears. Press the [FUNCTION KEY] tab to display the Key Lock (Function Key) screen. Press the [ ] or [ ] button to change the pages. 10-10 Uni-7 User’s Manual...
Page 241 Chapter 10 SETUP MODE Uni-7 User’s Manual 10-11...
Page 242 Chapter 10 SETUP MODE 10-12 Uni-7 User’s Manual...
Page 243 Chapter 10 SETUP MODE Press the [STROKE KEY] tab to display the Key Lock (Stroke Key) screen. Enter a 6-digit password using the numeric keys and press the [PASSWORD] display field on the screen. EXAMPLE Password “999999” Press a desired mode by pressing the corresponding tab, and press to select desired buttons to set whether or not to use the password.
Page 244: Data Storage Setting
Chapter 10 SETUP MODE 10.6 DATA STORAGE SETTING Press the “Data Storage” field on the Setup Menu Select screen. The Data Staorage (Total Add) screen appears. Press the [ ] or [ ] button to change the pages. Press desired buttons to set whether or not to use the total addition. EXAMPLE Set to use the operator total addition.
Page 245: Preset Report Setting
Chapter 10 SETUP MODE 10.7 PRESET REPORT SETTING Press the “Preset Report” field on the Setup Menu Select screen. The Preset Report (Daily) screen appears. Press the [ ] or [ ] button to change the pages. Uni-7 User’s Manual 10-15...
Page 246 Chapter 10 SETUP MODE Press the [WEEKLY] tab to display the Preset Report (Weekly) screen. 10-16 Uni-7 User’s Manual...
Page 247 Chapter 10 SETUP MODE Press the [CUMULATIVE] tab to display the Preset Report (Cumulative) screen.. Press the [ ] or [ ] button to change the pages. Uni-7 User’s Manual 10-17...
Page 248 Chapter 10 SETUP MODE Press a desired mode by pressing the corresponding tab, and press to select desired buttons to set whether or not to print the totals EXAMPLE Set to print the Production Daily Total (Total). 10-18 Uni-7 User’s Manual...
Page 249: Auto Program Setting
Chapter 10 SETUP MODE 10.8 AUTO PROGRAM SETTING Press the “Auto Program” field on the Setup Menu Select screen. The Item Auto Overwrite screen appears. Press the [ ] or [ ] button to change the pages. Note: Display items may vary depending on the country setting. Uni-7 User’s Manual 10-19...
Page 250 Chapter 10 SETUP MODE Press to select desired buttons to set whether or not to overwrite the items automatically. 10-20 Uni-7 User’s Manual...
Page 251: Default Data Setting
Chapter 10 SETUP MODE 10.9 DEFAULT DATA SETTING Press the “Default Data” field on the Setup Menu Select screen. The Item Initial Data (Sales 1) screen appears. ITEM DESCRIPTION Press the [<] or [>] button to select a desired Sales Mode. 0: Weighing product SALES MODE 1: Fixed price product...
Page 252 Chapter 10 SETUP MODE Press the [<] or [>] button to select whether or not to allow open prices system. OPEN PRICE 0: Yes 1: No UNIT PRICE Enter a unit price and press this field. M/D AMOUNT Enter a markdown amount or percentage and press this field. Enter a quantity and press this field.
Page 253 Chapter 10 SETUP MODE Press the “SALE 2” tab to display the Item Initial Data (Sales 2) screen. ITEM DESCRIPTION Press the [<] or [>] button to select whether or not to use a point flag. POINT 0: Off FLAG 1: On Press the [<] or [>] button to select a desired point type.
Page 254 Chapter 10 SETUP MODE Select a desired message by pressing the corresponding field. The selected message has been registered. Press the “IMAGE” tab to display the Item Initial Data (Image) screen. Press to select a desired image field. 10-24 Uni-7 User’s Manual...
Page 255 Chapter 10 SETUP MODE The Image List screen appears. Then, select a desired image by pressing the corresponding field. The selected image has been registered. Press the Display Image field. The Display Image List screen appears. Then, select a desired image by pressing the corresponding field.
Page 256 Chapter 10 SETUP MODE The selected image has been registered. Select whether or not to print safe handling message. Press the “PRINT” tab to display the Item Initial Data (Print) screen. ITEM DESCRIPTION FIRST LABEL Enter a desired format number and press this field. FORMAT NO.
Page 257 Chapter 10 SETUP MODE Press the “DATE” tab to display the Item Initial Data (Date) screen. ITEM DESCRIPTION PACK DATE Press to select whether or not to print pack date. PRINT Press the [<] or [>] button to select a desired printing method. 0: No print PACK TIME 1: Designated time...
Page 258 Chapter 10 SETUP MODE The Barcode Type screen appears when this field is pressed. Press to select a desired type. BARCODE TYPE The Barcode Format screen appears when this field is pressed. Press to select a desired format. POS FORMAT TRACE ENABLE Press to select whether or not to enable traceability function.
Page 259: Plu Update Setting
Chapter 10 SETUP MODE 10.10 PLU UPDATE SETTING Press the “PLU Update” field on the Setup Menu Select screen. The PLU Update screen appears. Press the [ ] or [ ] button to change the pages. Note: Display items may vary depending on the country setting. Uni-7 User’s Manual 10-29...
Page 260 Chapter 10 SETUP MODE 10-30 Uni-7 User’s Manual...
Page 261 Chapter 10 SETUP MODE Uni-7 User’s Manual 10-31...
Page 262 Chapter 10 SETUP MODE Enter the start and end numbers and press these fileds to specify the target PLUs. Select desired items by pressing the corresponding fields. 10-32 Uni-7 User’s Manual...
Page 263 Chapter 10 SETUP MODE To release the selection, press the selected field again. To release all the selections, press the [BATCH DELETE] button. Uni-7 User’s Manual 10-33...
Page 264 Chapter 10 SETUP MODE Press the [EXECUTE] button to update the selected items. Press the [EXEC] button for execution. 10-34 Uni-7 User’s Manual...
Page 265: Receipt Setting
Chapter 10 SETUP MODE 10.11 RECEIPT SETTING Press the “PLU Update” field on the Setup Menu Select screen. The Receipt Setting screen appears. To edit the header and footer titles, press the corresponding field. The Receipt Title Edit screen appears. Edit the text according to the procedure explained in Appendix “Text Editing”.
Page 266 Chapter 10 SETUP MODE The edited text has been registered. To edit the header and footer logo images, press the corresponding field. The Image List screen appears. Select a desired image by pressing the corresponding filed, and press the [SET] button. 10-36 Uni-7 User’s Manual...
Page 267 Chapter 10 SETUP MODE The edited logo image has been registered. Uni-7 User’s Manual 10-37...
Page 268: Chapter 11 Adjustment Mode
Chapter 11 ADJUSTMENT MODE ADJUSTMENT MODE 11.1 ADJUSTMENT MODE ENTRY Make sure that the initial screen is displayed. Press the [MODE] key on the key sheet. The Operation Mode screen appears. Then, press the [ADJUST] button on the screen The Adjustment Menu Select screen appears. Uni-7 User’s Manual 11- 1...
Page 269: Date / Time Adjustment
Chapter 11 ADJUSTMENT MODE 11.2 DATE / TIME ADJUSTMENT Press the “TIME / DATE SET” field on the Adjustment Menu Select screen. The Time/Date Set screen appears. To change the date, enter a new date and press the “DATE” field. EXAMPLE 22 June, 2007 11-2...
Page 270 Chapter 11 ADJUSTMENT MODE To change the time, enter a new time and press the “TIME” field. EXAMPLE 13:50:00 To register new date and time, press the [SET] button. The confirmation screen appears. Then, press the [EXEC] button for execution. Uni-7 User’s Manual 11- 3...
Page 271: Touch Panel Adjustment
Chapter 11 ADJUSTMENT MODE 11.3 TOUCH PANEL ADJUSTMENT Press the “TOUCH PANEL” field on the Adjustment Menu Select screen. The Touch Panel screen appears. Press the [+] button on the upper left of the screen. Press the [+] button on the lower right of the screen. 11-4 Uni-7 User’s Manual...
Page 272 Chapter 11 ADJUSTMENT MODE Press the [SET] button to confirm calibration. Uni-7 User’s Manual 11- 5...
Page 273: Display Check
Chapter 11 ADJUSTMENT MODE 11.4 DISPLAY CHECK Press the “DISPLAY CHECK” field on the Adjustment Menu Select screen. The Display Check (Vertical) screen appears. Press the [-] or [+] button to adjust vertical brightnesses for the operator and customer displays. Press the [HORIZONTAL] button to change to the horizontal display check screen.
Page 274 Appendix TEXT EDITING TEXT EDITING OPERATION PANEL AND KEY FUNCTIONS Operation Panel Text Editing Keys Used to delete a character by Used to select a font size for a moving the cursor back by text displayed on the screen. one character. Used to insert a character, or Used to delete a character at select characters followed by...
Page 275: Appendix Text Editing
Appendix TEXT EDITING Used to specify an Italic Used to copy the original data character style. to the current data. Used to specify an Used to finalize editing a text. underlined character style. Used to specify a revered Used to begin a new character character.
Page 276: Normal Character Editing
Appendix TEXT EDITING NORMAL CHARACTER EDITING Confirm that the text edit screen is displayed. Select a desired character size by using the [Size] key on the key sheet. The selected size is displayed in the “FONT” display field. Press the [Lower Case] key on the key sheet to select whether to use upper-case characters or lower-case characters.
Page 277 Appendix TEXT EDITING Enter desired characters using alpha-numeric keys on the key sheet or the screen. Upper-case characters Lower-case characters Uni-7 User’s Manual...
Page 278 Appendix TEXT EDITING To change to a new line, press the [New Line] key on the key sheet. Enter desired characters. To finalize the editing, press the [ESC] key on the key sheet. The confirmation screen appears. Then, press the [SAVE] button to save the data. Uni-7 User’s Manual...
Page 279: Special Character Editing
Appendix TEXT EDITING SPECIAL CHARACTER EDITING Confirm that the text edit screen is displayed. To select a desired character style using the following keys. The selected style is displayed in the “STYLE” display field. EXAMPLE Select reversed characters. Enter desired characters using alpha-numeric keys on the key sheet or the screen. Uni-7 User’s Manual...
Page 280 Appendix TEXT EDITING Press the [ESC] key on the key sheet. The confirmation screen appears. Then, press the [SAVE] button to save the data. Uni-7 User’s Manual...
Page 281: Line Deletion
Appendix TEXT EDITING LINE DELETION Confirm that the text edit screen for a desired PLU is displayed. To delete the character line, press the [Line Delete] key on the key sheet. Press the [ESC] key on the key sheet. The confirmation screen appears. Then, press the [SAVE] button to save the data. Uni-7 User’s Manual...
Page 282: Character Deletion
Appendix TEXT EDITING CHARACTER DELETION To Make a correction for a misspelled word, move the cursor to a place where misspelling is made by using the [→] or [←] key. “GAUDA” → “GOUDA” EXAMPLE Press the [Character Delete] key on the key sheet to delete the misspelled character. Uni-7 User’s Manual...
Page 283 Appendix TEXT EDITING Enter the correct character using the alpha-numeric keys. Press the [ESC] key on the key sheet. The confirmation screen appears. Then, press the [SAVE] button to save the data. A-10 Uni-7 User’s Manual...
Page 284: Character Backspacing
Appendix TEXT EDITING CHARACTER BACKSPACING To delete a wrong character that was just entered, press the [Back Space] key on the key sheet to move the cursor back by one character. “E” → “A” EXAMPLE Enter a correct character. Uni-7 User’s Manual A-11...
Page 285 Appendix TEXT EDITING Complete the text. Press the [ESC] key on the key sheet. The confirmation screen appears. Then, press the [SAVE] button to save the data. A-12 Uni-7 User’s Manual...

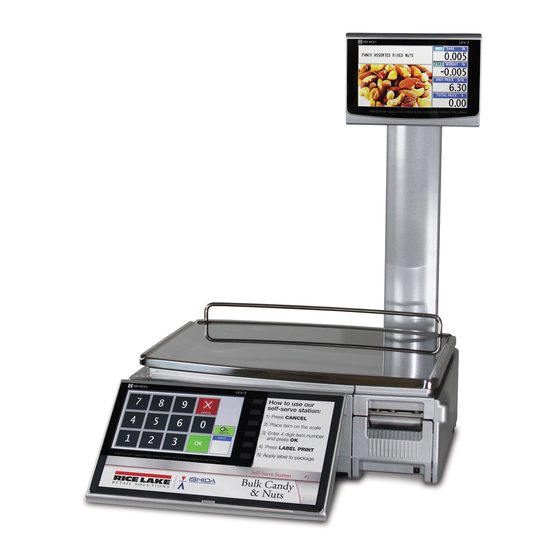

ISHIDA UNI-7 series User Manual

Chapter 1 Before Use

Chapter 2 Label/Receipt Issue

Chapter 3 Traceability Products

Chapter 4 Temporary Change Operations

Chapter 5 Self-Service Operations

Chapter 6 Accumulator Mode

Chapter 7 Total Adjust Mode

Chapter 8 Total Mode

Chapter 9 Program Mode

Chapter 11 Adjustment Mode

Appendix Text Editing

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ISHIDA UNI-7 series

Summary of Contents for ISHIDA UNI-7 series

Table of Contents
