HD300IR QUICK START GUIDE

About this Guide

This guide is a quick reference that offers users basic information regarding

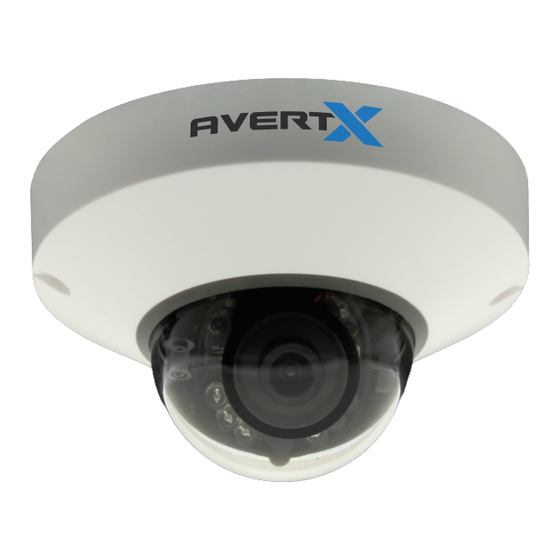

installation and operation of the HD300IR Indoor / Outdoor High Definition IP
Cameras. For further details on installation and operation, please refer to the User
Manual on the included CD and at avertx.com.
CONTENTS
Before proceeding, please confirm that the box contains the items listed here. If any
item is missing or has defects, DO NOT install or operate the product and contact
AvertX for assistance.
HD300IR
Torx Tool
Dome Camera
Paintable Dome Cover
The dome cover for the HD300IR is paintable, allowing for a
customizable look. Use a paint designed for plastic and paint away
from the camera dome to avoid overspray.
Paintable
Dome Cover
1
Documents &
Screws Anchors
Installation CD
Paint
2 3
NIGHT VISION HD
INDOOR/OUTDOOR
IP DO ME CA MERA
INSTALLATION
Remove Dome Cover
Align Holes on Wall
Adjust Aim
The camera can be installed directly onto a
wall or the ceiling. Be sure that the structure
is strong enough to support the camera.
1. Remove the camera dome cover.
2. Use the included mounting template to
pre-drill holes for the mounting screws
and, if passing the cable through the
ceiling or wall, drill a 3/4" hole.
3. Connect the Ethernet cable to the dongle
on the camera.
• Protect the network cable connection
from water damage by running the
cord inside a wall or ceiling, or through
conduit.
• For outdoor installations, seal any
holes in the wall or ceiling with silicone
caulk to protect against water intrusion.
4. Affix the base of the camera to the wall
with the included self-tapping screws and
wall anchors.
5. Adjust the position of your camera.
6. Replace the dome cover.
