avertX HD320 Quick Start Manual

HD320 QUICK START GUIDE

About this Guide

This guide is a quick reference that offers users basic information regarding
installation and operation of the HD320 Night Vision Indoor / Outdoor High
Definition IP Cameras. For further details on installation and operation, please
refer to the User Manual at avertx.com.

CONTENTS OF CAMERA BOX

Before proceeding, please confirm that the box contains the items listed here. If
any item is missing or has defects, DO NOT install or operate the product and
contact AvertX for assistance.

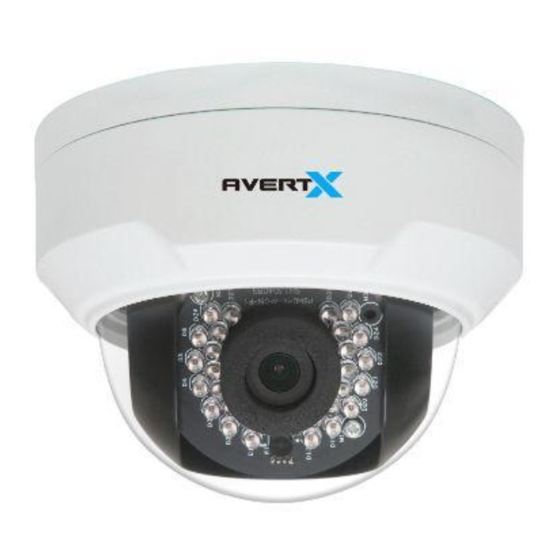

HD320 Dome Camera
Anchors
Documents &
Wall mount bracket and electrical box mounting plate
accessories are available at avertx.com.
Waterproof Cable
Connector
Screws
Desiccant
4MP IP DOME CAMERA

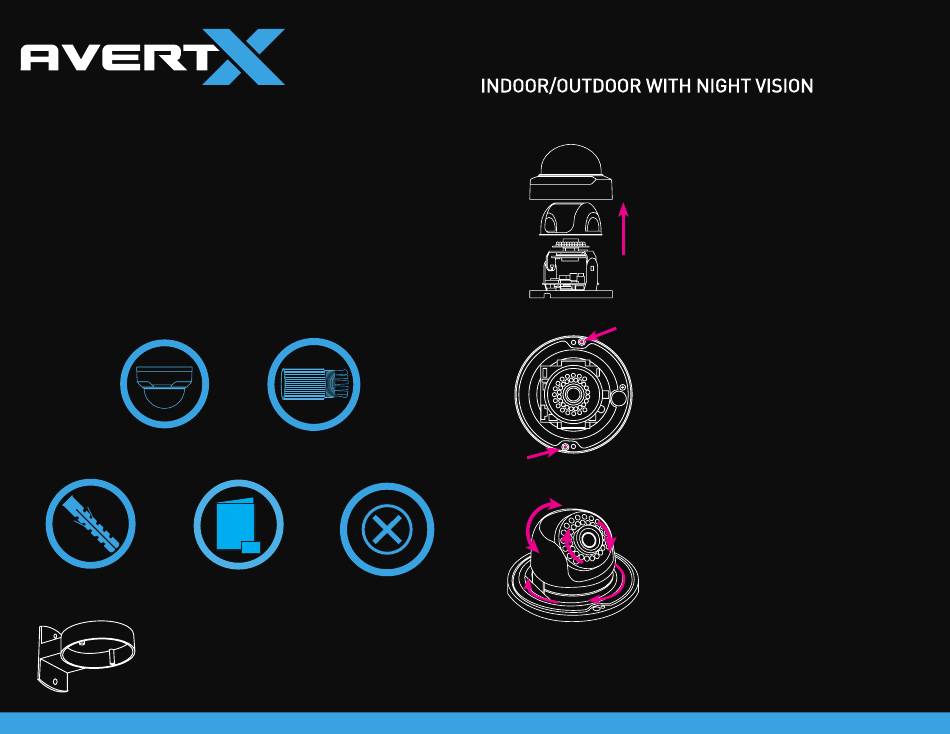

INSTALLATION

Remove Cover
Align Holes on Wall
Adjust Aim
Note: If mounting outside, seal the opening at the wall and the base of the
camera with silicone caulking.
Improper installation may cause damage to your camera and void the warranty.
The HD320 camera can be installed directly
onto a wall or the ceiling. Be sure that the
structure is strong enough to support the
camera.
1. Remove the camera dome cover by
removing dome screws and lifting.
2. Use the included mounting template to
pre-drill holes for the mounting screws
and, if passing the cable through the
ceiling or wall, drill a 7/8" hole.
3. If surface mounting the cable, unscrew
and remove the cable knockout on the
side of the dome.
4. Connect the camera cable from the ceiling
or wall to the dongle on the camera. If
using the waterproof cable connector,
attach it now. See instructions below.
5. Affix the base of the camera to the wall with
the included self-tapping screws and wall
anchors. If wall mounting, orient camera so
cable knockout faces downward.
6. Adjust the camera to the desired angle.
• The HD320 features 3-axis camera
positioning: Tilt, Camera Rotation, and
Lens Rotation.
• For proper image orientation, rotate
the lens so the IR lights are centered
directly above the lens.
7. Replace the dome cover. To install, align
screws to the holes. Tighten dome cover
screws just enough for a good seal.
35131AA
