Summary of Contents for CyberView X117

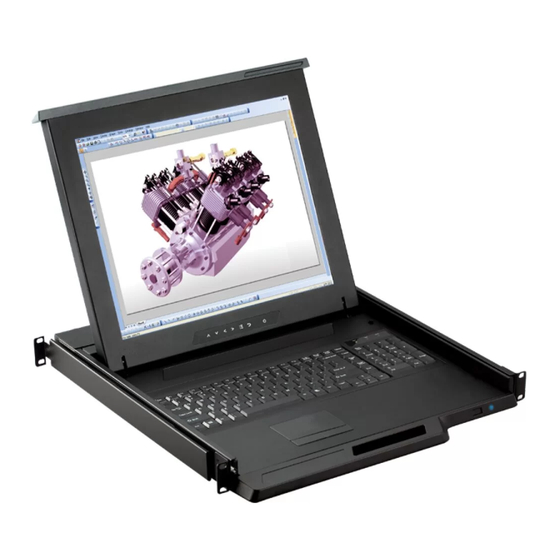

- Page 1 KVM switch and rackmount screen technology User Manual 17” Ultra High Resolution LCD 1920 x 1200 X117 1U LCD Console Drawer Options : - SDI - Audio - DC power Designed and manufactured by Austin Hughes UM-CV-751-X117-Q116V1 www.austin-hughes.com...
-
Page 2: Legal Information
■ Re-position or relocate the receiving antenna. ■ Increase the separation between the equipment and receiver. ■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. UM-CV-751-X117-Q116V1 www.austin-hughes.com... -
Page 3: Table Of Contents
Contents < Part. 1 > X117 Package Content Structure Diagram & Dimension P.1 - 2 Installation P.3 - 5 Connection P.6 - 9 < Part. 2 > Specifi cations / OSD Product Specifi cations P.10 - 11 Keyboard / Mouse Specifi cations P.12 - 14... - Page 4 DB-15 KVM -IP802 -IP1602 -802 -1602 -S801 -S1601 www.austin-hughes.com/support/usermanual/cyberview/UM-CV-DVIKVM-KIT.pdf DVI-D Local Remote 12-port -1201D www.austin-hughes.com/support/usermanual/cyberview/UM-CV-USBKVM-KIT.pdf USB Hub Local Remote 8-port 16-port 32-port DB-15 KVM -IP802H -IP1602H -802H -1602H -801H -1601H www.austin-hughes.com/support/usermanual/cyberview/UM-CV-PS2KVM-KIT.pdf PS/2 Local Remote 8-port DB-15 KVM -801 UM-CV-751-X117-Q116V1 www.austin-hughes.com...
-
Page 5: Before Installation
fi rst, not directly on the parts you are cleaning. Gently wipe the surface. Use as little pressure as possible. Wait until your monitor is completely dry before plugging it in and powering it up. UM-CV-751-X117-Q116V1 www.austin-hughes.com... -
Page 6: Part. 1 > X117
< Part 1 > < 1.1 > Package Content X117 unit X 1 - CX-6 6ft DVI-D console cable X 1 ( Alternative : CB-6 6ft VGA console cable ) - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the single console models. - Page 7 < 1.2 > Dimension X117 Front View UNIT : mm Side View 1mm = 0.03937 inch Top View Product Dimension Packing Dimension Gross Model (W x D x H) (W x D x H) Weight Weight 441.6 x 480 x 44 mm 590 x 808 x 140 mm 10.9 kg...
-
Page 8: Installation
Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. Step Complete the installation ■ Fix the LCD console drawer into the rack. M6 screw, cage nut & cup washer x 8 are provided. UM-CV-751-X117-Q116V1 www.austin-hughes.com... -
Page 9: Post Rack Brackets
< 1.3 > Installation - How to install 2 post rack brackets X117 Step ■ Release front mounting ears before applying 2 post rack brackets. ■ Insert rear mounting brackets into the LCD console drawer. Option Model : MB-751-12 Step ■... - Page 10 < 1.3 > Installation- How to use the drawer ■ Hold the handle and slide out the drawer. ■ Flip up the LCD to a suitable angle. ■ Operate the LCD console drawer. UM-CV-751-X117-Q116V1 www.austin-hughes.com...
-
Page 11: Connection
< 1.4 > Connection X117 X117 provides three signal input - DVI-D, VGA & HDMI. By PIP function, user can view two different signal inputs on the display ( please refer to P.17-18 ). LCD Console Drawer HDMI DVI-D HDMI... - Page 12 Before attempting to connect anything to the LCD console drawer, we suggest turning off the power to all devices. Apply power to connected devices again only after the LCD console drawer is receiving power. The company is not responsible for damage caused in this way. UM-CV-751-X117-Q116V1 www.austin-hughes.com...
- Page 13 < 1.4 > Connection to USB Server via CB-6 cable X117 LCD Console Drawer HDMI DVI-D KVM CB-6 VGA console cable USB server < 1.4 > Connection to external KVM via CB-6 cable LCD Console Drawer HDMI DVI-D KVM CB-6 VGA...
- Page 14 Before attempting to connect anything to the LCD console drawer, we suggest turning off the power to all devices. Apply power to connected devices again only after the LCD console drawer is receiving power. The company is not responsible for damage caused in this way. UM-CV-751-X117-Q116V1 www.austin-hughes.com...
-
Page 15: Product Specifi Cations
< Part 2 > < 2.1 > Product Specifi cations X117 Panel Size ( diagonal ) 17.1-inch Widescreen TFT color LCD Panel Display pixel ( dots x lines ) 1920 x 1200 Brightness ( typ. ) Contrast Ratio ( typ. ) - Page 16 *In some circumstances, if the user connects the LCD to PC via HDMI port for video and audio signals, the LCD may display incorrectly on a full screen. If so, please adjust the display card setting on display size to fi x the issue. P.11 UM-CV-751-X117-Q116V1 www.austin-hughes.com...
-
Page 17: Keyboard / Mouse Specifi Cations
< 2.2 > Standard Keyboard / Mouse Specifi cations X117 G keyboard integrated with touchpad G keyboard integrated with trackball Key force 55 ± 5g Travelling distance 3 ± 0.3mm Switch life > 10 million life cycle time OS support... - Page 18 How to Use "MAC" Keyboard Keyboard Features Decrease display brightness Fast-forward Increase display brightness Mute sound Mission control * Only works with OS X Lion Decrease volume default Keyboard Shortcuts. Dashboard Increase volume Eject disc Rewind Command Play / Pause P.13 UM-CV-751-X117-Q116V1 www.austin-hughes.com...
- Page 19 < 2.2 > SUN Keyboard / Mouse Options X117 S keyboard integrated with touchpad S keyboard integrated with trackball Ca ps Scro ll Comp ose Ca ps Scro ll Comp ose S keyboard integrated with touchpad / trackball ■ Incorporates SUN keys, including Stop, Cut, Paste, Compose, Copy and Help ■...
-
Page 20: On-Screen Display Operation ( Osd )
Picture size : Adjust the image size Color temp : Standard / Cool / Warm / User to choose Noise reduce : Reduce the noise of the image Sharpness : Adjust the image from weak to sharp P.15 UM-CV-751-X117-Q116V1 www.austin-hughes.com... - Page 21 < 2.3 > On-screen Display Operation ( OSD ) X117 Auto adjust : Automatically adjust sizes, centers and fi ne tunes the video signal to eliminate waviness and distortion. Clock : Adjust the clock value Phase : Adjust the phase value H.
-
Page 22: Picture In Picture ( Pip ) / Picture By Picture ( Pbp )
480 x 360 1920 x 1080 552 x 414 480 x 360 1440 x 900 414 x 310 360 x 270 1366 x 768 392 x 294 340 x 254 1280 x 1024 368 x 276 320 x 240 P.17 UM-CV-751-X117-Q116V1 www.austin-hughes.com... - Page 23 X117 < 2.4.2 > Picture By Picture ( PBP ) Mode Display the Sub screen next to the Main screen. OSD Menu → MISC → PIP Mode → PBP Main screen Sub screen Size LCD Monitor Main / Sub screen...
- Page 24 Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView Full HD 1080p and ultra high resolution 1920 x 1200 LCD displays, Austin Hughes provides a SDI input module without using additional space or power and it comes standard with a 2-year warranty.
-
Page 25: Part. 3 > Options
< 3.2 > Options : X117 - Audio ( Built-in Dual Stereo Speakers, 2W x 2 ) ( 3.5mm audio jacks for audio in & out ) For audio option, casing depth will be changed from 480mm ( 18.9" ) to 530mm ( 20.9" ) - Page 26 For DC power option : ( 1 ) Option excludes 1 x power cord and 1 x AC power adapter. ( 2 ) Casing depth will be extended from 480mm ( 18.9" ) to 530mm ( 20.9" ) P.21 UM-CV-751-X117-Q116V1 www.austin-hughes.com...
- Page 28 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2016 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-X117-Q116V1 www.austin-hughes.com...
