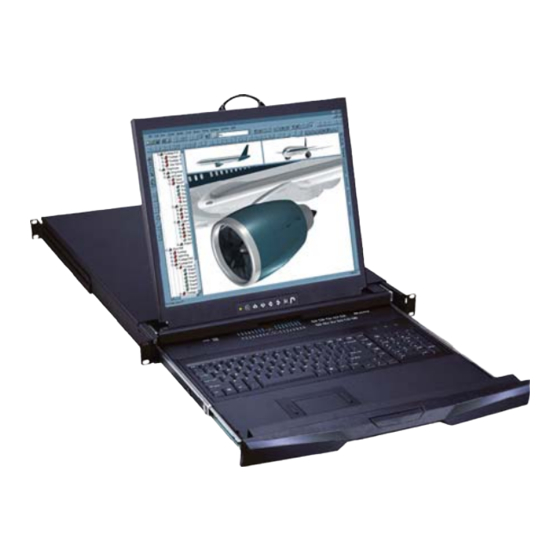

- Page 1 User Manual 1U Dual Slides LCD Keyboard Drawer 17", 19" screen size Models D-117 / 119 Series - 1U dual slide - 17", 19" screen size - With KVM Options Models DS-117 / 119 Series - 1U dual slide - 17", 19" screen size - With KVM Options - Designed for SUN Solaris...
-
Page 2: Table Of Contents
Contents Chapter 1 Getting Started Important Safeguards............1 Regulatory Notice..............2 Package Contents...............3 Before Installation...............4 Unpacking................4 Optional Accessories............4 Peripheral Products.............5 Structure Diagram...............5 How to Install “One Man” Installation Slides....6-7 1.10 How to Use The Dual Slides..........8 1.11 How to Use The Slides............9 1.12 Locking Bracket..............10 1.13... - Page 3 Chapter 4 Optional Specifi cation KVM Options..............20 DVI-D Input Option............20 BNC + S-Video Option............20 Audio Option..............21 DC power Options.............21 Chapter 5 Troubleshooting ............22 Chapter 6 Dimensions ...............23...
- Page 4 Blank page...
-
Page 5: Important Safeguards
Chapter 1 1.1 Important Safeguards Please read all of these instructions carefully before you use the device. Save this manual for future reference. What the warranty does not cover ■ Any product, on which the serial number has been defaced, modifi ed or removed. ■... -
Page 6: Regulatory Notice
Chapter 1 1.2 Regulatory Notice Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without no- tice. -
Page 7: Package Contents
Chapter 1 1.3 Package Contents LCD keyboard drawer x 1 pc CB-6 USB 2-in-1 KVM cable x 1 pc (for DS series) CE-6 Combo 4-in-1 KVM cable x 1 pc (for D series) User manual x 1 pc Power cord x 1 pc Auto switch power adapter ( for external power version) x 1 pc Mounting bracket x 2 pcs M6*15mm screw x 8 pcs... -
Page 8: Before Installation
Chapter 1 1.4 Before Installation ■ It is very important to locate the LCD Keyboard Drawer in a suitable environment. ■ The surface for placing and fi xing the LCD Keyboard Drawer should be stable and level or mounted into a suitable cabinet. -
Page 9: Peripheral Products
Chapter 1 1.7 Peripheral Products Item Model No. Description MU-1602 / MU-1603 / MU-1604 Matrix Cat6 16 port KVM MU-IP1613 / MU-IP1614 / MU-IP1624 Matrix IP Cat6 16 port KVM Matrix Cat6 KVM MU-3202 / MU-3203 / MU-3204 Matrix Cat6 32 port KVM MU-IP3213 / MU-IP3214 / MU-IP3224 Matrix IP Cat6 32 port KVM M-802 / M-803 / M-804... -
Page 10: How To Install "One Man" Installation Slides
Chapter 1 1.9 How to Install "One Man" Installation Slides Install into rack Rear side Right bracket ■ Attach the left and right mounting bracket to rack 19” mounting rails. ■ Adjust the rear mounting bracket to fi t your rack. ■... -
Page 11: How To Install "One Man" Installation Slides
Chapter 1 1.9 How to Install “One Man” Installation Slides ■ Attach front left and right mounting ears of the LCD keyboard drawer to vertical mounting rails. ■ M6 screw and cup washer x 2 pcs included. Complete the installation ■... -
Page 12: How To Use The Dual Slides
Chapter 1 1.10 How to Use The Dual Slides ■ Press the carry handle button. Gently pull the carry handle toward the front of the LCD shown in Figure 1. Figure 1. Pulling the carry handle toward the front of the LCD. ■... -
Page 13: How To Use The Slides
Chapter 1 1.11 How to Use The Slides ■ Flip up the front panel toward the LCD (shown in Figure 5). Figure 5. Flipping up the front panel. ■ Press the carry handle button. Gently push the carry handle and slide in the LCD keyboard drawer shown in Figure 6. -
Page 14: Locking Bracket
Chapter 1 1.12 Locking Bracket ■ Release the locking bracket in Figure 8. Figure 8. ■ The locking bracket will spring open in Figure 9. Figure 9. ■ Flip up the LCD panel. Figure 10. P.10... -
Page 15: Ds-117 / 119 (Single Console)
Chapter 1 1.13 DS-117 / 119 (Single console) - Use CB-6 to connect to server via USB interface Figure 11. Example of connecting CB-6 2-in-1 USB KVM cable to server via USB interface 1.14 DS-117 / 119 (Single console) - Use CB-6 to connect to KVM via USB interface CB-6 KVM Cable Figure 12. -
Page 16: D-117 / 119 (Single Console)
Chapter 1 1.15 D-117 / 119 (Single console) - Use CE-6 to connect to server via PS/2 interface Figure 13. Example of connecting CE-6 Combo 4-in-1 KVM cable to server via PS/2 interface 1.16 D-117 / 119 (Single console) - Use CE-6 to connect to KVM via PS/2 interface CE-6 KVM Cable Figure 14. -
Page 17: D-117 / 119 (Single Console)
Chapter 1 1.17 D-117 / 119 (Single console) - Use CE-6 to connect to server via USB interface Figure 15. Example of connecting CE-6 4-in-1 Combo KVM cable to server via USB interface 1.18 D-117 / 119 (Single console) - Use CE-6 to connect to KVM via USB interface CE-6 KVM Cable Figure 16. -
Page 18: On-Screen Display Operation
Chapter 2 2.1 On-screen Display Operation LCD membrane Membrane Switch Function Power light Green = On Orange = Power saving Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen Toggle analog, digital &... -
Page 19: On-Screen Menu
Chapter 2 2.2 On-screen Menu OSD Confi guration Page Image: To enter into the brightness, contrast, color temp, red, green, and blue Geometry: To enter into the auto adjust, H position, V position, phase and clock Video: To enter into the colour, tint, sharpness, noise reduction, DCDi and TV Setup Audio: To enter into volume, bass, treble, balance, AVL and mute... -
Page 20: Specifi Cations
Chapter 3 3.1 Specifi cations Item Description Form Factor 1U rack mounting on dual slide-out rails LCD Manufacturer Series Diagonal Size 17" TFT 19" TFT 17" TFT 19" TFT 1152 x 900 (Direct) 1152 x 900 (Direct) Max. Resolution 1280 x 1024 1280 x 1024 1280 x 1024 (Native) 1280 x 1024 (Native) -
Page 21: Keyboard & Mouse
Chapter 3 3.2 Keyboard & Mouse For D series Supporting layouts N keyboard integrated with touchpad P.17... -
Page 22: Keyboard & Mouse
Chapter 3 3.2 Keyboard & Mouse For DS series Supporting layouts NS keyboard integrated with touchpad ■ Incorporates SUN keys, including Stop, Cut, Paste, Compose, Copy and Help ■ 104 key notepad keyboard with full numerical pad and SUN function ■... -
Page 23: How To Use "Ns" Keyboard
Chapter 3 3.3 How to Use "NS" keyboard ■ NS SUN-compatible keyboard incorporates SUN short-cut keys. ■ Press the Fn/Num button to switch the color the Num LED. Num LED in Off mode Num LED in Green color Key pad behaves as a SUN Solaris system Key pad behaves as a normal key pad mode administration command mode Three Audio / Display keys are located in the upper-right corner of the NS keyboard:... -
Page 24: Kvm Options
Chapter 4 4.1 KVM Options Our KVM is designed to seamlessly integrate into the rear of our full range of LCD drawer solutions: ■ For KVM operation, please refer to KVM user manual ■ Option with Multiple consoles Matrix KVM ■... -
Page 25: Audio Option
Chapter 4 4.4 Audio Option Speaker 3-in-1 VGA KB mouse Power Audio console port Remarks ■ Audio input is 35mm audio plug ■ The speaker is sharing the same power with LCD. 4.5 DC Power Options Model Input rating Input voltage: 12-Volt 24-Volt 48-Volt... -
Page 26: Chapter 5 Troubleshooting
Chapter 5 5.1 Troubleshooting 1. Is interference signal appeared on LCD normal when shutting down the computer ? In rare cases, interference may appear on the monitor. This may be caused by signal rate of VGA card and is considered normal. -
Page 27: Chapter 6 Dimensions
Weight Weight 442 x 650 x 44 mm 589 x 856 x 168 mm 16 kg 22 kg D-117 series 17.4 x 25.6 x 1.73" 23.2 x 33.7 x 6.6" 35 lb 48 lb 442 x 650 x 44 mm... - Page 28 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2010 Austin Hughes Electronics Ltd. All rights reserved. CV-D32-1010V6...
