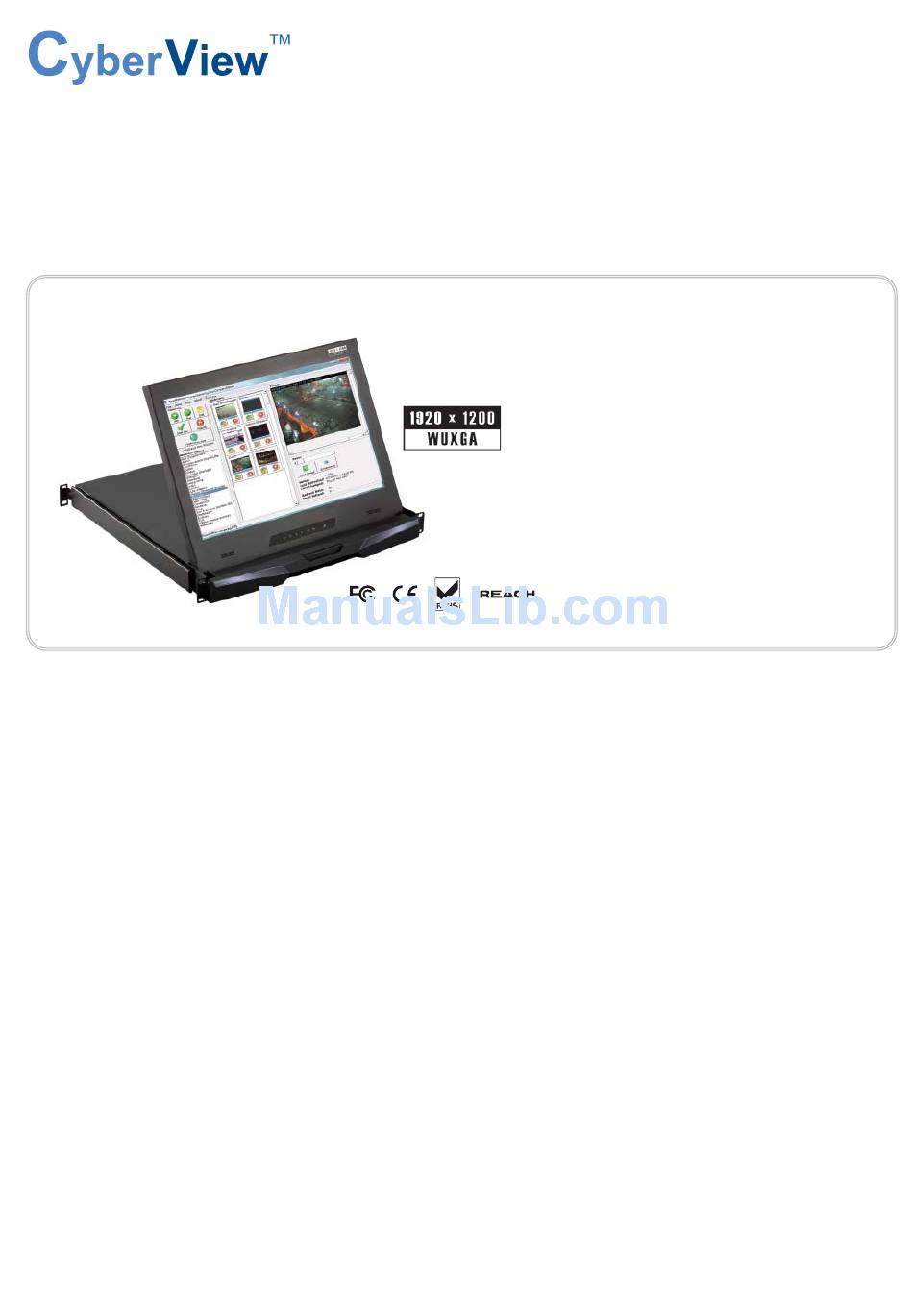

- Page 1 KVM switch and rackmount screen technology User Manual 17” Ultra High Resolution LCD 1920 x 1200 RP-X117 1U LCD Drawer Options : - SDI - HDMI / Audio - Touchscreen / DC power Designed and manufactured by Austin Hughes UM-CV-751-RP-X117-Q315V3 www.austin-hughes.com...
-
Page 3: Legal Information
■ Re-position or relocate the receiving antenna. ■ Increase the separation between the equipment and receiver. ■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. UM-CV-751-RP-X117-Q315V3 www.austin-hughes.com... -
Page 4: Table Of Contents
Contents < Part. 1 > RP-X117 Package Content Structure Diagram & Dimension P.1 - 2 Installation < Part. 2 > Specifi cations / OSD Product Specifi cations P.4 - 5 On-screen Display Operation ( OSD ) P.6 - 7 Picture In Picture ( PIP ) / Picture By Picture ( PBP ) P.8 - 9... -
Page 5: Before Installation
fi rst, not directly on the parts you are cleaning. Gently wipe the surface. Use as little pressure as possible. Wait until your monitor is completely dry before plugging it in and powering it up. UM-CV-751-RP-X117-Q315V3 www.austin-hughes.com... -
Page 6: Package Content
< Part 1 > < 1.1 > Package Content RP-X117 unit X 1 - 6ft VGA cable X 1 - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the pure model ( VGA and DVI-D only ). - Page 7 < 1.2 > Dimension RP-X117 Front View UNIT : mm Side View 1mm = 0.03937 inch Top View Product Dimension Packing Dimension Gross Model (W x D x H) (W x D x H) Weight Weight 441.6 x 480 x 44 mm...
-
Page 8: Installation
Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. Step Complete the installation ■ Fix the display drawer into the rack. M6 screw, cage nut & cup washer x 8 are provided. UM-CV-751-RP-X117-Q315V3 www.austin-hughes.com... -
Page 9: Product Specifi Cations
< Part 2 > < 2.1 > Product Specifi cations RP-X117 Panel Size ( diagonal ) 17.1-inch Widescreen TFT color LCD Panel Display pixel ( dots x lines ) 1920 x 1200 Brightness ( typ. ) Contrast Ratio ( typ. ) - Page 10 848 x 480 x 60Hz 800 x 600 x 60 / 72 / 75Hz 720 x 400 x 70Hz 640 x 480 x 60 / 72 / 75Hz 640 x 400 x 70Hz 640 x 350 x 70Hz UM-CV-751-RP-X117-Q315V3 www.austin-hughes.com...
-
Page 11: On-Screen Display Operation ( Osd )
< 2.2 > On-screen Display Operation ( OSD ) RP-X117 Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control... - Page 12 Adjust picture in picture setting PIP position : Enter into PIP position PIP source : Enter into the Sub source and sound source System reset : Return the adjustment back to factory setting Information : Select for Help UM-CV-751-RP-X117-Q315V3 www.austin-hughes.com...
-
Page 13: Picture In Picture ( Pip ) / Picture By Picture ( Pbp )
< 2.3 > How to Use Picture In Picture ( PIP ) / Picture By Picture ( PBP ) RP-X117 < 2.3.1 > Picture in Picture ( PIP ) Mode Display the Sub screen in the Main screen. OSD Menu → MISC → PIP Mode → Large / Small / OFF... - Page 14 OSD Menu → MISC → PIP Source → VGA / S-Video / Composite / DVI / HDMI / SDI / YPbPr / TV The PIP / PBP is operable in the following table : S-Video Composite DVI-D HDMI YPbPr Main S-Video Composite HDMI YPbPr UM-CV-751-RP-X117-Q315V3 www.austin-hughes.com...
- Page 15 Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView Full HD 1080p and ultra high resolution 1920 x 1200 LCD displays, Austin Hughes provides a SDI input module without using additional space or power and it comes standard with a 2-year warranty.
- Page 16 ( Built-in Dual Stereo Speakers, 2W x 2 ) ( 3.5mm audio jacks for audio in & out ) For the above options, casing depth will be extended from 480mm ( 18.9" ) to 530mm ( 20.9" ) HDMI DVI-D Power Audio PC in P.11 UM-CV-751-RP-X117-Q315V3 www.austin-hughes.com...
- Page 17 < 3.3 > Options : Touchscreen & driver RP-X117 X17" USB Touchscreen Specifi cation Model e-Resistive e-Capacitive Technology 5-Wire Resistive Capacitive Touch Point Single Single Method Stylus or Finger Finger Activation Force ≤ 50g / Stylus=R0.8 ≤ 50g Durability 10 million touches...
- Page 18 For DC power option : ( 1 ) Option excludes 1 x power cord and 1 x AC power adapter. ( 2 ) Casing depth will be extended from 480mm ( 18.9" ) to 530mm ( 20.9" ) P.13 UM-CV-751-RP-X117-Q315V3 www.austin-hughes.com...
- Page 20 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2015 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-RP-X117-Q315V3 www.austin-hughes.com...
