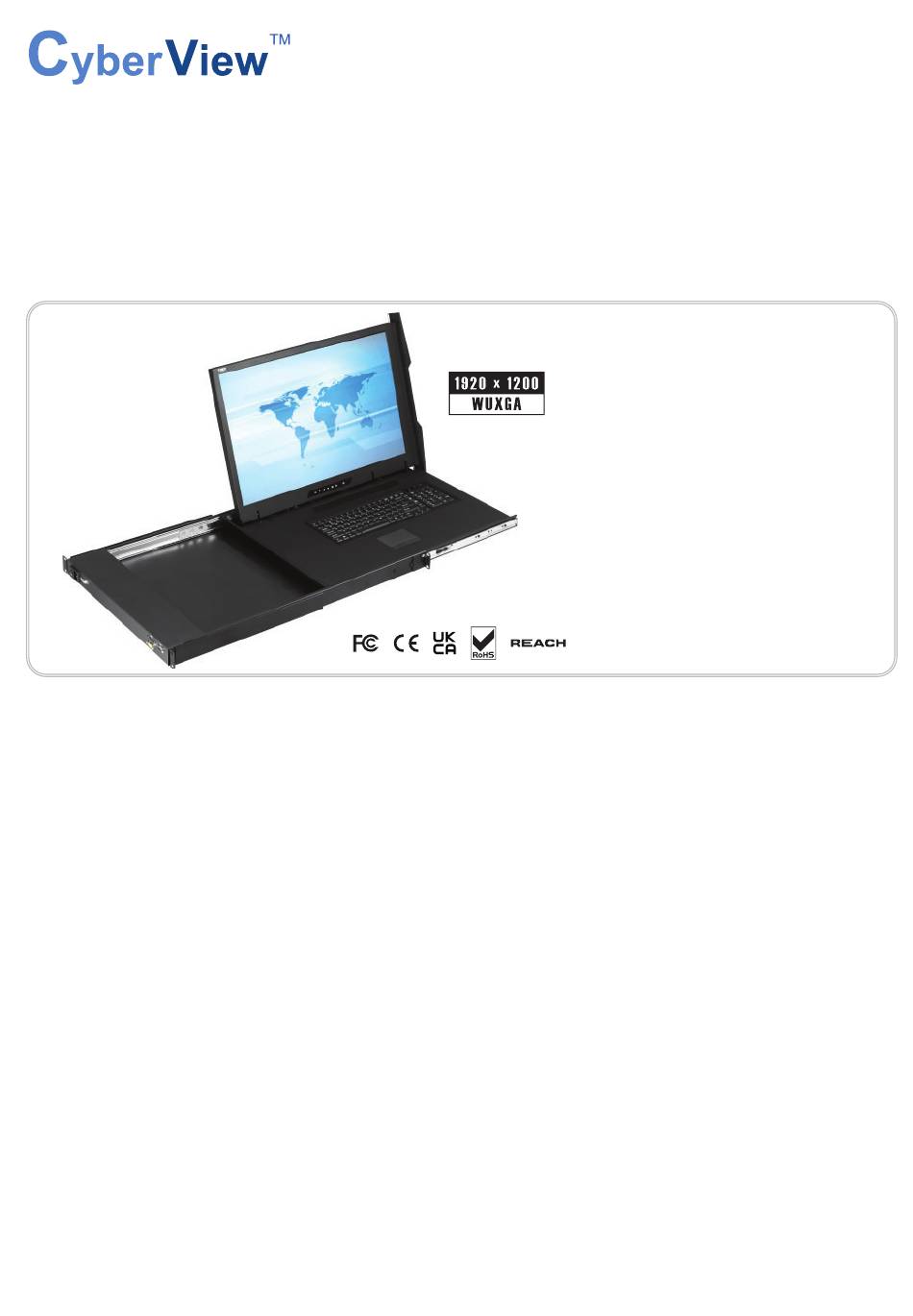

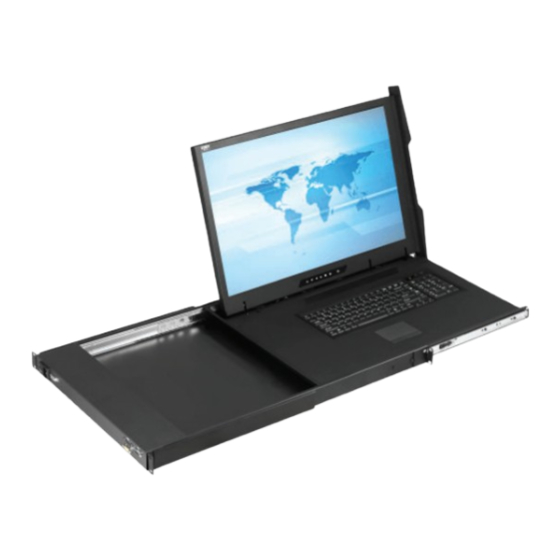

- Page 1 KVM switch and rackmount screen technology User Manual 24” Ultra High Resolution LED-backlit LCD 1920 x 1200 X124 1U LED-backlit LCD Console Drawer Options : - SDI - DC power Designed and manufactured by Austin Hughes UM-CV-751-X124-Q124V1 www.austin-hughes.com...
- Page 2 ■ Re-position or relocate the receiving antenna. ■ Increase the separation between the equipment and receiver. ■ Connect the equipment into an outlet on a circuit diff erent from that to which the receiver is connected. UM-CV-751-X124-Q124V1 www.austin-hughes.com...
-
Page 3: Table Of Contents
Contents < Part. 1 > X124 Package Content Structure Diagram & Dimension Installation Connection < Part. 2 > Specifi cations / OSD Product Specifi cations Keyboard / Mouse Specifi cations On-screen Display Operation ( OSD ) P.11 < Part. 3 >... - Page 4 fi rst, not directly on the parts you are cleaning. Gently wipe the surface. Use as little pressure as possible. Wait until your monitor is completely dry before plugging it in and powering it up. UM-CV-751-X124-Q124V1 www.austin-hughes.com...
-
Page 5: X124
< Part 1 > X124 < 1.1 > Package Content X124 F121 unit X 1 - CX-6B 6ft HDMI console cable X 1 ( Alternative : CB-6A 6ft VGA console cable ) - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the single console models. - Page 6 Weight 441.6 x 690 x 44 mm 590 x 965 x 136 mm 15.3 kg 19.5 kg X124 17.4 x 27.2 x 1.73 inch 23.2 x 38.0 x 5.4 inch 33.7 lb 42.9 lb The weight is only for the single console models. It varies with accessories & options such as KVM, SDI, &...
-
Page 7: Installation
< 1.3 > Installation - How to install Installation Slides X124 Step ■ Insert the left and right rear mounting brackets into the LCD console drawer. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. - Page 8 Keep Your Fingers Away From The Slide Stop Option - Right Side Open ■ at the end of the model no. Flip up LCD from the side sample : X124R Panel Left Right Front Side UM-CV-751-X124-Q124V1 www.austin-hughes.com...
-
Page 9: Connection
< 1.4 > Connection to USB Server via CX-6B cable X124 LCD Console Drawer HDMI AC Input 100~240V POWER CX-6B HDMI console cable USB server HDMI < 1.4 > Connection to external KVM via CX-6B cable LCD Console Drawer HDMI... - Page 10 Before attempting to connect anything to the LCD console drawer, we suggest turning off the power to all devices. Apply power to connected devices again only after the LCD console drawer is receiving power. The company is not responsible for damage caused in this way. UM-CV-751-X124-Q124V1 www.austin-hughes.com...
-
Page 11: Specifi Cations / Osd
< Part 2 > Specifi cations / OSD X124 < 2.1 > Product Specifi cations LED-backlit LCD Panel Panel Size ( diagonal ) 24.1-inch Widescreen TFT color LED-backlit LCD Display pixel ( dots x lines ) 1920 x 1200 Brightness ( typ. ) Contrast Ratio ( typ. - Page 12 Same as VGA Format Video Signal 1080p : 60Hz 720p : 50 / 60Hz 480p : 60Hz 576p : 50Hz Audio Signal 2ch Linear PCM ( 32 / 44.1 / 48 KHz ) Speaker Dual Stereo Speaker, 2 x 2W UM-CV-751-X124-Q124V1 www.austin-hughes.com...
-
Page 13: Keyboard / Mouse Specifi Cations
< 2.2 > Standard Keyboard / Mouse Specifi cations X124 G keyboard integrated with touchpad G keyboard integrated with trackball Key force 55 ± 5g Travelling distance 3 ± 0.3mm Switch life > 10 million life cycle time OS support... - Page 14 Audio / Display Keys * Please ask your supplier for full details Audio : Mute Audio : Decrease volume Display : Degauss Display : Decrease contrast Audio : Increase volume Display : Increase contrast UM-CV-751-X124-Q124V1 www.austin-hughes.com...
-
Page 15: On-Screen Display Operation ( Osd )
< 2.3 > On-screen Display Operation ( OSD ) X124 Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control... - Page 16 : Auto / Line in / DP Volume : Adjust the volume of sound Sleep mode : Set the off time - 10 min / 20 min / 30 min / 50 min / 60 min / 120 min / 240 min UM-CV-751-X124-Q124V1 www.austin-hughes.com...
-
Page 17: Hd / Sd-Sdi Input
Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView displays, a SDI input module can support up to 1080p @60Hz resolution without using additional space or power and it comes standard with a 2-year warranty. -
Page 18: Speaker
< 3.2 > Options : Speaker Option speaker speaker UM-CV-751-X124-Q124V1 www.austin-hughes.com... - Page 19 < 3.3 > Options : DC Power X124 Model 125V 250V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt 300-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V 180 ~ 425V Input current - No load...
-
Page 20: Kvm Integration
< Part 4 > KVM Integration < 4.1 > X124 For right side open - Add at the end of the model no. sample : X124-MIP1624R www.austin-hughes.com/support/usermanual/cyberview/UM-CV-2KKVM-KIT.pdf Local Remote 8-port -801D www.austin-hughes.com/support/usermanual/cyberview/UM-CV-DVIKVM-KIT.pdf DVI-D Local Remote 12-port -1201D www.austin-hughes.com/support/usermanual/cyberview/UM-CV-MUKVM-KIT.pdf Cat6 Local...
