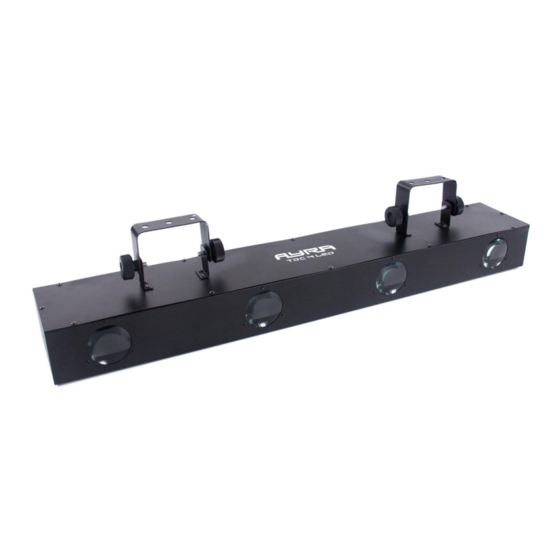

Ayra TDC 4 LED User Manual

Dmx led light effect with 4 lenses
Hide thumbs Also See for TDC 4 LED:
1
2
3
4
5
6
7
8
9
Table of Contents

Advertisement

Quick Links

DMX LED light effect with 4 lenses
User manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TDC 4 LED and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ayra TDC 4 LED

Summary of Contents for Ayra TDC 4 LED

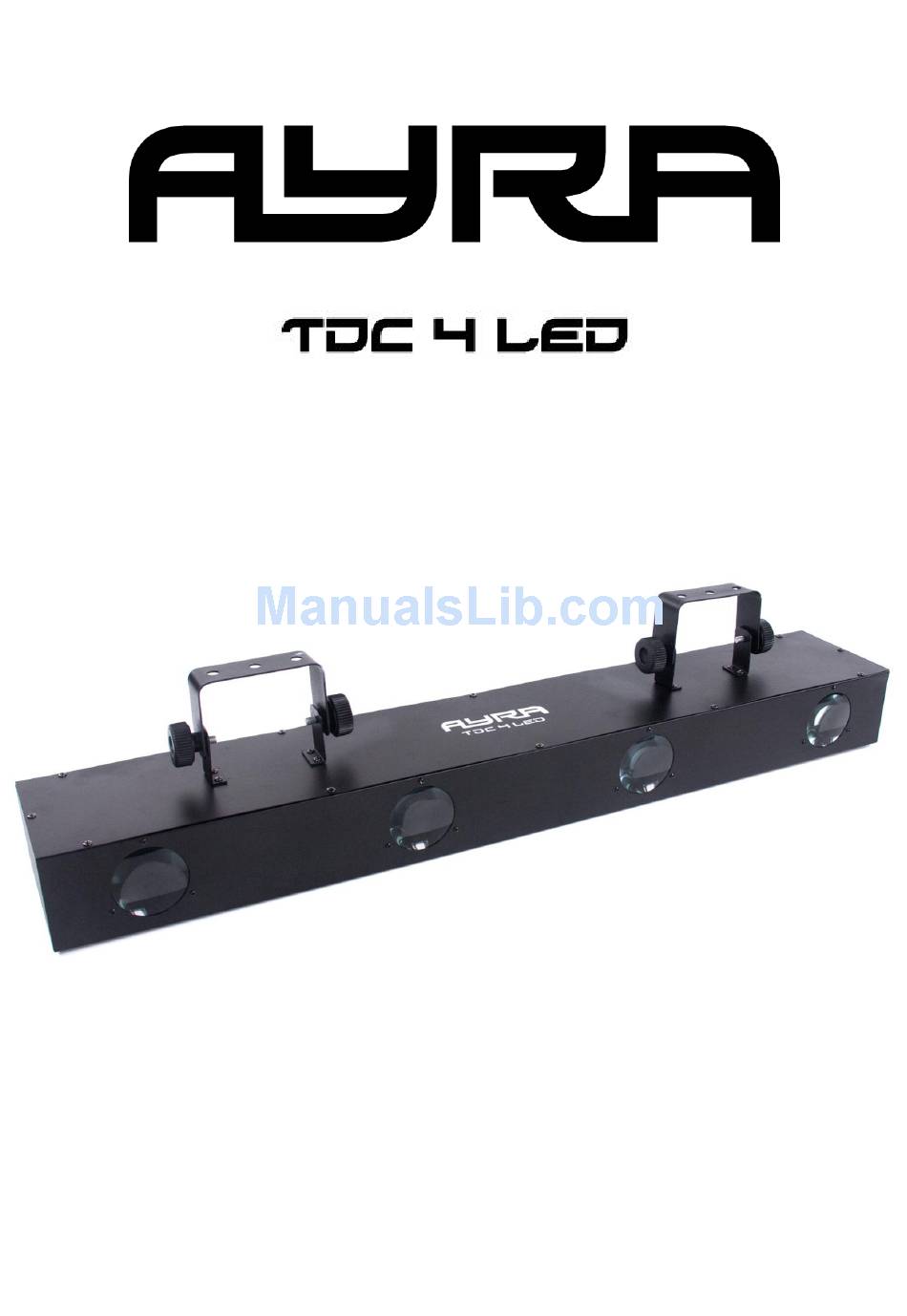

  • Page 1 DMX LED light effect with 4 lenses User manual...

  • Page 2: Safety Precautions

    WARNING: Do not look directly into the beam from a short distance. This may cause serious injury to the eyes. Ayra is not responsible for any injuries caused by incorrect use of this device. Installation requirements: - Always check the power supply to which you want to connect the device. If the voltage requirements do not meet, do not connect the device as this may cause serious damage.

  • Page 3: Box Contents

    Box contents Box contents 1x TDC 4 LED fixture 1x power cable Unit and accessory inspection - Always use the supplied power cable to connect the unit to a power supply. If the cable appears broken or has visible damage, do not use it.
  • Page 4 Device overview 1. Beam output 2. Adjustable bracket 3. IEC Power inlet-outlet 4. Control panel display with MENU, UP and DOWN buttons 5. Built-in microphone for sound active mode 6. DMX input (3P XLR) 7. DMX output (3P XLR) 8. Fuse holder...

  • Page 5: Setting Up The Unit

    The music controlled mode is used to play a series of programs on the beat of the music. For optimal results, place the TDC 4 LED fixture close to a speaker or subwoofer. Too much distance or a lack of bass will cause the unit to freeze as it will not detect a music source.
  • Page 6 DMX control mode: This fixture can be controlled using a DMX-controller and standard XLR male to XLR female cable. When doing so, make sure your DMX-controller is capable of controlling your fixture. When in doubt, contact your local dealer for advice. Set the correct address on the digital display, you are able to choose a value between 001 and 512.

  • Page 7: Installation And Maintenance

    The lenses can be cleaned with a non-aggressive glass cleaning solution, but is not recommended. Ayra recommends to clean the mirror and lens with a fine brush, while removing dust and/or dirt with a vacuum cleaner. Avoid touching the lenses with your bare fingers, to prevent fingerprints on the optics.
  • Page 8 The fixture is capable of powering up to 8 other TDC 4 LED fixtures, after that the power supply needs to be renewed.

  • Page 9: Technical Specifications

    Technical specifications LED light effect with 4 lenses Projects LED light-patterns on floors, walls and ceilings Light source: 256 LEDs, spread over 4 clusters (64 for each lens) 6 DMX-channels Music controlled mode with internal microphone Working modes: music controlled, DMX, automatic, test, master/slave LCD-display with menu-buttons Included power cable Electronic dimmer for each color + master dimmer...
