- Page 1 Manual 827 E...
-
Page 3: Table Of Contents
Brake belt contact surface ���������������������������������� 11 Chain 1/2“ x 1/8“ ������������������������������������������������� 12 Freewheel sprocket ��������������������������������������������� 13 Spare parts ���������������������������������������������������� 14 Important Read the manual carefully before using the cycle and save it for future use. © 2010 MONARK EXERCISE AB, Vansbro, Sweden... -
Page 4: Monark Exercise Ab
Since the early 1900s, Monark’s cycles have been living proof of precision, re- liability, strength and service. That are the reasons why we are now the world leader in cycle ergometers and the market leader in Scandinavia in transport cycles. -
Page 5: Product Information

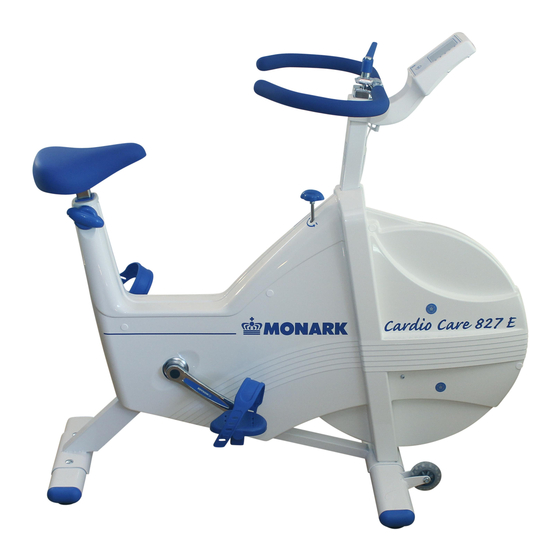

Congratulations on your new Ergometer. • Electronic display with heart rate • Adjustable seat height The Monark Exercise cycle Model 827 E is a training • Adjustable handlebar with quick release lever cycle with an adjustable brake resistance. • Stable frame, solid steel tube •... -
Page 6: Operating Instruction
Operating Instruction Workload device The 827 E uses a brake belt system to control the resistance. The brake power can be changed by in- creasing or decreasing the tension of the brake belt against the flywheel using the tension knob(2). See fig: Workload device. -
Page 7: Cycle Adjustments
NOTE! The handlebar stem should be inserted into the frame tube at least 3 inches (about 8 cm). This measure is marked with “MAX” on the stem(3). min. 3” Fig: Adjustments 1) Lever, seat post 2) Lever, handlebar 3) Inserted min. 3” Monark 827 E... -
Page 8: Computer Specifications
RESET button for more than two seconds. Do not expose the electronic meter to direct sunlight or extremely high temperature. Do not use any dis- solvents when cleaning. Use only dry cloth. Monark 827 E... -
Page 9: Troubleshooting Guide
Scratching sound is heard when pedalling. Check that the carriage block is taken off and that none of the covers is scratching. There is a click noise and a squeak noise Untighten the chain a bit. when pedalling. Monark 827 E... -
Page 10: Service
(4 times EC Directive 1999/44/EC. In short, the directive pro- per year). vides for that your Monark Dealer will be liable for • Check now and then that both pedals are firmly any defects, which existed at the time of delivery. -
Page 11: Batteries
Crank bearing The crank bearing is long term greased and require normally no supplementary lubrication. If problem arises, please contact your Monark dealer. Brake belt contact surface Flywheel bearing Deposits of dirt on the brake belt and on the contact... -
Page 12: Chain 1/2" X 1/8
Adjust chain adjusters to allow chain play according to above. Tighten hub nuts firmly. Put on frame cov- ers again. Monark 827 E... -
Page 13: Freewheel Sprocket
The sprocket should be lubricated with a few drops of oil once a year. Tilt the cycle somewhat to make it easier for the oil to reach the ball bearing. See fig: Lubrication. Fig: Lubrication Fig: Hub assembly Fig: Special remover (Art. No: 9100-14) Monark 827 E... -
Page 14: Spare Parts
Steel crank set, complete 9300-81 Frame cover, left 9300-220 Pedal, (pair) 9300-80 Frame cover, right 9300-207 Pedal strap, (pair) 5673-9 Mounting screw LKT-TT 5x12mm 8966-175 BB cartridge bearing, complete 9306-12 Plastic plug 9300-138 Saddle post 9301-5 Frame Monark 827 E... - Page 15 91001-6 -Bearing 6001-2z 5770 9300-18 -Axle 9306-36 Brake belt, complete 9300-17 -Bush, 23 mm 9300-126 Tension device, compl. 9300-125 Tension screw, complete 9339-98 Chestbelt (accessory) 9326-162 Crank sensor with cable 9106-550 Decal set 9326-263 Cable 550 mm Monark 827 E...
- Page 16 Version 1010 Art. No: 7950-294 KROONS VÄG 1, SE-780 50 VANSBRO, SWEDEN | WWW.MONARKEXERCISE.SE | TEL: +46(0)281 59 49 40 | FAX: +46(0)281 719 81...
