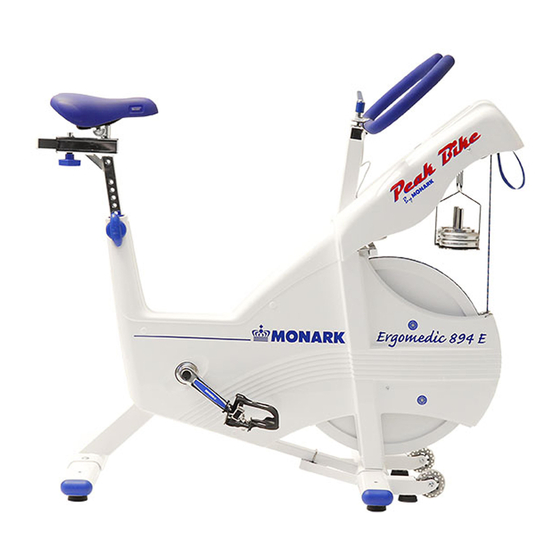

Monark 894E Wingate
Monark 894E Wingate
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Monark 894E Wingate and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Monark Monark 894E Wingate

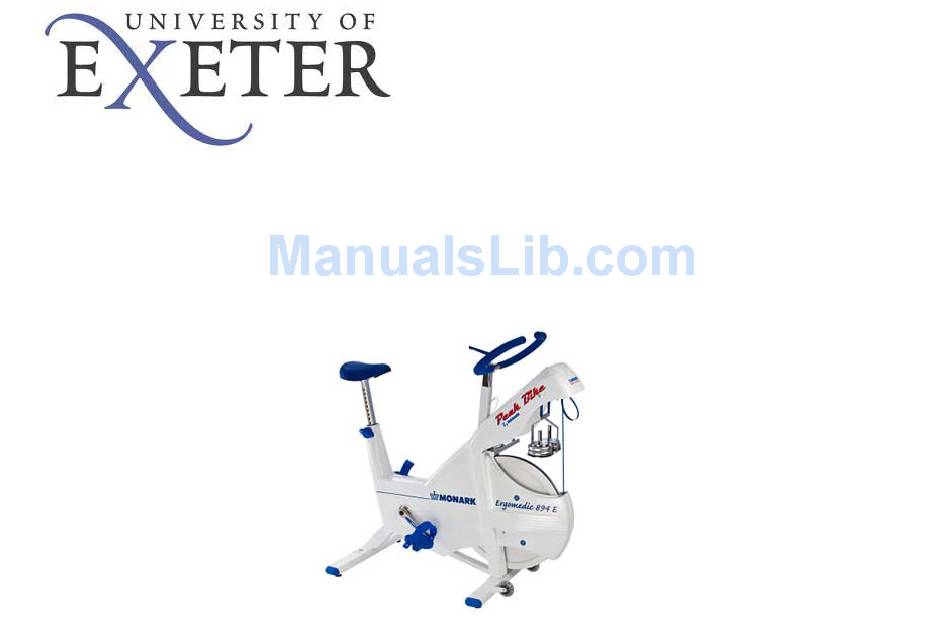

  • Page 1 Monark 894E Wingate Monark 894E Wingate  User Guide...
  • Page 2 Initial Set Up: Monark Bike I Initial Set‐Up: Monark Bike I • Connect the serial port to the t th t t th port on the bike Power  • Plug in the power cable to the • Plug in the power cable to the  Cable bike and a socket in the wall Switch Switch • To tell whether the bike is • To tell whether the bike is  switched on, the ...
  • Page 3 Initial Set Up: Monark Bike II Initial Set‐Up: Monark Bike II • Connect the serial cable to  the USB‐Serial convertor • Plug this into the USB port on  the front of the PC the front of the PC USB‐Serial  Converter...
  • Page 4 Monark Software Monark Software • Load the Monark Anaerobic Test software from the desktop • Select either database or add group...
  • Page 5 Adding/Selecting Subject Adding/Selecting Subject  • Then select a pre‐existing subject or add person...
  • Page 6 Running a Test Running a Test • Click run test once a subject has been selected...
  • Page 7 Running a Test Running a Test • A test can now be A test can now be  selected in the protocol  selection box, continue  will become available to  select • You can also the subjects  weight if required • To create a new protocol  select create and insert  Select  the number of stages,  Protocol time of the test, how load  is applied etc Create new  • Make sure the correct  protocol protocol communication port is  selected (usually COM3) • This needs to be selected  by going to: file – settings‐ t fil communication port...
  • Page 8 Testing Testing • Load the basket to the • Load the basket to the  required load e.g. 5.3kg  (7.5% body weight) • Get the subject to start Get the subject to start  pedalling up to speed and  click start • The load will drop  automatically or a button  on the handlebars can be  pressed to release it onto  the flywheel the flywheel • After an initial lag time,  data will begin recording on  the graph displayed • The test will automatically  stop once it has been  completed...
  • Page 9 Analysis Analysis • Once the test  is completed  the additional  info box  appears. Just  press ok, there press ok, there  is no need to  write anything write anything • Select analysis...
  • Page 10 Analysis Analysis • A graph on the  data recorded  throughout the  test will appear test will appear • Toggle between  h this and test data  and analysis to  see numeric data...
  • Page 11 Exporting Data to Excel Exporting Data to Excel • To export to excel,  select the export  tab at the top of  the screen the screen...
