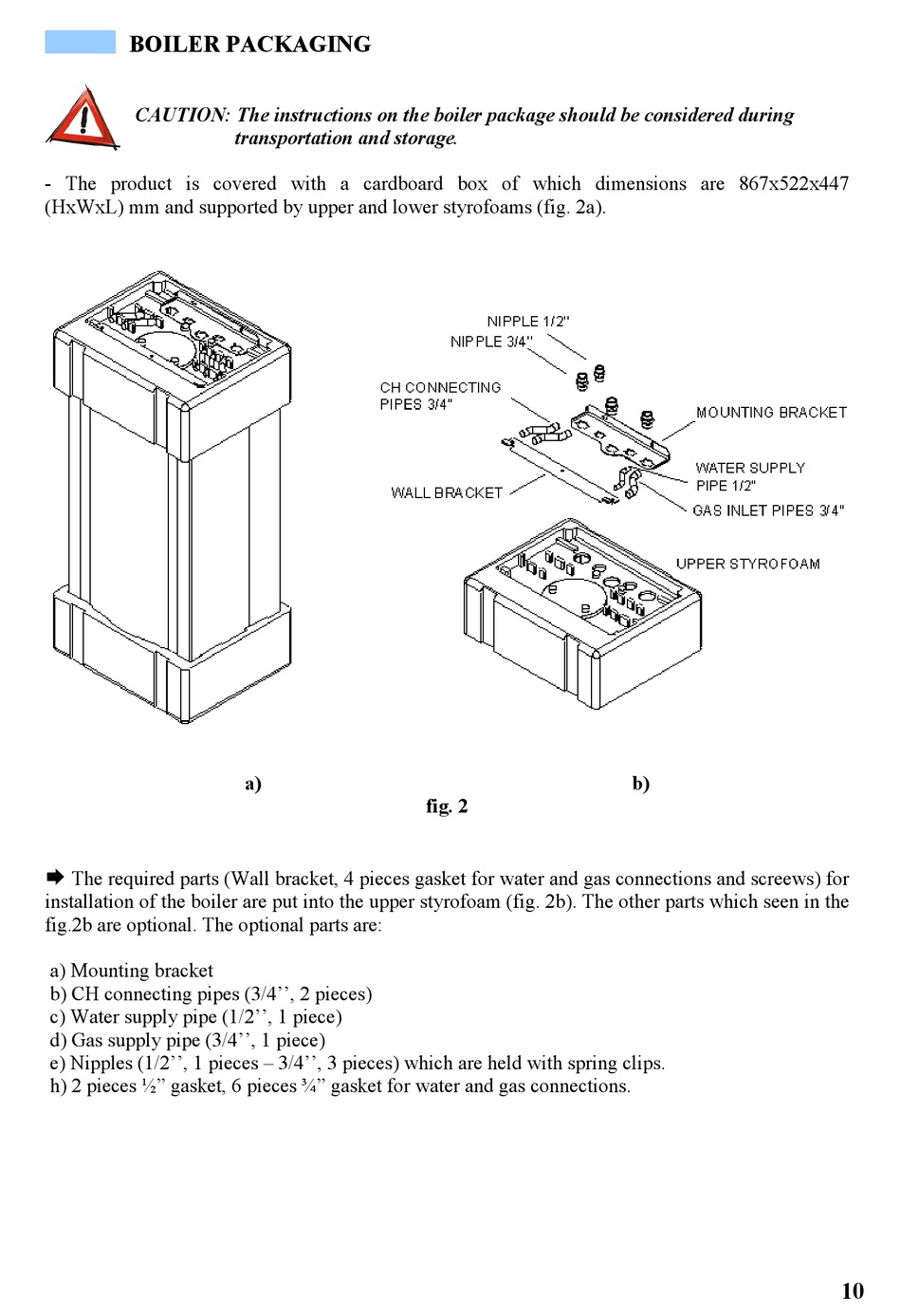

BOILER PACKAGING

CAUTION: The instructions on the boiler package should be considered during
- The product is covered with a cardboard box of which dimensions are 867x522x447
(HxWxL) mm and supported by upper and lower styrofoams (fig. 2a).

The required parts (Wall bracket, 4 pieces gasket for water and gas connections and screews) for
installation of the boiler are put into the upper styrofoam (fig. 2b). The other parts which seen in the
fig.2b are optional. The optional parts are:
a) Mounting bracket
b) CH connecting pipes (3/4'', 2 pieces)
c) Water supply pipe (1/2'', 1 piece)
d) Gas supply pipe (3/4'', 1 piece)
e) Nipples (1/2'', 1 pieces – 3/4'', 3 pieces) which are held with spring clips.
h) 2 pieces ½" gasket, 6 pieces ¾" gasket for water and gas connections.
transportation and storage.
a)
fig. 2
b)
10
