Tally Dascom DT-210/230

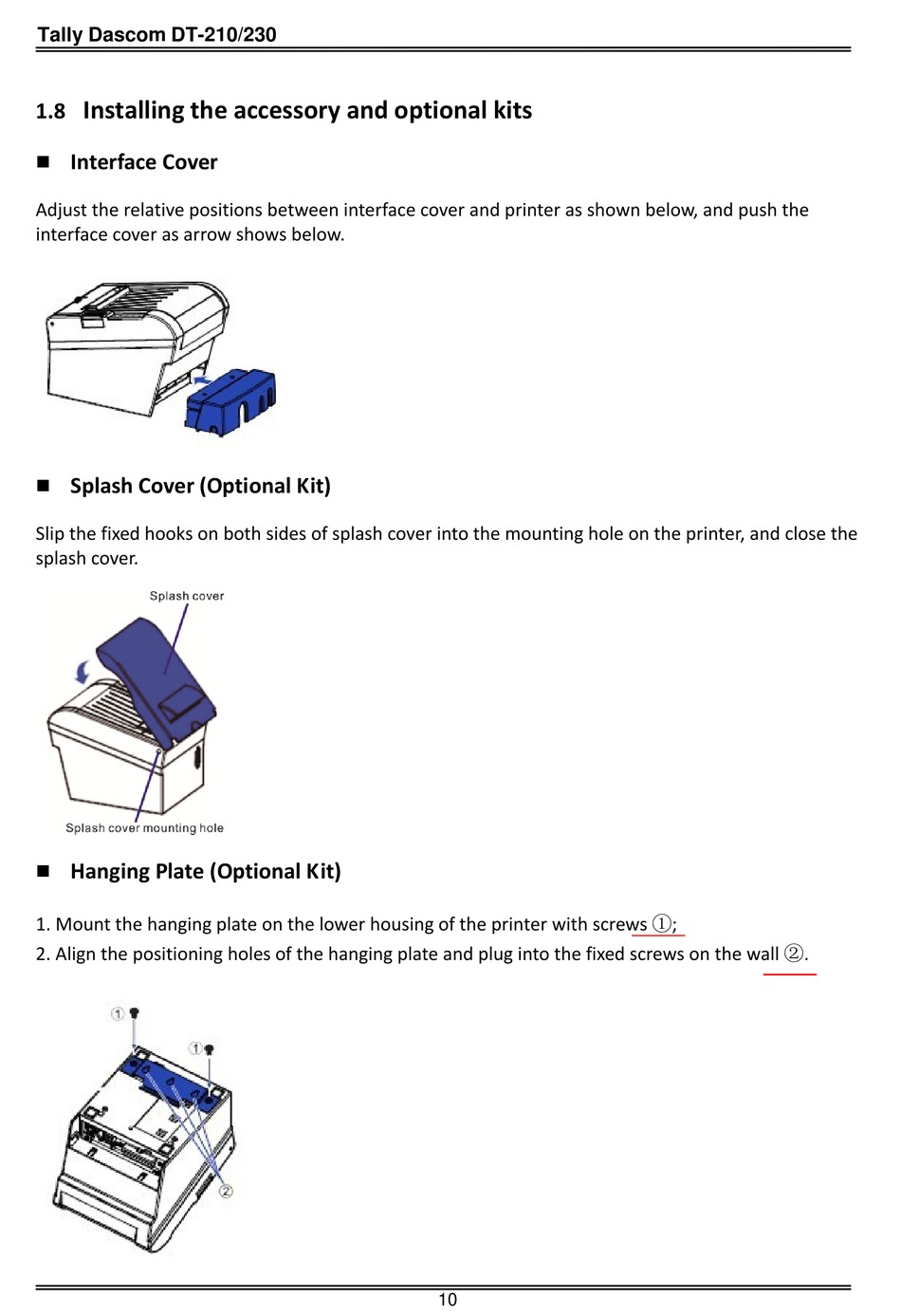

Installing the accessory and optional kits
1.8
 Interface Cover
Adjust the relative positions between interface cover and printer as shown below, and push the
interface cover as arrow shows below.

Splash Cover (Optional Kit)
Slip the fixed hooks on both sides of splash cover into the mounting hole on the printer, and close the
splash cover.

Hanging Plate (Optional Kit)
1. Mount the hanging plate on the lower housing of the printer with screws ①;
2. Align the positioning holes of the hanging plate and plug into the fixed screws on the wall ②.
10
