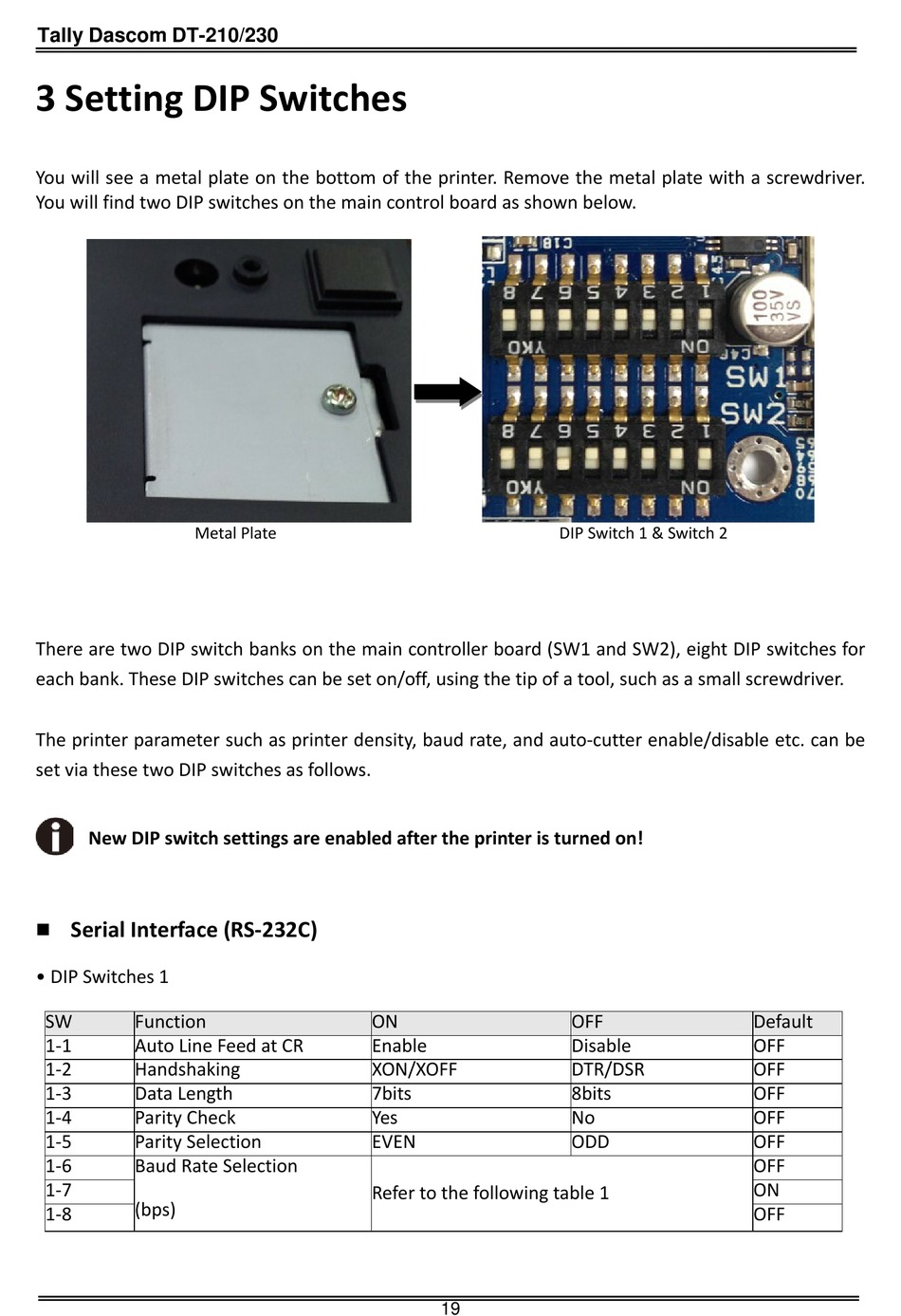

3 Setting DIP Switches
You will see a metal plate on the bottom of the printer. Remove the metal plate with a screwdriver.
You will find two DIP switches on the main control board as shown below.
Metal Plate DIP Switch 1 & Switch 2
There are two DIP switch banks on the main controller board (SW1 and SW2), eight DIP switches for
each bank. These DIP switches can be set on/off, using the tip of a tool, such as a small screwdriver.
The printer parameter such as printer density, baud rate, and auto‐cutter enable/disable etc. can be
set via these two DIP switches as follows.
New DIP switch settings are enabled after the printer is turned on!

Serial Interface (RS‐232C)
• DIP Switches 1
SW Function
1‐1 Auto Line Feed at CR
1‐2 Handshaking
1‐3 Data Length
1‐4 Parity Check
1‐5 Parity Selection
1‐6 Baud Rate Selection
1‐7
(bps)
1‐8
ON
Enable
XON/XOFF
7bits
Yes
EVEN
Refer to the following table 1
19
OFF
Disable
DTR/DSR
8bits
No
ODD
Default
OFF
OFF
OFF
OFF
OFF
OFF
ON
OFF
