Tally Dascom DT-210/230

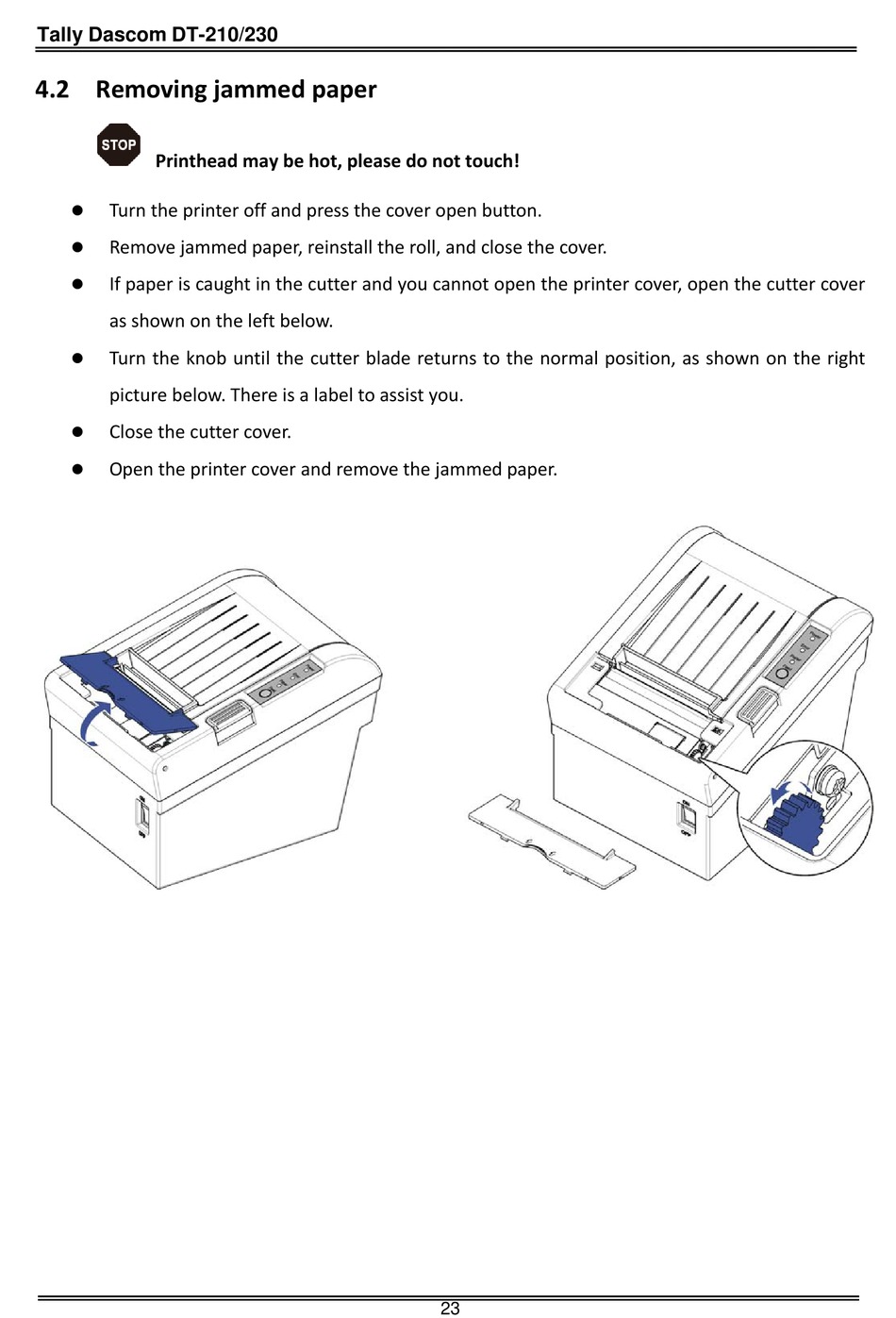

4.2 Removing jammed paper


                        P rinthead may be hot, please do not touch!

Turn the printer off and press the cover open button.
Remove jammed paper, reinstall the roll, and close the cover.
If paper is caught in the cutter and you cannot open the printer cover, open the cutter cover
as shown on the left below.
Turn the knob until the cutter blade returns to the normal position, as shown on the right
picture below. There is a label to assist you.
Close the cutter cover.
Open the printer cover and remove the jammed paper.


















23
