ATTENTION
The following are intructions for installing internal blower model CBI-600. For instructions on preparing for external
blower model CBE-1000 please turn to page "10". Before installing, verify that motor spins freely.

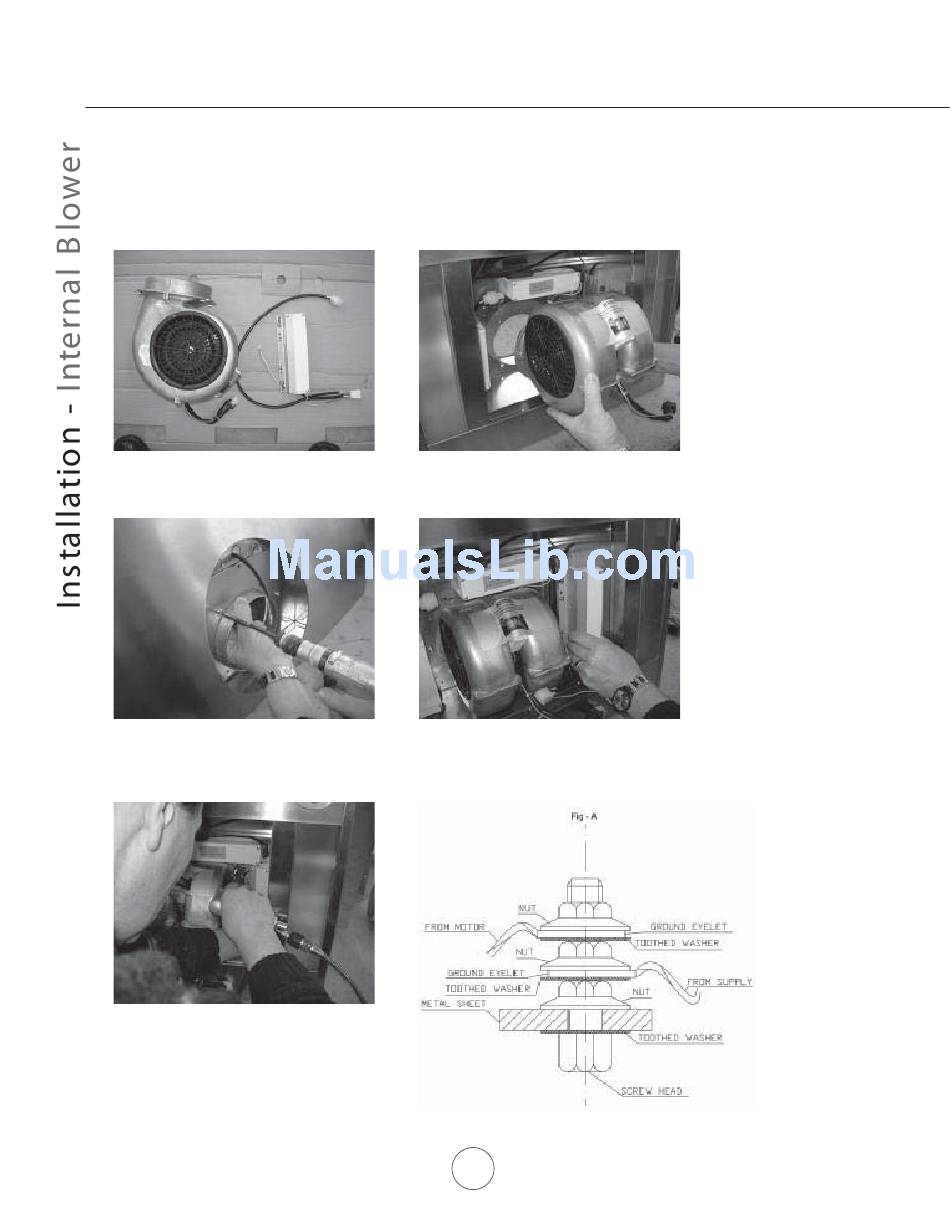

The internal blower kit consists of the blower
and capacitor box with wiring.
2. Att ach blower to flange as shown using
the provided 1/2" 5x15mm screws with
washers.
4. Secure capacitor bo x to hood using the
provided 1/2" self tapping screws.
1. Position blower as shown.
3. P osition capacitor box as shown.
8
