Technical Specifications - Transition Networks C/E-R-TX-FX-01 User Manual

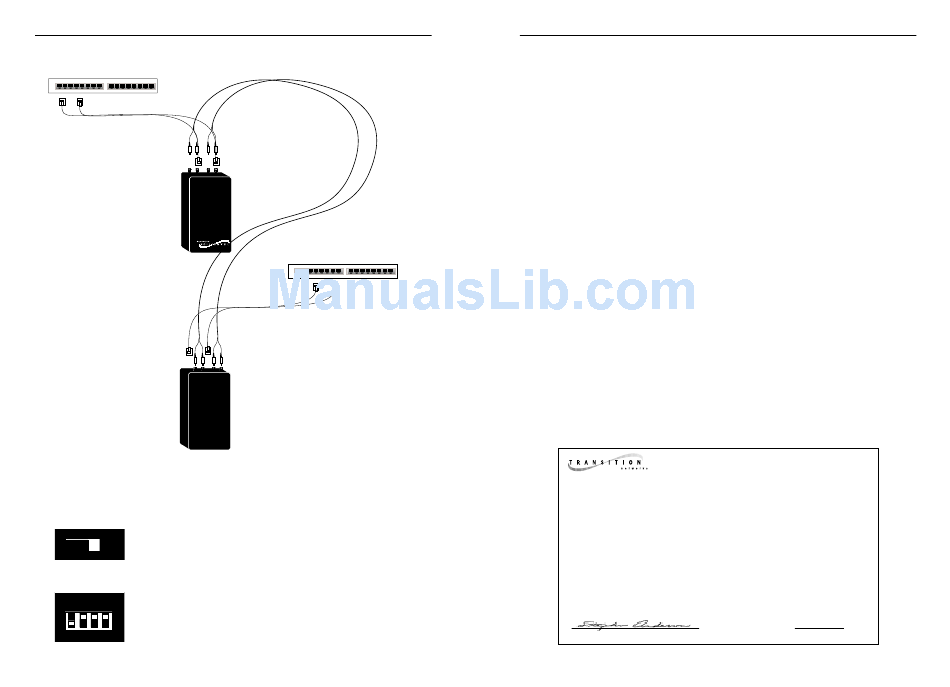

C/E-R-TX-FX-01 IN THE NETWORK
SWITCH
100 meters
MDI switch setting
PST (UP) switch setting
Do NOT connect media
converters between hubs.
Install no more than two (2)
media converters in series.
Recessed switches located on each side of the media converter are used to
configure the media converter for the network.
AT TOP of C/E-R-TX-FX-01 media converter.
MDI/MDI-X SWITCHES
(One for each RJ-45 port - located one on each side of media
converter) Allows straight-through twisted-pair cable to be
used for crossover 100BASE-TX connections.
4-POSITION SWITCH (3rd switch not used)
Auto-negotiation (UP) Detects and adapts to line speed and
operating mode of attached device.
Full/Half-duplex (UP) Allows an attached full-duplex station to
transmit and receive simultaneously. (DOWN) Allows an
attached station to transmit and receive sequentially.
Port Select Timer (UP) Selects timer duration of eleven (11) seconds.
(DOWN) Selects timer duration of five (5) seconds.
2 kilometers - multimode
20 kilometers - singlemode
SWITCH
100 meters
MDI switch setting
PST (DOWN) switch setting
NOTE: Switch labels are located

TECHNICAL SPECIFICATIONS

Standards IEEE 802.3
Case Dimensions 5.7" x 3.0" x 1.8"
Shipping Weight 3 pounds
Delay 400nsec round trip
Environment Temperature:
Humidity
Altitude
Power Supply Requirements Replace power supply with only the equivalent
input rating (see below) and output rating (unregulated 9-24VDC, 5.5W).
TN PN Requirement
3507 240 volts, 50 hertz
3342 230 volts, 50 hertz
3340 120 volts, 60 hertz
3346 100 volts, 50-60 hertz
3511 240 volts, 50 hertz
3537 (with power cord: 3522) South Africa
Warranty Lifetime
NOTE: Media Converter Slide-in-Modules can be installed in any
installation slot, in any order.
DECLARATION OF CONFORMITY
Name of Mfg: Transition Networks
6475 City West Parkway, Minneapolis MN 55344 USA
Model: Redundant Fast Ethernet
Part Number: C/E-R-TX-FX-01
Regulation: EMC Directive 89/336/EEC
Purpose: To declare that the C/E-R-TX-FX-01 to which this declaration refers is
in conformity with the following standards.
EMC-CISPR 22: 1985 Class A; EN 55022: 1988 Class A; EN 50082-1:1992;
EN 60950 A4:1997; IEC 801.2, IEC 801.3, and IEC 801.4; IEC 950
I, the undersigned, hereby declare that the equipment specified above conforms to the
above Directive(s) and Standard(s).
Stephen Anderson, Vice-President of Engineering
(145mm x 76mm x 46mm)
(1.4 kilograms)
0-50°C (32° to 122° F )
10-90%, non condensing
0-10,000 feet
Location
United Kingdom
Europe
USA/Canada/Mexico
Japan
Australia
™
Media Converters
_May 1, 1999_____
Date
