Summary of Contents for Fischer Panda Panda 12 mini PMS Digital

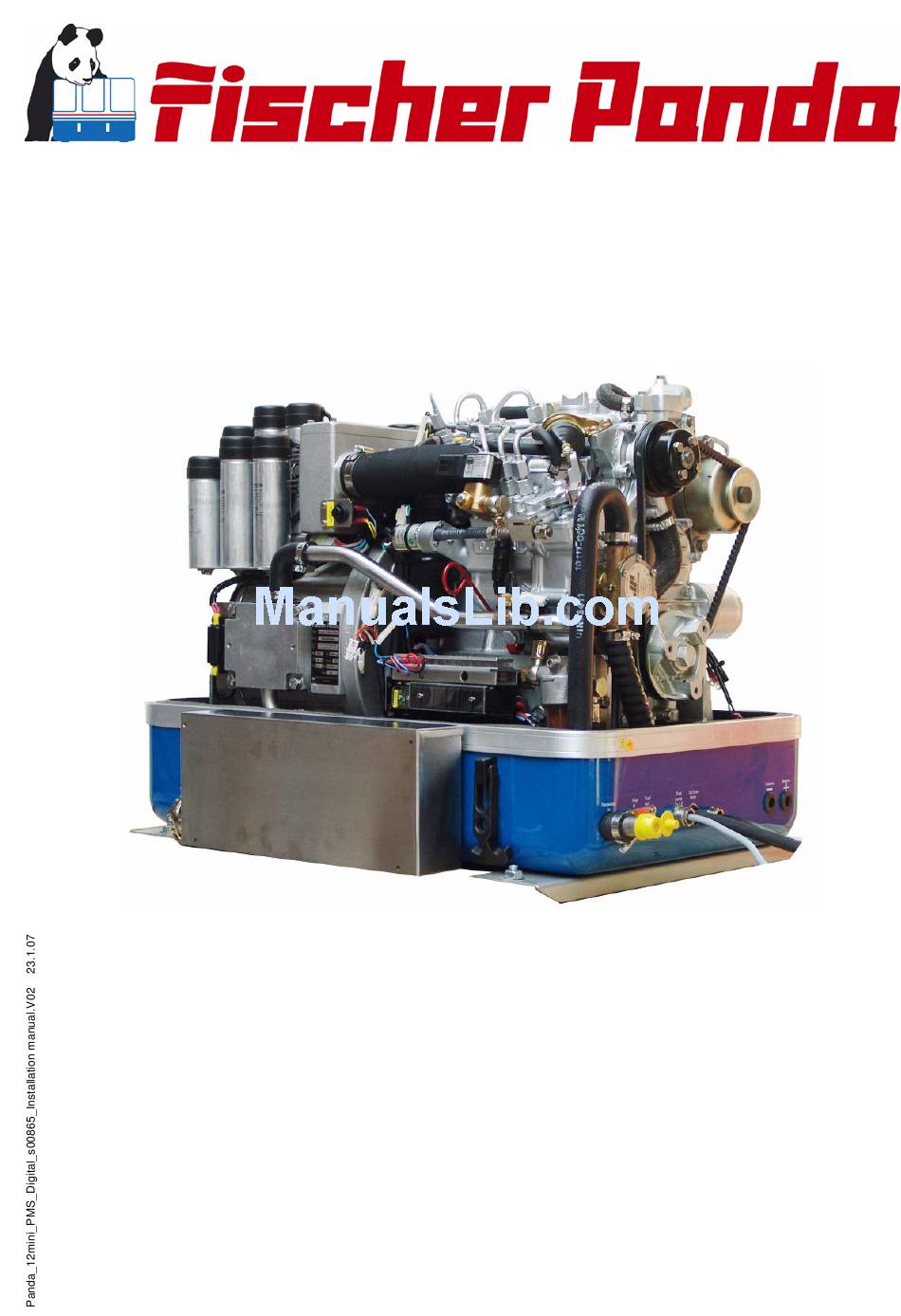

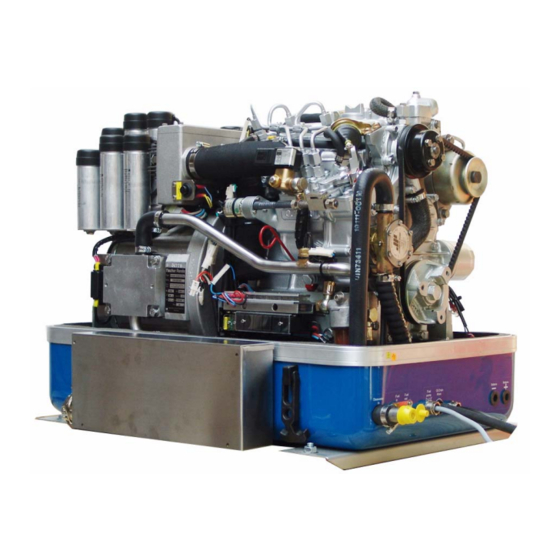

Page 1 Installation Manual Installation, Maintenance and Trouble shooting Marine Generator Panda 12 mini PMS Digital 120V - 60Hz Fischer Panda GmbH...
Page 2: Current Revison Status
Current revison status Document Actual: Panda_12mini_PMS_Digital_s00865_Installation manual.V02_23.1.07 Replace: Panda_12mini_PMS_Digital_s00865_Installation manual.V01_08.09.05 Revision Page Picture changed in Fig. B.20...
Page 3 Icemaster GmbH Panda generators Generators Fischer Panda FISCHER GENERATORS have been manufactured since 1978 and are a well-known brand for first class diesel gene- rators with especially effective sound-insulation. Fischer has been one of the leading manufacturers in respect of quality and know-how during this period.
Page 4: Safety First
Safety first These symbols are used throughout this manual and on labels on the maschine itself to warn of the possibility of per- sonal injutry. Read these instructions carefully. It is essential that you read the instructions and safety regulations before you attempt to assemble or use unit.
Page 5: Tools
Tools This symbols are used throughout this manual to show which tool must be used at maintenance or installation. Spanners X = number of spanner Hook wrench for oil filter Screw driver, for slotted head screws and for recessed head screws Multimeter, multimeter with capacitor measuring Socket wrench set Hexagon wrench keys...
Page 6 Upgrades Far advantages: By your full information Fischer Panda technicians can give you fast assistance, since 90% of the disturbances result from errors in the periphery. Problems due to errors in the installation can be recognized in the apron.
Page 7: Safety Precautions
Safety Precautions The electrical Installations may only be carried out be trained and tested personnel! The generator may not be taken into use with the cover removed. The rotating parts (belt-pulley, belts, etc) must be so covered and protected do that there is no danger to life and body! If a sound insulation covering must be produced at the place of installation, then well-placed signs must show that the generator can only be switched on with a closed capsule.
Page 8 viii...
Page 9: Safety Steps To Follow If Someone Is The Victim Of Electrical Shock
5 Safety steps to follow if someone is the victim of electrical shock Do not try to pull or grab the individual. Send for help as soon as possible. If possible, turn off the electrical power. If you cannot turn off the electrical power, pull, push, or lift the person to safety using a wooden pole, rope, or some nonconductive material.
Page 10: When An Adult Stops Breathing
WHEN AN ADULT STOPS BREATHING WARNING DO NOT attempt to perform the rescue breathing techniques provided on this page, unless certified. Perfor- mance of these techniques by uncertified personnel could result in further injury or death to the victim. Does the Person Respond? Shout, "Help!"...
Page 11: Table Of Contents
Table of Contents Current revison status ......................ii Safety first ..........................iv Tools ............................v Safety Precautions ....................... vii 5 Safety steps to follow if someone is the victim of electrical shock ......ix WHEN AN ADULT STOPS BREATHING................x Mode of Operation of the Generator ................
Page 12 Table of contents B.9 Causes with frequent impeller waste ................26 B.9.1 Exchange of the impeller ....................27 B.10 Coolant connection block at generator housing ............29 B.11 Conservation at longer operation interruption ............30 B.11.1 Measures on preparation of the winter storage ..............30 B.11.2 Initiation at spring.......................
Page 13 Table of contents D.3.4 Installation below waterline ....................56 D.3.5 Gensethousing cooled by raw water ................. 57 D.3.6 Gensethousing cooled indirect (heat exchanger) .............. 58 D.4 The Freshwater - Coolant Circuit .................. 59 D.4.1 Position of the external Cooling Water Expansion Tank ........... 59 D.4.2 De-aerating at the first filling of the internal cooling water circuit ........
Page 14 Intentionally Blank Page 4 Panda_12mini_PMS_Digital_s00865_Installation manual.V02 - Table of contents 23.1.07...
Page 15: Mode Of Operation Of The Generator
Mode of Operation of the Generator A. Mode of Operation of the Generator A.1 Mode of Operation of Operating Surveillance Internal monitoring switches The generator is equipped about failure switches, which are indicated on the remote control panel, and also about failure switch, which switch-off the generator automatically without indica- ting a failure in the remote control panel: The remote control panel supervised the following values.
Page 16 Mode of Operation of the Generator Thermo-switch in the generator coil 1. Generator coil 2. Thermo-switch 4x165°C/175°C 3. Housing For the protection of the generator coil there are two thermo-switches inside the coil, which are for inserted parallel and safety's sake independently from each other.
Page 17 Mode of Operation of the Generator Thermo-sensor raw water in Fig. A.5: Thermo-sensor raw water in Thermo-sensor raw water out Fig. A.6: Thermo-sensor raw water out Thermo-sensor exhaust Fig. A.7: Thermo-sensor raw water out 23.1.07 Panda_12mini_PMS_Digital_s00865_Installation manual.V02 - Chapter A: Mode of Operation of the Generator Page 7...
Page 18 Mode of Operation of the Generator Thermo-sensor fresh water in Fig. A.8: Thermo-sensor fresh water in Thermo-sensor fresh water out Fig. A.9: Thermo-sensor fresh water out Thermo-sensor oil temperature Fig. A.10: Thermo-sensor oil temperature Page 8 Panda_12mini_PMS_Digital_s00865_Installation manual.V02 - Chapter A: Mode of Operation of the Generator 23.1.07...
Page 19: Regulation Of The Generator Voltage By The Vcs
Mode of Operation of the Generator Oil pressure switch In order to be able to monitore the lubrica- ting oil system, an oil pressure switch is built into the system. The oil pressure switch is on the back of the engine (below the oil filter).
Page 20: Use The Failure Bypass Switch For Fuel Delivery
If such engines are to be operated, contact the techni- cian of Fischer Panda, in order to find suitable measures, which work against the high starting current and/or layout the generator for the higher starting current.
Page 21: Operation Of The Generator With Additional Units
Mode of Operation of the Generator A.3 Operation of the generator with additional units A.3.1 General references The Panda generator is arranged that the operation of additional gensets, which are flanged on directly to the front cover of the generator, is possible. If such gensets are intended, this - if possi- ble - should be considered with the order of the generator.
Page 22: Operation Of The Generator With Automatic Start
Mode of Operation of the Generator A.5 Operation of the generator with automatic start If the generator set were set up far away from the location of the remote control panel that the user cannot hear surely, whether the generator starts, a automatic starting option (accessories) should be installed.
Page 23: Control Of The Vent Valve
Mode of Operation of the Generator A.6.1 Control of the vent valve If the valve is blocked, the cooling water pipe cannot be ventilated after the stop of the generator, the water column is not interrupted and the water can penetrate into the combustion chamber of the engine.
Page 24 Mode of Operation of the Generator Page 14 Panda_12mini_PMS_Digital_s00865_Installation manual.V02 - Chapter A: Mode of Operation of the Generator 23.1.07...
Page 25: Maintenance Instructions
Maintenance Instructions B. Maintenance Instructions B.1 General maintenance instructions B.1.1 Checks before starting • Oil level • Cooling system leaks • Visual check for any changes, leaks oil drain system, v-belt, cable connections, hose clips, air filter, fuel lines Every 100h •...
Page 26: Execution Of An Oil Change
Maintenance Instructions B.3 Execution of an oil change Oil drain hose For the oil change an oil drain hose is lead through the sound cover. Fig. B.1: Oil drain hose Oil drainage screw The oil can be discharged by opening the oil drainage screw.
Page 27 Maintenance Instructions Oil filter change The oil filter can be loosen with an oil filter strap. Fig. B.4: Oil filter Oil filter gasket Before the insertation of the new oil filter the gasket should be coated with some- thing oil. Tighten the oil filter only by hand.
Page 28: Checking The Water Separator In The Fuel Supply
Maintenance Instructions Oil dipstick With the help of the engine oil dipstick the oil level is to examined. The prescribed fil- ling level may not exceed the „Max“ mar- king. We recommend 2/3 oil level. Fig. B.7: Oil dipstick B.4 Checking the water separator in the fuel supply The pre-filter with water separator has a cock at its lower surface, with this cock the downward sunk water can be discharged.
Page 29 Maintenance Instructions 2. Push Failure bypass switch (located at the air suction housing) and hold tight. The electric fuel pump has to be run- ning audibly. By moving the switch you can hear the solenoid valve of the generator starting and stopping (when the sound cover is taken off).
Page 30: Replacing Fuel Filter
Maintenance Instructions B.4.2 Replacing fuel filter Filter replacement depends on the amount of fuel contamination build up, but should take place, as a minimum, every 300 operation hours. 01. Fuel filter housing 02. Fuel filter element 03. See-through bowl Fig. B.12: Fuel filter Spin the bowl (03) from the mounting head (01) by hand.
Page 31: Exchange The Air Filter
Maintenance Instructions Tighten the new filter element (02) firmly to the mounting head (01). Lube the o-ring for the bowl with a tempe- rature resistant safety grease (specifica- tion: Anti-Seize). Tighten the bowl (03) to the mounting head (01). Fig. B.15: Fuel filter B.5 Exchange the air filter Open the air suction housing by loosen the six screws on the housing cover.
Page 32: De-Aerating Of The Coolant Circuit / Freshwater
Maintenance Instructions B.6 De-aerating of the coolant circuit / freshwater Special notes for the ventilation of the cooling system If the cooling water is drained or if other air should have arrived into the cooling system, it is necessary to de-aerate the cooling system. This de-aerate procedure must be repeated several times: ATTENTION ! Before opening the de-aerating points the generator must be stagnant !!!
Page 33 Maintenance Instructions Fill in cooling water into the cooling water filler neck. If it is to be recognized that the cooling water level does not fall anymore (with cold cooling water the cooling water levelmust cover the sheet metal in the exhaust elbow), close the filler-cap and the cooling water screws and start the generator.
Page 34: Draining The Coolant
Maintenance Instructions B.6.1 Draining the coolant In principle only describes here, how the cooling water of the raw water cycle can be drained. The mixture of the fresh water circuit should not be drained in principle. See measures for the prepa- ration of the winter storage.
Page 35 Maintenance Instructions Press the alternator to the direction of the thermostat housing. Now the v-belt can be changed (type: XPZ 850). Fig. B.24: Alternator Stretch the v-belt by pulling the alternator back. The v-belt should be able to be pres- sing approx.
Page 36: The Raw Water Circuit
Maintenance Instructions B.8 The raw water circuit B.8.1 Clean raw water filter The raw water filter should be released regularly from arrears. In each case the water cock must be closed before. It is mostly sufficient to beat the filter punnet. If water should seep through the cover of the raw water filter, this may be sealed in no case with adhesive or sealant.
Page 37: Exchange Of The Impeller
Maintenance Instructions B.9.1 Exchange of the impeller Close the raw water stop cock. Fig. B.27: Raw water cock Raw water pump on the front side of the genset. Fig. B.28: Raw water pump Remove the cover of the raw water pump by loosen the screws from the housing.
Page 38 Maintenance Instructions Pull to the impeller with a multigrip pliers of the wave. Mark the impeller, to make sure that these is used in the correct position at re-instal- lation. Fig. B-30: Impeller pump Check to the impeller for damage and replace it if necessary.
Page 39: B.10Coolant Connection Block At Generator Housing
Maintenance Instructions B.10Coolant connection block at generator housing Monitoring of the coolant connection block as sacrificial anode At all raw watercooled gensets the coolant connection block at the side of the generator housing must be well controlled. This coolant connection block is manufactured from a special aluminum alloy and serves also as sacrificial anode.
Page 40: B.11Conservation At Longer Operation Interruption
Maintenance Instructions B.11Conservation at longer operation interruption B.11.1Measures on preparation of the winter storage 1. Rinse raw water circuit with an anti-freeze solution, even if this contains a corrosion protection means. The raw water inlet must be removed at the water cock. Over a hose connector the anti-freeze protection mixture is to be sucked in from a container.
Page 41: B.11.2Initiation At Spring
Maintenance Instructions B.11.1Measures on preparation of the winter storage (cont.) 16.Check cooling water connection block at the generator housing on traces of corrosion and if necessary renew. (only such traces are to be considered, which refer to clear "blossoming" of the material.
Page 42: B.12Replacing Water Pump
Maintenance Instructions B.12Replacing Water pump 1. Unscrew the water pump mounting screws (2), and remove the water pump (1) from the gear case cover. Use a spanner size 10mm. When reassembling • Apply liquid-type gasket (Three Bond 1215 or its equivalent) to both sides of the new water pump gasket.
Page 43: B.13Replacing Valve Cover Gasket
Maintenance Instructions B.13Replacing Valve cover gasket 1. Remove the valve cover cap nuts (3). Use a spanner size 10mm. 2. Remove the valve cover (1). 3. Check to see that the valve cover gasket (2) is defective. 4. Replace the valve cover gasket (3) with a new one. 5.
Page 44: B.13.1Adjustment Of The Valve Clearance
Maintenance Instructions B.13.1Adjustment of the valve clearance Tools: • 22mm, 10mm, 11mm spanner • Screwdriver • Gap Feeler Gauge 1. Ensure engine is completely cold (very important!) 2. Remove valve cover - 10mm spanner. 3. Turn crankshaft pulley with 22mm spanner until valve to be adjusted is closed and gap bet- ween the valve and the rocker arm is at its maximum - see Fig.
Page 45 Maintenance Instructions 1. Camshaft 5. Locknut 2. Push rod rammer 6. Rocker arm 3. Push rod 7. Valve 4. Adjusting screw 8. Crankshaft Fig. B.36: Closed valve 23.1.07 Panda_12mini_PMS_Digital_s00865_Installation manual.V02 - Chapter B: Maintenance Instructions Page 35...
Page 46 Maintenance Instructions Page 36 Panda_12mini_PMS_Digital_s00865_Installation manual.V02 - Chapter B: Maintenance Instructions 23.1.07...
Page 47: Generator Failure
Generator Failure C. Generator Failure C.1 Tools and measuring instruments In order to be able to manage disturbances while driving, following tools and measuring instruments should belong to the equipment on board: • Multimeter for voltage (AC), frequency and resistance •...
Page 48: Monitoring The Generator Voltage
Generator Failure Overloading the Generator with Electric Motors With the operation of electric motors it must be considered that these take up a multiple of their rated output as starting current (six to tenfold). If the power of the generator for the engine is not sufficient, the voltage in the generator breaks down after switching on the engine.
Page 49: Adjusting Instructions For The Spindle Of The Actuator
Generator Failure C.3 Adjusting Instructions for the Spindle of the actuator Two independent devices limit engine speed range. They are: a.Regulating nuts on the spindle of the actuator left and right of the spindle nut. b.An adjusting screw at the base of the rev regulator lever. (only upper revs limit) 1.
Page 50: Adjustment Of The Maximum Engine Speed
Generator Failure C.3.1 Adjustment of the maximum engine speed: 1.Disconnect the electrical supply line to the actuator. 1. Plug for actuator Fig. C.3: Electrical supply actuator The picture deviates from the original. 2.Loosen the max speed lock nut with two spanners size 14mm. 1.
Page 51: Adjustment Of Minimum Engine Speed
Generator Failure 4. Ensure no electrical load is connected. 5. Start the generator. The picture deviates from the original. 6. Increase the speed of the generator by turning the spiral spindle manually until the voltmeter shows a value of 260V. Fig.
Page 52: Lubrication Of The Spiral Thread Spindle
Generator Failure C.3.3 Lubrication of the spiral thread spindle The spiral thread spindle must be lubricated carefully and regularly. Use only a temperature resi- stant safety grease (up to 100°C) ". Ensure lubricant is applied right up to the nuts and especially between the nuts and the spindle nut (See Fig.
Page 53 Generator Failure Voltage control check procedure: 1. Switch off load. 2. Disconnect the power to the actuator. 3. Turn the actuator spindle manually to check if an adjusting nut is jammed. 4. Turn the actuator spindle manually to check if the adjusting nuts allow smooth spindle opera- tion.
Page 54: Vcs By-Pass Facility
Generator Failure C.3.5 VCS By-Pass Facility If there is a problem in the VCS which cannot be cured (e.g. awaiting parts), the generator can be run safely and normally with the VCS generator output monitor disconnected. The engine speed can then (if necessary) be adjusted as already described to produce the required voltage and the generator will run normally.
Page 55: Low Generator-Output Voltage
Generator Failure C.4 Low Generator-Output Voltage If the produced alternating voltage is too low, switch the load off, in order to relieve the generator. Mostly the problem already solved. If the output voltage is still too low, even if all load is switched off, the generator runs without load, you can assume one or more condensers are defective.
Page 56: Checking The Generator Voltage
Generator Failure Should a steady sound or no sound have to be heard, the capacitor is defective and must be replaced. In order to go surely that the capacitor has still its full capacity, use a capacity measuring instrument. The capacitors, which not achieve the imprinted capacity value at this measurement, should be exchanged as fast as possible.
Page 57: Checking The Coil(S) To Short-Circuit
Generator Failure C.4.5 Checking the coil(s) to short-circuit In order to check the coils for short-circuit, first all lines, which lead to the electrical system, must be interrupted. This happens on the power terminal box of the generator or, if available, in the electrical system junction box.
Page 58: Generator Provides No Voltage
Generator Failure C.5 Generator provides no Voltage C.5.1 Rotor Magnetism Loss and "Re-magnetizing" .ATTENTION! See “Safety Precautions” on Page vii. With asynchronous generators it can be the fact that the generator can not build up indepen- dently voltage after longer service lives, or, if it were switched off under full load. The cause lies in the fact that the rotor lost its remainder magnetism.
Page 59: Stop Solenoid
Generator Failure 1. Fuel solenoid valve 2. Injection nozzle 3. De-aerating screw Fig. C.13: Fuel solenoid valve C.6.2 Stop solenoid There are two different variations: A. Energized to stop By pressing the „OFF“-button on the remote control panel the stop solenoid is supplied with voltage and operate, through this the injection nozzles resets to zero position and the generator stops.
Page 60: Dirty Fuel Filter
Generator Failure Damage to starter motor The starter is fitted with a free wheel or axial rotating spring cog, which prevents the starter being driven externally by means of the motor. The free wheel will be heavily worn, if the starter still operates, thereby causing damage to the springs, roller bearings or cog teeth.
Page 61: Troubleshooting Table
Generator Failure Failure bypass switch Fig. C.16: Failure bypass switch To prevent such a shut down period the generator can be started in the normal way while pres- sing the Failure bypass button is depressed. This by-passes any faults thus allowing the genera- tor to run.
Page 62 Generator Failure Page 52 Panda_12mini_PMS_Digital_s00865_Installation manual.V02 - Chapter C: Generator Failure 23.1.07...
Page 63: Installation Instruction
Installation Instruction D. Installation Instruction D.1 Placement D.1.1 Placement and Basemount Since Panda generators have extremely compact dimensions they can be installed in tight locati- ons, attempts are sometimes made to install them in almost inaccessible places. Please consider that even almost maintenance-free machinery must still remain accessible at least at the front (drive belt, water pump) and the service-side (actuator, dipstick).
Page 64: Generator Connections - Scheme
Installation Instruction D.2 Generator Connections - Scheme The generator comes supplied with all supply lines (i.e. electric cables, fuel lines etc.) already connected to the motor and generator. The supply lines are fed through the capsule's front base panel and are shielded at the capsule inlets with water-proof grommets. All electrical connections, cable types and sizes must comply to the appropriate regulati- ons.
Page 65: Cooling System Installation - Raw Water
Installation Instruction D.3 Cooling System Installation - Raw water D.3.1 General References The genset should have its own raw water (coolant water) inlet and should not be connected to any other engine systems. Ensure that the following installation instructions are complied with: Avoid galvanic corrosion For the avoidance of galvanic corrosion the chapter "Service instruction for marine gensets (corro- sion protection)“...
Page 66: Installation Below Waterline
Installation Instruction 1. Raw water filter 2. Water cock 3. Hull inlet Make certain that the raw water filter lies above the water level, otherwise with cleaning water can penetrate by the hull inlet. An external pre-pump can relieve the impeller. Fig.
Page 67: Gensethousing Cooled By Raw Water
Installation Instruction ...and bent it upwards. Both hose ends must be led out outside of the sound cover to one point, if possible 600mm over the waterline in the midship line. The valve is connected at the highest place with the two hose ends. Fig.
Page 68: Gensethousing Cooled Indirect (Heat Exchanger)
Installation Instruction D.3.6 Gensethousing cooled indirect (heat exchanger) 1. Vent valve 5. raw water filter 2. Exhaust manifold 6. Water cock 3. raw water pump 7. Hull inlet 4. Heat exchanger Fig. D.9: Cooling water scheme Page 58 Panda_12mini_PMS_Digital_s00865_Installation manual.V02 - Chapter D: Installation Instruction 23.1.07...
Page 69: The Freshwater - Coolant Circuit
Installation Instruction D.4 The Freshwater - Coolant Circuit D.4.1 Position of the external Cooling Water Expansion Tank The Panda generator is normally sup- plied with an additional, external cool- ing water expansion tank. This tank must be installed in such a way that its lower edge is at least 500mm more highly arranged than the upper edge of the sound cover.
Page 70 Installation Instruction b. De-aerating screw on the thermostat housing, Fig. D.12: De-aerating screw - thermostat housing c. De-aerating screw on the pipe socket of the internal cooling water pump. Fig. D.13: De-aerating screw - water pump 2. Filling the cooling water circle a.
Page 71: Filling And De-Aerating Of The Internal Cooling Water Circuit
Installation Instruction Anti-freeze In the interest of safety, the freezing point of the closed circuit coolant should be checked on a regular basis. Be sure that the coolant/antifreeze mixture is good for at least -15°C (5°F) and if it is possible that your genset experiences lower temperatures, for example during storage or trans- portation, then the entire cooling system should be drained and purged.
Page 72: Pressure Test For Control Of Cooling Water Circuit
Installation Instruction 4. Again de-aerating process in the few days after the first startup Also after the first implementing a small amount of air can be reside in the cooling circuit. To ensure an imaculate und actual operating of the cooling system the de-aerating process must be repeated casual in the next few days (if necessary weaks).
Page 73: Scheme For Freshwater Circuit At Two Circuit Cooling System
Installation Instruction D.4.5 Scheme for freshwater circuit at two circuit cooling system 1. Expansion tank 4. Freshwater pump 2. Exhaust manifold 5. Heat exchanger 3. Thermostat housing 6. Cooling water connection block Fig. D.16: Scheme - fresh water 23.1.07 Panda_12mini_PMS_Digital_s00865_Installation manual.V02 - Chapter D: Installation Instruction Page 63...
Page 74: Watercooled Exhaust System
Installation Instruction D.5 Watercooled Exhaust System By injecting the outlet raw water into the exhaust manifold, the exhaust gases are cooled and the noise emissions from the exhaust system are reduced. D.5.1 Installation of the standard exhaust system The generator exhaust system must remain completely independent and separate from the exhaust system of any other unit(s) on board.
Page 75: Exhaust / Water Separator
Installation Instruction D.5.2 Exhaust / water separator The exhaust/water separator In order to reduce the noise level of the generator unit to a minimum, an optional exhaust outlet muffler mounted next to the thru-hull fitting can be installed. Additionally there is component at ICEMASTER, which exercise both functions of a "exhaust goose neck", and the water separation.
Page 76: Installation Exhaust/Water Separator
Installation Instruction D.5.3 Installation exhaust/water separator If the exhaust/water separator was sufficiently highly installed, a goose neck is no longer neces- sary. The exhaust/water separator fulfills the same function. If the "Supersilent" exhaust system were installed correctly, the generator will not disturb your boat neighbour. The exhaust noise should be nearly inaudible.
Page 77: Fuel System Installation
Installation Instruction Example of an unfavorable installation: - water lock not deeply enough under the hights level of the generator - distance water lock to exhaust/water separator too largely Fig. D.21: Example for unfavorable installation D.6 Fuel System Installation D.6.1 General References Inside the generator capsule itself, there is the fuel filter installed (Exception Panda 4500).
Page 78: The Electrical Fuel Pump
Installation Instruction 1. Generator 5. Condensation water suction pump 2. Fuel stopcock 6. Fuel tank 3. Fuel filter 7. Fuel supply 4. Fuel return 8. Electrical fuel pump (12V-DC) Fig. D.22: Fuel system installation D.6.2 The electrical fuel pump Electrical fuel pump With the Panda generator is usually supp- lied an external, electrical fuel pump (12V DC).
Page 79: Connection Of The Fuel Lines At The Tank
Installation Instruction D.6.3 Connection of the fuel lines at the tank Lead the return fuel pipe connected to the day tank to the floor The return pipe connected to the tank must be dropped to the same depth as the suction pipe, if the generfator is mounted higher than the tank, in order to prevent fuel running back into the tank after the motor has been switched off, which can lead to enormous problems if the generator is switched off for a long period.
Page 80: Bleeding Air From The Fuel System
Installation Instruction D.6.5 Bleeding air from the fuel system Normally, the fuel system is designed to bleed out air itself i.e. as soon as the electric starter motor starts operation the fuel pump starts working and the fuel system will be air-bled after some time automatically.
Page 81: Connection Of The 12V Starter Battery
Installation Instruction D.7.1 Connection of the 12V starter battery The positive (+) battery cable is connected direcly to the solenoid switch of the starter. Fig. D.26: Connection of positive starter battery cable The negative (-) battery cable is connec- ted to the engine foot. Fig.
Page 82: Installation Of The Remote Control Panel
Installation Instruction D.7.2 Installation of the remote control panel The control cables are securely connected to the genset. On the back of the control panel is a terminal block for the remote control cable. Please ensure that the remote control panel is installed in a protected, dry and easily accessible place.
Page 83: Electronic Starter Control Unit
Installation Instruction 1. Speed sensor on threaded seat 2. Engine Flywheel (with gear teeth) 3. Generator housing 4. Retention/tightening nut ATTENTION! For Panda 8000 and Panda 9000 the speed sensor has to be mounted in axial direction. 1. Speed sensor on threaded seat 2.
Page 84: Generator Ac System-Installation
Installation Instruction D.8 Generator AC System-Installation ATTENTION! Before the electrical system is installed, READ the “Safety Precautions” on page vii in this manual FIRST! Be sure that all electrical installations (including all safety systems) comply with all required regulations of the regional authorities. This includes lightnening conductor, personal protection switch etc.
Page 85 Installation Instruction A 3-way cam-type switch should be used. This switch basic positions: "Shore power" - "OFF" - "Generator". If an (DC-AC) inverter is used, a fourth position will be required. 0. OFF I. Generator II. Shore power connection III. Inverter Fig.
Page 86: Control Box
Installation Instruction D.8.2 Control box Danger - High voltage ATTENTION! Before working on the System read the section “Safety Precautions” on page vii in this Manual. 1. Terminal block 120V/60Hz 3. VCS board 2. Current transformer board Fig. D.34: Control boxes 120V/60Hz D.8.3 VCS-voltage control All Panda generators from Panda 8000 upwards are fitted with the electronic voltage control "VCS"...
Page 87: Current Transformer Board
Installation Instruction 1. Terminal for control panel J6 5. Connector for Analogue/binary input J4 2. Connector for CT board J7 6. Connector for Analogue/binary input J3 3. Connector for Power supply J5 7. Connector for Analogue input J2 4. Connector for Digital/binary input J10 8.
Page 88: Insulation Test
Installation Instruction D.9 Insulation test ATTENTION: Once the electrical system installation is complete, a ground insulation test must be performed as follows: 1.) Switch off all on-board electrical devices. 2.) Start the generator.. 3.) Measure the AC-voltage with a voltmeter (adjust to Volt/AC) between: a) generator housing and AC-Control box b) generator housing and ground.
Page 89: Voltage Controller
Installation Instruction D.10 Voltage controller With a engine-operated generator set count always on the fact that through disturbances at the controlling of the diesel engine the control of the number of revolutions monitoring is lost. In this case the diesel engine could wind up without limitation and produce a voltage, which becomes substantially larger than the electrical load can process.
Page 90: D.10.3Time Lag Of The Switching Points
Installation Instruction A) upper switching point (disconnection) B) lower switching point (insertion) C) td = time lag of the generators after achie- vement of the upper switching point 1.measuring voltage plus (+) 2.measuring voltage minus (-) 3.Charging voltage 4.Battetry lower voltage 5.not allocated 6.not allocated 7.output positive (+)
Page 91: Instructions On Preventation Of Galvanic Corrosion
Installation Instruction D.11 Instructions on preventation of galvanic corrosion Galvanic corrosion If several machines are connected by a common electrical potential (e.g. mass) and the system is also still in contact with other metal parts (e.g. the trunk of a neighbour ship), always assume that the different construction units proceed different electrical voltage, which affect on the entire system and the construction units.
Page 92 Installation Instruction Page 82 Panda_12mini_PMS_Digital_s00865_Installation manual.V02 - Chapter D: Installation Instruction 23.1.07...
Page 93 Tables E. Tables E.1 Troubleshooting GENERATOR OUTPUT VOLTAGE TOO LOW For 50Hz versions: less than 200V For 60Hz versions: less than 100V Cause Solution Generator is overloaded. Reduce the electrical load. (Switch off load) Motor is not reaching the rated rpm. Refer to "motor faults"...
Page 94 Tables DIESEL MOTOR FAILS TO START Cause Solution Starter battery switched "OFF". Check position of battery switch and switch "ON" (if installed). Starter battery voltage insufficient (battery too weak). Inspect battery terminals and cables for a good electri- cal connection (Inspect against corrosion, tattered wires, etc.).
Page 95 Tables Damaged bearing(s) piston (seized). Repairs need to be carried out by Kubota-Service. (refer to Kubota motor-manual) Cooling water in combustion chamber. 1. Turn generator "OFF" at control panel. 2. Remove the glow plug (see Kubota-manual). 3. Rotate the motor by hand carefully. 4.
Page 96 Tables MOTOR RUNS IN OFF POSITION Cause Solution Fuel inlet solenoid valve or throttle shut solenoid is not Check wire connections to solenoid. Check valve switching off. functions as in the "Inlet Fuel Solenoid Valve" or in the trottle shut off solenoid sections. Replace if necessary. MOTOR STOPS BY ITSELF Cause Solution...
Page 97 Tables Table 1: Voltage values stator coil Terminal Panda 12mini 4 - 2 (60Hz) ~ 3-5 Volt Table 2: Diameter of conduits Ø Cooling water conduit Ø Fuel conduit Ø Exhaust con- duit Frehwater Raw water Supply Return Generator type [mm] [mm] [mm]...
Page 98 Tables IMPORTANT FOR THREEPHASE GENERATORS! The cable cross-section must be arranged at three- phase generators, if load of the generator is asymme- tric! E.2 Technical data Panda 12mini PMS Digital 120V/60Hz Type Kubota D 722 Govenor Automatic Startbooster No. cylinder Bore 67mm Stroke...
Page 99 Tables E.3 Types of coil HP1 - 120V / 60 Hz Fig. E.1: Circuit diagram 23.1.07 Panda_12mini_PMS_Digital_s00865_Installation manual.V02 - Chapter E: Tables Page VII...
Page 100 Tables E.4 Inspection checklist for services Inspection-Category Inspection work 100 h check change Installation check 500 h measure sealing clean check isolation daily 1000 h 35 - 50 h 5000 h Inspection-Category Inspection work coolant water hoses raw water pump (impeller) water separator / fuel pre-filter engine oil oil filter...
Page 101 Tables E.5 Engine oil Engine oil classification Operating range: The operating range of an engine oil is determined by SAE class. "SAE" is for the union of American engineers (Society of Automotives Engineers). The SAE class of an engine oil only informs over the viscosity of the oil (lar- ger number = more viscous, lower number = more highly liquidly) e.g.
Page 102 Tables E.6 Coolant specifications Use a mixture of water and antifreeze. The antifreeze needs to be suitable for aluminium. The antifreeze concen- tration must be regularly checked in the interests of safety. ICEMASTER recommend to use the product: GLYSANTIN PROTECT PLUS/G 48 Engine coolant automotive industry Product description Product name GLYSANTIN ®...
Page 103: Scheme Vcs Board
Tables E.7 Scheme VCS board Fig. E.2: Scheme VCS board E.7.1 Legend VCS board J2, Analogue input Temperature raw water input Temperature fresh water input Temperature cylinder head Tank sensor Temperature coil 1 Temperature coil 2 Temperature bearing Reference (Ground) 23.1.07 Panda_12mini_PMS_Digital_s00865_Installation manual.V02 - Chapter E: Tables Page XI...
Page 104 Tables J3, Analogue / binary input Oil pressure analogue Oil pressure switch Temperature engine oil Temperature raw water outlet Temperature fresh water outlet Temperature exhaust manifold Temperature diode heat sink Reference (Ground) J4, Analogue / binary input Supply output battery voltage / 2,5A Supply output 5V / 1A Binary input air intake Analogue input raw water pressure...
Page 105 Tables J7, CT board connector Supply battery voltage / 1A Reference (Ground) Serial IO „Data+“ Serial IO „Data-“ J9, Binary output Supply output battery voltage / 1A Supply output battery voltage / 1A Output „Motor start“ Output „Glow plugs“ Output „Fuel pump“ Output „Motor stop“...
Page 106: Scheme Current Transformer Board
Tables E.8 Scheme current transformer board Fig. E.3: Scheme current transformer board E.8.1 Legend measuring board J1, Connector to measuring/compensation board Supply voltage output Ground Serial bus data + Serial bus data - J3, Booster control output Booster on, +15V / max 10mA Booster reference Booster on, +15V / max 10mA Booster reference...
