9

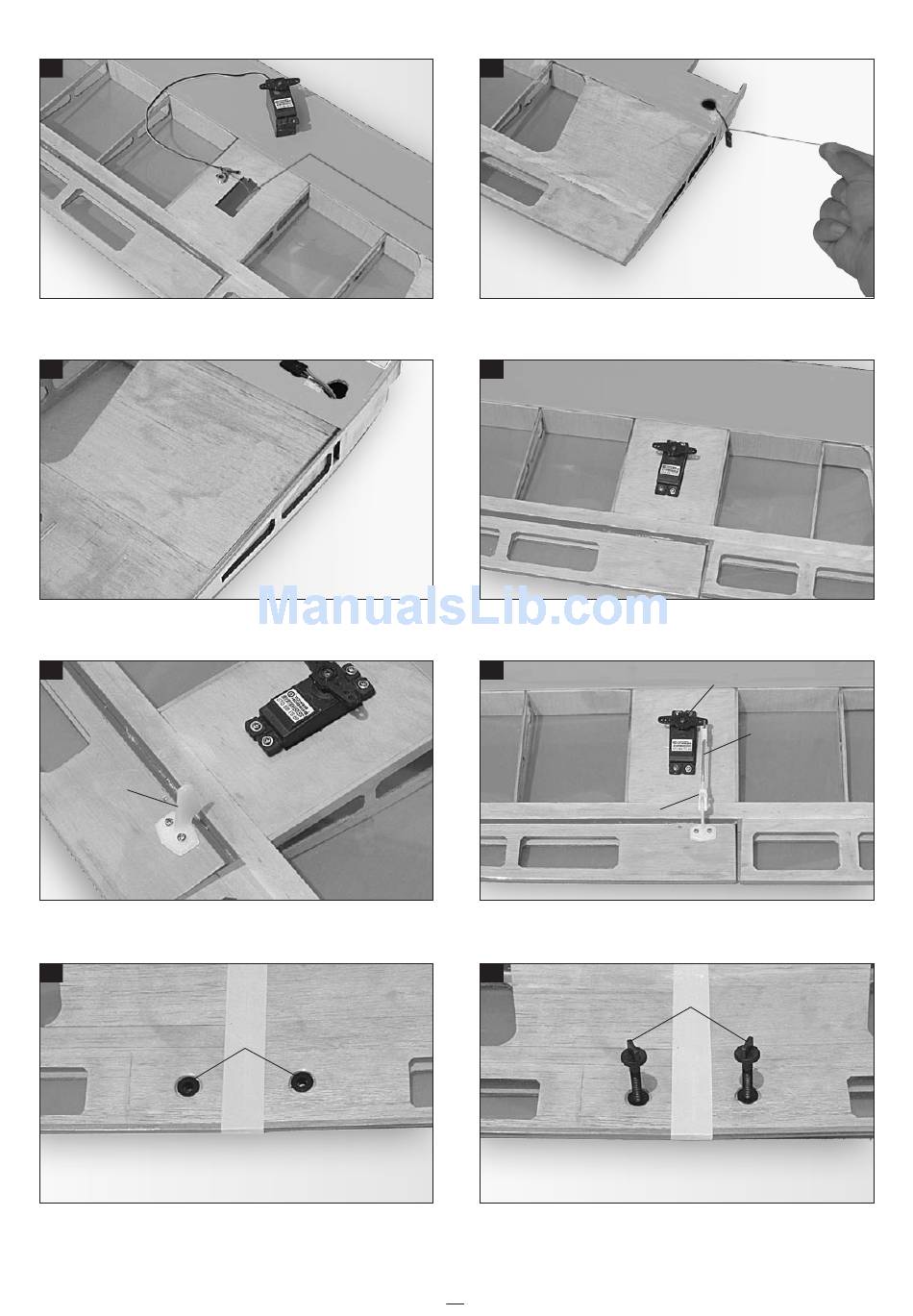

Tape the servo lead to the thread.
11
Using masking tape, tape the servo leads on the bottom of
the wing.
13
Control horn
Install the aileron control horn.
15
Nylon bushings
Install the nylon bushings and glue it.
10
Pull the servo lead out.
12
Install the servo aileron into the servo box.
14
Nylon clevises
Install the aileron pushrod.
16
Screw the wing into the fuselage.
3
Screw
Metal pushrod
Screw
