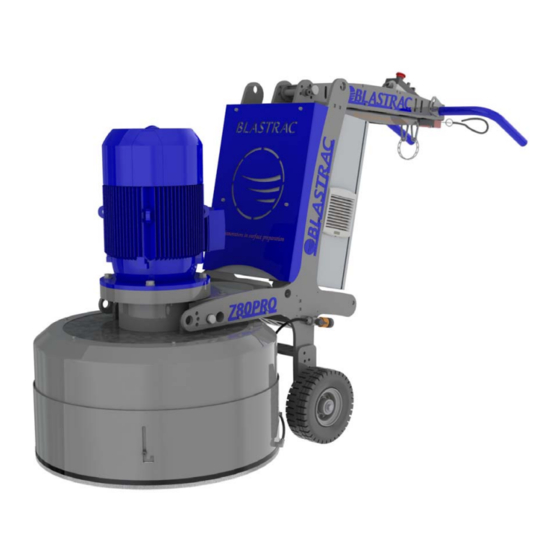

Service manual BMG-780PRO
BMG-780PRO
Version 1.0
info@blastrac.eu

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BMG-780PRO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Blastrac BMG-780PRO

Summary of Contents for Blastrac BMG-780PRO

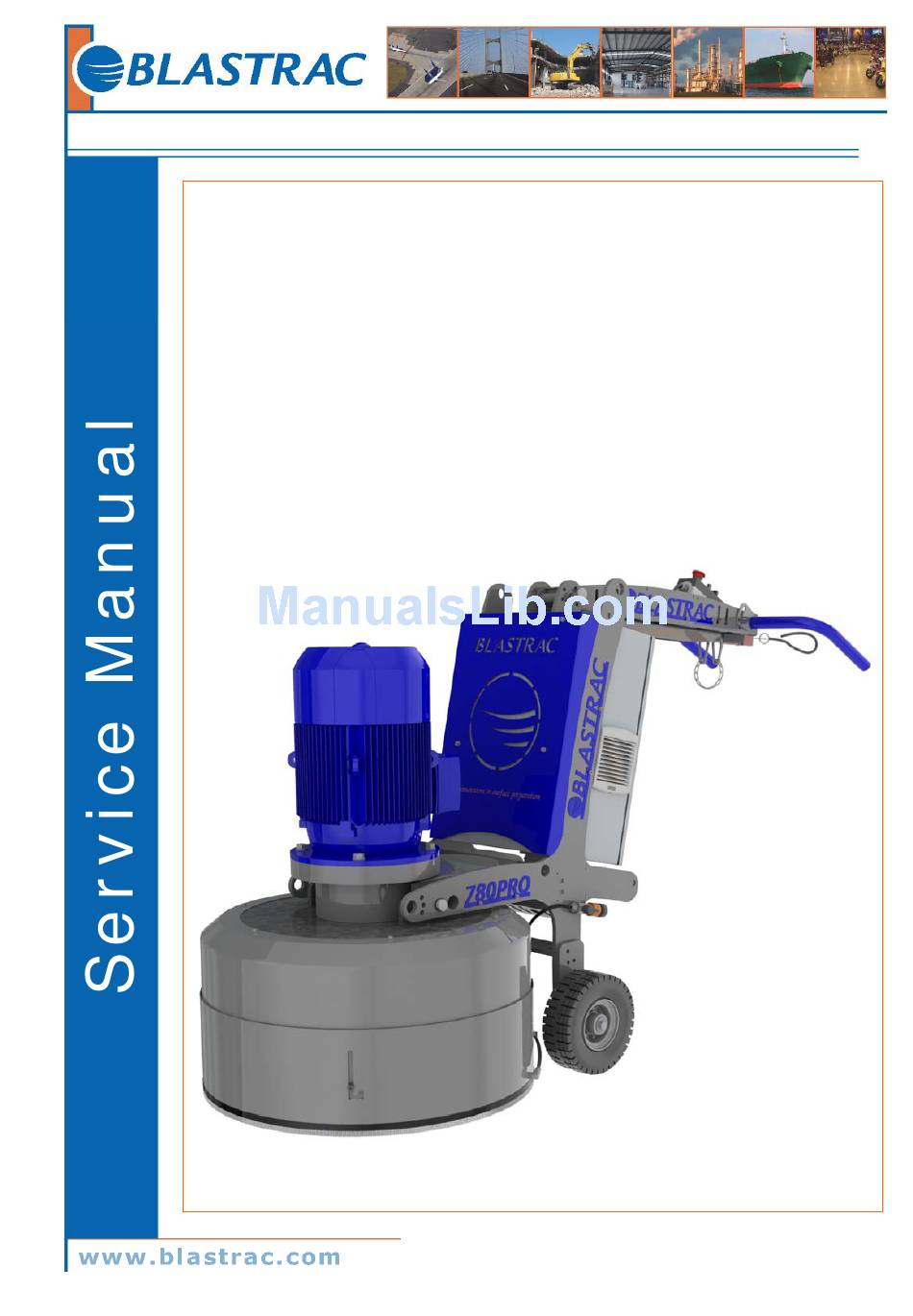

  • Page 1 Service manual BMG-780PRO BMG-780PRO Version 1.0 info@blastrac.eu...
  • Page 2 Service manual BMG-780PRO 2/57 Index 1. Tools 2. Spare parts 3. Electric schedules E06867 / 3x 400V / 15kW / frequency drive E06867/UL230 / 3x 230V / 15kW / frequency drive E06867/UL480 / 3x 480V / 15kW / frequency drive 4.
  • Page 3 Service manual BMG-780PRO 3/57 1. Tools Diamag grinding wings Item Part number Description Remarks BG707301 Diamag wing red box 9 pieces 18/20 BG707302 Diamag wing red box 9 pieces 30/40 BG707303 Diamag wing red box 9 pieces 60/80 BG707304 Diamag wing red box 9 pieces 120/150...
  • Page 4 Service manual BMG-780PRO 4/57 2. Spare parts Frame complete info@blastrac.eu...
  • Page 5 Service manual BMG-780PRO 5/57 Item Part number Description Remarks Qty. BE0643 Tube cap round BG005845/BL Handle for steer 999-9156 Pipe clamp (set) BE0191 M6x50 hexagon socket head bolt DIN 912 E06861 Operating box complete E01543 Emergency stop E01318 Start button...
  • Page 6 Service manual BMG-780PRO 6/57 Machine complete info@blastrac.eu...
  • Page 7 Service manual BMG-780PRO 7/57 Item Part number Description Remarks Qty. BG005847 Protection cap BG11924 Upper belt BG11899-1/BL Motor 230V/480V BE0654 M8x16 set screw DIN 916 BG007808_2 Coupling upper part BE0656 M14x140 hexagon socket head bolt DIN 912 BG007810 Flange motor seat...
  • Page 8 Service manual BMG-780PRO 8/57 Upper drive info@blastrac.eu...
  • Page 9 Service manual BMG-780PRO 9/57 Item Part number Description Remarks Qty. BE0631 M8x40 hexagon socket head bolt DIN 7984 BG007866 Contra pulley BG007809-1 Motorplate compl BE0443 M10x25 hexagon socket head bolt BG005860 Upper tensioner BG005813 Holder BG007838 Motor housing BG007867 Centre pulley...
  • Page 10 Service manual BMG-780PRO 10/57 Lower drive info@blastrac.eu...
  • Page 11 Service manual BMG-780PRO 11/57 Item Part number Description Remarks Qty. BE0617 M6x50 countersunk screw DIN 7991 BG11849 V-seal BG007814 Ring BG007827 Cover BE0198 M12x30 hexagon socket head bolt DIN 912 BE0189 M6x30 hexagon head bolt DIN 933 BE0502 M6x25 countersunk screw...
  • Page 12 Service manual BMG-780PRO 12/57 Contra pulley BG007866 Item Part number Description Remarks Qty. BG005803 Belt pulley BE0109 Key 8x7x20 DIN 6885A BE0076 Retaining ring for shaft Ø25 DIN 471 BG005802 Bearing house BE0077 Retaining ring for bore Ø52 DIN 472...
  • Page 13 Service manual BMG-780PRO 13/57 Centre pulley BG007867 Item Part number Description Remarks Qty. BG007812 Sprocket E03703 V-seal BG007806-1 Pulley E01490 Bearing E03993 Retaining ring for bore Ø90 DIN 472 BE0126 Retaining ring for shaft Ø50 DIN 471 info@blastrac.eu...
  • Page 14 Service manual BMG-780PRO 14/57 Drive pulley BG007868 info@blastrac.eu...
  • Page 15 Service manual BMG-780PRO 15/57 Item Part number Description Remarks Qty. BE0107 Retaining ring for bore Ø80 DIN 472 BG11933 Bearing BG007815 Bearing house BE0256 Key 8x7x30 DIN 6885A BG007818 Axle BE0658 Key 12x8x35 DIN 6885A BG11867 Pulley BG11868 Taperlock BG007817...
  • Page 16 Service manual BMG-780PRO 16/57 Pulley (3x) BG007869 info@blastrac.eu...
  • Page 17 Service manual BMG-780PRO 17/57 Item Part number Description Remarks Qty. BG11887 Bearing BG007819 Bearing house BE0607 Retaining ring for shaft Ø40 DIN 471 BG11889 Taperlock BG11888 Pulley BG007817 Bearing house BG11871 Bearing BG007816 Axle BE0659 Key 12x8x45 DIN 6885A info@blastrac.eu...
  • Page 18 Service manual BMG-780PRO 18/57 Upper tensioner BG005860 Item Part number Description Remarks Qty. BE0074 Retaining ring for shaft Ø20 DIN 471 222-2245 Bearing BG005830 Axle for tensioner BG005831 Tension plate BE0130 M10x25 countersunk screw DIN 7991 info@blastrac.eu...
  • Page 19 Service manual BMG-780PRO 19/57 Lower tensioner BG007865 Item Part number Description Remarks Qty. BE0074 Retaining ring for shaft Ø20 DIN 471 BG11884 Bearing BG007836 Pulley BG007837 Axle tensioner BE0458 M8x25 countersunk screw DIN 7991 BG007833-1 Tensioner info@blastrac.eu...
  • Page 20 Service manual BMG-780PRO 20/57 Buffer plate for surface preparation (3x) info@blastrac.eu...
  • Page 21 Service manual BMG-780PRO 21/57 Item Part number Description Remarks Qty. 153- BG240190-1 240mm diamond holder complete 156- BG2401901-1 240mm diamond holder BG11880 Fork BE0204 + M8x25 hexagon socket head bolt DIN 7984 BE0584 small + M8 spring washer small DIN 7980...
  • Page 22 Service manual BMG-780PRO 22/57 Buffer plate for polishing (3x) info@blastrac.eu...
  • Page 23 Service manual BMG-780PRO 23/57 Item Part number Description Remarks Qty. BE0579 7/16 x 2”½ hexagon UNC bolt BG2402001 Flexplate adapter for axle BE0012 M8x25 hexagon socket head bolt DIN 912 BG400310 Morflex coupling 179- BG2402002-1 Flexplate diamond holder BG24020021-1 Flexplate diamond holder only...
  • Page 24 Service manual BMG-780PRO 24/57 3. Electric schedules E06867 / 3x 400V / 15kW / frequency drive info@blastrac.eu...
  • Page 25 Service manual BMG-780PRO 25/57 info@blastrac.eu...
  • Page 26 Service manual BMG-780PRO 26/57 info@blastrac.eu...
  • Page 27 Service manual BMG-780PRO 27/57 info@blastrac.eu...
  • Page 28 Service manual BMG-780PRO 28/57 info@blastrac.eu...
  • Page 29 Service manual BMG-780PRO 29/57 info@blastrac.eu...
  • Page 30 Service manual BMG-780PRO 30/57 info@blastrac.eu...
  • Page 31 Service manual BMG-780PRO 31/57 info@blastrac.eu...
  • Page 32 Service manual BMG-780PRO 32/57 info@blastrac.eu...
  • Page 33 Service manual BMG-780PRO 33/57 E06867/UL230 / 3x 230V / 15kW / f equency drive info@blastrac.eu...
  • Page 34 Service manual BMG-780PRO 34/57 info@blastrac.eu...
  • Page 35 Service manual BMG-780PRO 35/57 info@blastrac.eu...
  • Page 36 Service manual BMG-780PRO 36/57 info@blastrac.eu...
  • Page 37 Service manual BMG-780PRO 37/57 info@blastrac.eu...
  • Page 38 Service manual BMG-780PRO 38/57 info@blastrac.eu...
  • Page 39 Service manual BMG-780PRO 39/57 info@blastrac.eu...
  • Page 40 Service manual BMG-780PRO 40/57 info@blastrac.eu...
  • Page 41 Service manual BMG-780PRO 41/57 info@blastrac.eu...
  • Page 42 Service manual BMG-780PRO 42/57 E06867/UL480 / 3x 480V / 15kW / f equency drive info@blastrac.eu...
  • Page 43 Service manual BMG-780PRO 43/57 info@blastrac.eu...
  • Page 44 Service manual BMG-780PRO 44/57 info@blastrac.eu...
  • Page 45 Service manual BMG-780PRO 45/57 info@blastrac.eu...
  • Page 46 Service manual BMG-780PRO 46/57 info@blastrac.eu...
  • Page 47 Service manual BMG-780PRO 47/57 info@blastrac.eu...
  • Page 48 Service manual BMG-780PRO 48/57 info@blastrac.eu...
  • Page 49 Service manual BMG-780PRO 49/57 info@blastrac.eu...
  • Page 50 Service manual BMG-780PRO 50/57 info@blastrac.eu...
  • Page 51 Service manual BMG-780PRO 51/57 4. Fault diagnose frequency drive For a complete overview of faults and how to resolve them, check the operating manual of the frequency drive or the CD, which are delivered with the machine. If you put the CD in the computer, it will automatically go to the manuals.
  • Page 52 Service manual BMG-780PRO 52/57 info@blastrac.eu...
  • Page 53 Service manual BMG-780PRO 53/57 info@blastrac.eu...
  • Page 54 Service manual BMG-780PRO 54/57 info@blastrac.eu...
  • Page 55 Service manual BMG-780PRO 55/57 info@blastrac.eu...
  • Page 56 Service manual BMG-780PRO 56/57 info@blastrac.eu...
  • Page 57 Service manual BMG-780PRO 57/57 Headquarter Blastrac BV The Netherlands Utrechthaven 12 NL - 3433 PN Nieuwegein Tel: 0031 (0)30 601 88 66 Fax: 0031 (0)30 601 83 33 info@blastrac.nl Blastrac United Kingdom Unit 2, Outgang Lane, Dinnington Sheffield, South Yorkshire GB –...
