- Page 1 Original instructions in English OPERATING INSTRUCTIONS BG-180EC VERSION 1.2...
-
Page 2: Ec Declaration Of Conformity
EC DECLARATION OF CONFORMITY in accordance with Appendix II sub A of Directive 2006/42/EC BLASTRAC B.V. Utrechthaven 12 NL - 3433 PN NIEUWEGEIN The Netherlands Declare under our sole responsibility that the grinding machine as described below, Model: BG-180 EC... - Page 3 Index EC Declaration of Conformity 1. Introduction 2. Machine description 3. Safety Work area safety Electrical safety Personal safety Machine safety Maintenance safety Dust collector safety Grinding safety Transport safety Signs on the machine 4. Initial operation Checkpoints of electrical safety Checkpoints of machine safety Manual moving Transport with lifts or cranes...
-
Page 4: Machine Description

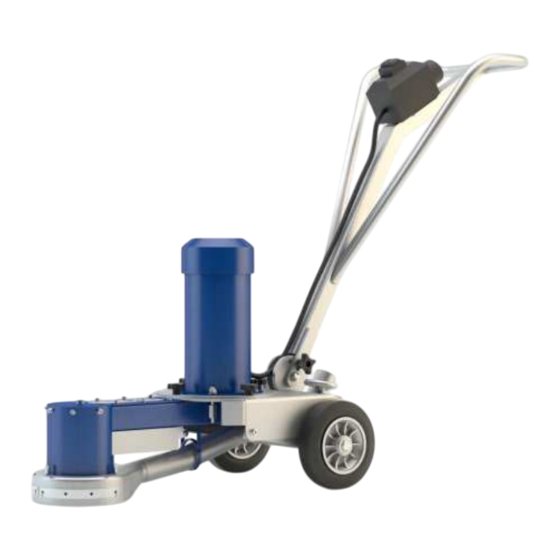

The BG-180EC can process an output width of 180 mm, and gives excellent performance due to its high economic efficiency and easy handling. The machine is capable of levelling uneven and undulating floors and edges, this process is suitable for an optimisation of surfaces, concrete polishing and removing tiger striping after shot blasting. -
Page 5: General Safety Rules
3. General Safety Rules Warning! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire, explosions and / or serious injuries. Only authorized and trained personnel may operate this machine. In case of any inappropriate usage, improper operation or repair, the producer shall be exempt from liability. - Page 6 For the electrical parts, use a tool that is insulated against voltages. Safety regarding dust collectors a) Always use a Blastrac dust cleaner to ensure a dust-free operation of the machine and clean air at the workspace. Also the airflow helps to cool the machine and prevents overheating.
- Page 7 Grinding safety a) The machine contains rotating parts, which are protected with a cover. Always leave the diamond disc on the floor while the motor is turning. b) The buffer can become worn out with use, because of this there can be higher vibrations than normal. Check for this reason the buffer for deformation and damage before every use.
- Page 8 Signs on the machine The following stickers are placed on the machine. Meanings of these symbols are: • Danger, disconnect electrical supply before working on this equipment Wear a dust mask class FFP2 or higher Ear protection is obliged Safety glasses with lateral protection are obliged CE-mark on this machine Wear protecting gloves Safety shoes obliged...
-
Page 9: Initial Operation
4. Initial operation Before using the machine it is important to inspect the machine. It is not permitted to use the machine if the machine safety is not according the checkpoints below. Before switching on the machine make sure that no-one can be endangered when the machine starts up! Checkpoints of electrical safety •... - Page 10 5. Operating When operating the BG-180 EC, the following additional safety instructions must be followed closely. Before Switching on the BG-180EC, the front part of the grinding machine must be lifted by pushing the handgrip (1) down to floor level till the machine is approximately 10cm from the ground.
- Page 11 In case of emergency or operating trouble, like vibrations or strong noises, switch the machine off immediately by hitting on the OFF-button! Contact our experts at Blastrac for the correct application of the different tools and their corresponding working speeds.
-
Page 12: Maintenance
Generally the grinding machine BG-180EC requires very little special attention regarding its maintenance. After using the BG-180EC, clean the machine with the dust collector, so there is no dust on the machine. See to it that any wastes or fibre residues do not remain in the area of the grinding disc. - Page 13 Store the cleaned and dry machine in a dry and humid free room. Protect the electrical motor from moisture, heat, dust and shocks. All repair work must be done by qualified Blastrac personnel, this to guarantee a safe and reliable machine. Any guarantee on the machine is expired when:...
- Page 14 Bearing house maintenance Disassembly: • Take off the taperlock bush (01) with the pulley (02) and key (03) • The adapter diamond (15), spacer rings (16) and buffer (17) can be unscrewed from the axle • Remove the v-ring seal (04) and the retaining ring (05) •...
- Page 15 Disassembly: Make sure that the power supply is disconnected from the electrical inlet (01). 2 Tilt the machine to the back with the help of the handgrips (02) and lay it down on the steer (02). Remove all the dust using the vacuum cleaner. 4 Push the lock pin (03) down until the disc (05) is blocked.
-
Page 16: Troubleshooting
8. Troubleshooting Fault Possible cause Remedy Excessive vibration Imbalance due to worn or broken grinding Replace all worn or broken parts. tools. PU-belt is too tight. Release the tension of the upper belt. Unusual noises Defective bearing. Check the bearing on the axle drive shaft and replace if necessary. - Page 17 Design and specifications are subject to change without notice by Blastrac BV. If the grinding machine BG-180EC is to be operated using power from a generator, the generator must be operated in accordance with the current EN-VDE directives (this applies to the protective earth conductor in particular) in order to ensure that all safety devices are functioning and to eliminate possible damage to electrical components.
-
Page 18: Important Note
This way the materials can be re-used in an environmentally responsible manner. Despite the fact that this guide is made with care, Blastrac takes no liability for errors in the manual and the possible consequences. We are naturally very interested in your findings and additions. - Page 19 Headquarter Blastrac Poland Blastrac Italy Blastrac The Netherlands Golina, Dworcowa 47a S.S. 10 Padana Inferiore, 41 Utrechthaven 12 PL – 63-200 Jarocin IT – 29012 Caorso (PC) NL – 3433 PN Nieuwegein Tel – 0048 627 40 41 50 Tel – 0039 0523 81 42 41 Tel –...
