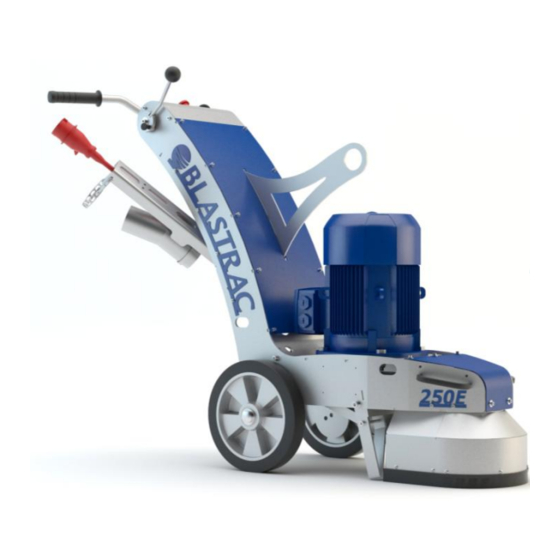

Blastrac BG-250E Service Manual

Hide thumbs Also See for BG-250E:

Advertisement

Quick Links

Download this manual See also: Operating Manual
Service manual BG-250E & BG-250P
BG-250E &
BG-250P
Version 1.2

Advertisement

loading
Need help?

Need help?

Do you have a question about the BG-250E and is the answer not in the manual?

Questions and answers

Related Manuals for Blastrac BG-250E

Summary of Contents for Blastrac BG-250E

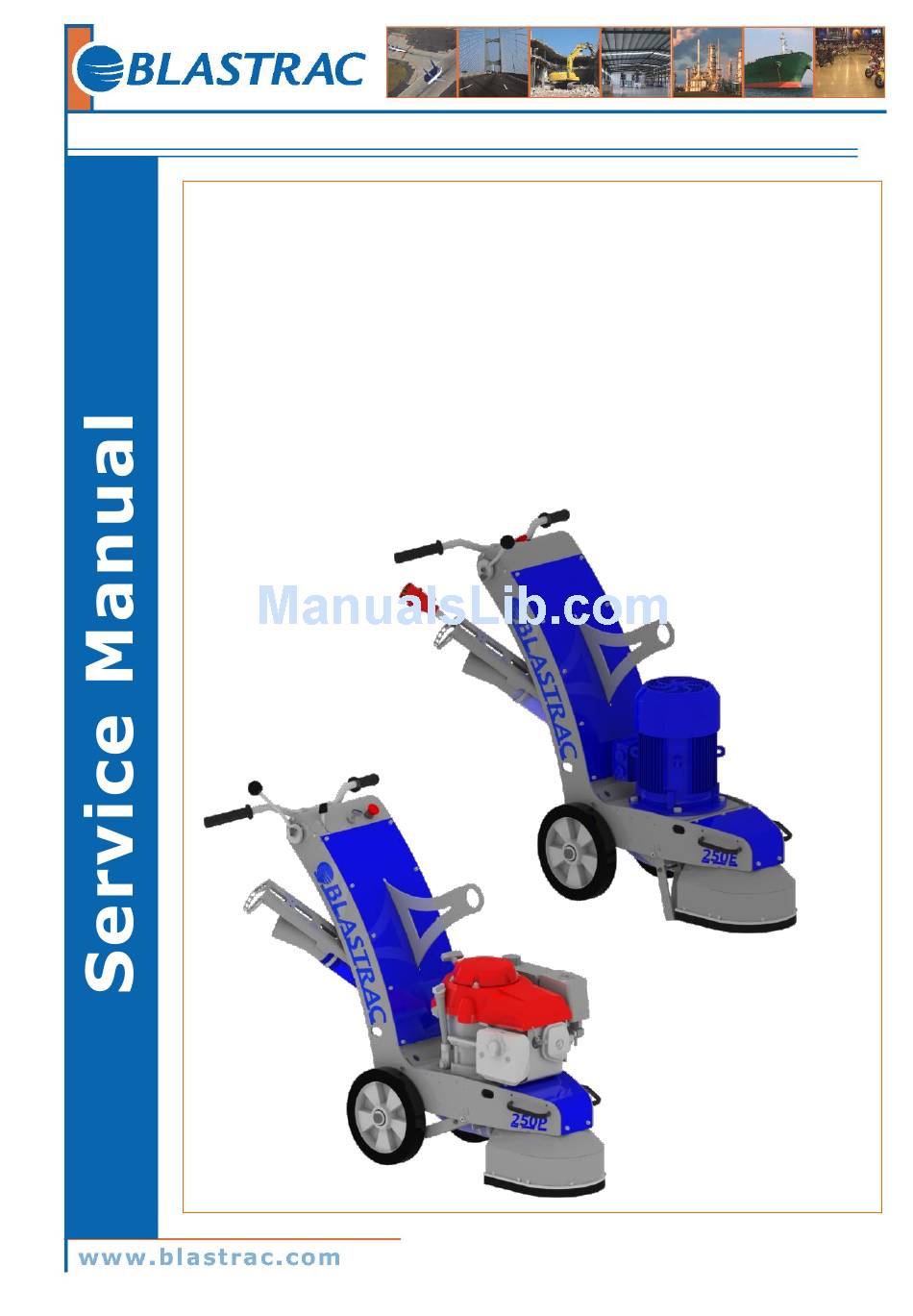

  • Page 1 Service manual BG-250E & BG-250P BG-250E & BG-250P Version 1.2...
  • Page 2 Service manual BG-250E & BG-250P 2/19 Index 1. Spare parts 2. Electric schedules Electric circuit diagram E07396/7 BG-250G – 13HP Layout and Device Settings P005084 BG-250E...

  • Page 3: Spare Parts

    Service manual BG-250E & BG-250P 3/19 1. Spare parts...
  • Page 4 Service manual BG-250E & BG-250P 4/19 Item Part number Description Remarks Qty. DG44 Grip rubber BE0002 M10 domed cap nut DIN 1587 BE0062 M10x30x1.5 washer DG31 Steering handle DG31/1 Steering handle clamp BE0063 M10x50x3 washer E03262 Vibration absorber BE0371 M10x80 hexagon bolt...
  • Page 5 Service manual BG-250E & BG-250P 5/19...
  • Page 6 Service manual BG-250E & BG-250P 6/19 Item Part number Description Remarks Qty. 009425 Plug 16A with phase inverter BE0020 M6x20 inbus bolt DIN 912 999-9159 Pipe clamp 12mm (set) E07335 Swing arm for BG-250 E04734 Hose clamp BE0669 M12x37x3 washer...
  • Page 7 Service manual BG-250E & BG-250P 7/19...
  • Page 8 Service manual BG-250E & BG-250P 8/19 Item Part number Description Remarks Qty. E07357 Top cover P005084 Electrical control panel 230V-60Hz BE0183 M5x25 inbus bolt DIN 912 E00709 Shock absorbing plate BE0317 M5x15x1.2 washer DIN 9021 BE0272 M5 lock nut DIN 985...
  • Page 9 Service manual BG-250E & BG-250P 9/19...
  • Page 10 Service manual BG-250E & BG-250P 10/19 Item Part number Description Remarks Qty. E07390 Top cover BGP E07396/6 Gas throttle including cable E07396/4 Contact switch E07396/5 Emergency stop button complete E07396/8 Contact block BE0292 M6 wing nut DIN 315 BE0022 M6x18x1.6 washer...
  • Page 11 Service manual BG-250E & BG-250P 11/19...
  • Page 12 Service manual BG-250E & BG-250P 12/19 Item Part number Description Remarks Qty. E07336-BL Front plate blue E07288 Frame BG-250 BE0022 M6x18x1,6 washer DIN 9021 BE0187 M6x12 inbus bolt DIN 912 E07345-BL Front cover blue 970385 Lifting handle E07340 Weight plate...
  • Page 13 Service manual BG-250E & BG-250P 13/19 2. Electric schedules Electric circuit diagram E07396/7 BG-250G – 13HP...
  • Page 14 Service manual BG-250E & BG-250P 14/19...
  • Page 15 Service manual BG-250E & BG-250P 15/19...
  • Page 16 Service manual BG-250E & BG-250P 16/19...
  • Page 17 Service manual BG-250E & BG-250P 17/19...
  • Page 18 Service manual BG-250E & BG-250P 18/19 ITEM DESCRIPTION P003744 MOTOR PROTECTOR, 17-23 AMPS UNDERVOLTAGE TRIP, 230 VAC 60 Hz (WAS GVAU226 - DETERMINATION TO USE LOWER VOLTAGE TRIP WAS P003745 MADE 11/29/2006 TO AVOID TRIPS CAUSED BY LOW VOLTAGE) P003741...
  • Page 19 Service manual BG-250E & BG-250P 19/19 Blastrac 13201 North Santa Fe Avenue Oklahoma City, OK 73114 Tel: 800-256-3440 Fax: 405-478-8608 www.Blastrac.com...
