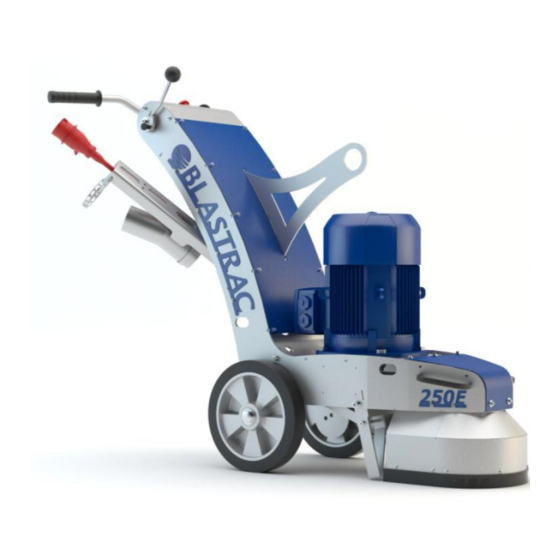

Blastrac BG-250E Operating Manual
Hide thumbs Also See for BG-250E:

Advertisement

Quick Links

Operating manual BG-250E & BG-250P
BG-250E &
BG-250P
Version 1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BG-250E and is the answer not in the manual?

Questions and answers

Summary of Contents for Blastrac BG-250E

  • Page 1 Operating manual BG-250E & BG-250P BG-250E & BG-250P Version 1.1...
  • Page 2: Table Of Contents

    Operating manual BG-250E & BG-250P 2/12 Table of contents EC Declaration of Conformity 1. Introduction 2. Machine description Application Accessories 3. Safety Safety precautions Safety regulations Safety instructions 4. Initial operation Checkpoints of electrical safety Checkpoints of machine safety Removing the diamond disc Mounting the diamond disc 5.
  • Page 3: Introduction

    The machine has a rotating adapter plate where the diamond disc can be fixed on The rotating parts are covered by a protection cap with a connection for a dust hose. With a suitable Blastrac dust collector you can work without causing dust. Application The BG-250 can be used on almost any floor to plane, to remove coatings or glue residues or to make ready for coatings.
  • Page 4: Safety

    Operating manual BG-250E & BG-250P 4/12 3. Safety Before operating the machine, the personnel must be familiar with the safety instructions given in this manual. Keep this manual with the machine, so it can always be consulted. Safety precautions The surface to be treated must be swept clean to remove stones, screws etc.
  • Page 5 Operating manual BG-250E & BG-250P 5/12 Connect main power supply cable to an installation with a ground leakage circuit breaker. Inspect and test the electrical components regularly. The electrical components have to satisfy the requirements which apply to these components.
  • Page 6: Safety Instructions

    Operating manual BG-250E & BG-250P 6/12 The following sticker is placed on the machine. Meanings of these symbols are: Ear protection is obliged Safety glasses with lateral protection are obliged CE-mark on this machine Safety shoes obliged Consult the manual before operating the machine Personnel must tie back long hair and not wear loose clothing or jewellery including rings.
  • Page 7: Initial Operation

    Operating manual BG-250E & BG-250P 7/12 4. Initial operation Before using the machine it is committed to inspect the machine. It is not permitted to use the machine if the machine safety is not according the checkpoints below. Checkpoints for electrical safety Use only extension cables for extending the main cable that are sized and marked in accordance with the overall power consumption of the machine.
  • Page 8: Operating

    Operating manual BG-250E & BG-250P 8/12 5. Operating During operating the BG-250, the following additional safety instructions must be followed closely. Switch on the BG-250E Turn on the dust collector before switching on the machine. Connect the dust hose with the machine Stand behind the machine Make sure that the machine stands on the machine support.
  • Page 9: Switch On The Bg-250P

    Operating manual BG-250E & BG-250P 9/12 Switch on the BG-250P Turn on the dust collector before switching on the machine. Connect the dust hose with the machine Open the fuel valve (1) Stand behind the machine Make sure that the machine stands on the machine support.
  • Page 10: Maintenance

    Store the cleaned and dry machine in a dry and humid free room. Protect the electrical motor from moisture, heat, dust and shocks. All repair work must to be done by qualified Blastrac personnel, this to guarantee a safe and reliable machine.
  • Page 11: Technical Data

    121 lbs 110 lbs Noise level (under load) 83dB(A) 90dB(A) Dust hose connection 3” 3” Suitable filter unit Contact Blastrac We will assist you with a properly matched unit Design and specifications are subject to change without notice by Blastrac...
  • Page 12 Operating manual BG-250E & BG-250P 12/12 Blastrac 13201 North Santa Fe Avenue Oklahoma City, OK 73114 Tel: 800-256-3440 Fax: 405-478-8608 www.blastrac.com...
