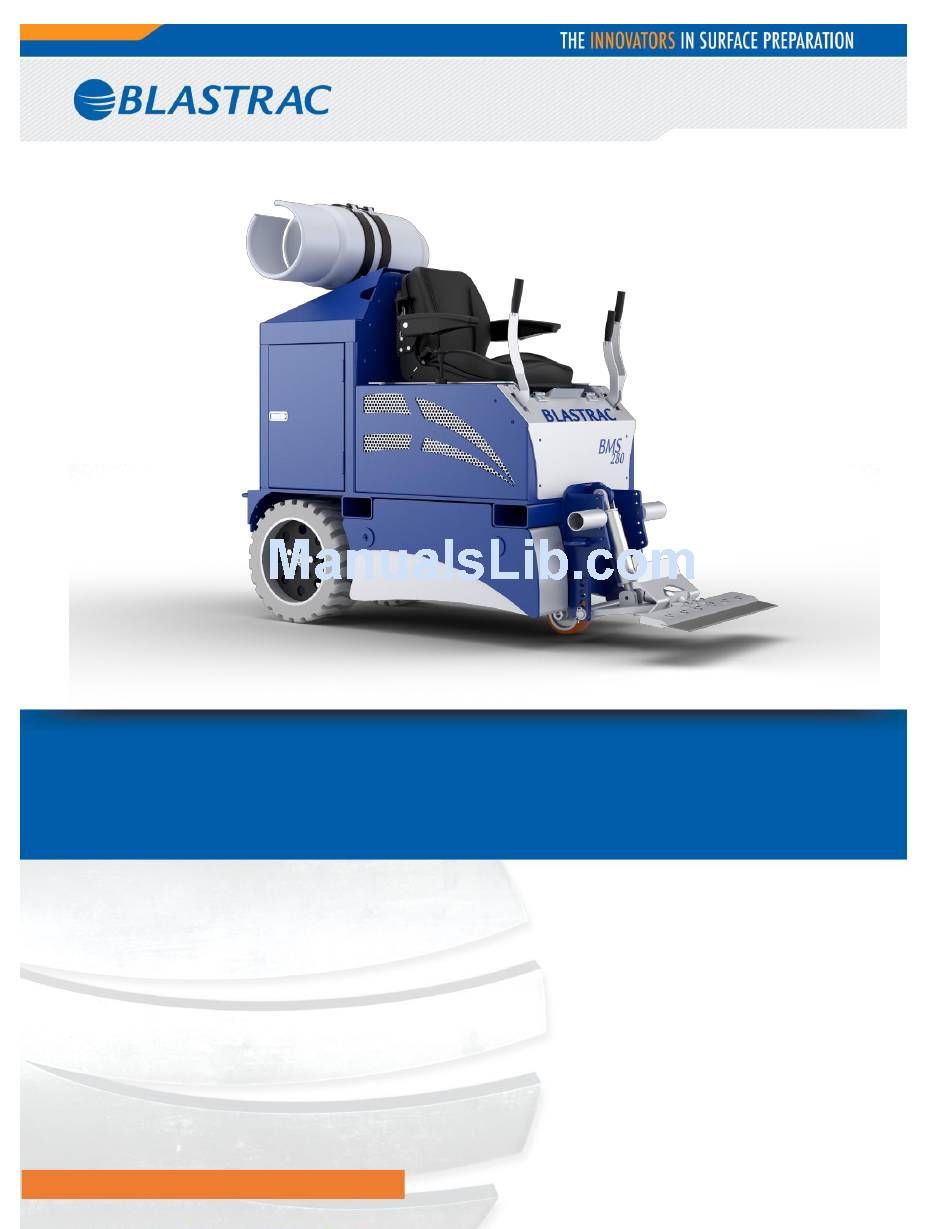

  • Page 1 OPERATING MANUAL BMS-280LP VERSION 1.0 www.blastrac.com 1-800-256-3440...

  • Page 2: Table Of Contents

    Table of Contents 1. Introduction ............................3 2. Machine Description ..........................3 3. Safety ..............................4 Safety Precautions ..........................4 Safety Regulations ..........................4 Safety Instructions ..........................4-7 4. Initial Operation............................. 8 Checkpoints of Gas Cylinder Safety: ....................... 8 Checkpoints of Machine Safety: ......................8 5.

  • Page 3: Introduction

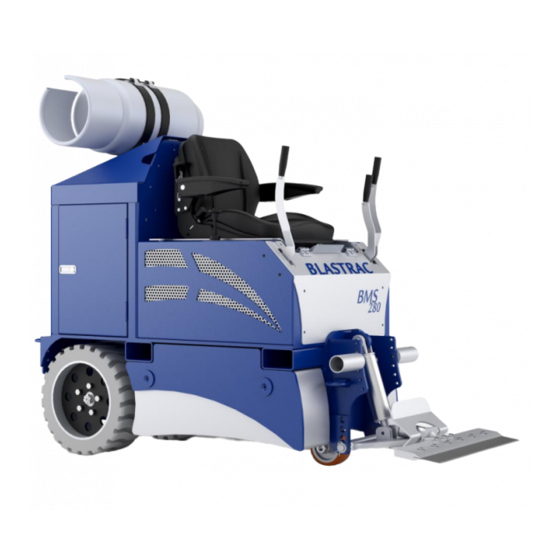

    Only authorized and trained personnel may operate this machine. 2. Machine Description The Blastrac BMS-280 ride-on scraper is ideally suited for medium and large sized applications with the added benefit of being gas operated for increased versatility. It is very maneuverable with zero turn radius, non-marking tires and complete hydraulic control.

  • Page 4: Safety

    3. Safety It is important that all persons who are working with or maintaining this machine must read the manual carefully and understand it fully. Always keep this manual with the machine, so it can be referenced to at any time. Safety Precautions Make sure that persons who are not operating the machine are not in the surrounding area of the ...
  • Page 5 Chock wheels for transport and keep control handles in neutral position.  Don’t leave the machine unsecured on jobsites.  Machine can be lifted by a forklift. For this use forklift pockets (1) in the middle of the machine:  Be aware of your surroundings and machine operating level.
  • Page 7 Engine Safety DANGER: Engine exhaust gases contain poisonous carbon monoxide. Carbon monoxide is odorless and colorless and can cause injury or death if inhaled. Do not use equipment indoors without adequate ventilation. Refer to OSHA guidelines and regulations concerning maximum levels of exposure to carbon monoxide gases and other hazards associated with using internal combustion engines.

  • Page 8: Initial Operation

    4. Initial Operation Befor each use it is essential to inspect the machine. It is not permitted to use the machine if it does not pass all of the checkpoints below. Checkpoints of Gas Cylinder Safety: Check the bottle for any damage before use. ...

  • Page 9: Operation

    5. Operation During the operation of the BMS-280, the following additional safety instructions must be followed closely. Switching on the Machine: Turn the valve on the propane tank CCW until it stops.  Take place on the seat (2) and put feet on the footrests. Operating the machine without being seated is ...

  • Page 10: Driving The Machine

    Driving the Machine The wheels of the machine are controlled by the two outside handles (1 and 3). Pushing both handles forwards, the machine drives forwards. Pulling both handles backwards, the machine drives backwards. The driving speed depends on the position of the handles. Pushing the right handle forwards the machine turn to the left. Pushing one handle forwards and pulling another handle backwards the machine will turns around its axis.

  • Page 11: Controlling Tool Position Cylinder

    Controlling Tool Position Cylinder The tool position cylinder is controlled by the left inner handle. Push the handle to lower the tool and pull the handle to lift the tool to the proper cutting angle. Continuing to push the handle will lift the front of the machine. This will need to be done when doing maintenance on the machine.

  • Page 12: Maintenance

    6. Maintenance Warning: Engine, exhaust system and hydraulic component temperatures could be in excess of 200 F causing severe burns if touched. Pay attention to Chapter 3 "Safety" during maintenance and repair works. Failures due to inadequate or incorrect maintenance may generate very high repair costs and long downtimes of the scraper.
  • Page 13 Store the cleaned and dry machine in a dry and humid free room. Protect the components from moisture, heat, dust and shocks. All repair work must to be done by qualified Blastrac personnel, this is to guarantee a safe and reliable machine. Any guarantee on the machine is expired when: Non original Blastrac parts have been used ...

  • Page 14: Hydraulic System Instruction

    Hydraulic System Instruction To check the oil level on the side of the tank is an installed indicator. The level shouldn’t be lower than half the range of the indicator. On top of the reservoit is a plug which can be removed to fill the reservoir. 1) Oil level indicator 2) Plug to refill oil tank 3) Drain Plug...

  • Page 15: Cutting Head & Blades

    7. Cutting Head & Blades Weight vs. Sharpness The most common way to compensate for a dull blade is to add more weight and raise the blade angle (see re- scrape setting). Weight allows dull blades to be used to a point. Weight also causes blades to dull and break easier.
  • Page 16 1) Tool – depending of the needs 2) Tool holder – lower part 3) Tool holder – upper part 4) Tool holder 5) Debris deflector – new holder shape 6) Universal lower cutting head support Cutting Head Insertion With machine off, insert desired cutting head into cutting head holder. Secure with cutting head clip. Shank Blade Insertion Shank blades do not require a cutting head.
  • Page 17 Blade Setting • Dull blades greatly reduce cutting ability. Re-sharpen or replace as needed. • Proper blade size and placement, depending on material and sub-floor type, affects performance. • If the material isn’t coming up easily, use a smaller blade for best results. •...

  • Page 18: Blade Application

    8. Blade Application A great deal of work can be accomplished in a short amount of time using the scraper. To do this however, the operator must use the correct blade type and correct blade angle. Often when the blade begins to dull, it is tempting to raise the angle of the blade.
  • Page 19 Many different floor conditions exist but the hard and fast rule for scraping is that the tougher the material being removed, the skinnier the blade. The best course of action is to start small and the move to wider blades as per the conditions of the job.
  • Page 20 Dull blades can be sharpening by using electric grinder with disc of 120 grit or finer. Also a tooth hand file can be used. Caution is required during sharpening. For soft materials like carpet, vinyl, and membranes it is possible to use self-scoring blades: Wings It’s important to keep the “wings”...
  • Page 21 Types of Blades Different blades are required for different materials and different sub-straights. Although the choice is situation dependent, below are describe a few examples of common industry practice: Self-scoring blades used to vinyl, carpet tiles, soft to medium PVC, soft cork, linoleum, enhancer and unibond hot melts.
  • Page 22 Thin coating set-up: slide plate with distance from 6” to 8” to the floor or from 1/4” to 1/2” off the wood. Correct distance need to be set after tests. Preferred application is cutting head (8” to 26”) with Razor Blades. But it is possible also to work with cutting head (8” to 14”) with standard blade.

  • Page 23: Ditching

    9. Ditching Cross room ditching Ditch 2” Tile 12” To 6” To 24” Run the machine the same direction that the ditches are made When removing hard to remove ceramic, VCT or VAT, cross-room ditching will help to make the removal easier. Using a blade 2”...
  • Page 24 Checker Board Ditching Ditch should be as wide as possible Carpet should be from 48” to 72” Run the machine crossways from the directions that the ditches are made To make carpet removal and debris cleanup easier, checker board ditching is very helpful. Using as wide of a self- scoring blade as possible, make ditches apart crossways from the way the machine will be removing the materials.

  • Page 25: Technical Data

    10. Technical Data BMS-280LP Working width Up to 22” Motor power 25hp Drive system/ Speed Propane- up to 400ft/min Machine type Ride-on Application Hard Wood Parquet, Ceramics, Linoleum, Vinyl, Carpet, Adhesives, Glue, Tiles etc… Length 67” Width 29” Height 63”...

  • Page 26: Contact

    11. Contact Blastrac NA 13201 North Santa Fe Avenue Oklahoma City, OK 73114 Tel: 800-256-3440 Fax: 405-478-8608 www.blastrac.com...
  • Page 27 SERVICE MANUAL BMS-280LP VERSION 1.0...
  • Page 28 1. Spare parts Fig. 01...
  • Page 29 Fig. 01 Item Part number Description Qty. PG-10532 Wheel Weldment E09716 Tire Scraper PG-10530 Frame Weldment PA-11214 Front Panel PG-10535 Side Panel Left Side PG-10547 Door Weldment PG-10549 Back Panel PG-10545 Hood Weldment PG-10548 Middle Panel PG-10537 Seat Pan CP-10918 Seat / Uni Pro 07510005 Bracket/Propane...
  • Page 30 Fig. 02...
  • Page 31 Fig. 02 Item Part number Description Qty. PG-10530 Main Frame BMS-280 E09711 Cylinder Connecting Rod BE0234 Locking Clip Double 4,5mm E09171 Hydraulic Cylinder E11510 Locking Washer E09949 Tool Holder Plate E12246 Lower Cutting Head E09950 Debris Deflector – New Holder Shape E09953 Tool Holder Washer E09538...
  • Page 32 Fig. 03 Fig. 03 Item Part number Description Qty. CP-10929 Hydraulic Drive Wheel Motor CP-10342 Hub/Rear Wheel PG-10532 Wheel Weldment E09716 Tire Scraper...
  • Page 33 Fig. 04 Fig. 04 Item Part number Description Qty. PG-10554 Handle Stop Right Side CP-10938 Control Bearing/Ball Bearing Controls/Handles Weldment PG-10552 Right Side E09701 Handle Grip...
  • Page 34 Fig. 05 Fig. 05 Item Part number Description Qty. PG-10538 Controls/Handles Weldment Left Side CP-10939 Shaft Collar E09701 Handle Grip CP-10938 Control Bearing/Ball Bearing PG-10546 Handle Stop Left Side PA-11219 Linkage/Link To Handle PA-11218 Linkage/Valve To Link CP-10920 Spool Directional Control Valve PG-10551 Hydraulic Valve Mount...
  • Page 35 Fig. 06...
  • Page 36 Fig. 06 Item Part number Description Qty. CP-10746 Dyno-Cooled Remote Fluid Cooler PA-11183 Screen/Hydraulic Cooler CP-10940 Back Up Beeper CP-10320 Hydraulic Tank 2.6 Gal PA-11217 Hydraulic Filter Mount 04210012 Filter/Hydraulic PA-11216 Removeable Weights PG-10534 Weight Cover Right Side P000257 Caster / Swivel...
  • Page 37 Fig. 07 Fig. 07 Item Part number Description Qty. E09664 Tool Holder Complete E09540 Premium Chisel 51x12 (2”) E09542 Premium Chisel 152x12 (6”) E09550 Heavy Duty Chisel 51x12 (2”) E09552 Heavy Duty Chisel 152x12 (6”) E09500 Heavy Duty Blade 152x76x2.5 (6“) E09501 Heavy Duty Blade 203x76x2.5 (8“) E09502...

  • Page 38: Maintenance Log

    Maintenance log Date Findings Repairs / Cleaning Test (competent person)
  • Page 39 ® the information recorded here by registering online at blastrac.com, or complete this page and fax to 866-485-1046, or if you prefer, detach and mail to: Blastrac, 13201 North Santa Fe Avenue, Oklahoma City, OK 73114-9901...
