Page 1: Hardware Installation Guide

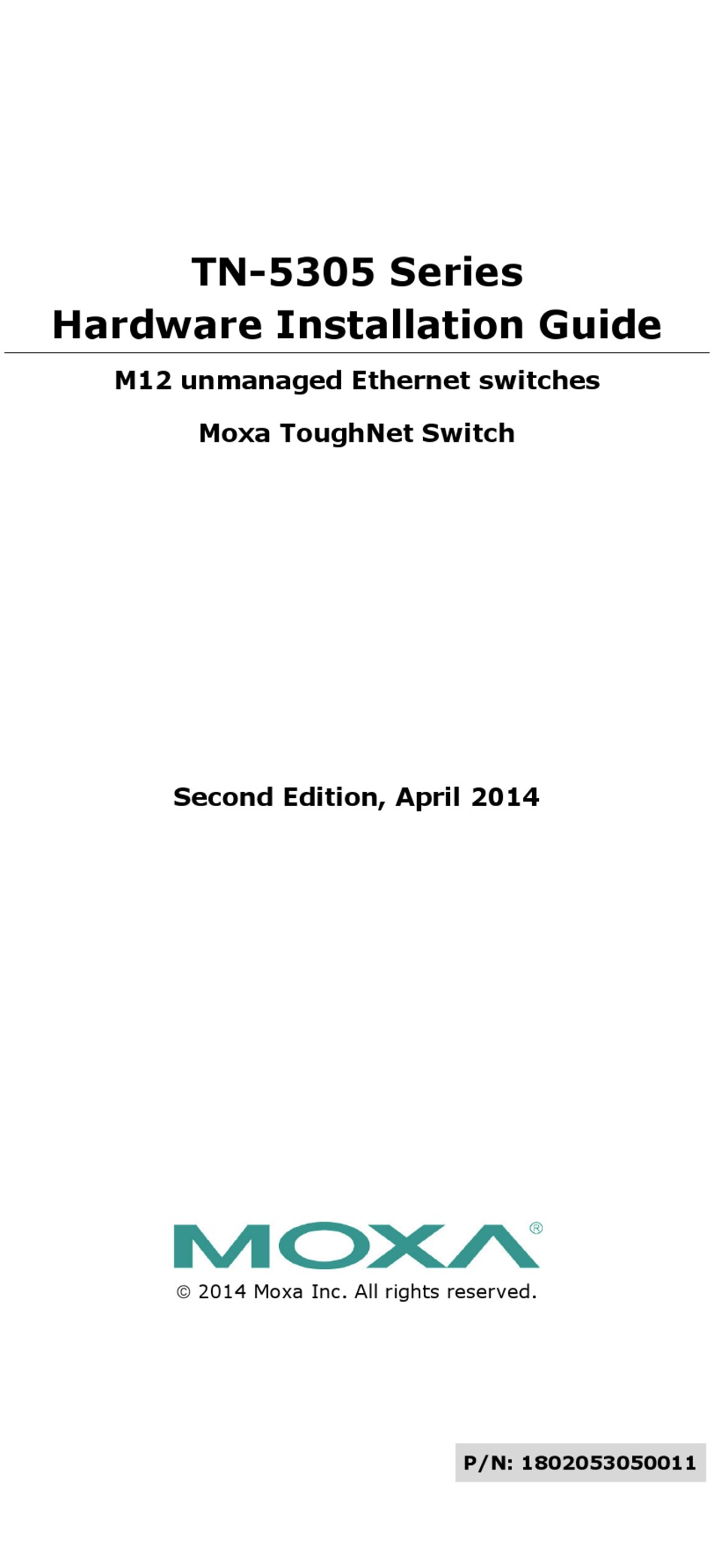

TN-5305 Series Hardware Installation Guide M12 unmanaged Ethernet switches Moxa ToughNet Switch Second Edition, April 2014 2014 Moxa Inc. All rights reserved. P/N: 1802053050011... -
Page 2: Package Checklist
Overview The Moxa ToughNet TN-5305 series of 5-port Ethernet switches provides a hardened and cost-effective solution for your Ethernet connections. The TN-5305 switches are IP67-rated to provide protection against shock and foreign particles. IP67-rated products have the following characteristics: (1) dust proof, (2) protection against the effects of temporary immersion in water. -
Page 3: Mounting Dimensions (Unit = Mm)
TN-5305 Panel Layouts Front Panel View 1. M12 port’s 10/100 Mbps LED. 2. 10/100BaseT(X) port (4-pin female shielded M12 socket with D coding). 3. Port Label. 4. Power input (5-pin male shielded M12 socket with A coding). 5. Power input (PWR) LED. 6. -
Page 4: Panel/Wall Mounting
Panel/Wall Mounting To mount the TN-5305 on the wall use the 3 screws included in the panel mounting kit. STEP 1: Make 3 screw holes on the wall based on the positions of the 3 screw holes on the switch shown in the mounting dimensions diagram. STEP 2: Insert one screw in the top-middle screw hole on the switch and screw it into the wall. -
Page 5: Wiring Requirements
Wiring Requirements WARNING Turn the power off before disconnecting modules or wires. The correct power supply voltage is listed on the product label. Check the voltage of your power source to make sure that you are using the correct voltage. Do NOT use a voltage greater than what is specified on the product label. -
Page 6: 10/100Baset(X) Ethernet Port Connection
Grounding the TN-5305 Grounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). Run the ground connection from the ground screw to the grounding surface prior to connecting devices. ATTENTION This product is intended to be mounted to a well-grounded mounting surface such as a metal panel. - Page 7 Pinouts for RJ45 (8-pin) RJ45 (8-Pin) MDI Port Pinouts MDI-X Port Pinouts Signal Signal Tx + Rx + Tx - Rx - Rx + Tx + Rx - Tx - M12 (4-pin, M) to M12 (4-pin, M) Cross-Over Cable Wiring M12 (4-pin, M) to M12 (4-pin, M) Straight-Trough Cable Wiring M12 (4-pin, M) to RJ45 (8-pin) Cross-Over Cable Wiring - 7 -...
-
Page 8: Auto Mdi/Mdi-X Connection
M12 (4-pin, M) to RJ45 (8-pin) Straight-Trough Cable Wiring Auto MDI/MDI-X Connection The Auto MDI/MDI-X function allows users to connect TN-5305’s 10/100BaseTX ports to any kind of Ethernet device, without needing to pay attention to the type of Ethernet cable being used for the connection. This means that you can use either a straight-through cable or cross-over cable to connect the TN-5305 to Ethernet devices. -
Page 9: Specifications
Specifications Technology Standards IEEE 802.3, 802.3u, 802.3x Processing Type Store and Forward, with IEEE802.3x full duplex, back pressure flow control Interface M12 Ports 10/100BaseTX auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection LED Indicators Power, LNK/ACT Power Input Voltage 24 VDC (12 to 45 VDC) or 18 to 30 VAC (47 to 63 Hz) Input Current... - Page 10 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific: Tel: +49-89-3 70 03 99-0 Tel: +886-2-8919-1230 Fax: +49-89-3 70 03 99-99 Fax: +886-2-8919-1231 - 10 -...
