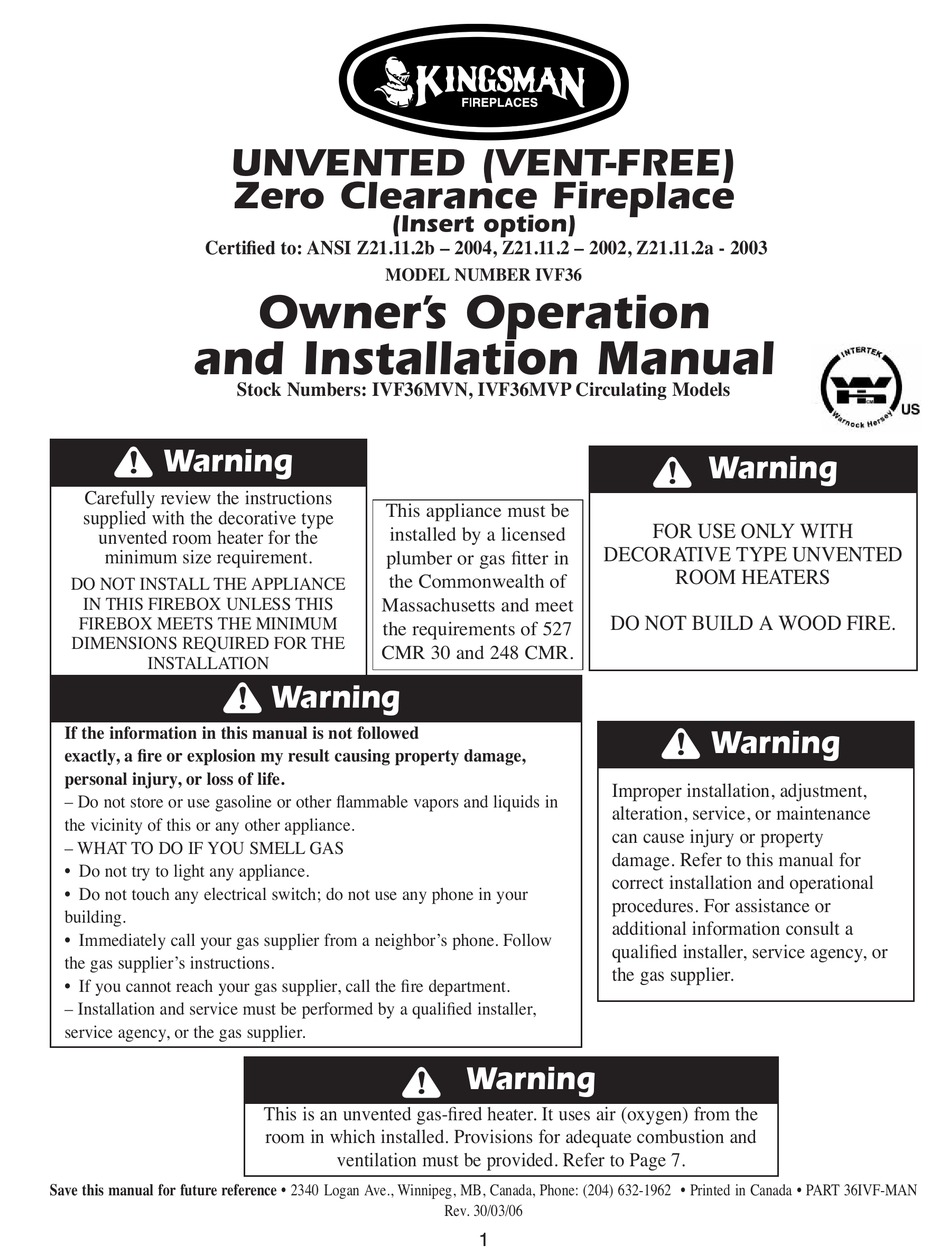

Kingsman IVF36 Operation And Installation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Certified to: ANSI Z21.11.2b – 2004, Z21.11.2 – 2002, Z21.11.2a - 2003
and Installation Manual
Warning
Carefully review the instructions
supplied with the decorative type
unvented room heater for the
minimum size requirement.
DO NOT INSTALL THE APPLIANCE
IN THIS FIREBOX UNLESS THIS
FIREBOX MEETS THE MINIMUM
DIMENSIONS REQUIRED FOR THE
INSTALLATION
If the information in this manual is not followed
exactly, a fire or explosion my result causing property damage,
personal injury, or loss of life.
– Do not store or use gasoline or other flammable vapors and liquids in
the vicinity of this or any other appliance.
– WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your
building.
• Immediately call your gas supplier from a neighbor's phone. Follow
the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
– Installation and service must be performed by a qualified installer,
service agency, or the gas supplier.
Save this manual for future reference • 2340 Logan Ave., Winnipeg, MB, Canada, Phone: (204) 632-1962 • Printed in Canada • PART 36IVF-MAN
UNVENTED (VENT-FREE)
Zero Clearance Fireplace
(Insert option)
MODEL NUMBER IVF36
Owner' s Operation
Stock Numbers: IVF36MVN, IVF36MVP Circulating Models
This appliance must be
installed by a licensed
plumber or gas fitter in
the Commonwealth of
Massachusetts and meet
the requirements of 527
CMR 30 and 248 CMR.
Warning
This is an unvented gas-fired heater. It uses air (oxygen) from the
room in which installed. Provisions for adequate combustion and
ventilation must be provided. Refer to Page 7.
DECORATIVE TYPE UNVENTED
DO NOT BUILD A WOOD FIRE.
Improper installation, adjustment,
alteration, service, or maintenance
can cause injury or property
damage. Refer to this manual for
correct installation and operational
procedures. For assistance or
additional information consult a
qualified installer, service agency, or
the gas supplier.
Warning
Rev. 30/03/06
1
Warning
FOR USE ONLY WITH
ROOM HEATERS
Warning

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IVF36 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kingsman IVF36

Summary of Contents for Kingsman IVF36

  • Page 1 UNVENTED (VENT-FREE) Zero Clearance Fireplace (Insert option) Certified to: ANSI Z21.11.2b – 2004, Z21.11.2 – 2002, Z21.11.2a - 2003 MODEL NUMBER IVF36 Owner’ s Operation and Installation Manual Stock Numbers: IVF36MVN, IVF36MVP Circulating Models Warning Warning Carefully review the instructions...

  • Page 3: Table Of Contents

    IVF36 insert dimensions ........

  • Page 4: Fireplace Accessories & Parts List

    FIREPLACE ACCESSORIES AND PARTS LIST Product No. Description IVF36 VENT FREE INSERT AND ZERO CLEARANCE FIREBOX Listed for USA as a Vent Free Firebox, Includes Dual Burner, Variable Speed Controlled Blower with Heat Sensor, Millivolt Valve, ODS Pilot, Pull Screens (Minimum Size of Fireplace for installation 28 3/4”W x 24 1/4”H x 13 3/4”D)

  • Page 5: Safety Information

    SAFETY INFORMATION WARNINGS WARNINGS Important: Read this owner’s manual carefully and completely before trying to assemble, operate, or service this firebox. Improper use of this firebox can cause serious injury or death from burns, fire, explosion, electrical shock, and DANGER carbon monoxide poisoning.

  • Page 6: Local Codes

    SAFETY INFORMATION WARNINGS Cont. 15. Isolate the appliance from the gas supply piping system by closing its individual manual shut off valve during any pressure testing of the the gas supply piping system at test pressure equal or less than 1/2 psig. 16.

  • Page 7: Air For Combustion And Ventilation

    AIR FOR COMBUSTION AND VENTILATION Today’s homes are built more energy efficient than ever. New materials, increased insulation, and new construction methods help reduce heat loss in homes. Home owners weather strip and caulk around windows and doors to keep the cold air out and the warm air in.
  • Page 8 AIR FOR COMBUSTION AND VENTILATION Cont. 1. Determine the volume of the space (length x width x height). Length x Width x Height = ______________ cu. ft. (volume of space) Example: Space size 22ft. (length) x 18 ft. (width) x 8 ft. (ceiling height) = 3168 cu. ft. (volume of space) If additional ventilation to adjoining room is supplied with grills or openings, add the volume of these rooms to the total volume of the space.

  • Page 9: Ventilation Air From Inside Building

    AIR FOR COMBUSTION AND VENTILATION Cont. VENTILATION AIR FROM INSIDE BUILDING This fresh air would come from an adjoining unconfined space. When ventilating to an adjoining unconfined space, you must provide two permanent openings: one within 12” of the ceiling and one within 12” of the floor on the wall connecting the two spaces.

  • Page 10: Ventilation Air From Outdoors

    AIR FOR COMBUSTION AND VENTILATION Cont. Ventilation Air From Outdoors Provide extra fresh air by using ventilation grills or ducts. You must provide two permanent openings: one within 12” of the ceiling and one within 12” of the floor. Connect these items directly to the outdoors or spaces open to the outdoors. These spaces include attics and crawl spaces.

  • Page 11: Installing

    INSTALLING – Clearances NOTICE A qualified service person must install firebox. Follow all local codes. WARNING Never install the firebox • in a bedroom or bathroom • in a recreational vehicle • where curtains, furniture, clothing, or other flammable objects are less than 36 inches from the front, top, or sides of the firebox •...

  • Page 13: Framing Dimensions For Zero Clearance

    FRAMING DIMENSIONS FOR ZERO CLEARANCE NOTE : All standoffs must be secured in place before installing as a Zero Clearance Unit.

  • Page 14: Installing By Framing Fireplace

    FOR BUILT-IN INSTALLATION MODEL # FRT WIDTH HEIGHT DEPTH (Inside to Inside) (Minimum) WARNING IVF36 ⁄ ” ⁄ ” ⁄ ” Do not allow any materials to overlap the firebox front 2. Install gas piping to firebox location. See Installing Gas facing.

  • Page 15: Installing Firebox Using Optional Pre-Built Mantel Cabinets

    INSTALLING – Mantel Cabinets INSTALLING FIREBOX USING OPTIONAL PRE-BUILT MANTEL CABINETS This firebox may be installed using a cabinet mantel accessory against a wall in your home. The firebox and cabinet mantel can be installed directly on the floor. 1. Assemble cabinet mantel. Assembly instructions are included with each accessory.
  • Page 16 INSERT INSTALLATION INTO FIREPLACE...

  • Page 17: Installing Gas Line

    INSTALLING – Gas Line INSTALLING GAS LINE CAUTION Early signs of carbon monoxide poisoning resemble the flu, with headaches, dizziness, and / or nausea. If you have these signs, the All gas piping and connections must be tested for leaks heater may not be working properly.
  • Page 18 FIGURE 13 – Installing Brick Panels...

  • Page 19: Millivolt Lighting Instructions

    MILLIVOLT LIGHTING INSTRUCTIONS CAUTION Do not wire 120 Volt power to Millivolt switches or thermostats.

  • Page 20: Cleaning And Servicing Of Burner/Ods Pilot

    CLEANING AND SERVICING OF BURNER/ODS PILOT It is recommended to annually inspect and clean the unit to prevent malfunction and / or sooting. This operation should be performed by your dealer or a qualified technician. Remove log set, handling carefully by holding gently at each end. (Refer to Log Placement, page 20.) Gloves are recommended to prevent skin irritation from ceramic.

  • Page 21: Log Placement

    LOG PLACEMENT FOR LOGF24 LOG24 Placement WARNING 1. Place main log on retainer pins located on Firebox bottom. The positioning of the logs is critical for safe and clean 2. Place rear main log onto rear log holder making operation of this heater. Sooting and other problems sure log is not sitting on rear burner tube.
  • Page 22 STEP 4 Position log #4 onto rear log holder and pull up to logs 1 and 2. STEP 2 Locate hole on underside of log and place log over burner and Locator Pin and lower into position.   Œ Ž Kingsman Replacement Log Listing Reference Part Number Number Description 18F-C...

  • Page 23: Options, Brass Trim And Overlays

    OPTIONS, BRASS TRIMS & OVERLAYS Stand-off and nail tabs may be removed for insert installation. 1. Loosen the 2 hex screws that hold the top trim in place. 2. Twist the top trim down and then pull outward. This should unhook the trim. 3.

  • Page 24: Insert Surround Installation

    IVF36 INSERT SURROUND INSTALLATION INSTALLING OPTIONAL SURROUND PANELS: NOTE: Before installing panel kit, remove all stand-offs and nailing tabs as shown (if necessary). 1. Position the 3 holes in the top panel with the 3 holes on the unit top and tighten panel to the unit.

  • Page 25: Fan Kit Servicing And Replacement

    FAN KIT SERVICING AND REPLACEMENT It is important to clean fan yearly from lint and dust buid-up. This will prolong the life of your fan. Before working on an electrical fan, ensure that appliance is unplugged. 1. Remove the logs from the unit. Handle logs with care as they become brittle after use. 2.

  • Page 26: Illustrated Parts Lists

    ILLUSTRATED PARTS LIST No. QTY PART NO. DESCRIPTION GUAGE PART # 36IVFB-MVN Burner Assy - NG IVF36-107 Burner Pan 20 GA S.C. PART # 36IVFB-MVP Burner Assy - LP 33VF-110 Burner Stand Brkt 20 GA S.C. 33VF-110L Burner Stand Brkt 20 GA S.C.

  • Page 27: Troubleshooting

    TROUBLESHOOTING WARNING Turn off and let cool before servicing. Only a qualified NOTE: all troubleshooting items are listed in order of service person should service and repair heater. operation. When ignitor button is pressed, there is no spark at ODS/Pilot. Possible Cause Remedy 1.

  • Page 28: Troubleshooting

    TROUBLESHOOTING Cont. 5. Pilot flame not touching thermocouple, which allows 5. Contact local gas company. thermocouple to cool, causing pilot flame to go out. Problem could be caused by one or both of the following: A) Low gas pressure B) Dirty or partially clogged ODS/pilot. 6.

  • Page 29: Warranty

    During the first year after installation, we will provide a replacement for any component part of your unit found to be defective in materials or workmanship, including labour costs. Repair work requires prior approval by Kingsman, labour costs are based on a predetermined rate schedule and any repair work must be done through an authorized Kingsman dealer.
