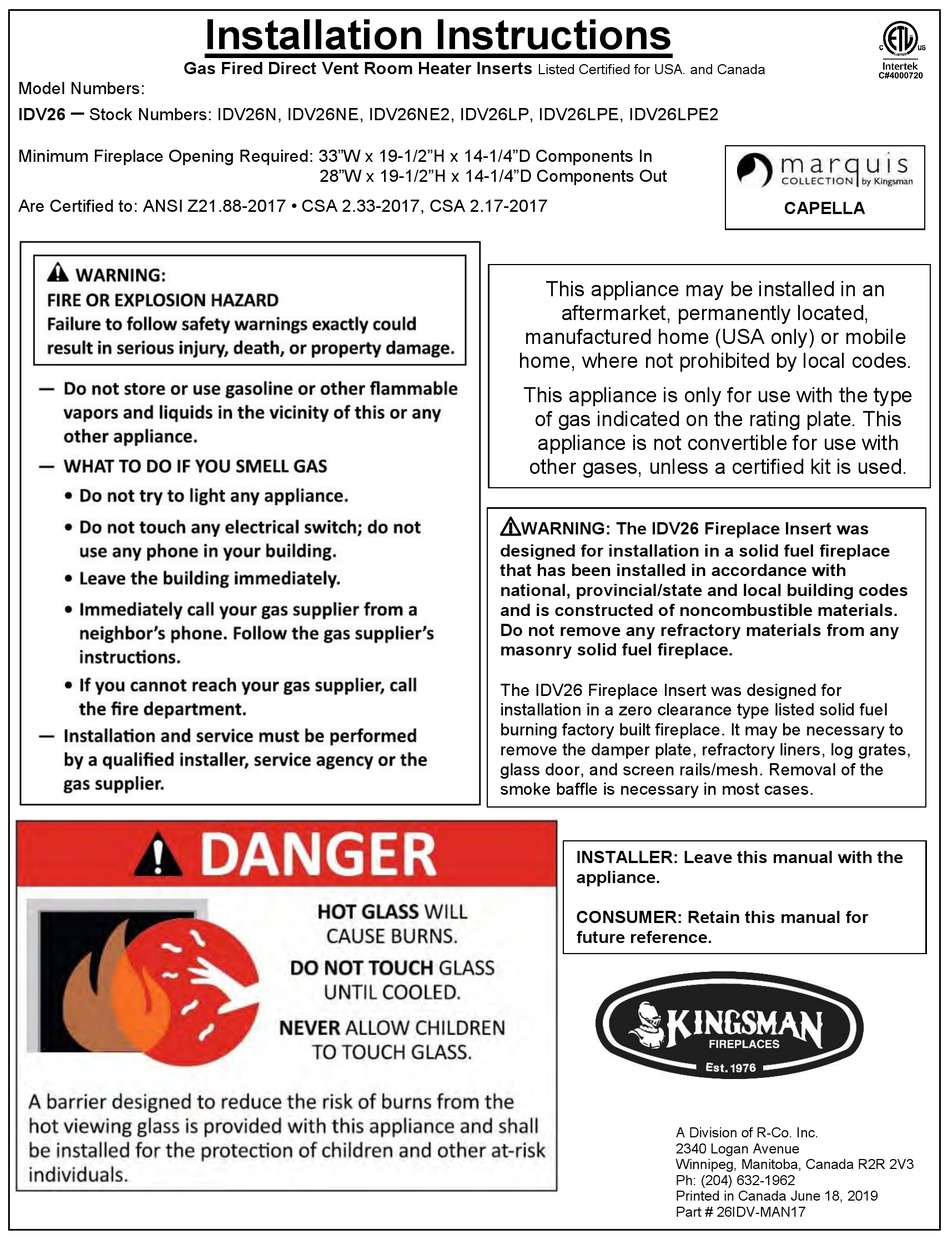

Gas Fired Direct Vent Room Heater Inserts
Model Numbers:
–
IDV26
Stock Numbers: IDV26N, IDV26NE, IDV26NE2, IDV26LP, IDV26LPE, IDV26LPE2
Minimum Fireplace Opening Required: 33"W x 19-1/2"H x 14-1/4"D Components In
Are Certified to: ANSI Z21.88-2017 • CSA 2.33-2017, CSA 2.17-2017
Installation Instructions
28"W x 19-1/2"H x 14-1/4"D Components Out
Listed Certified for USA. and Canada
This appliance may be installed in an
aftermarket, permanently located,
manufactured home (USA only) or mobile
home, where not prohibited by local codes.
This appliance is only for use with the type
of gas indicated on the rating plate. This
appliance is not convertible for use with
other gases, unless a certified kit is used.
⚠
WARNING: The IDV26 Fireplace Insert was
designed for installation in a solid fuel fireplace
that has been installed in accordance with
national, provincial/state and local building codes
and is constructed of noncombustible materials.
Do not remove any refractory materials from any
masonry solid fuel fireplace.
The IDV26 Fireplace Insert was designed for
installation in a zero clearance type listed solid fuel
burning factory built fireplace. It may be necessary to
remove the damper plate, refractory liners, log grates,
glass door, and screen rails/mesh. Removal of the
smoke baffle is necessary in most cases.
INSTALLER: Leave this manual with the
appliance.
CONSUMER: Retain this manual for
future reference.
A Division of R-Co. Inc.
2340 Logan Avenue
Winnipeg, Manitoba, Canada R2R 2V3
Ph: (204) 632-1962
Printed in Canada June 18, 2019
Part # 26IDV-MAN17
CAPELLA
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kingsman marquis CAPELLA IDV26 Series
Summary of Contents for Kingsman marquis CAPELLA IDV26 Series
- Page 1 Installation Instructions Gas Fired Direct Vent Room Heater Inserts Listed Certified for USA. and Canada Model Numbers: – IDV26 Stock Numbers: IDV26N, IDV26NE, IDV26NE2, IDV26LP, IDV26LPE, IDV26LPE2 Minimum Fireplace Opening Required: 33”W x 19-1/2”H x 14-1/4”D Components In 28”W x 19-1/2”H x 14-1/4”D Components Out Are Certified to: ANSI Z21.88-2017 •...
-
Page 2: Table Of Contents
Table of Contents Table of Contents............................... Pre-installation Questions and Answers / Operating Instructions………………………………………………………... Safety Screen Installation…………………………………………………………………………………………………….. Using Steel Studs and Concrete Board……………………………………………………………………………………... Mobile Home/Manufactured Housing Installation....................... Warnings, Installations and Operations / Massachusetts Requirements……………………………………………….. Important Information / Glass Safety………………………………………………………………………………………... IDV26 Insert Dimensions and Sizing.......................... Top View Dimensions - Components In / Components Out………………………………………………………………. - Page 3 Smart Thermostat, Fan Speed Control........................Schematic................................... -Venting- IDVVT / IDVVT43 Venting Installation………………………………………………………………………………………. Installation of Vent Pipe.............................. Insulation of Chimney Cavity............................Proflame 1 Appliances - Cold Climate Mode......................-Parts List- IDV26 Parts List................................Parts and Venting for IDV26/ IDV33/ IDV43………………………………………………………………………………... Limited Lifetime Warranty............................
-
Page 4: Pre-Installation Questions And Answers / Operating Instructions
Pre-installation Questions and Answers About curing of the paint Your stove or fireplace has been painted with the highest quality silicone stove paint. This paint dries quickly in 15-20 minutes when first applied at the factory. However, due to the high temperature silicone components, the paint will cure when heat is applied to the appliance as it is first used. -
Page 5: Safety Screen Installation
Safety Screen Installation- IDV26, IDV33 / IDV43 Contents of Kit: [1] Safety Screen NOTE: Screens are symmetrical from top to bottom. ⚠ WARNING: Wait until unit is COMPLETELY cool before touching glass or attempting to install or remove Child Safety Screens. Screen with Horizontal Angles Lower Clip Upper Clip... -
Page 6: Using Steel Studs And Concrete Board
Installation of IDV26 / IDV33 / IDV43 Using Steel Studs and Concrete Board over Wood Burning Fireplace Brick facing may be removed and replaced with non-combustible materials such as steel studs and concrete board. The opening between the firebox and non-combustive materials must be sealed so as the heat cannot run between the face of the wood fireplace and the re-facing materials. -
Page 7: Mobile Home/Manufactured Housing Installation
Mobile Home/Manufactured Housing Installation This Direct Vent System Appliance must be installed in accordance with the manufacturer’s installation instructions and the Manufactured Home Construction and Safety Standard Title 24 CFR, Part 3280, or the current Standard for Fire Safety Criteria for Manufactured Home Installation, Sites, and Communities ANSI/NFPA 501A, and with CAN/CSA Z240 MH Mobile Home Standard in Canada. -
Page 8: Warnings, Installations And Operations / Massachusetts Requirements
Warnings, Installations and Operations - Installation Regulations This gas appliance must be installed by a qualified installer in accordance with local building codes, or in the absence of local codes, with the current CAN/CSA-B149.1 or .2 Installation Code (in Canada) or the current National Fuel Gas Code Z223.1- NFPA 54 when installed in the United States. This appliance, when installed, must be electrically connected and grounded in accordance with local codes, or in the absence of local codes, with the current CSA C22.1 Canadian Electrical Code or with the National Electrical Code;... - Page 9 Installation Requirements for the Commonwealth of Massachusetts In the Commonwealth of Massachusetts, the installer or service agent shall be a plumber or gas fitter licensed by the Commonwealth. When installed in the Commonwealth of Massachusetts or where applicable codes; the unit shall be installed with a CO detector per the requirements listed below.
-
Page 10: Important Information / Glass Safety
Important Information INSTALLATIONS The following label (supplied with the gas fireplace insert) must be attached with rivets or screws to the inside of the firebox of the fireplace into which it is installed: Cutting any sheet-metal parts of the fireplace, in which the gas fireplace insert is to be installed, is prohibited. -
Page 11: Idv26 Insert Dimensions And Sizing
IDV26 Insert Dimensions and Sizing Minimum Opening Dimensions Components Dimension Components In 33” Centered in existing fireplace “A” Front Width: 28” *31” Not Centered in existing fireplace “B” Height: 19-1/2” 19-1/2” “C” Depth: 14-1/4” 14-1/4” “D” Back Width: 22” 22” “D”... -
Page 12: Top View Dimensions - Components In / Components Out
Top View Dimensions Components In Components Out 30-7/8”* Top View- Components Out Top View- Components In (As Shipped) 30-7/8”* Top View- Components In Top View- Components Out With I26CV1 With I26CV2 30-7/8”* Top View- Components In Top View- Components Out With I26CV3 With I26CV4... -
Page 13: I26Cv Clean Views And Surround Sizes
I26CV Clean View and Surround Sizes *The Clean Views and Surrounds in this section must be used with Valve Control Components inside the opening (as shipped). Dimensions are to Inside Edge of Clean View. Note: If a completely tight fit to the wall is desired, CV Picture Frame Clean View Kit requires I26S1... -
Page 14: I26Su Universal Surround
IDV26 I26SU Universal Surround A Universal Surround is available for the IDV26. This is provided as a flat sheet which mounts onto the unit and is to be cut to size and formed by the installer. Flat Surround Shown dimensioned. Components In Components Out 7”... -
Page 16: Clean View And Surround Attachment
I26CV1, I26CV2, I26CV3, I26CV4 –Clean View and Surround Attachment -Surround Installation -Clean View (CV) Attachment -Valve Access 1. Optional Surround Kit (I26S, I26SPF, I26SU) is fastened to the insert by pulling up [4] Surround Mount Tabs on the unit and using [4] #6 screws provided with surround. 2. -
Page 17: I26S1 / I26Spf1 / I26Su Surround Installation
I26S1 / I26SPF1 / I26SU Surround Installation Component List: I26S1 / I26SPF1 / I26SU Surround, [Qty 4] #6 Black Combo Screws Bend Up All 4 Mount Tabs Top Right Top Left Bottom Left Bottom Right Place Surround onto unit and line up holes in mount tabs with holes in Surround. -
Page 18: I26Cv2 / I26Cv4 / I26Cvpf2 / I26Cvpf4 Wide Clean View Installation
I26CV2 / I26CV4 / I26CVPF2 / I26CVPF4 Wide Clean View Installation Component List: I26CV2 / I26CV4 / I26CVPF2 / I26CVPF4 Clean View On/ Off Switch Extension Bracket Fan Control Switch Extension Bracket [4] #6 Black Combo Screws Components In (As Shipped): Fan Control Switch Bracket On/Off Switch Bracket... -
Page 19: I26Cv2 / I26Cvpf2 Wide Clean View Installation -Components Out
Components Out Fan Control Switch Bracket On/Off Switch Bracket NOTE: If Ground is attached to Side Component Plate, remove and fasten to side of appliance with a DT Screw. Remove Fan Control Switch From Current Position. Remove On/Off Switch and original mount bracket. Attach On/ Off Switch Extension Bracket using [2] #6 Attach Fan Control Switch Extension Bracket using [2] #6 Combo Screws as shown. -
Page 20: Idv26Prl Porcelain Liner Panels
IDV26PRL - Porcelain Liner Panels- IDV26PL Parts List: -1 Back Panel -1 Right Side Panel -1Left Side Panel Side Panel To Remove: 1. Remove Log Supports. Remove the [5] screws in the firebox top holding the Baffle in place. 2. Remove Back Panel. Unscrew and remove the Back Panel. -
Page 21: Idv26Rl Brick Liner Panels
IDV26RL - Brick Liner Panels- IDV26RL Parts List: -1 Back Panel -1 Right Side Panel Liner Retainer Clip -1Left Side Panel To Install Side Panel 1. Remove the Baffle. Remove the [5] screws in the firebox top holding the Baffle in place. Remove the [2] Liner Retainer Clips in the firebox top also. -
Page 22: Idv26 -Millivolt- Control Components Outside The Opening- Components Out
IDV26 -Millivolt- -Control Components Outside the Opening- -COMPONENTS OUT- Warning: Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this appliance may result in property damage or personal injury. NOTE: It is not necessary to disconnect pilot lines and gas supply line from valve to complete this procedure. Care should be taken to ensure that the gas and pilot lines are not damaged during handling. -
Page 23: Idv26 -Ipi- Control Components Outside The Opening- Components Out
NOTE: Some screws may need to be cut flush to the Attach Component component mount Fasten Component Panel Panel plates for a tight fit [2] Screws against wall. Replace Side Plate Extended Switch Bracket Replace Side Plate. Attach Procedure is complete. Fasten Component Panel at top. - Page 24 Fasten to Component Panel with Zip Tie. Procedure is complete. Replace Side Plate. Fasten Component Panel at top & NOTE: Some screws may need to be cut flush to bottom. Attach Component Panel and Extended Switch the component mount plates for a tight fit against Bracket (see millivolt section).
-
Page 25: Idv26 Fan Speed Control Outside Components Out
IDV26 Fan Speed Control Outside COMPONENTS OUT Warning: Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this appliance may result in property damage or personal injury. NOTE: It is not necessary to disconnect fan wiring to complete this procedure. This procedure must be done before the unit is inside the enclosure. -
Page 26: Idv26 Fan Removal / Installation / Wiring
IDV26 Fan Removal / Installation WARNING Electrical Grounding Instructions This appliance is equipped with a three prong (grounding) plug for your protection against shock hazard and should be plugged directly into a properly grounded three-prong receptacle. Do not cut or remove the grounding prong from this. Before Servicing Ensure all power supply is shut off. - Page 27 IDV26 Fan - Wiring IDV26 Components In –Left Side of Unit Components Out- Left Side of Unit Connector Connector Variable Speed Switch Variable Speed Switch...
-
Page 28: Idv26 Remote Receiver Location
IDV26 Remote Receiver Location All Units Connecting to the Gas Valve The wiring harness for the Proflame GTM system has two wires labeled “TH” & “TPTH”. Connect the wires to the gas valve as labeled. (TH to TH and TPTH to TPTH). Additionally there is a connector labeled “Motor”. Connect this “Motor” connector to the stepper motor on the gas valve (if present). -
Page 29: Logf26
IDV26 MQLOGF26 WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this appliance may result in property damage or personal injury. -
Page 30: Logf27
IDV26 LOGF27 WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this appliance may result in property damage or personal injury. -
Page 31: Burner Installation/Removal
IDV26 Burner Installation/Removal ⚠ CAUTION Before servicing the burner system ensure that the gas supply is turned OFF and disconnect all electrical connections to the appliance. Allow the appliance to cool to room temperature. Note that the pilot assembly may be hot in an intermittent or standing-pilot system—even if the main burner was never on. -
Page 32: Clearance To Combustible Mantels
IDV26 Clearance to Combustible Mantels Before installing any mantels it is important to determine the combustibility of its material(s). There are two types of mantel materials to consider: Combustible and Non-combustible. A Combustible Mantel is one that consists of material(s) that may discolor, combust, or lose its integrity in the presence of heat. -
Page 33: Wall Coverings
IDV26 Wall Coverings All wall coverings below Combustible Mantel Line MUST be Non-Combustible (e.g. steel studs and concrete board). *To reduce height of Combustible Mantel see Mantel Clearance Shield section. *For more information see Clearance to Combustible Mantels Page. Required Minimum Hearth IDV26 –... - Page 34 I33CS -Mantel Clearance Shield- For IDV26 / IDV33 / IDV43 Must be used with a CV, CV1 or CV3 and a backing Surround.) Contents of Kit: [1] Mantel Clearance Shield c/w Screws The Mantel Clearance Shield will reduce the required height of a Combustible Mantel by the following amounts: IDV26 - 6-7/8”...
- Page 35 I33CS Mantel Clearance Shield Instructions Contents of Kit: [1] Mantel Clearance Shield c/w Screws Place I33CS upside down on a protected surface. Loosen screws. Center surround onto I33CS. Tighten screws to hold surround in place. Surround is now ready to install onto fireplace.
-
Page 36: Leveling Instructions / Riser Kit Installation
Leveling Instructions When installing insert it may be necessary to support back of unit. IDV26: There are two leveling legs at the back of the appliance. Remove screws and set to proper height. Replace screws. Leveling Legs Leveling Legs Top View Back View IDV33 and IDV43: There are two leveling legs at the front (for Flush Look installations) and two leveling plates at the back sides of the appliance. -
Page 37: Glass Door Information
IDV26 / IDV33 / IDV43 Glass Door Information Glass Cleaning It will be necessary to clean the glass periodically. During start-up condensation will form, and cause dust and lint to cling to the surface of the glass. Furthermore, the initial burn cures the paint but also leads to the deposit of a filmy residue. It is therefore recommended that the glass be cleaned two or three times, initially, with non-abrasive common household glass cleansers and warm water. -
Page 38: Mqrsp4 And Mqrsp8
MQRSP4 / MQRSP8 Rock and Glass Support Platform Installation IDV26 / IDV33 / IDV43 Base Unit (As Shipped) Preparation: Remove Grate Bar and replace screws. Remove Ember Plates. Do not remove existing Pilot Shield. Installation: Place MQRSP4 or MQRSP8 over burner. One screw from the Fan Access Cover Plate is all that is... -
Page 39: Mqrock2 / Mqrock3
MQROCK2 / MQROCK3 -MQRSP4 IDV26 / IDV33 / IDV43 MQRSP4 Parts List Remove the ember plates and the grate bar by removing the 2 left 1Ea Rock Support and right screws on the grate bar. 1Ea Ember Plates Assembly Reinstall screws after removing parts. Step 1: Place Rocks #4 into position as shown. - Page 40 MQROCK2/ MQROCK3 -MQRSP4 for IDV26 / IDV33 / IDV43 (continued) Step 4: Place Rocks #6 into position as shown above. Step 5: Place Rocks #3 into position as shown above. Step 6: Place Rocks #1 into position as shown above. Step 7: Place Rocks #3 and #4 into position as shown above.
-
Page 41: Mqstone With Mqrsp8
MQStone MQRSP8 IDV26 / IDV33 / IDV43 Optional Decorative Stone Set. Place smaller stones around outside of burner tube. Begin by placing larger stones inside burner tube area. Add smaller stones to center. Cover back and center of burner tube with assorted stones. Pilot Area MUST be visible at ALL times. -
Page 42: Mq Ember With Mqrsp8 Or Rsp10
MQ Ember Installation -MQRSP8 / RSP10- IDV26 / IDV33 / IDV43 MQ DEALER ONLY Spread glass or ember chunks onto tray and burner. Ensure that layer of glass embers is not excessively thick as this will affect the flame pattern. See below. Pilot Shield* Must Be Kept Clear. -
Page 43: Rsp10 Glass Support Platform
RSP10 Glass Support Platform -Installation IDV26 / IDV33 / IDV43 Base Unit (As Shipped) Preparation: Remove Grate Bar and replace screws. Remove Ember Plates. Do not remove existing Pilot Shield. Installation: Install RSP10 by placing over burner. Use existing screws at front of firebox bottom to attach Glass Retainer. Parts List Pilot Shield* RSP10: Tray and 1 Pilot Shield*... -
Page 44: Lighting Instructions -Millivolt
Millivolt System, Lighting, and Burner Control FOR YOUR SAFETY READ BEFORE LIGHTING WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. BEFORE LIGHTING Immediately call your gas supplier from a neighbour’s phone. Follow the This appliance has a pilot which must be lighted by hand. -
Page 45: Troubleshooting The Gas Control System
Troubleshooting the Gas Control System ⚠ WARNING BEFORE DOING ANY GAS CONTROL SERVICE WORK, REMOVE THE GLASS FRONT. NOTE: Before troubleshooting the gas control system, be sure external gas shut off is in the "On" position. Problem Possible Causes Corrective Action Spark igniter will not Defective or misaligned Check for spark at electrode and pilot: if no spark and electrode wire is... -
Page 46: Gas Line Installation
Gas Line Installation This gas appliance should be installed by a qualified installer in accordance with local building codes and with current CAN/CSA - B149.1 installation codes for Gas Burning appliances and equipment in Canada and the National Fuel Gas Code ANSI Z223 in the U.S.A. -
Page 47: Annual Inspection List For Determining Safe Operation Of A Direct Vent Gas Fireplace
Annual Inspection List for Determining Safe Operation of a Direct Vent Gas Fireplace Refer to this checklist for proper maintenance, safe use, and operation. See each section for more specific information. 1. Inspect and operate all pressure relief mechanisms (i.e., relief dampers, spring loaded door latches) installed on your appliance to verify relief mechanisms are free from obstruction to operate. -
Page 48: Burner System Maintenance
Burner System Maintenance It is recommended to annually inspect and clean the Burner System to prevent malfunction and / or sooting. This operation should be performed by your dealer or a qualified technician. -CAUTION- Before servicing the burner system ensure that the gas supply is turned OFF and disconnect all electrical connections to the appliance. -
Page 49: Conversion Kit Instructions - Part A
Conversion Kit Instructions – PART A Caution The gas supply shall be shut off prior to disconnecting the electrical power, before proceeding with the conversion. PLEASE CONFIRM THAT STEP 4 IS UNDERSTOOD BEFORE PROCEEDING WITH CONVERSION. WARNING: This conversion kit shall be installed by a qualified service agency in accordance with the manufacturer's instructions and all applicable codes and requirements of the authority having jurisdiction. -
Page 50: Gas Conversion For Top Convertible Pilot (Series 019065X) - Part B
Gas Conversion for Top Convertible Pilot (Series 019065X) – PART B Instructions for converting SIT 190 series pilot burner injection from NG to LPG and from LPG to NG only. This information should be considered as supplemental to the Appliance Manufacturer’s Instructions. WARNING: The installation of this conversion kit must only be undertaken by a qualified and certified gas appliance installer. -
Page 51: Gas Conversion For Top Convertible Pilot - Part B (Series 0190Xyz)
Gas Conversion for Top Convertible Pilot – Part B (series 0190XYZ) Instructions for converting SIT 190 series pilot burner injector from NG to LPG and from LPG to NG only. This information should be considered as supplemental to the Appliance Manufacturer's Instructions. WARNING! The installation of this conversion kit must only be undertaken by a qualified and certified gas appliance installer. -
Page 52: Gas Conversion For Modulator - Part C
Gas Conversion for Modulator – PART C... -
Page 53: Remote Control Operation
-Remote Control Operation- The Proflame GTM is configured to control the on/off main burner operation, its flame levels, and provides on/off and Smart thermostatic control of the appliance. Transmitter Remote Receiver Transmitter Room Thermostat ( Transmitter Operation) The Transmitter is powered by 3 AAA type batteries. A Mode The Remote Control can operate as a room thermostat. -
Page 54: Ipi Electronic Ignition System
IPI Electronic Ignition System Overview The IPI system is an advanced burner controller that provides you with the option of having either a Standing-Pilot, or an intermittent igniting system. This alternating mode is controlled by the CPI/IPI Switch (Continuous Pilot Ignition/Intermittent Pilot Ignition) located on the IPI System Box. - Page 55 IPI Electronic Ignition System NOTE: The Remote Receiver module can also be located outside of the appliance to a maximum of 6ft away installed in a certified deep wall switch electrical box (2-3/4” depth). For this configuration an extension wiring harness (P/N: 1001-P904SI) is required. Electrical Supply in Series: The entire IPI system can be powered by a single power source (i.e.
-
Page 56: Ipi Electronic Ignition Parts List - Standard System
IPI Electronic Ignition Parts List – Standard System ITEM NO. PART NO. DESCRIPTION 1006-P002si Valve IPI Hi/Lo NG 1006-P003si Valve IPI Hi/Lo LP *1002-P047si Pilot Assembly-LP -24” Wire *1002-P033si Pilot Assembly-NG -24” Wire 1002-P017si Spark Electrode (with wire) *1002-P119si Spark Electrode (with wire- 35” Length) 1002-P903si Electrode Flame Sensor *1002-P910si... -
Page 57: Ipi Configurations 1 & 2
Configuration #1: Basic manual HI/LO and manual ON/OFF capabilities. Receiver Module 0.584.523/521/221 1001-P221SI Configuration #2: Remote ON/OFF and manual HI/LO capabilities. OPTIONAL: For units with remote HI/LO capabilities, a modulating servo is required to be installed on the valve. The connectors to this servo must be connected to the Remote Harness as shown in the figure above. -
Page 58: Operating The Receiver Without Batteries For Gt / Egt / Gtm / Egtm Remote Controls
Operating the Receiver Without Batteries For GT / EGT / GTM / EGTM Remote Controls -Wiring Harness P/N 1002-P906si required for both IPI & Millivolt systems. -Millivolt Systems will also require Power Adapter P/N 1002-P850si. The Remote Receiver & IPI or Millivolt system can be powered by the AC Adapter. This is advantageous if you do not want to use batteries. -
Page 59: Electronic Ignition Lighting Instructions
Electronic Ignition Lighting Instructions If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. Always light the pilot whether for the first time or if the gas supply has ran out with the glass door opened or removed. FOR YOUR SAFETY READ BEFORE LIGHTING: A. -
Page 60: Proflame 2 Parts List, Gtmfl Configuration
Proflame 2 –NE2 / LPE2 -IPI System Parts List- IPI PROFLAME 2 - COMPONENT PARTS IPI - PF1 and PF2 Common Components PART NO. DESCRIPTION PART NO. DESCRIPTION 1005-P001SI Valve IPI Proflame PF2 885.001 NG - Stepper 12. 1002-P033SI TC - Pilot Burner IPI (Assembled) NG 199.033 1005-P002SI Valve IPI Proflame PF2 885.002 LP - Stepper 13. -
Page 61: Proflame 2 Remote Control
Proflame 2 IFC Module and Remote Control LCD Display ON / OFF Key Thermostat Key Batteries UP / DOWN Arrow Key Mode Key IFC Module Button Within 10 seconds press the button again until Pairing Remote Control: you hear it beep. ... -
Page 62: Cold Climates - Cpi Setting - Proflame 2 Remote Control
Cold Climates – CPI Setting - Proflame 2 Remote Control Use the CPI setting during cold weather, otherwise the fireplace may have a hard time starting up and establishing a flame. The CPI (Continuous Pilot Ignition) setting will keep the firebox and fireplace exhaust vent warm during cold weather. When the firebox and exhaust vent are warm, exhaust gasses will readily flow out of the firebox. -
Page 63: Remote Flame Control, Room Thermostat Operation
Proflame 2 Remote Control... -
Page 64: Smart Thermostat, Fan Speed Control
Note: When Smart Thermostat is activated, manual flame height adjustment is disabled. Note: This function is only available in Room Thermostat or Smart Thermostat Control Mode. -
Page 66: Venting-Idvvt / Idvvt43 Venting Installation
This appliance must not be connected to a chimney flue serving a separate solid-fuel burning appliance. This appliance is approved with Kingsman Flex Vent System (as listed in the manual) or MG Duravent flex pipe system. All venting lining products must be approved and installed according to the vent manufacturers installation instructions. All vent liners must terminate in a rain cap to prevent debris and rain from entering the vent and possibly damaging the appliance or creating an unsafe condition. -
Page 67: Installation Of Vent Pipe
IDV26 / IDV33 / IDV43 Installation of Vent Pipe 1. Remove the Top Filler and adapter plate from the unit by removing the five [5] screws as shown below. (Fig. 3) Attach the vent pipes to the termination with Millpac and 4 screws per pipe joint. Be sure to label the exhaust and intake flex pipes. -
Page 68: Insulation Of Chimney Cavity
Chimney Cavity Insulation IDV26 / IDV33 / IDV43 If You Live In A Cold Climate Zone And Your Chimney Is On The Side Of Your House In cold climates, especially where the chimney is NON-COMBUSTIBLE located on the outside of the home it may be INSULATION necessary to insulate the chimney cavity with NON- (Vermiculite, etc.) -
Page 69: Idv26 Parts List
IDV26 Parts List I26CV Surround Kits for Clean View I26S1BL Straight Surround Back Extension [Black] I26S1PW Straight Surround Back Extension [Pewter] Part No. Description I26S1CV Straight Surround Back Extension [Copper Fireplace Base Unit Vane] IDV26N [Millivolt] INSERT DIRECT VENT FIREPLACE IDV26NE [IPI] Natural Gas 30,000 BTU IDV26NE2 [IPI]... -
Page 70: Parts And Venting For Idv26/ Idv33/ Idv43
Parts for IDV26/ IDV33/ IDV43 1002-P12BH Battery Pack 1002-P912SI Wiring Harness Part No. Description 1001-P166SI IPI Pilot Orifice #62 [NG] Riser Kits 1001-P168SI IPI Pilot Orifice #35 [LP] I33R40 2-1/2” Riser for use with I33S4028B and 1002-P013SI Modulating Servo Motor [NG] I36S3931B 1002-P012SI Modulating Servo Motor [LP]... -
Page 71: Limited Lifetime Warranty
During the first year after installation, we will provide a replacement for any component part of your unit found to be defective in materials or workmanship, including labour costs. Repair work requires prior approval by Kingsman, labour costs are based on a predetermined rate schedule and any repair work must be done through an authorized Kingsman dealer.
