2) Product Description and Applications
2.1 Applications
PL600/PL1000 is applied for residential automation of sliding gates. PL600/PL1000 has to be operated with electricity
and it's forbidden to be operated by back-up batteries for normal use. Back-up batteries (optional) are only allowed
for emergent operation when there is a power failure, and the gearmotor can be released by the key to move the gate
manually.

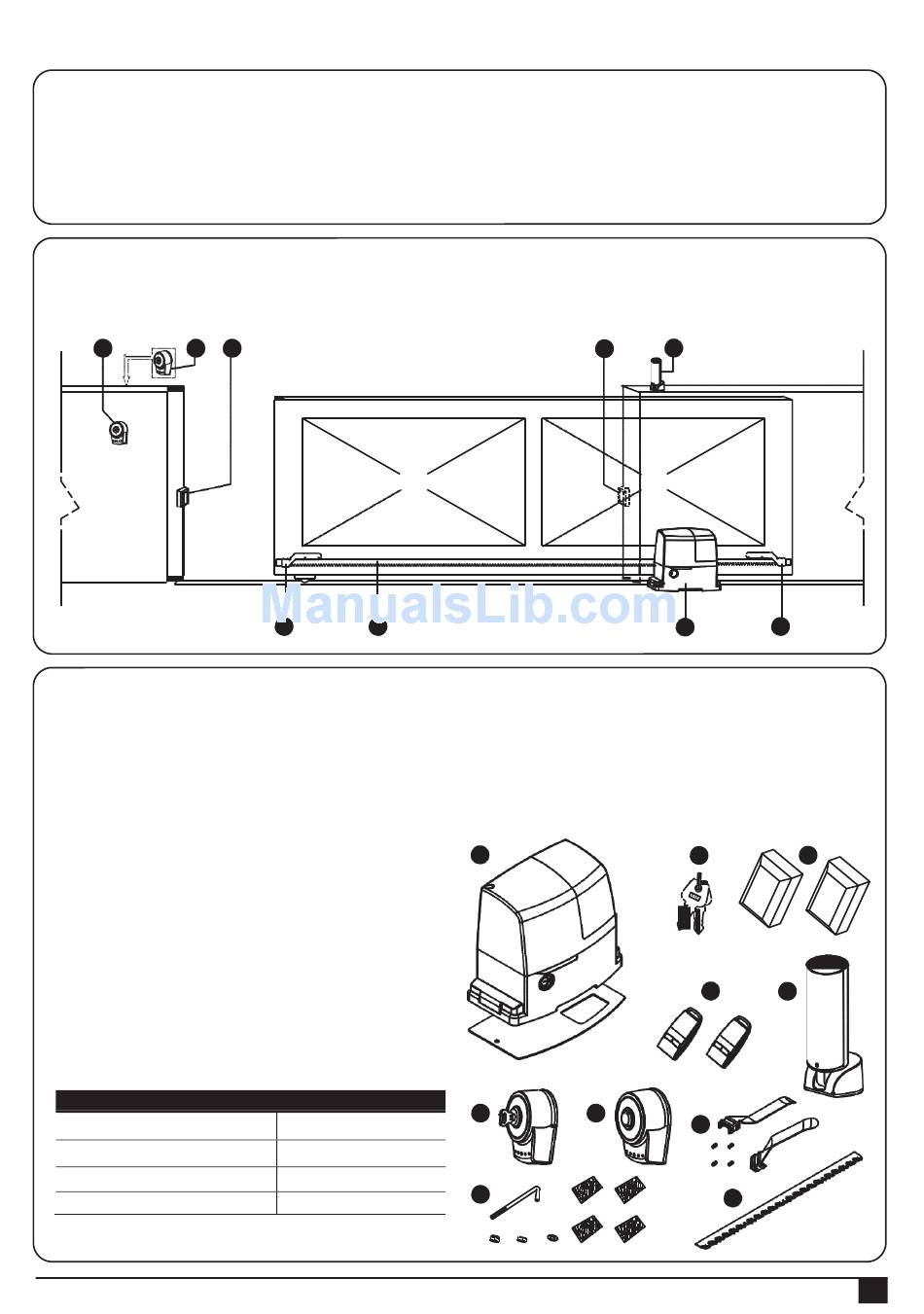

2.2 Description of the Automation

The following diagram of PL600/PL1000 typical installation describes some terms live in whereever you are and
whenever you are and accessories of a gate automation system:
G F

2.3 Description of Devices

PL600/PL1000 may include the accessories shown in Figure 2.
Please check the accessories the same as the package provided.
Attention: Some accessories of PL600/PL1000 are not included due to local regulations or customized order.
A) 1 PL600/PL1000 electromechanically gearmotor
including control unit
B) 2 release keys
C) 1 pair of PH-1 photocells
D) 2 PR-1 radio transmitters
E) 1 PF- flashing light
F) 1 PKS-1 key selector with two keys
G) 1 PPB-1 push button
H) 2 limit switch brackets
I) Various small parts: screws, nuts, etc. (see table1)
J) 4 PRK-1 Rack
Table 1: List of small parts for PL600 & PL1000
Bent bins / Washers / Nut
Foundation Plate
Screws with no head
Limit Switch
C
H I
2 pcs / 6 pcs / 4 pcs
1 pce
4 pcs
2 sets
Figure 1
A
F
I
C E
A
Figure 2
B
D
G
H
J
INSTRUCTIONS PL600/PL1000
H
C
E
3
