- Page 1 PL600H/PL1000H 24V DC MOTOR SLIDING GATE OPENERS FOR RESIDENTIAL USER MANUAL...
-
Page 3: Table Of Contents
3.3.5 PPB-1 Push Button…......15 3.3.6 Installation of Green Box......15 Power Supply Connections....16 Final Checks and Start Up Initial Checks........16 4.1.1 Design of PL600H/PL1000H control unit............16 4.1.2 Recognition of LED Indication……..17 4.1.3 Checking the Gate Movements……..17 Programmable Functions List....18 4.2.1 Programmable Functions of LED Display..........20... -
Page 4: Warnings
If there is a failure that cannot be solved and is not mentioned in this manual, please contact qualified Keep all the components of PL600H/PL1000H system and installation personnel. this manual for further consultation. Do not use the gate-automated system before all the... -
Page 5: Product Description And Applications Applications
2.2 Description of the Automation The following diagram of PL600H/PL1000H typical installation describes some terms live in whereever you are and whenever you are and accessories of a gate automation system: Figure 1 2.3 Description of Devices... -
Page 6: Pl600H/Pl1000H Electromechanical Gearmotor

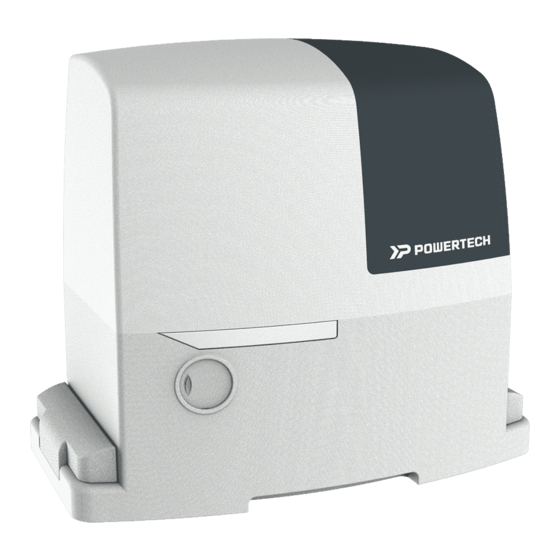

2.3.1 PL600H/ PL1000H Electromechanical Gearmotor PL600H/PL1000H consists of an electronic control unit Figure 3 and connector for the optional radio control receiver. The gearmotor could be released manually by special Green Box release keys when there is power failure. Besides, it has... -
Page 7: Photocells
(B) button is “pedestrian mode”. Figure 7 2.3.5 PF-1 Flashing Light PF-1 flashing light is controlled by PL600H/PL1000H control unit and blinks when the gate is moving or blinks 3 seconds before the gate moves. The flashing light... -
Page 8: Installation
3.1 Notes of Motors in Operation The PL600H/PL1000H gate openers are applicable to per gate leaf of 600/1000 kg in weight for residential use; where the performance shall be influenced by the factors such as gate dimension, weight and climate that the driven torque is necessarily to be adjusted properly. -
Page 9: Preparation For Motor Installation
3.3 Preparation for Motor Installation PL600H/PL1000H is not applicable to a gate which is inefficient or unsafe, neither to solve the defects due to incorrect installation nor poor maintenance. Check the following items before going for installation: 1). Make sure the weight and dimensions of the gate conform to the operation range of PL600H/PL1000H. Don’t use PL600H/PL1000H if the gate specifications do not meet the requirements. - Page 10 Figure 14 (Left opening) 170mm 200mm Figure 15 (Right opening). 170mm 200mm 11) If the rack is already installed on the gate, make sure the position of the rack is fitted for the size limits indicated in Figure16. Figure 16 INSTRUCTIONS PL600H/PL1000H...
-
Page 11: Installation Of The Gearmotor
3.3.1 Installation of the Gearmotor The PL600H/PL1000H can be installed in two situations: 1). Installing on gates without rack; in this condition must be installed first, followed by PRK-1 rack. 2). Installing on a gate with rack; in this condition must be connected to the existing rack. - Page 12 Operate the same steps for the limit switch in the closed position. Figure 23 18). For electrically connections of the various devices, please see “4.1.1 Design of PL600H/PL1000H control unit”. INSTRUCTIONS PL600H/PL1000H...
-
Page 13: Installing On Gates With Rack
Figure 28) 11). If necessary, adjust the height of the gearmotor (Max. 10mm) with the 4 dowels. It is better to fix the gearmotor without dowels as it is fastened firmly and securely on the plate. INSTRUCTIONS PL600H/PL1000H... - Page 14 Operate the same steps for the limit switch installed in the closed position. 16). For electrically connections of the various devices, please see “4.1.1 Design of PL600H/PL1000H Control Unit”.
-
Page 15: Photocells
And use an extra wire to connect terminals 2 and 5 on the receiver as a bridge. Figure 4(2) Lens Beam Alignmnet N.C. Indicator N.O. Power Led Indicator DC (12~24V) Terminal Block Power Terminal Block DC (12~24V) Figure 4(3) INSTRUCTIONS PL600H/PL1000H... -
Page 16: Flashing Light
3). Unscrew the two screws beside the lock body. See Figure 3.3.4 (3). 4). Turn the key and separate the bottom of the shell with the lock body. See Figure 3.3.4 (4). Figure 3.3.4 (1) Figure 3.3.4 (2) Figure 3.3.4 (3) Figure 3.3.4 (4) INSTRUCTIONS PL600H/PL1000H... -
Page 17: Ppb-1 Push Button
Gate opener will enter power saving mode without receiving any instruction in 1 min, and red LED light on Green Box will be activated. Gate opener start the operation, red LED light and power saving mode will turn off. CAUTION: In case of loop or installation of photocell which need power consumption anytime, please do not install Green Box. INSTRUCTIONS PL600H/PL1000H... -
Page 18: Power Supply Connections
2). Make sure all the wires are firmly connected. 3). Supply the gearmotor with the power. 4) Final Checks and Start Up 4.1 Initial Checks 4.1.1 Design of PL600H/PL1000H control unit Green Box Socket LED1 Photocells Inside the Cover LED2 Photocells... -
Page 19: Recognition Of Led Indication
1). Release the gearmotor with the release key and move the gate to the middle so that it is free to move in both opening and closing directions; then lock the gearmotor. 2). Perform the gate opening and closing several times and make sure the gates reaches the limit switch at least 2~3 centimeters before the mechanical stop. INSTRUCTIONS PL600H/PL1000H... - Page 20 F6-2 F6-3 F6-4 F6-5 Over current setting F7-1 1. The function can adjust the running force of motor to F7-2 be compatible with the gate weight. F7-3 2. The factory setting is "F7-5". F7-4 F7-5 F7-6 F7-7 F7-8 INSTRUCTIONS PL600H/PL1000H...
- Page 21 1. The factory setting is "FF-0". FF-1 Open Photocell test function FG-0 Close 1. The factory setting is "FG-0". FG-1 Open 2. If the function open Stop connector function FH-0 Close 1. The factory setting is "FH-0". FH-1 Open 2. Stt INSTRUCTIONS PL600H/PL1000H...
-
Page 22: Programmable Functions List
4.2.1 Programmable Functions of LED Display LED Display Programmable Functions “N-L”: The PL600H system learning is not done. “RUN”: The PL600H system is in normal performing. “LEA”: Enter learning mode and then wait for learning instructions. The operation of gate learning: (1). -
Page 23: Operations For Function Settings
● Measure the impact force according to EN 12445 standard. If “motor force” control is used to support the system for the reduction of the impact force, try to find the adjustment which offers the best results. INSTRUCTIONS PL600H/PL1000H... -
Page 24: Maintenance And Disposal Maintenance
PL600H/PL1000H are consist of different types of materials; some of them can be recycled such as aluminum, plastic, electric cables while some need to be disposed, such as electronic boards. -
Page 25: Technical Characteristics
8) Technical Characteristics 8.1 PL600H/ PL1000H PL600H PL1000H Motor 24Vdc motor with mechanical release 24Vdc motor with mechanical release Gear type Worm gear Worm gear Peak thrust 6500N 10500N Nominal thrust 6000N 10000N Power supply 24Vdc 24Vdc Nominal input power 2.5A... - Page 26 Manufacturer: Timotion Technology Co., Ltd. Address: Shiyong Minying Industrial Zone, Hengli Town, DongGuan City, GuangDong, China Model: PL600H; PL1000H; PR-1 1. Certificate of conformity of a product with the essential requirements art. 3.2 of the R&TTE Directive 1999/5/EC. 2. The above product has been tested with the listed standards and in compliance with the European Directive LVD 2006/95/EC.
- Page 28 34100-065-02-C Powertech Automation Inc.
