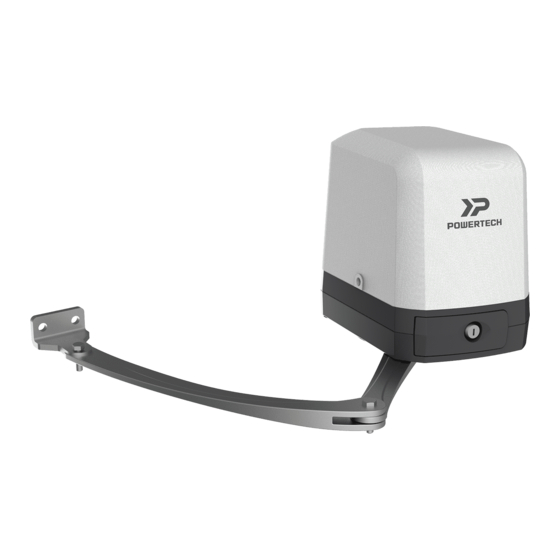

  • Page 1 PA250 USER MANUAL ARTICULATED ARM OPENERS 24V DC GEAR MOTOR FOR RESIDENTIAL USER MANUAL...
  • Page 2 INDEX Warnings Installation 1.2.1 Standard Installation 1.2.2 Dimension Chart 1.2.3 Components of Installation 1.2.4 Installation of Articulated Arm Opener 1.2.5 Emergency Release 1.2.6 Photocell Installation 1.2.7 Green Box Installation 1.2.8 Power Supply Connections Wiring Connection 2.1.1 Master Motor is installed at right side 2.1.2 Master Motor is installed at left side LED Indication Transmitter Memorizing and Erasing Process...

  • Page 3: Installation

    1.2 Installation 1.2.1 Standard Installation 2x1.5 mm 4x0.5 mm RX - 4x0.5 mm TX - 4x0.5 mm M1 Master M2 Slave Motor Motor 2x1.5 mm 2x1.5 mm 1. 24V DC blinker with integrated antenna 2. Push Button 3. Photocells 4. 24V DC articulated arm opener 5.

  • Page 4: Components Of Installation

    1.2.3 Components of Installation Straight arm 1 pce Curved arm 1 pce U-shaped fixing plate 1 pce Mechanical stopper 2 pcs Front-end fixing bracket 1 pce Screw 4 pcs Nut Ø10 2 pcs Screw 2 pcs Gasket 2 pcs Screw 2 pcs Spring washer 4 pcs...
  • Page 5 3) Install the motor on the U-shaped fixing 4) After positioning the front of curved arm on the bottom of motor, plate with corresponding screws and nuts. release the motor and position the minor arm on the end of curved arm and mounting bracket with corresponding screws and nuts.

  • Page 6: Emergency Release

    1.2.5 Emergency Release 1) Insert the release key to the release slot 2) Turn the release key anti-clockwise 3) Pull out the release bar 4) Turn the release key clockwise to fix the release bar, the release bar has to be in pulled out position when turning the release key clockwise 1.2.6 Photocell Installation The safety photocells are security devices for control automatic gates.
  • Page 7 DKey SKey Ph1 PhVcc PhVcc 19 20 21 22 23 24 25 26 Figure 1(3) ARTICULATED ARM OPENERS USER MANUAL...

  • Page 8: Green Box Installation

    1.2.7 GREEN BOX INSTALLATION Green Box is for purpose when gate opener is in standby mode to allow it enter the power saving mode. Green Box AC out Cable AC in Installation manner: AC IN: connect the electricity AC OUT: connect the power of gate opener, and connect the transformer 5V CABLE: connect 3 pins white socket of control board Please make sure the switch of Green Box is off before proceeding the system learning and installation of device.

  • Page 9: Wiring Connection

    2.1 Wiring Connection Figure 2(1) Flashing Photocells connection is Push detailed on page 5 Button Selector Latch Light Green Box 11 10 PhVcc PhVcc SKey DKey Lmt4 Lmt3 Lmt2 Lmt1 Lat- Lat+ Lit- Lit+ LED3 LED4 LED2 Blue LED – RF Learning LED2 Push button or Key selector LED3 Photocell 1 LED 4 Photocell 2...

  • Page 10: Master Motor Is Installed At Right Side

    2.1.1 Master Motor is installed at right side Figure 2(2) Motor1 Power Motor2 Power Motor with Limit switch Figure 2(3) Motor1 Power Limit Switch Motor2 Power Limit Switch Limit1 Limit2 Limit4 Limit3 Remark: Limit1, Limit3 (Open limit) Limit2, Limit4 (Close limit) Motor with Hall sensor Figure 2(4) Hall sensor...

  • Page 11: Master Motor Is Installed At Left Side

    2.1.2 Master Motor is installed at left side Figure 2(5) Motor2 Power Motor1 Power Motor with Limit switch Figure 2(6) Limit Switch Limit Switch Motor2 Power Motor1 Power Limit4 Limit3 Limit1 Limit2 Remark: Limit1, Limit3 (Close limit) Limit2, Limit4 (Open limit) Motor with Hall sensor Figure 2(7) Hall sensor...

  • Page 12: Led Indication

    2.2 LED Indication DOWN Blue LED on receiver board: Blinks three times when remote learning is completed. LED2 External device : If the switch of the key selector, or the push button is activated, LED2 will be on. RF-LEARN LED3 Photocells 1 : LED3 will be on when the first pair of the photocells are activated. LED4 Photocells 2 : LED4 will be on when the second pair of the photocells are activated.
  • Page 13 figure 2(8) A. Dual Gate: Slave Gate Close → Master Gate Close → Master Gate Open → Slave Gate Open → Slave Gate Close → Master Gate Close B. Single Gate : Master Gate Close → Master Gate Open → Master Gate Close Notes: (A) System learning fails and needs to be learned again when an unpredictable interruption occurs.

  • Page 14: Gate Operation

    2.5 Gate Operation Press the button “A” on the transmitter for dual-gate operation. Press the button “B” on the transmitter for single-gate operation in either single-gate or dual-gate installation. 2.6 Gate-moving Logic (A) In gate-opening phase: The gates stop if the transmitter/push button/key selector is activated, and close when the transmitter/push button/key selector is reactivated.

  • Page 15: Photocell Adjustment

    3.2 Photocell Adjustment The actions of the photocells safety edge loop detector when they detecting obstacles. 1. F9-1 Position of Gate When safety devices are activated Safety Device2 : Safety Device1 : Type of Safety Device Photocell-OPEN Photocell-CLOSE Open not allowed No effect FULLY CLOSED FULLY OPENED...

  • Page 16: Operations For Function Settings

    3.3 Operations for Function Settings For exmple: How to set the function “F1-0”; the steps are following: Step Operations LED Display after the Step (1) Press the “SET” button for 3seconds then releases it, and the system enters the first option. The LED will display “F1” (*) as the right hand-side picture.

  • Page 17: Function Settings

    3.4 Function Settings LED Display Definition Parameter Table Description F1-1 Motor Type Motor only 1. The factory setting is "F1-1". F1-2 Motor with Limit Switch F1-3 Motor with Hall sensor F2-1 Dual or Single Gate Dual Gate 1. The factory setting is "F2-1". F2-2 Single Gate F3-1...
  • Page 18 LED Display Definition Function Table Description Photocell 1 function FC-0 Function OFF 1. The factory setting is "FC-0". FC-1 Function ON Photocell 2 function FD-0 Function OFF 1. The factory setting is "FD-0". FD-1 Function ON Buzzer function FE-0 Function OFF 1.

  • Page 19: Trouble Shooting

    4. Trouble Shooting Overheated Back-up Batteries Check the wiring connection of the batteries. The gate doesn’t move when pressing the 1. Check if LED3 or 4 is “OFF”. button of the transmitter 2. Check if the voltage of the batteries is upon 22V. 3.

  • Page 20: Technical Feature

    5.2 Technical Feature: Model PA250 Motor 24Vdc motor Gear type Electromechanical worm gear Nominal thrust 2500N Maximum Gate Weight 250 kg per leaf Maximum Gate Length 2.5 meters per leaf Operating Temperature C~+50 Dimension 256 x 187 x 267mm Weight...
