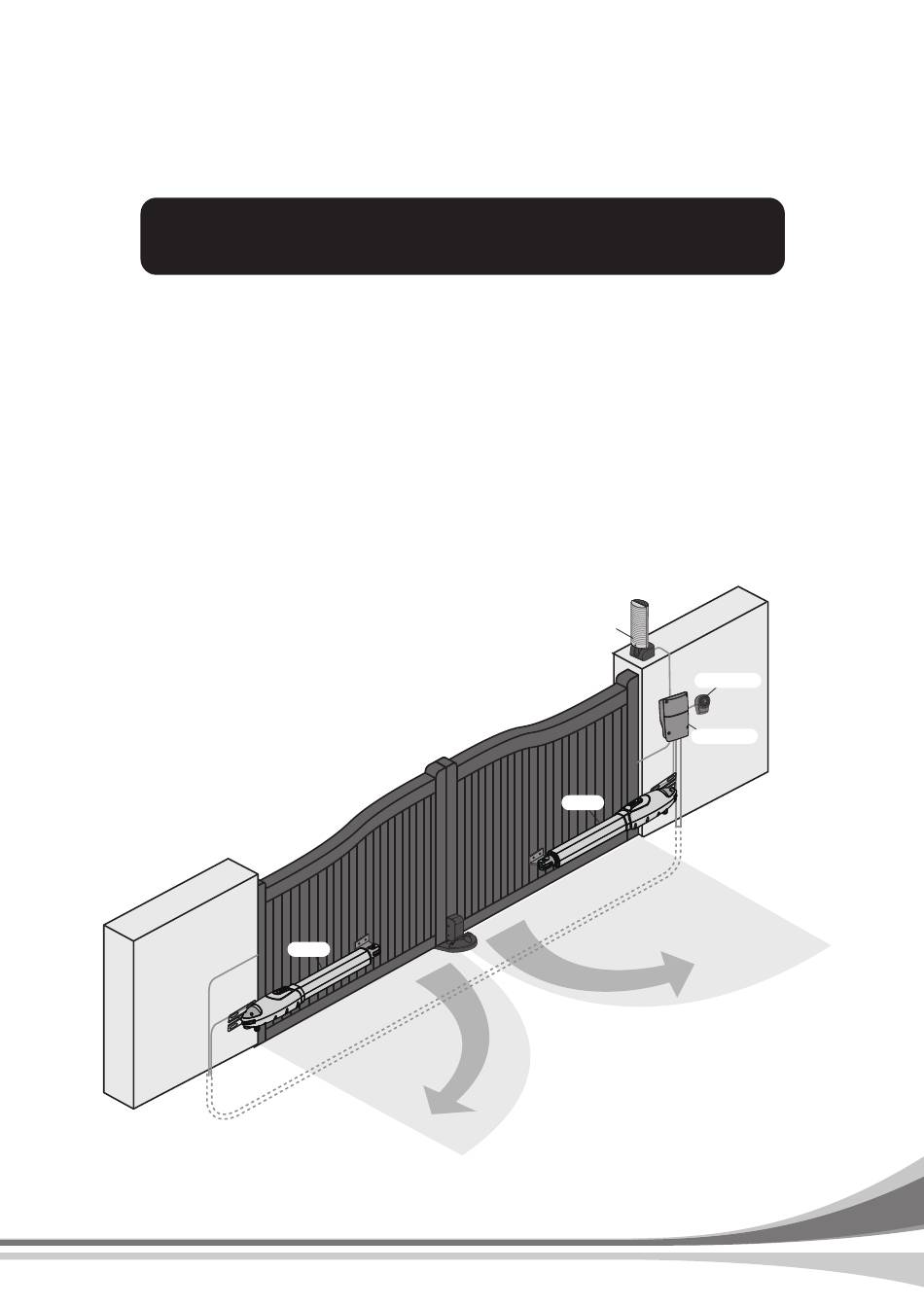

- Page 1 PW320/PW330/PW330L USER MANUAL SWING GATE OPENERS 24V DC GEAR MOTOR FOR RESIDENTIAL Flashing Light Push Button Control box Gate 2 Gate 1...
-
Page 2: Declaration Of Conformity
Manufacturer: Timotion Technology Co., Ltd. Address: Shiyong Minying Industrial Zone, Hengli Town, DongGuan City, GuangDong, China Model: PW320; PW330; PW330L, PR-1 1. Certificate of conformity of a product with the essential requirements art. 3.2 of the R&TTE Directive 1999/5/EC. 2. The above product has been tested with the listed standards and in compliance with the European Directive LVD 2006/95/EC. - Page 3 Product Description and Applications PW330 Applications PW330L Description of The Automation PH-2 Photocells Description of Devices PKS-1 Key Selector 1.3.1 PW320/PW330/PW330L Electromechanical PPB-1 Push Button Gear Motors PF-1 Flashing Light 1.3.2 Control Box PR-1 Transmitter 1.3.3 PH-2 Photocells PEL-1 Electric Latch 1.3.4...
- Page 4 This manual is exclusively for qualified installation Do not try to manually open or close the gates before you personnel. Powertech Automation Inc. is not responsible for release the gear motor. improper installation and failure to comply with local electrical and building regulations.
-
Page 5: Product Description And Applications
1) Product Description and Applications 1.1 Applications PW320/PW330/PW330L is applied for residential automation of single or dual leaf gate. PW320/PW330/PW330L has to be operated with electricity and it’s forbidden to be operated by back-up batteries for normal use. Back-up batteries are only allowed for emergent operation when there is a power failure, and the gear motors can be released by special keys to move the gate manually. -
Page 6: Control Box

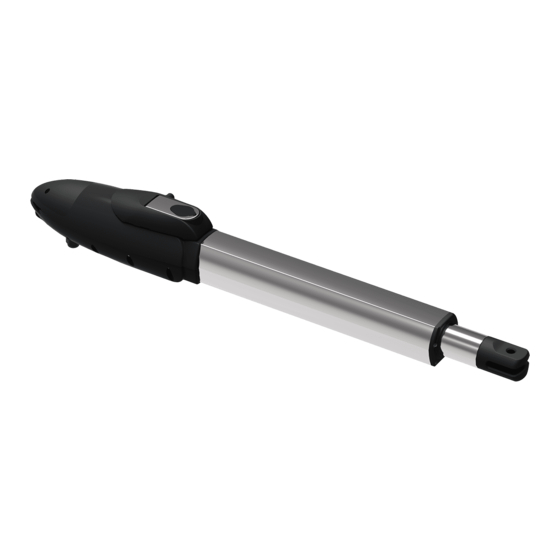

1.3.1 PW320/PW330/PW330L Electromechanical Gear Motors Figure 3 PW320/PW330/PW330L consists of a worm screw 1)PW320 reduction gear and a 24V direct current motor. The gear motor could be released manually by special release keys when there is a power failure. The gear motor is installed with two post brackets, one rear plate and one front plate for the installation. -
Page 7: Pf-1 Flashing Light
2.1 Notes of Motors in Operation The PW320/PW330/PW330L gate openers are applicable to per leaf of 3.0/4.0/5.0 meters in width and 250/350/500 kg in weight which can be opened up to 120 degrees primarily for residential use; where the performance shall be influenced by the factors such as gate dimension, weight and climate that the driven torque is necessarily to be adjusted properly. -
Page 8: Tools In Installing
Figure 12 2.2 Power Connection PW320/PW330/PW330L is required to connect two cores wires, which requires very low voltage that no professionally trained personnel is required in installation; however, the users are advised to read the installation manual carefully before going for it. After getting to know all accessories and their positions, suggest starting from cable conduit arrangement to prevent the cables from being broken or damaged 2.2.1 Notes for Power Connection... - Page 9 2.3 Installation 2.3.1 Preparation for Motor Installation PW320/PW330/PW330L is not applicable to a gate which is inefficient or unsafe, neither to solve the defects due to incorrect installation nor poor maintenance. Check the following items before going for installation: 1). Make sure the weight and dimensions of the gate conform to the operation range of PW320/PW330/PW330L.
- Page 10 100 degrees, then the value of “B” is approximate 190mm. **Please make sure “B” and “A” are similar or the same in value that the leaves can be operated smoothly, also to reduce the burden of the motor. INSTRUCTIONS PW320/PW330/PW330L...
-
Page 11: Installation Of The Gear Motors
10. Refer to Figure 23, the distance between front plate of the motor and rear plate is 735mm (PW320) / 798mm (PW330), the difference in height is 18.3mm (PW320) / 22.5mm (PW330). Figure 23 PW320 PW330 PW330L 735mm 798mm 992mm 11. Clamp and fix the motor front plate on the door temporarily. Figure 24 PW320 PW330 PW330L INSTRUCTIONS PW320/PW330/PW330L... - Page 12 2) Push out the release part to the end. See Figure 30. 3) Use the release key to turn the pin anti-clockwise to the end. See Figure 31. Figure 29 Figure 30 Figure 31 Gear motor release (fork series) INSTRUCTIONS PW320/PW330/PW330L...
- Page 13 8). Turn the key and insert the shell on the bottom. Turn the key back to the center position and the shell will be fixed to the bottom. 9). Tighten the lock body with the two screws and insert the round cover by pressing it to attach to the whole unit. Figure 2.3.3 (5) Figure 2.3.3 (6) INSTRUCTIONS PW320/PW330/PW330L...
- Page 14 3.) Connect the wires and penetrate the wires into the hole of the base. See Figure 2.3.5 (3). 4.) Drill the holes in the wall and fix the bottom to the wall by three screws. See Figure 2.3.5 (4). Figure 2.3.5 (1) Figure 2.3.5 (2) Figure 2.3.5 (3) Figure 2.3.5 (4) INSTRUCTIONS PW320/PW330/PW330L...
- Page 15 4). Power-up the photocells and make sure the LED light on receiver and transmitter are ON. Figure 2.3.6 (1) Figure 2.3.6 (2) Lens Beam Alignmnet N.C. Indicator N.O. Power Led Indicator DC (12~24V) Terminal Block Power Terminal Block DC (12~24V) Figure 2.3.6 (3) INSTRUCTIONS PW320/PW330/PW330L...
-
Page 16: Pel-1 Electric Latch And Ps-1 Stopper
See Figure 2.3.7 (4), Figure 2.3.7 (5), Figure 2.3.7 (6) & Figure 2.3.7 (7) Figure2.3.7(6) Figure2.3.7(4) Unscrew the screws. Figure2.3.7(5) Take the casing off. The location of the spring. (Installation) Figure2.3.7(7) Change the spring and screw it in the different place. INSTRUCTIONS PW320/PW330/PW330L... - Page 17 3). The gap between the bottom of electric latch and the stopper should be less than 7mm. See Figure 2.3.7 (10) Figure2.3.7(10) For the gate opened inward. Figure2.3.7(11) For the gate opened Outward. 4). Connect the wires of the electric latch to the terminal LAT(+) and LAT(-) on the PCB. INSTRUCTIONS PW320/PW330/PW330L...
-
Page 18: Technical Characteristics
350 kg per leaf Maximum gate length 4 meters Duty cycle Operating Temperature -20℃~+50℃ Dimension 844mm * 115mm * 106mm Weight 6.25kg 3.3 PW330L Motor 24Vdc motor with mechanical release Gear type Worm gear Max Absorbed Power 144W Peak thrust 5000N Nominal thrust... - Page 19 2, for single-gate or dual-gate operation Operating Temperature 3V with one CR2032 button type lithium battery Dimension -20℃~+50℃ 3.9 PEL-1 Electric Latch Application For locking the gate. Power Supply 24Vdc Operating Temperature -20℃~+50℃ Operating Current Dimension 61mm * 55mm * 120mm INSTRUCTIONS PW320/PW330/PW330L...
- Page 20 34100-046-11-B...
