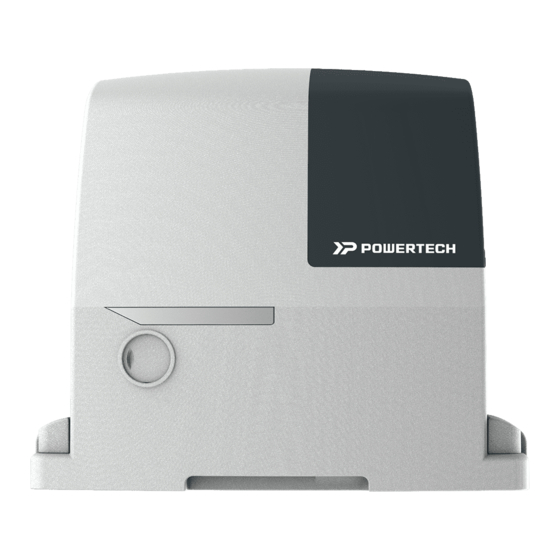

SLIDING GATE OPENER
DESIGNED FOR RESIDENTIAL APPLICATION
KIT PL600/PL1000
The strongest solution
SLIDING GATE OPENERS
for sliding gates
PL600/PL1000 electro-mechanical sliding gate openers are designed for residential application.
Stylish appearance of the gear motors with innovative design of motor release by the key in case of power failure.
Magnetic limit switch and spring limit switch are available for customer's choice.
Over-current function with adjustable setting provides various choices for the gate installation.
KIT PL600/PL1000
PL600
PL1000
PRK-1
Gear Motor
Gear Motor
Flashing Light
Photocells
Transmitter
Key Selector
Push Button
Rack

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KIT PL600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PowerTech KIT PL600

Summary of Contents for PowerTech KIT PL600

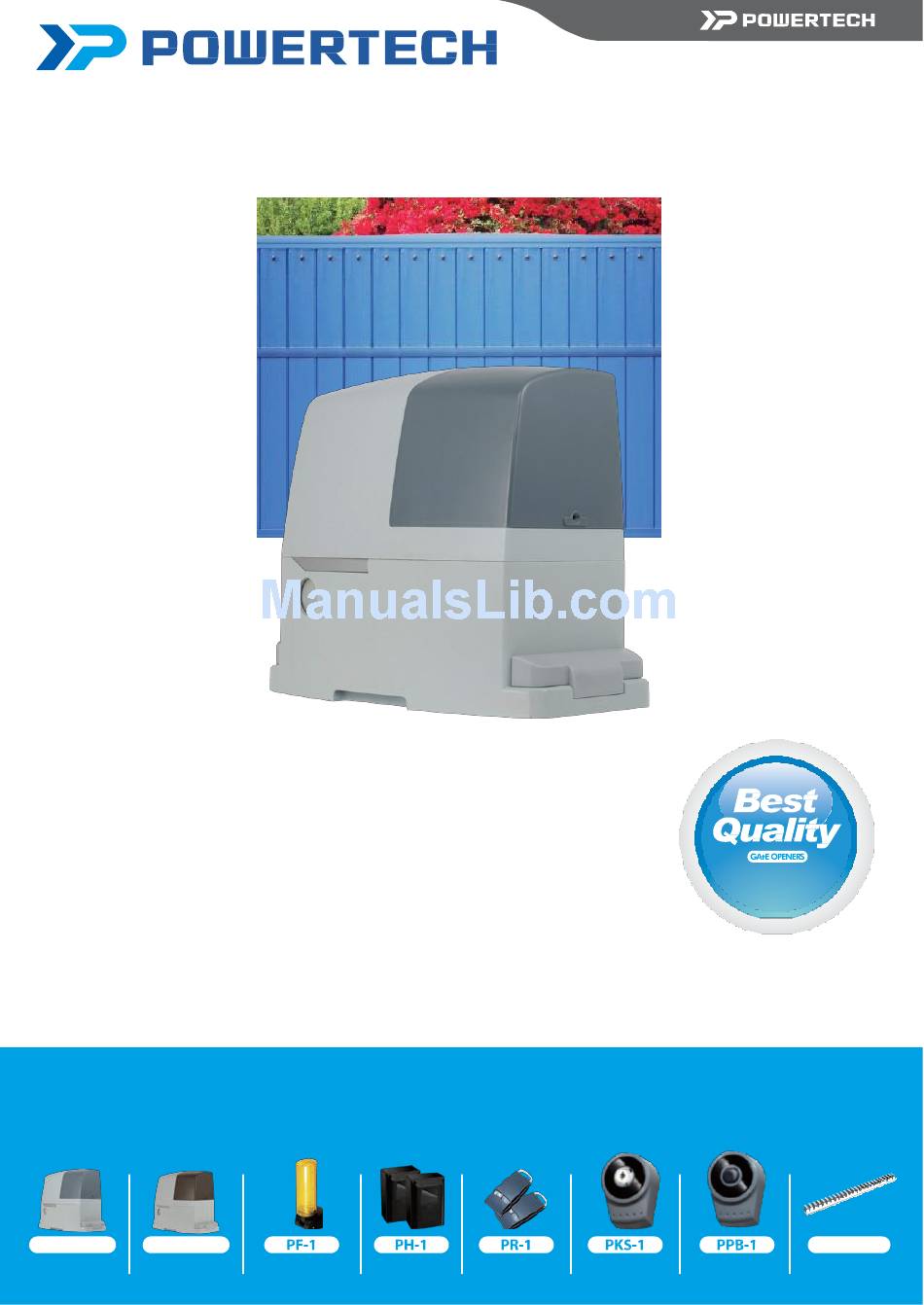

  • Page 1 SLIDING GATE OPENER DESIGNED FOR RESIDENTIAL APPLICATION KIT PL600/PL1000 The strongest solution SLIDING GATE OPENERS for sliding gates PL600/PL1000 electro-mechanical sliding gate openers are designed for residential application. Stylish appearance of the gear motors with innovative design of motor release by the key in case of power failure.

  • Page 3: Table Of Contents

    Index Warnings Testing Product Description and Applications Maintenance and Disposal Applications...........3 Maintenance.........21 Description of The Automation....3 Disposal..........21 Description of Devices......3 Additional Information 2.3.1 PL600/PL1000 Electromechanical Adding or Removing Device....21 Gearmotor..........4 Technical Characteristics 2.3.2 Release Keys.........4 PL600/PL1000........21 2.3.2.1 Release Gearmotors……………....4 PH-1 Photocells........21 2.3.3 PH-1 Photocells........5 PR-1 Transmitter........22...

  • Page 4: Warnings

    This manual is exclusively for qualified installation Do not try to manually open or close the gates before you personnel. Powertech Electronics Inc. is not responsible for release the gear motor. improper installation and failure to comply with local electrical and building regulations.

  • Page 5: Product Description And Applications Applications

    2) Product Description and Applications 2.1 Applications PL600/PL1000 is applied for residential automation of sliding gates. PL600/PL1000 has to be operated with electricity and it’s forbidden to be operated by back-up batteries for normal use. Back-up batteries (optional) are only allowed for emergent operation when there is a power failure, and the gearmotor can be released by the key to move the gate manually.

  • Page 6: Pl600/Pl1000 Electromechanical Gearmotor

    2.3.1 PL600/ PL1000 Electromechanical Gearmotor PL600/PL1000 consists of an electronic control unit and Figure 3 connector for the optional radio control receiver. The gearmotor could be released manually by special release keys when there is power failure. Besides, it has a back-up battery (optional) which can be used during Fuse knob the power failure as well.

  • Page 7: Radio Transmitter

    Figure 5 2.3.3 PH-1 Photocells The pair of PH-1 photocells has to be installed on the wall and connected to the control panel. The function of the photocells is to detect the obstacles found on the optical axis between the transmitter (TX) and the receiver (RX).

  • Page 8: Installation

    3.1.2 Motors, Components and Its Installation in Illustration The installation procedure of PL600/PL1000 may be changed due to various accessories and quantities installed. No wiring cables for accessories are supplied with KIT PL600/PL1000. 3.2 Power Connection The users are advised to read the installation manual carefully before going for it. After getting to know all accessories and their positions, suggest starting from cable conduit arrangement to prevent the cables from being broken or damaged.

  • Page 9: Preparation For Motor Installation

    3.3 Preparation for Motor Installation PL600/PL1000 is not applicable to a gate which is inefficient or unsafe, neither to solve the defects due to incorrect installation nor poor maintenance. Check the following items before going for installation: 1). Make sure the weight and dimensions of the gate conform to the operation range of PL600/PL1000. Don’t use PL600/PL1000 if the gate specifications do not meet the requirements.
  • Page 10 Figure 13 Gate with rack: the distances indicated in Figure 13 50mm 50mm 10) To install the limit switch brackets, the rack must project from the axis of the pinion by distances indicated in Figure 14 Figure 15 (Left opening) and (Right opening).

  • Page 11: Installation Of The Gearmotor

    3.3.1 Installation of the Gearmotor The PL600/PL1000 can be installed in two situations: 1). Installing on gates without rack; in this condition must be installed first, followed by PRK-1 rack. 2). Installing on a gate with rack; in this condition must be connected to the existing rack. 3.3.1.1 Installing on Gates without Rack 1).
  • Page 12 11). Release the gearmotor by using the release key if necessary. 12). Fully open the gate and place the first piece of the rack on the pinion so that it projects from the axis of the pinion Figure 14 Figure 15 by distance followed as , which means, the space reserved for the limit switch brackets.

  • Page 13: Installing On Gates With Rack

    3.3.1.2 Installing on Gates with Rack 1). Dig the foundations based on “Preparation for Motor Installation” and please notice the distances indicated in Figure 12 Figure 24 2). Lay the conduits for the power cables and leave 30-50 cm longer as Figure 25 3).

  • Page 14: Photocells

    Figure 29 12). Keep 1~2 mm space as between the rack and pinion so that the gate does not weigh on the gearmotor. Continually install the other pieces of the rack until the racks are sufficient for work. 13). Release the gearmotor by using the release key if necessary. 14).

  • Page 15: Flashing Light

    3). Wiring connection: TX: Connect the (1) and (2) terminals on the transmitter with the terminals +12V and GND on the PL600/ 1000 PCB. RX: Connect the (1), (2) and (4) NC terminals on the receiver with the terminals+12V、GND and PH1 on the PCB600/1000 PCB.

  • Page 16: Pks-1 Key Selector

    5). Connect the four wires of the light and the antenna to the PCB terminals and place the wires into the conduit if Figure 3.3.3 (5) necessary. See Figure 3.3.3 (6) 6). Tighten the four screws back on the light base. Figure 3.3.3 (7) 7).

  • Page 17: Ppb-1 Push Button

    5). Breach the three holes at the bottom and mark the points by the holes as reference. Figure 3.3.4 (5) 6). Drill the holes in the wall and fix the bottom to the wall by three screws. See Figure 3.3.4(6) 7).

  • Page 18: Final Checks And Start Up

    4) Final Checks and Start Up 4.1 Initial Checks 4.1.1 Design of PL600/PL1000 control unit LED1 Photocells LED2 Photocells Jumper4 LED3 RF Learning RF LEARN RF Learn (SW1) LED Display UP (SW3) SET (SW4) DOWN (SW5) DOWN ON/OFF If the Led display is in normal performing refer to “4.2.1”, you can control the gate by either transmitters or the button on the board: “UP”-clockwise moving, “SET”- stop and “DOWN”- Counterclockwise moving.

  • Page 19: Recognition Of Led Indication

    1). The transmitter Reaction Channel/Functions SW2 switch on SW2 switch off (A)Button: “Open- Stop- Close- Stop” (A)Button: “Open- Stop- Close- Stop” 2 channel transmitter (B)Button: “Pedestrian mode” (B)Button: Long Press for other device turn-on, like garage door system (A) Button: “Open- Stop- Close- Stop” (A) Button: “Open- Stop- Close- Stop”...
  • Page 20 LED Display Definition Function Value Description The reactions of the F3-1 photocells/ safety Please the function setting 1. Please the function setting after F edge/ loop detector F3-2 2. The factory setting is “F3-1”. when they detecting after F8 obstacles F3-3 F4-1 Slow...

  • Page 21: Programmable Functions Of Led Display

    ● F3 function settings: Logic F3-1 The reactions of the photocells when detecting obstacles Gate Status Photocell 2 Photocell 1 Photocell 1/ Photocell 2 Closed Stop opening No effect Stop opening Open No effect Reloads automatic closing time Stop during moving Stop opening Reloads automatic closing time Closing...

  • Page 22: Operations For Function Settings

    4.2.2 Operations for Function Settings For exmple: How to set the function “F1-0”; the steps are following: Step Operations LED Display after the Step (1) Press the “SET” button for 3seconds then releases it, and the system enters the first option. The LED will display “F1” (*) as the right hand-side picture.

  • Page 23: Maintenance And Disposal Maintenance

    6) Maintenance and Disposal 6.1 Maintenance The maintenance operations must be performed in strict compliance with the safety directions provided in the manual and according to the applicable legislation and standard. In order to have good and safety performances, test the gate-automated system weekly and have qualified installation personnel to check and maintain the system at least every 6-month.

  • Page 24: Transmitter

    8.3 PR-1 Radio Transmitter Application Radio transmitter for remote control of PL600/PL1000 Frequency 433.92Mhz Coding Rolling code Buttons 2, for single-gate or dual-gate operation Power Supply 3V with one CR2032 button type lithium battery Operating Temperature -20℃~+50℃ Dimension 71.5mm * 33mm * 14mm 8.4 PF-1 Flashing Light Application For warning purpose during leaves movement...
