- Page 1 SWING GATE OPENERS 24V DC GEAR MOTOR FOR RESIDENTIAL USER MANUAL Flashing Light Push Button Control box Gate 2 Gate 1...
-
Page 3: Table Of Contents

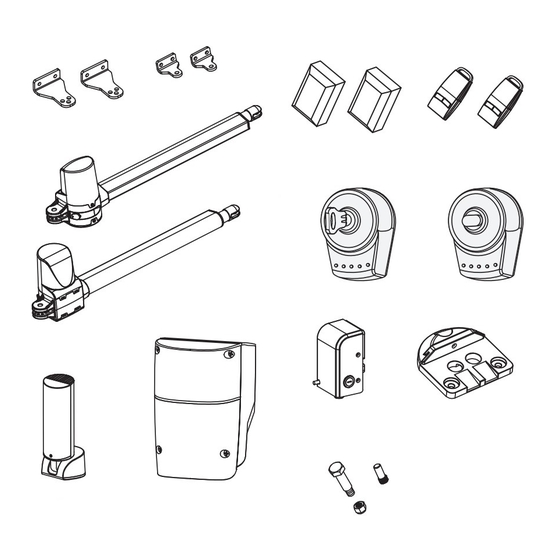

PW200 Applications PH-1 Photocells Description of The Automation PKS-1 Key Selector Description of Devices PPB-1 Push Button 2.3.1 PW150/PW200 Electromechanical PF-1 Flashing Light Gear Motors PR-1 Transmitter 2.3.2 Control Box PEL-1 Electric Latch 2.3.3 PH-1 Photocells 2.3.4 PKS-1 Key Selector CE Declaration of Conformity 2.3.5 PPB-1 Push Button... -
Page 4: Warnings
If there is a failure that cannot be solved and is not mentioned in this manual, please contact qualified Keep all the components of PW150/PW200 system and this installation personnel. manual for further consultation. Do not use the gate-automated system before all the... -
Page 5: Product Description
2) Product Description and Applications 2.1 Applications PW150/PW200 is applied for residential automation of single or dual leaf gate. PW150/PW200 has to be operated with electricity and it’s forbidden to be operated by back-up batteries for normal use. Back-up batteries are only allowed for emergent operation when there is a power failure, and the gear motors can be released by special keys to move the gate manually. -
Page 6: Ph-1 Photocells
2.3.1 PW150/PW200 Electromechanical Gear Motors PW150/PW200 consists of a worm screw reduction Figure 3 gear and a 24V direct current motor. The gear motor could be released manually by special release keys PW150 when there is a power failure. The gear motor is installed with two post brackets, one rear plate and one front plate for the installation. -
Page 7: Pks-1 Key Selector
3.1 Notes of Motors in Operation The PW150/PW200 gate openers are applicable to per leaf of 2/2.5 meters in width and 150/200 kg in weight which can be opened up to 110 degrees primarily for residential use; where the performance shall be influenced by the factors such as gate dimension, weight and climate that the driven torque is necessarily to be adjusted properly. -
Page 8: Tools In Installing
Figure 11 3.1.2 Motors, Components and Its Installation in Illustration The installation procedure of PW150/PW200 may be changed due to various accessories and quantities installed. The basic wiring diagram is shown in Figure 12. No wiring cables for accessories are supplied with KIT PW150/PW200. -
Page 9: Installation
3.3 Installation 3.3.1 Preparation for Motor Installation PW150/PW200 is not applicable to a gate which is inefficient or unsafe, neither to solve the defects due to incorrect installation nor poor maintenance. Check the following items before going for installation: 1). Make sure the weight and dimensions of the gate conform to the operation range of PW150/PW200. Don’t use PW150/PW200 if the gate specifications do not meet the requirements. - Page 10 100 degrees, then the value of “B” is approximate 190mm. **Please make sure “B” and “A” are similar or the same in value that the leaves can be operated smoothly, also to reduce the burden of the motor. INSTRUCTIONS PW150/PW200...
-
Page 11: Installation Of The Gear Motors
8). Please make sure the front plate is completely installed horizontally. Figure 19 Figure 20 9). Refer to Figure 22, the distance between front plate of the motor and rear plate is 640mm (PW150) / 798mm (PW200), the difference in height is 15mm (PW150) / 155mm (PW200). Figure 22... - Page 12 4). Turn the release key clockwise to fix the release bar, the release bar has to be in pulled out position when you turn the release key clockwise Figure30. 5). The turning direction will be reversed for right motor. Figure 28 Figure 29 Figure 30 Figure 27 INSTRUCTIONS PW150/PW200...
-
Page 13: Pks-1 Key Selector
8). Turn the key and insert the shell on the bottom. Turn the key back to the center position and the shell will be fixed to the bottom. 9). Tighten the lock body with the two screws and insert the round cover by pressing it to attach to the whole unit. Figure 3.3.3 (5) Figure 3.3.3 (6) INSTRUCTIONS PW150/PW200... -
Page 14: Ppb-1 Push Button
3.) Connect the wires and penetrate the wires into the hole of the base. See Figure 3.3.5 (3). 4.) Drill the holes in the wall and fix the bottom to the wall by three screws. See Figure 3.3.5 (4). Figure 3.3.5 (1) Figure 3.3.5 (2) Figure 3.3.5 (3) Figure 3.3.5 (4) INSTRUCTIONS PW150/PW200... -
Page 15: Ph-1 Photocells
1). Decide the installation position of the photocells. See Figure 3.3.6 (1). 2). Unscrew the screws and secure the photocells on the post A, B or C. See Figure 3.3.6 (2) and (3). Figure 3.3.6 (1) Figure 3.3.6 (2) Figure 3.3.6 (3) INSTRUCTIONS PW150/PW200... -
Page 16: Pel-1 Electric Latch And Ps-1 Stopper
See Figure 3.3.7 (2) For the gate opened outward. Note: If the gate is opened outward, place the stopper in opposite direction. 3). Drill the 3 marked points, and then securely attach the stopper to the ground with screws and washers. See Figure 3.3.7 (3) INSTRUCTIONS PW150/PW200... - Page 17 2). Weld the back plate of the electric latch to the surface on the master gate. See Figure 3.3.7 (8). Please avoid melting the wires by the heat of the fixed plate. Figure3.3.7(8) For the gate opened inward. Figure3.3.7(9) For the gate opened Outward. INSTRUCTIONS PW150/PW200...
-
Page 18: Technical Characteristics
Figure3.3.7(10) For the gate opened inward. Figure3.3.7(11) For the gate opened Outward. 4). Connect the wires of the electric latch to the terminal LATCH and GND on the PCB. 4) Technical Characteristics 4.1/4.2 PW150 / PW200 PW150 PW200 Motor 24Vdc motor with mechanical release... -
Page 19: Pr-1 Radio Transmitter
3V with one CR2032 button type lithium battery Operating Temperature -20℃~+50℃ Dimension 71.5mm * 33mm * 14mm 4.8 PEL-1 Electric Latch Application For locking the gate. Power Supply 24Vdc Operating Temperature -20℃~+50℃ Operating Current Dimension 61mm * 55mm * 120mm INSTRUCTIONS PW150/PW200... -
Page 20: Declaration Of Conformity
Manufacturer: Timotion Technology Co., Ltd. Address: Shiyong Minying Industrial Zone, Hengli Town, DongGuan City, GuangDong, China Model: PW150; PW200; PR-1 1. Certificate of conformity of a product with the essential requirements art. 3.2 of the R&TTE Directive 1999/5/EC. 2. The above product has been tested with the listed standards and in compliance with the European Directive LVD 2006/95/EC.
