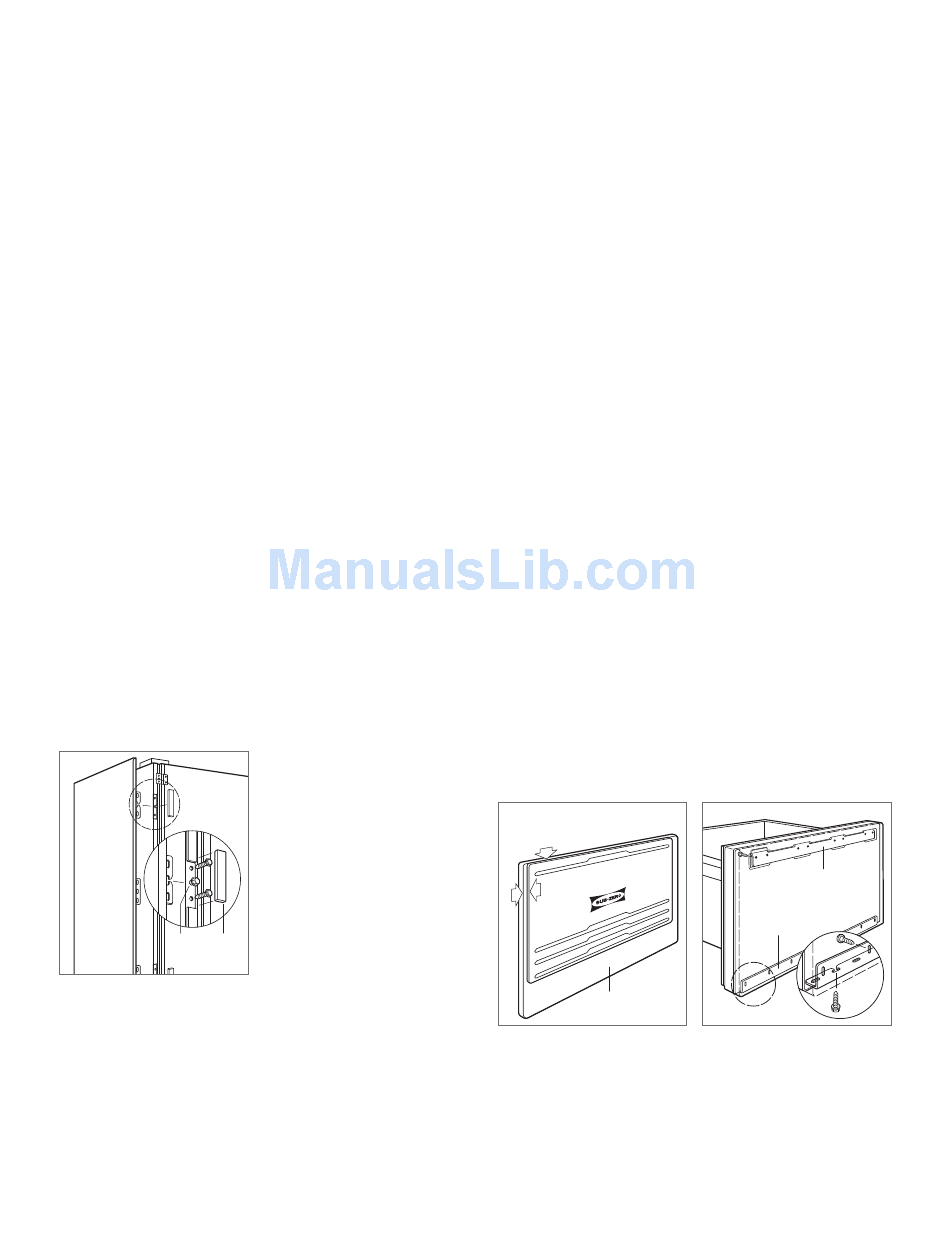

PANEL INSTALLATION

Panel Installation
DOOR PANEL
Remove the mounting hardware attached to the front of the
unit and set aside. Place the panel face down on a pro-
tected work surface.
Place the template provided, on the door panel. Each side
of the template is right- or left-hinge specific. Verify the cor-
rect side is being used, then mark the pilot holes indicated
on the template. Remove template and drill pilot holes. Align
the bracket over the pre-drilled holes and secure with the #8
1
x / " screws provided. With the bracket in position, drill the
2
remaining bracket holes and secure bracket to the panel.
1
Partially insert a #10 x / " screw in the center of the upper
2
and lower mounting positions. These screws will support
the door panel during installation and adjustment. Refer to
the illustration below.
Install the panel by engaging the tabbed bracket to the
handle side of the door, then rotate the panel until the hinge
side bracket engages the positioning screws. The panel can
1
be adjusted / " up and down and side to side.
(6)
4
Once the door panel is properly aligned, attach the
1
remaining #10 x / " screws to the mounting brackets and
2
install the magnetic caps. Refer to the illustration below.
SCREW CAP
Door panel installation.
DRAWER PANELS
Remove the mounting hardware attached to the front of the
unit and set aside. Place the panel face down on a pro-
tected work surface.
Position the top edge of the template flush with the top
edge of the panel. Depending on the height and thickness of
the lower drawer panel, the bracket may need to be inverted
for proper placement. Mark and drill pilot holes, then secure
brackets to panel using the #8 x
to the illustration below.
To help with placement of drawer panels, examine the lower
L-bracket and panel to determine the slotted holes on the
bracket that will be used. Then position screws into the
lower portion of the drawer that correspond with these slots.
Leave the screws out slightly so the slotted holes will slide
under the heads.
Install the panel by engaging the tabbed bracket to the top
of the drawer, then rotate the panel until the lower bracket
is properly positioned below the drawer. The panel can be
1
adjusted / " up and down and side to side.
(6)
4
Once the panel is properly aligned, attach the remaining
1
#10 x / " screws to the mounting bracket.
2
For drawer models, reconnect the control cable before
reinstalling the top drawer. Refer to page 7.
TEMPLATE FLUSH WITH
TOP OF PANEL
SIDE
EDGE GAP
WILL VARY
BACK OF PANEL
Template position.
1
/ " screws provided. Refer
2
TABBED BRACKET
L BRACKET
Drawer panel installation.
|
subzero.com 13
