SITE PREPARATION

Electrical

Installation must comply with all applicable electrical codes.

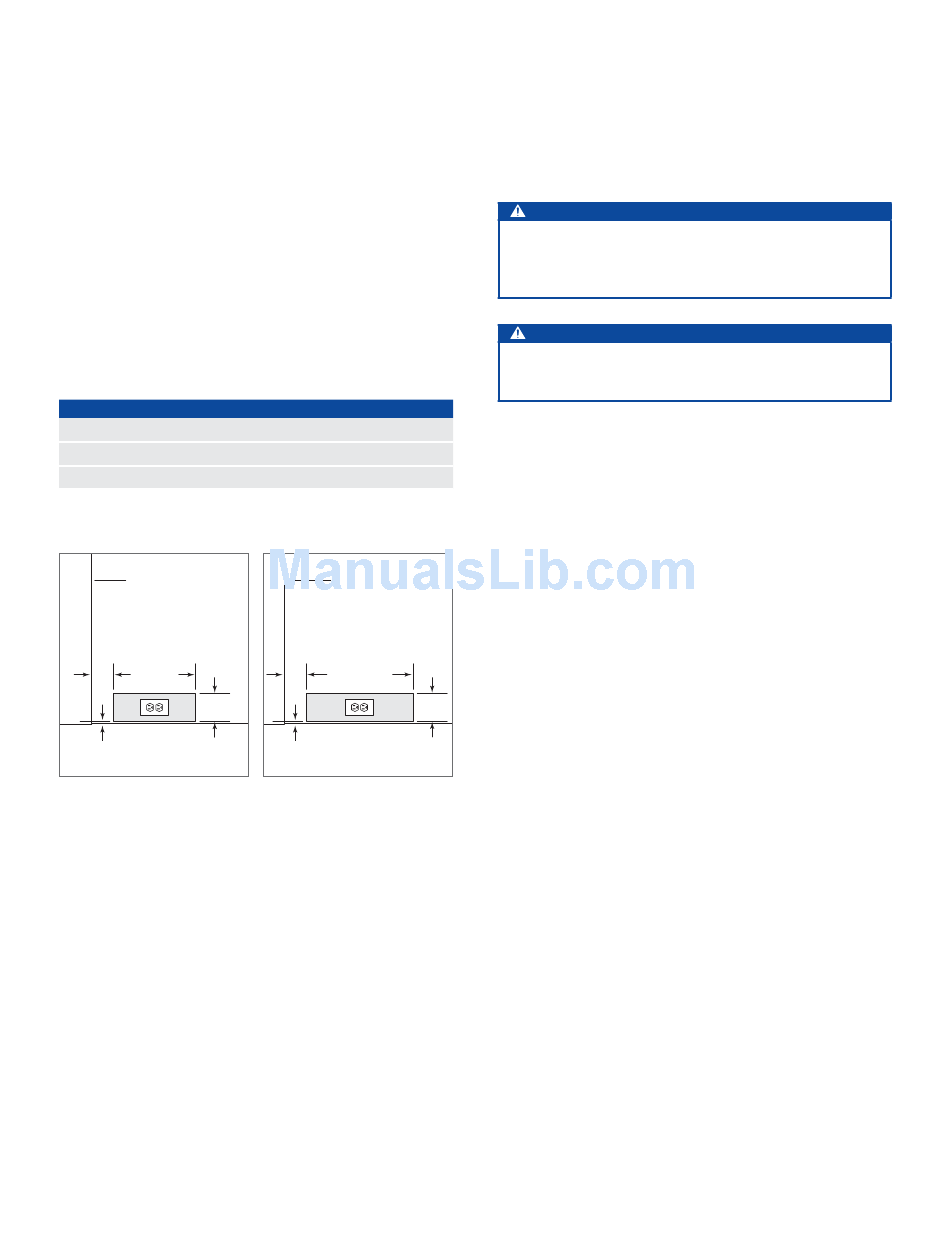

The electrical supply must be located within the shaded
area shown in the illustration and chart below. A separate
circuit, servicing only this appliance is required. A ground
fault circuit interrupter (GFCI) is not recommended and may
cause interruption of operation.
The electrical outlet must be positioned with the grounding
prong to the right of the thinner blades.
ELECTRICAL REQUIREMENTS
Electrical Supply
Service
Receptacle
LEFT SIDE
OF OPENING
1
2 / "
2
(64)
13"
(330)
1
4 / "
2
( 114 )
1 FLOOR
/ "
4
(6)
FRONT VIEW
Electrical—27" models.
115 VAC, 60 Hz
15 amp
3-prong grounding-type
LEFT SIDE
OF OPENING
1
2 / "
2
(64)
1
17 / "
2 (445)
1
4 / "
2
( 114 )
1 FLOOR
/ "
4
(6)
FRONT VIEW
Electrical—36" models.
CAUTION
The outlet must be checked by a qualified electrician to
be sure that it is wired with the correct polarity. Verify
that the outlet is properly grounded.
WARNING
Do not use an extension cord, two-prong adapter or
remove the power cord ground prong.
|
