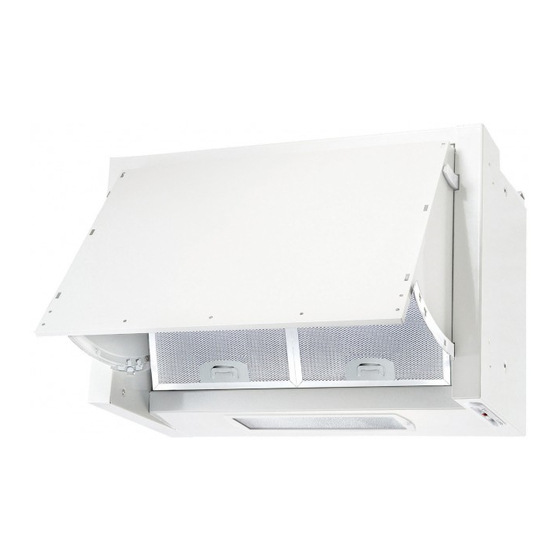

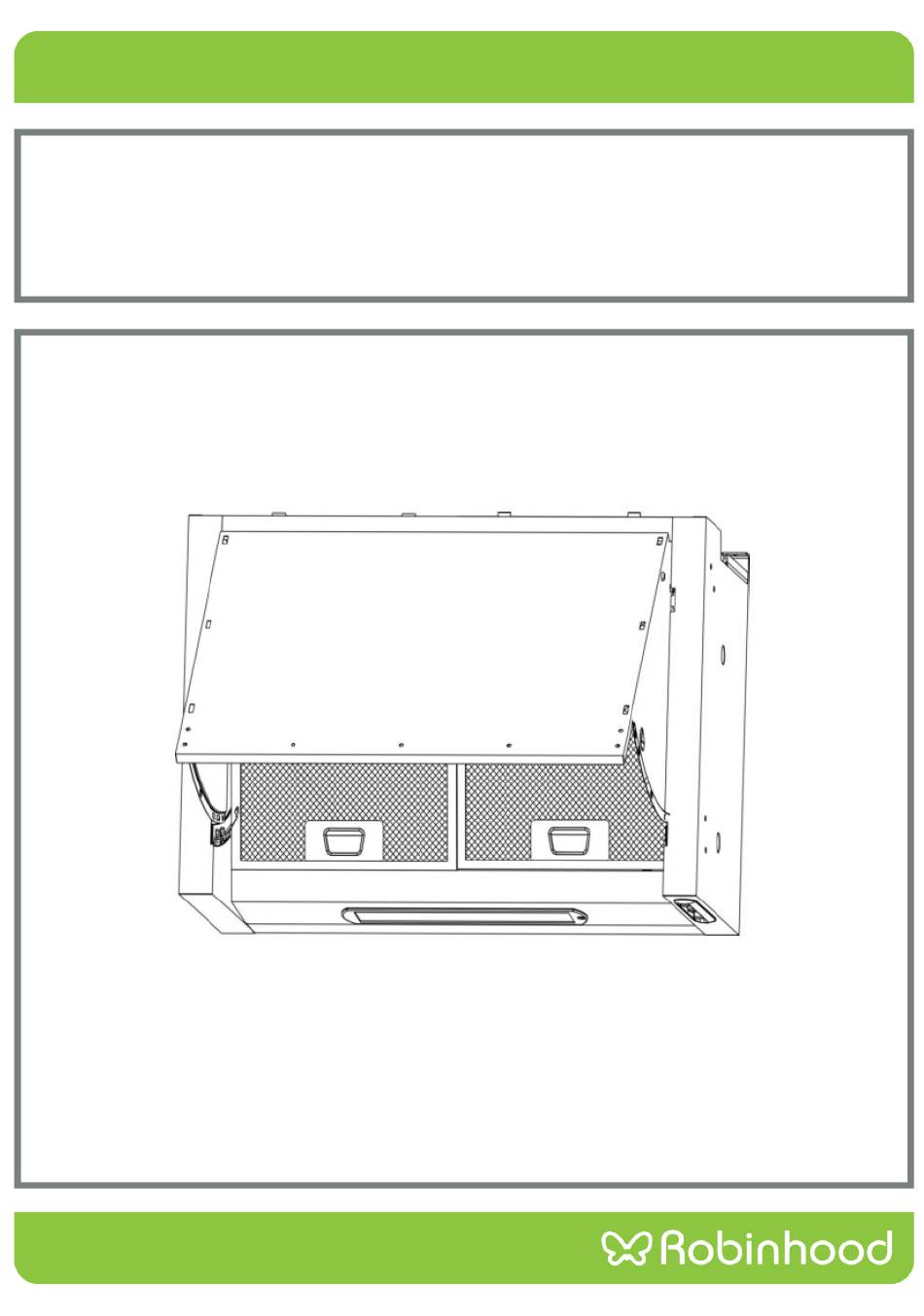

- Page 1 Installation and Operating Instructions Issue 5 Issue Description : Robinhood Tilterhood Rangehood Model Number : RTA3CI6WH *Actual unit may vary from above model pictured...
-
Page 2: Table Of Contents
Contents Congratulations! Thank you for choosing one of our appliances. Before you use the appliance, we strongly recommend that you read through the whole user manual which provides important safety instructions and description of the product and the proper use of its functions. To avoid the ever‐present risks involved with using an electrical appliance it is vital that the oven is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards. -
Page 3: Important Safety Instructions
Important Safety Instructions IMPORTANT: Read the assembly instruction section and safety precautions of this booklet carefully before removing the contents of this carton. All electrical work must be done by a registered electrician in accordance with local and national electrical codes as applicable. If the supply cord of this equipment is damaged, it must only be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. -
Page 4: Appliance Details
Appliance Details Voltage & Frequency: 220-240Vac 50Hz Lamp Max: 2 x 40W Rated Input Power: 320 W • All dimensions in mm • Actual width of unit is 598mm • Model may vary slightly from images pictured • Ducting outlet suitable for 125mm ducting Contents of packaging: Typical equipment required: •... -
Page 5: Installation Instructions
3 metres, with one 90 degree bend. Some authorities require rangehoods to be vented outside. Ducted models should comply with this requirement in every respect. Please note that this chart is designed as a guide. Please consult Robinhood customer services if unsure. - Page 6 Installation Instructions When installing the rangehood, the lower edge of the unit must be a minimum of 600mm (650mm for gas cooker) above the cooking range. The recommended position for the hood is 650mm above the hotplates. Pictured: Minimum height from the hob surface to the underside face of the rangehood is 600mm for electric hob, 650mm for gas hob.
- Page 7 Installation Instructions Mounting the Rangehood IMPORTANT: YOU WILL HAVE TO DECIDE BEFORE INSTALLING YOUR RANGEHOOD WHETHER TO USE IT IN EXTRACTION MODE OR RECIRCULATION MODE. We recommend that at least two people install this hood. • • Your rangehood should only be fitted to a wall and secured between two cupboards. IMPORTANT: YOUR RANGEHOOD SHOULD NOT BE CONNECTED TO YOUR MAINS SUPPLY UNTIL THE INSTALLATION PROCESS HAS BEEN COMPLETED.
- Page 8 Installation Instructions 4. Measure a distance of 1050 mm between the highest point on the hob top and the wall that you will be fixing the hood to. You should also measure and record the distance between the top of the extractor mounting brackets (D). Using a pencil, mark this height and then attach the two mounting brackets (G) to the wall at this height, using the screws provided.
-
Page 9: Operation Instructions
Operation Instructions Controls Light The light can be operated independently by sliding the light switch on/off despite the working status of the fan. Please refer to the icon on switch panel. The fan is operated by sliding the power switch on. It can be run at three different speeds (Speed 1 / Speed 2 / Speed 3) depending on the cooking requirements. -
Page 10: Cleaning And Maintenance
Cleaning and Maintenance Switch off the rangehood before cleaning or maintenance. To prevent surface damage never use abrasive or oil based liquid cleaners. To clean the surfaces of the appliance, use mild detergent and warm water. In areas of high humidity and coastal environments cleaning should be carried out frequently. - Page 11 Cleaning and Maintenance Fitting the Charcoal Filters IMPORTANT: BEFORE ATTEMPTING TO FIT OR REMOVE THE CHARCOAL FILTERS, YOU MUST ENSURE THAT YOU HAVE DISCONNECTED THE TILTERHOOD FROM YOUR MAINS SUPPLY. Remove the aluminium filters by opening the front cover and removing the filters by lifting the filter handles and then pull the filters upwards away from the main body of the rangehood.
-
Page 12: Warranty Certificate (New Zealand)
The following conditions apply in respect of the warranty given in this certificate: 1. Monaco Corporation Limited (“Monaco”) warrants the following Robinhood products against manufacturing defects and faulty materials, under normal use and subject to the exclusions in this certificate, for a period of: Rangehood, Ovens, Cooktops, Dishwashers - 24 months from date of original purchase for domestic use. -
Page 13: Warranty Certificate (Australia)
This warranty is given by: Shriro Australia Pty Ltd ABN 28 002 386 129 Telephone: 1800 648 556 Facsimile: 1800 628 577 Email: customercare@shriro.com.au www.robinhood.com.au Attention: Customer Services Manager Warranty exclusions The warranty does not apply where, in Shriro’s opinion: •...
